Samsung Galaxy Tab A 10.1 (2016)

Samsung Galaxy Tab A 10.1 (2016)

Android 6.0

Set up your tablet for internet

Read help info

The internet connection is shared by many functions on your tablet such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your tablet for internet manually.

Step 1 of 21

1. Find "Access Point Names"

Slide your finger downwards starting from the top of the screen.

Step 2 of 21

1. Find "Access Point Names"

Press the settings icon.

Step 3 of 21

1. Find "Access Point Names"

Press Mobile networks.

Step 4 of 21

1. Find "Access Point Names"

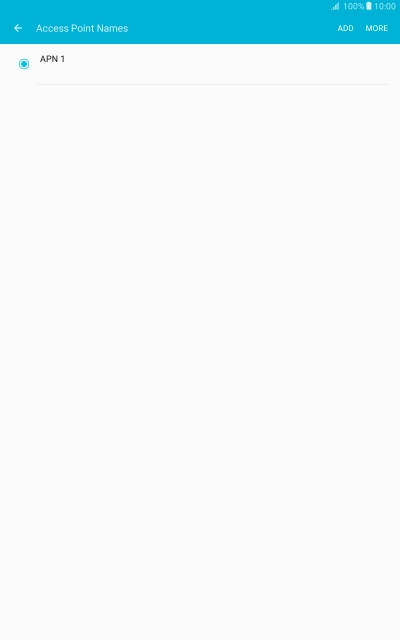

Press Access Point Names.

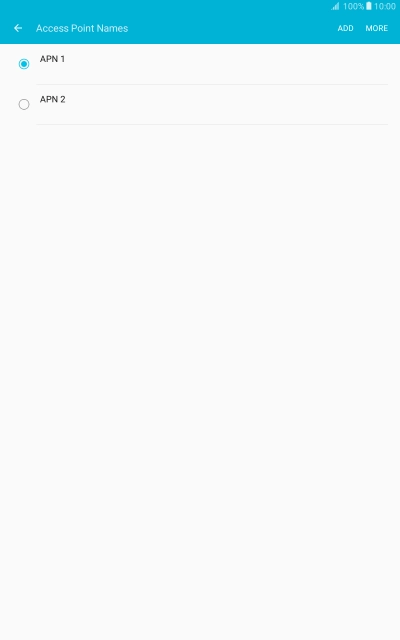

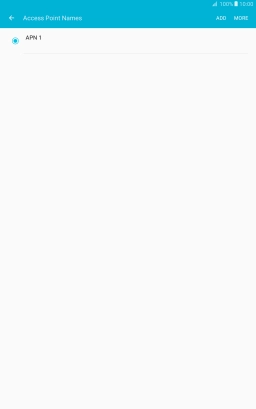

Step 5 of 21

2. Create new data connection

Press ADD.

Step 6 of 21

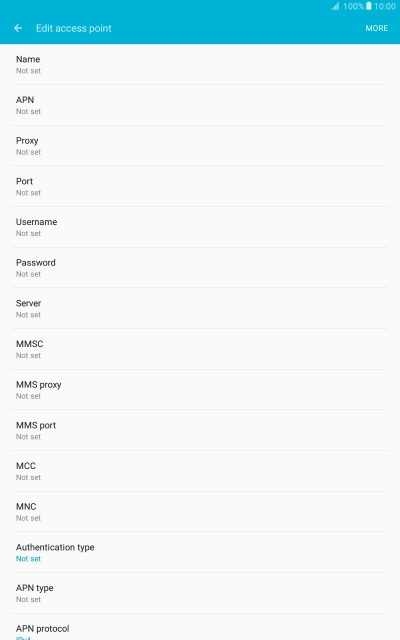

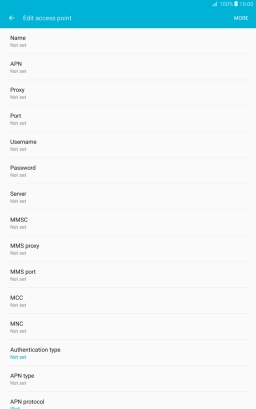

2. Create new data connection

Press Name.

One NZ Internet
Step 7 of 21

2. Create new data connection

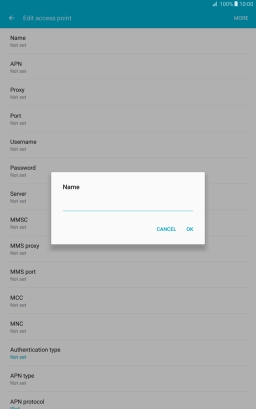

Key in One NZ Internet and press OK.

Step 8 of 21

3. Enter APN

Press APN.

vodafone
Step 9 of 21

3. Enter APN

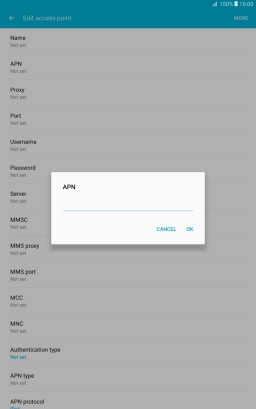

Key in vodafone and press OK.

Step 10 of 21

4. Enter country code

Press MCC.

530

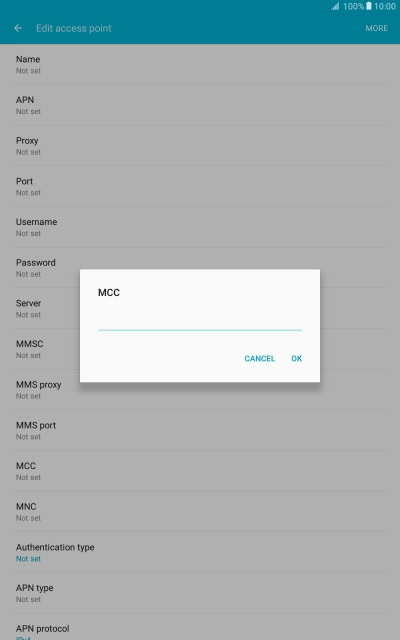

Step 11 of 21

4. Enter country code

Key in 530 and press OK.

Step 12 of 21

5. Enter network code

Press MNC.

01

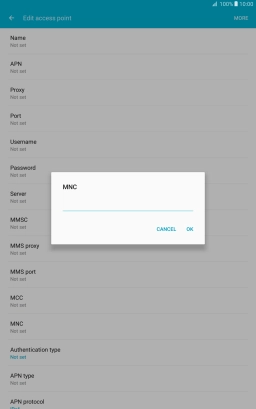

Step 13 of 21

5. Enter network code

Key in 01 and press OK.

Step 14 of 21

6. Select authentication type

Press Authentication type.

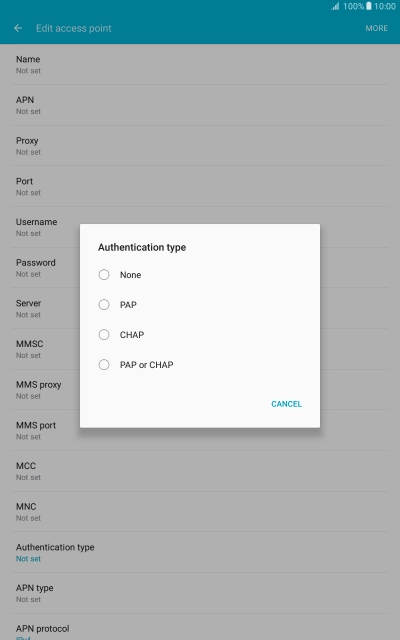

Step 15 of 21

6. Select authentication type

Press PAP.

Step 16 of 21

7. Select APN type

Press APN type.

default
Step 17 of 21

7. Select APN type

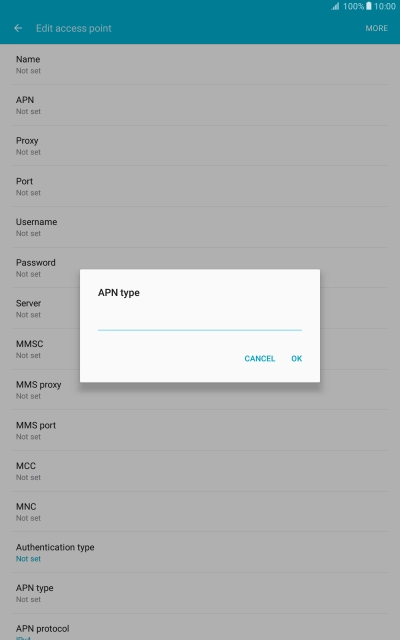

Key in default and press OK.

Step 18 of 21

8. Save data connection

Press MORE.

Step 19 of 21

8. Save data connection

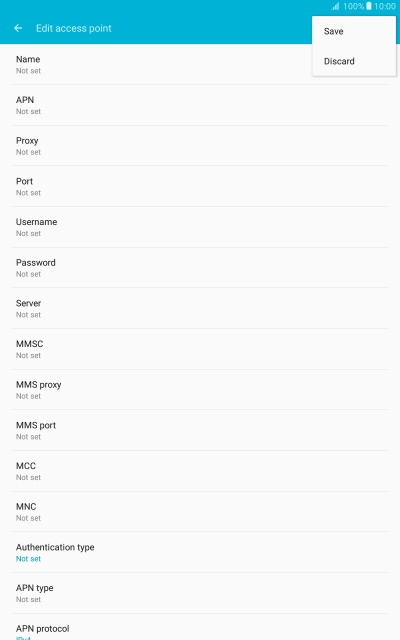

Press Save.

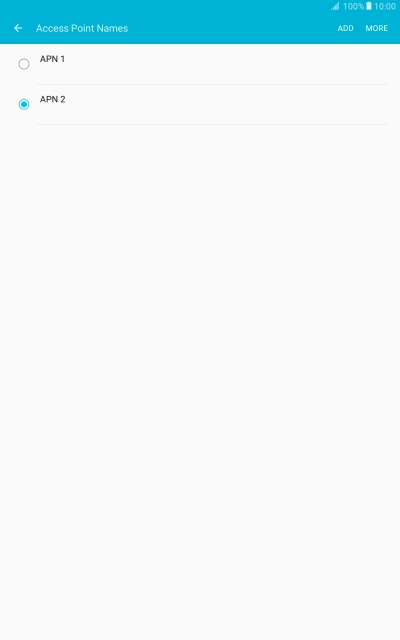

Step 20 of 21

8. Save data connection

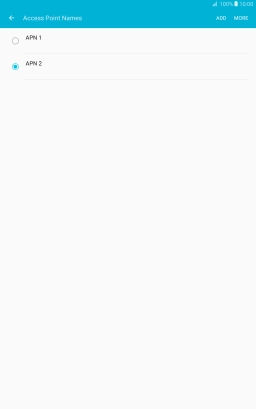

Press the field next to the data connection to activate it.

Step 21 of 21

9. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press ADD.
Press Name.
Key in One NZ Internet and press OK.
One NZ Internet

3. Enter APN

Press APN.
Key in vodafone and press OK.
vodafone

4. Enter country code

Press MCC.
Key in 530 and press OK.
530

5. Enter network code

Press MNC.
Key in 01 and press OK.
01

6. Select authentication type

Press Authentication type.
Press PAP.

7. Select APN type

Press APN type.
Key in default and press OK.
default

8. Save data connection

Press MORE.
Press Save.
Press the field next to the data connection to activate it.

9. Return to the home screen

Press the Home key to return to the home screen.
