Samsung Galaxy Tab 7.7

Samsung Galaxy Tab 7.7

How to guides

Set up your device for POP3 email

If you're using a POP3 email account in your email application on your computer, you can also set it up on your device. Follow these instructions to set up your device for POP3 email.
Please note that these instructions are based on a POP3 email account. If you have a web-based email account, such as Hotmail, Yahoo! Mail or Gmail, you need to use the settings for web-based email. Click here for information on how to the set up your device for web-based email.

Step 1 of 52

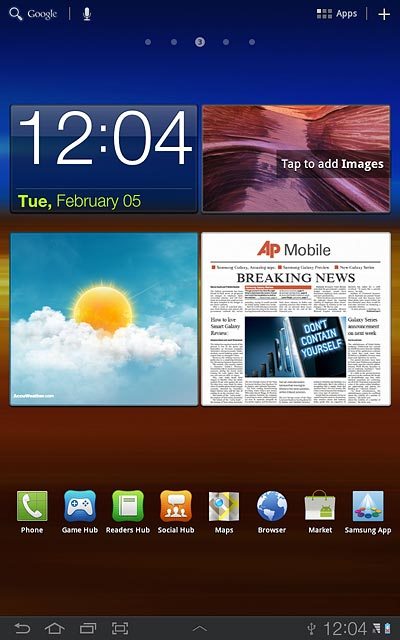

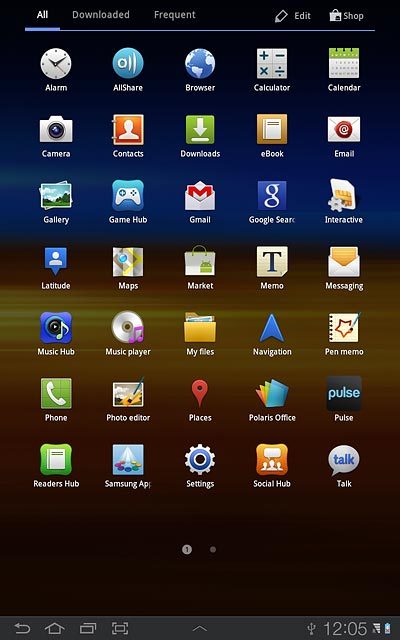

Press Apps.

Step 2 of 52

Press Settings.

Step 3 of 52

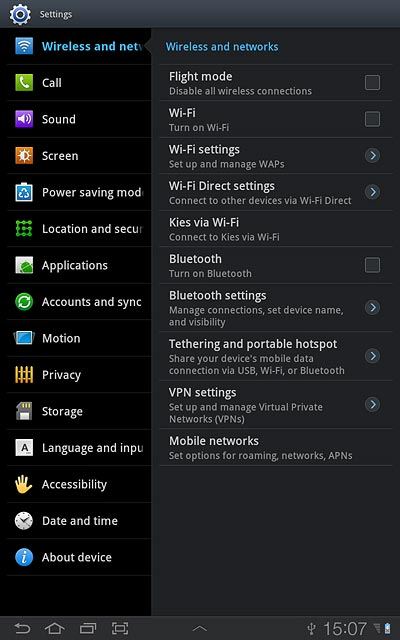

Press Wireless and networks.

Step 4 of 52

Press Mobile networks.

Step 5 of 52

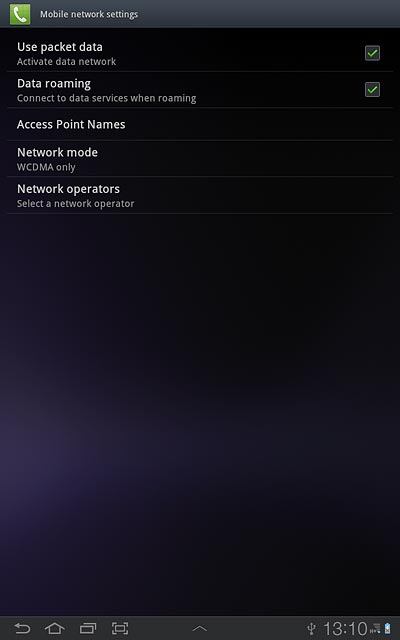

Press Access Point Names.

Step 6 of 52

Press the menu icon.

Step 7 of 52

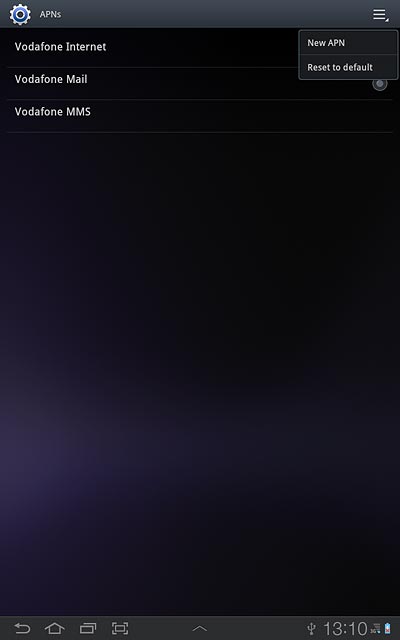

Press New APN.

Step 8 of 52

Press Name.

Step 9 of 52

Key in the required name and press OK.

Step 10 of 52

Press APN.

An APN is used to establish a data connection.
Step 11 of 52

Key in www.vodafone.net.nz and press OK.

An APN is used to establish a data connection.
Step 12 of 52

Press MCC.

Step 13 of 52

Key in 530 and press OK.

Step 14 of 52

Press MNC.

Step 15 of 52

Key in 01 and press OK.

Step 16 of 52

Press Authentication type.

Step 17 of 52

Press PAP.

Step 18 of 52

Press APN type.

Step 19 of 52

Press Internet.

Step 20 of 52

Press the menu icon.

Step 21 of 52

Press Save.

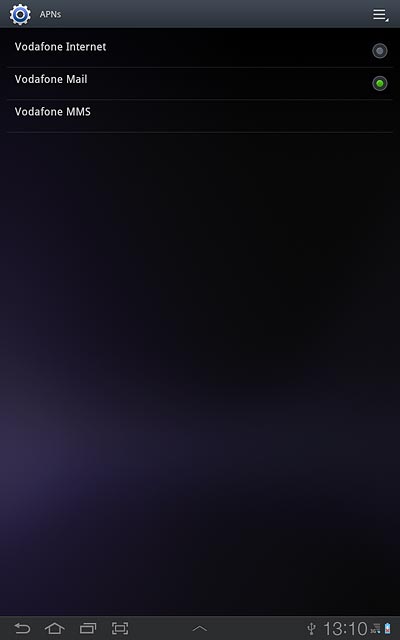

Step 22 of 52

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 52

Press the home icon to return to standby mode.

Step 24 of 52

Press Apps.

If email accounts have been created already, press the menu icon. Press Settings. Press Add account.
Step 25 of 52

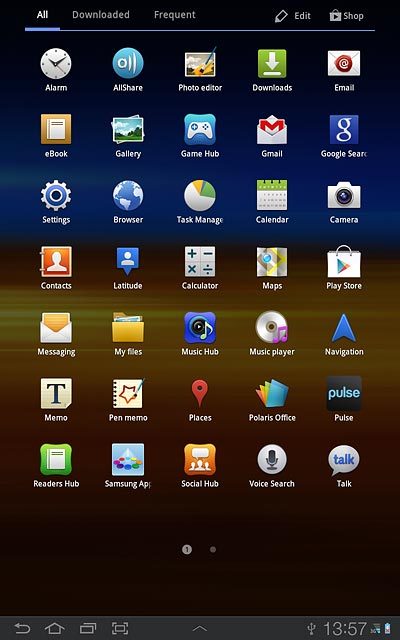

Press Email.

If email accounts have been created already, press the menu icon. Press Settings. Press Add account.
Samsung Galaxy Tab 7.7

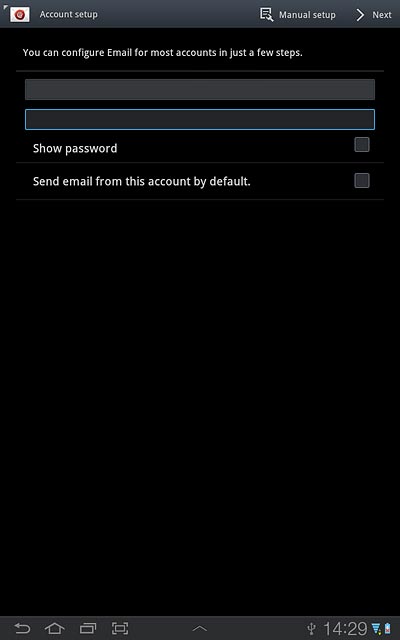

Step 26 of 52

Key in your email address.

Step 27 of 52

Press Password and key in the password for your email account.

Step 28 of 52

Press Next.

Step 29 of 52

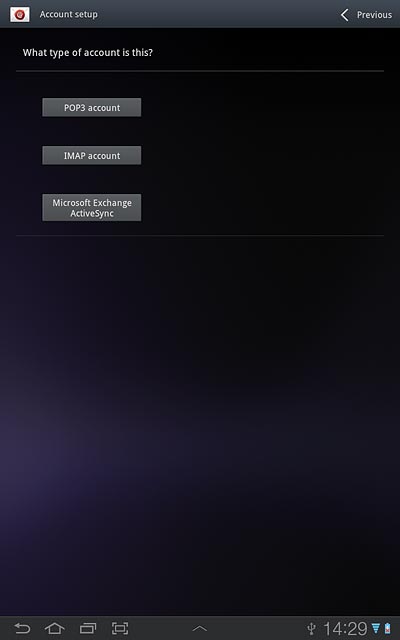

Press POP3 account.

Samsung Galaxy Tab 7.7
Step 30 of 52

Key in the username for your email account.

Step 31 of 52

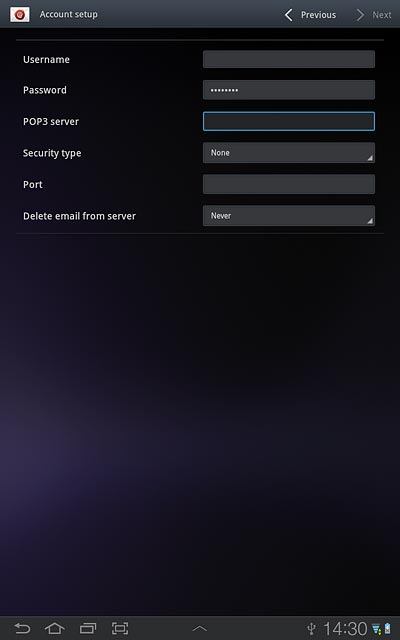

Press the field next to POP3 server and key in the name or IP address of your email provider's incoming server.

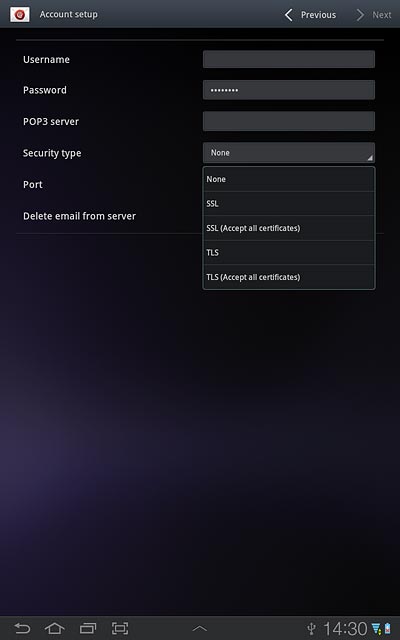

Step 32 of 52

Press the drop down list next to Security type.

Step 33 of 52

Press None.

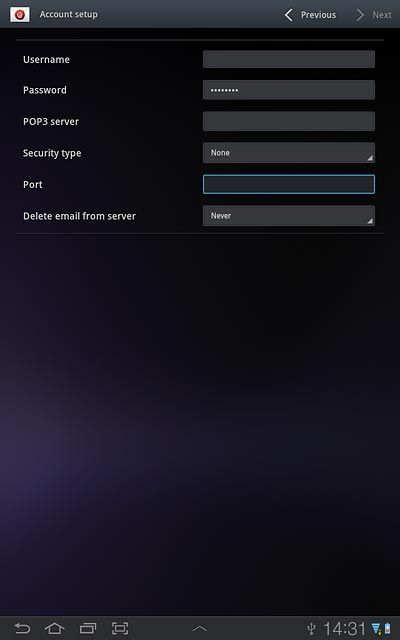

Step 34 of 52

Press the field next to Port and key in 110

Step 35 of 52

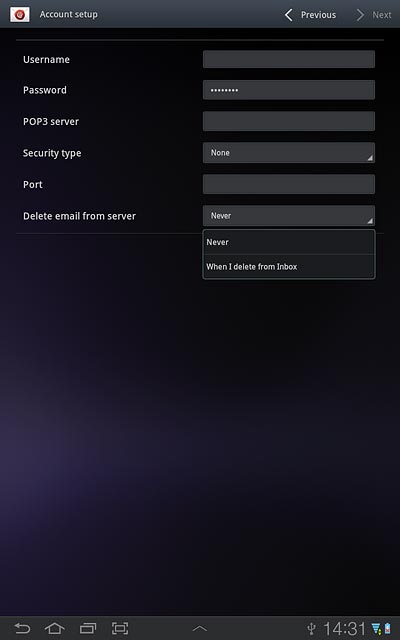

Press the drop down list next to Delete email from server.

Step 36 of 52

Press Never or When I delete from Inbox.

Step 37 of 52

Press Next.

Samsung Galaxy Tab 7.7
Step 38 of 52

Key in the name or IP address of your email provider's outgoing server.

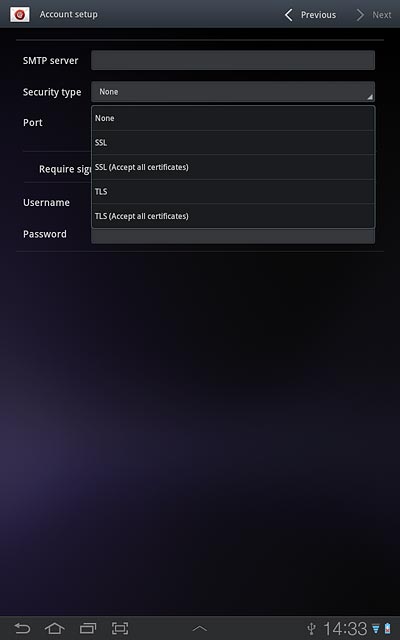

Step 39 of 52

Press the drop down list next to Security type.

Step 40 of 52

Press None.

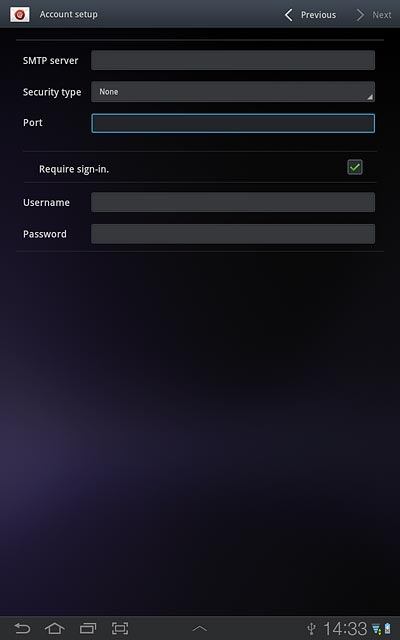

Step 41 of 52

Press the field next to Port and key in 25

Step 42 of 52

Press Require sign-in to turn SMTP authentication on or off.

Step 43 of 52

If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Press Next.

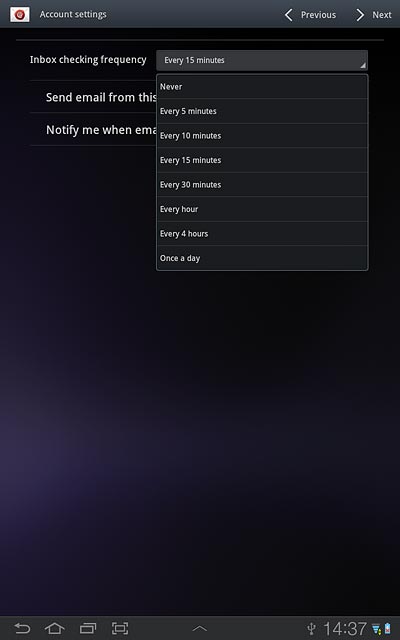

Step 44 of 52

Press the drop down list next to Inbox checking frequency.

Step 45 of 52

Press Never or the required setting.

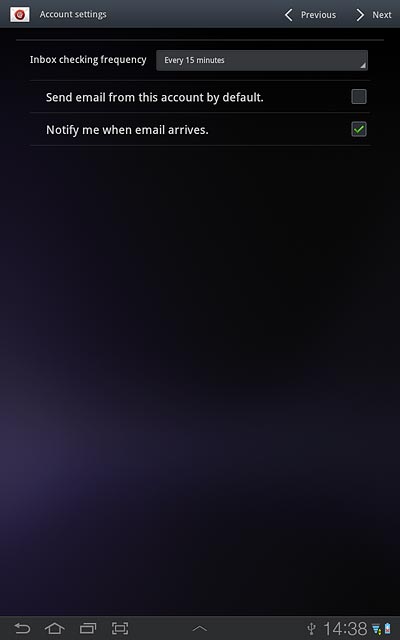

Step 46 of 52

Press Notify me when email arrives to turn the function on or off.

Step 47 of 52

When the box next to the menu item is ticked (V), the function is turned on.

Step 48 of 52

Press Next.

Samsung Galaxy Tab 7.7
Step 49 of 52

Key in a name for the email account.

Step 50 of 52

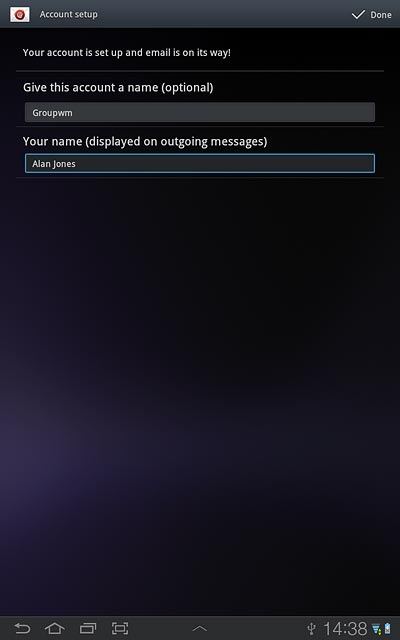

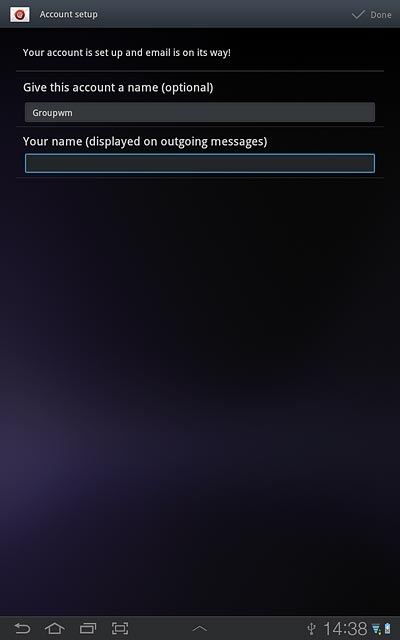

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Step 51 of 52

Press Done.

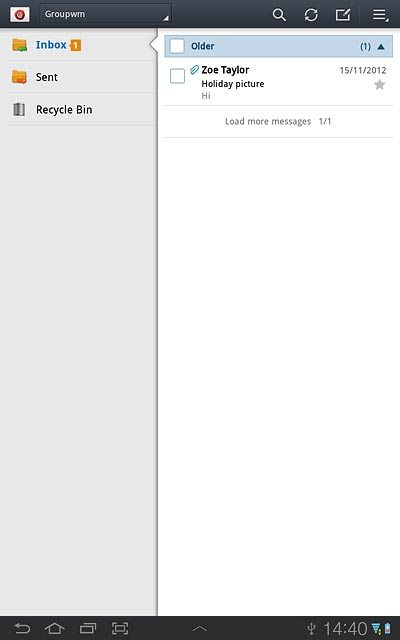

Wait while your device retrieves new email messages.

Step 52 of 52

Press the home icon to return to standby mode.

1. Find "Access Point Names"

Press Apps.
Press Settings.
Press Wireless and networks.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press the menu icon.
Press New APN.

3. Enter data connection name

Press Name.
Key in the required name and press OK.

4. Enter APN

Press APN.
An APN is used to establish a data connection.
Key in www.vodafone.net.nz and press OK.
An APN is used to establish a data connection.

5. Enter country code

Press MCC.
Key in 530 and press OK.

6. Enter network code

Press MNC.
Key in 01 and press OK.

7. Select authentication type

Press Authentication type.
Press PAP.

8. Select APN type

Press APN type.
Press Internet.

9. Save and activate data connection

Press the menu icon.
Press Save.
Press the field next to Vodafone Mail to fill in the field.
Press the home icon to return to standby mode.

10. Find "Email"

Press Apps.
If email accounts have been created already, press the menu icon. Press Settings. Press Add account.
Press Email.
If email accounts have been created already, press the menu icon. Press Settings. Press Add account.

11. Enter email address

Key in your email address.
Samsung Galaxy Tab 7.7

12. Enter password

Press Password and key in the password for your email account.
Press Next.

13. Select server type

Press POP3 account.

14. Enter username

Key in the username for your email account.
Samsung Galaxy Tab 7.7

15. Enter incoming server

Press the field next to POP3 server and key in the name or IP address of your email provider's incoming server.

16. Turn encryption of incoming email messages on or off

Press the drop down list next to Security type.
Press None.

17. Enter incoming port

Press the field next to Port and key in 110

18. Turn deletion of email messages on server on or off

Press the drop down list next to Delete email from server.
Press Never or When I delete from Inbox.
Press Next.

19. Enter outgoing server

Key in the name or IP address of your email provider's outgoing server.
Samsung Galaxy Tab 7.7

20. Turn encryption of outgoing email messages off

Press the drop down list next to Security type.
Press None.

21. Enter outgoing port

Press the field next to Port and key in 25

22. Turn SMTP authentication on or off

Press Require sign-in to turn SMTP authentication on or off.
If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Press Next.

23. Select setting for retrieving new email messages

Press the drop down list next to Inbox checking frequency.
Press Never or the required setting.

24. Turn email message notification on or off

Press Notify me when email arrives to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.
Press Next.

25. Enter email account name

Key in a name for the email account.
Samsung Galaxy Tab 7.7

26. Enter sender name

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

27. Retrieve email messages

Press Done.
Wait while your device retrieves new email messages.

28. Exit

Press the home icon to return to standby mode.
