Samsung Galaxy Xcover 5
Set up your phone for internet
The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.
Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Connections.
Press Mobile networks.

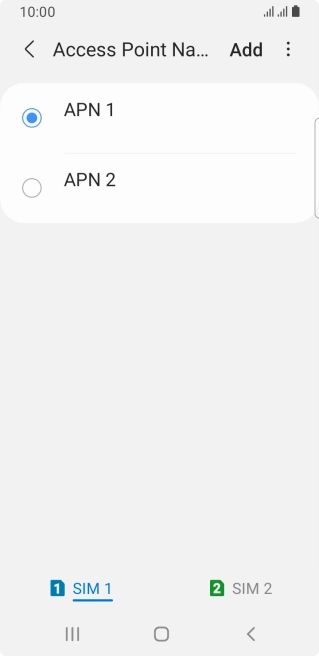

Press Access Point Names.
Press the required SIM.
Press Add.
Press Name.
Key in Vodafone Internet and press OK.
Press APN.
Key in vodafone and press OK.

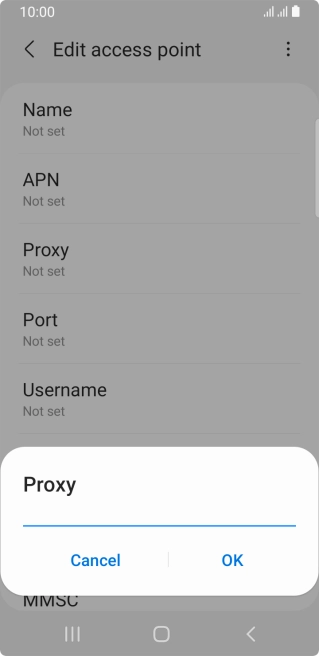

Press Proxy.
Key in 172.030.038.003 and press OK.

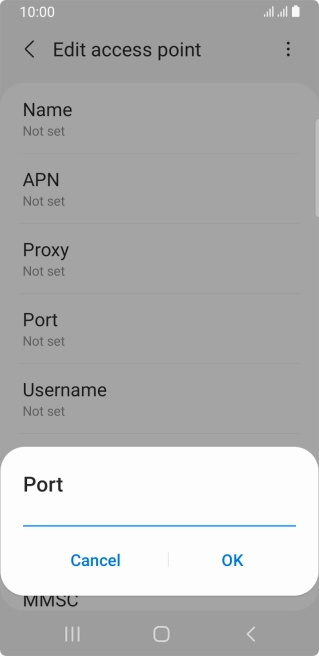

Press Port.
Key in 8080 and press OK.
Press MCC.
Key in 530 and press OK.
Press MNC.
Key in 01 and press OK.
Press Authentication type.
Press PAP.
Press APN type.
Key in default and press OK.
Press the menu icon.
Press Save.

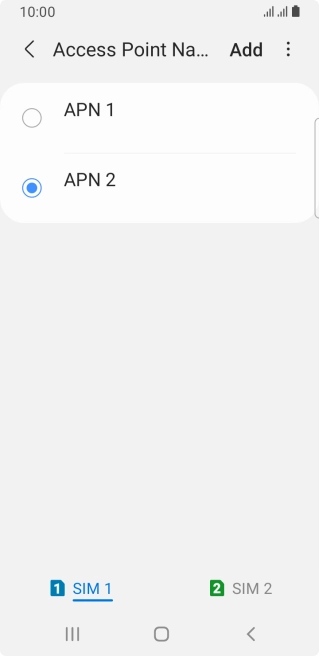

Press the field next to the data connection to activate it.
Press the Home key to return to the home screen.
1. 1. Find "Access Point Names"
2. 2. Create new data connection
3. 3. Enter APN
4. 4. Enter IP address
5. 5. Enter port number
6. 6. Enter country code
7. 7. Enter network code
8. 8. Select authentication type
9. 9. Enter APN type
10. 10. Save data connection
11. 11. Return to the home screen
