Samsung Galaxy Xcover 2

Samsung Galaxy Xcover 2

How to guides

Set up your phone for internet

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 24

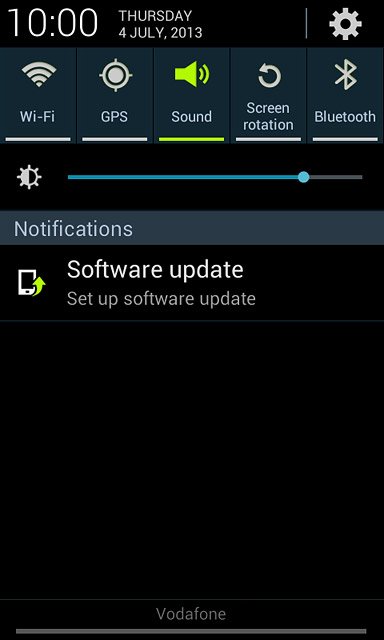

Slide your finger down the display starting from the top edge of your phone.
Press the settings icon.

Step 2 of 24

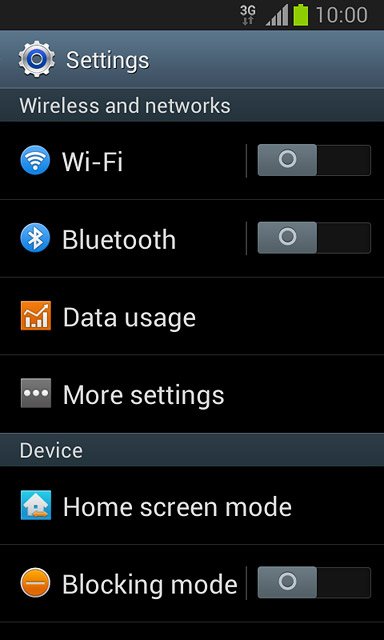

Press More settings.

Step 3 of 24

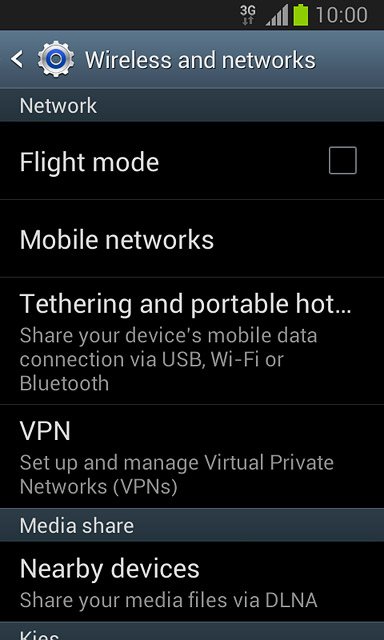

Press Mobile networks.

Step 4 of 24

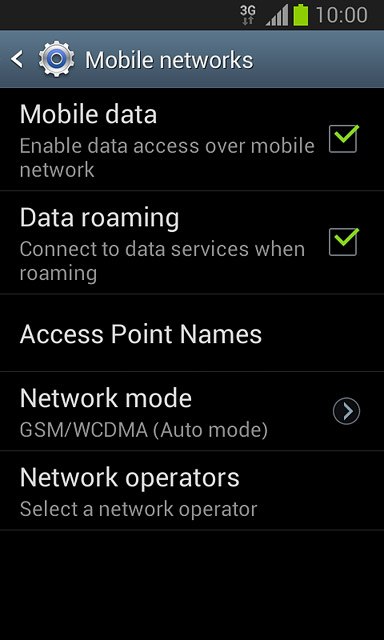

Press Access Point Names.

Step 5 of 24

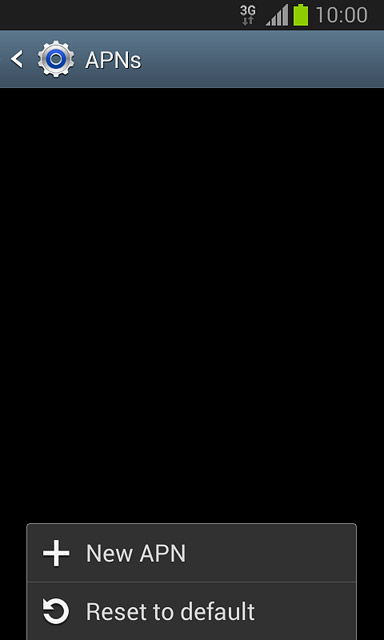

Press the Menu key.

Step 6 of 24

Press New APN.

Step 7 of 24

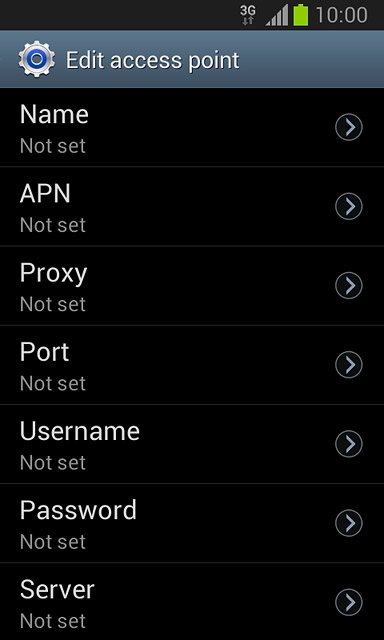

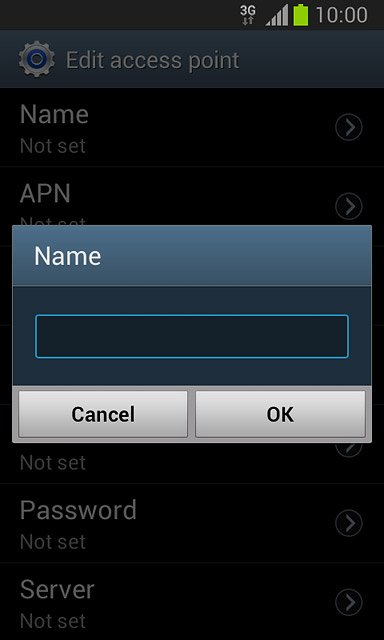

Press Name.

Step 8 of 24

Key in Vodafone Internet and press OK.

Step 9 of 24

Press APN.

Step 10 of 24

Key in www.vodafone.net.nz and press OK.

Step 11 of 24

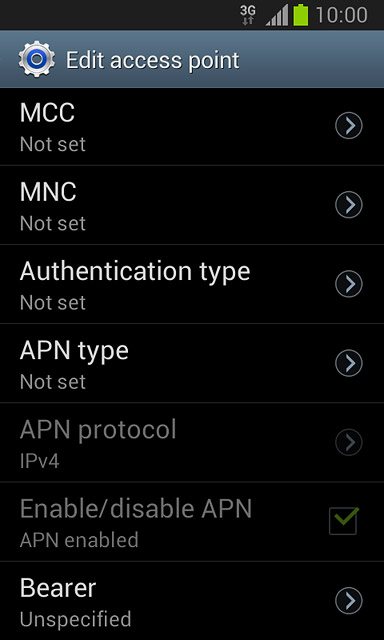

Press MCC.

Step 12 of 24

Key in 530 and press OK.

Step 13 of 24

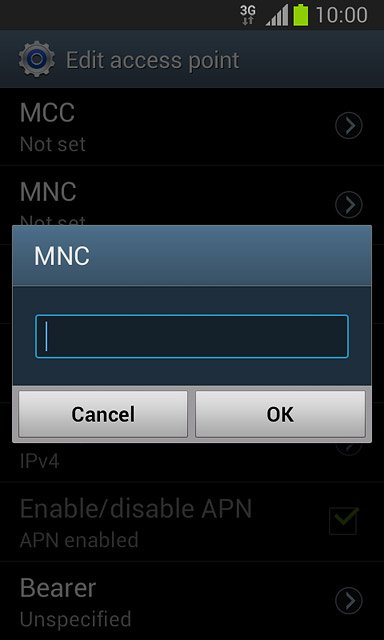

Press MNC.

Step 14 of 24

Key in 01 and press OK.

Step 15 of 24

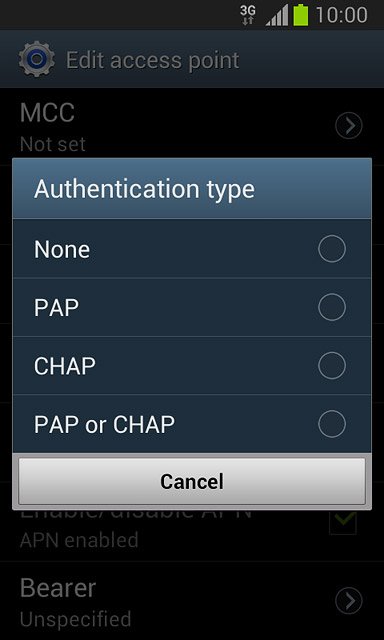

Press Authentication type.

Step 16 of 24

Press PAP.

Step 17 of 24

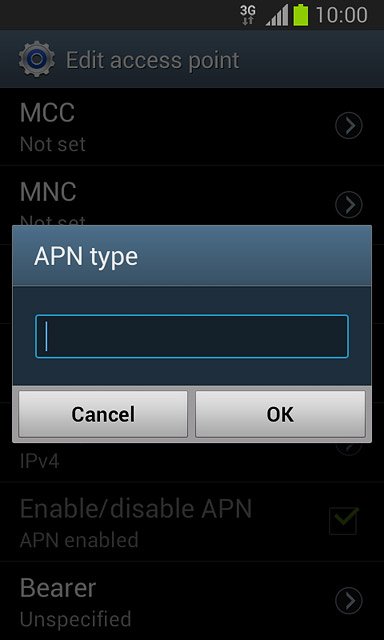

Press APN type.

Step 18 of 24

Key in default and press OK.

Step 19 of 24

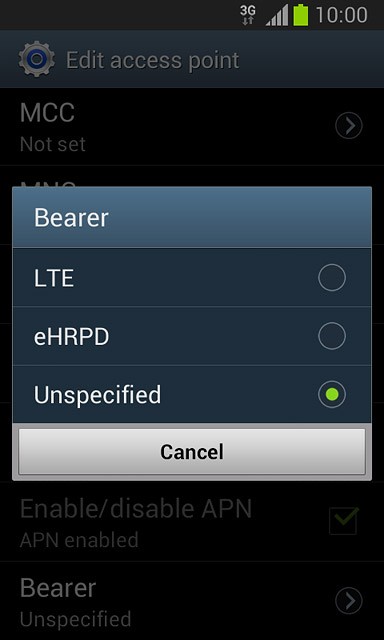

Press Bearer.

Step 20 of 24

Press Unspecified.

Step 21 of 24

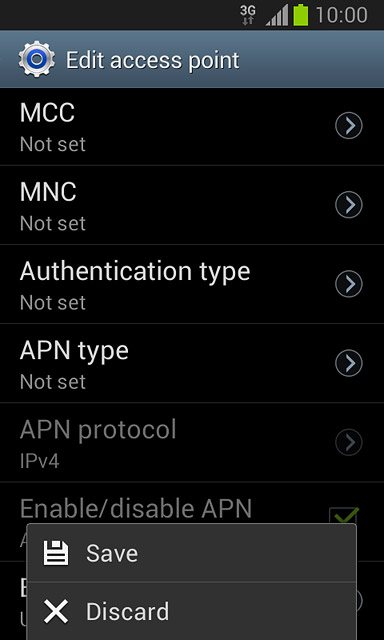

Press the Menu key.

Step 22 of 24

Press Save.

Step 23 of 24

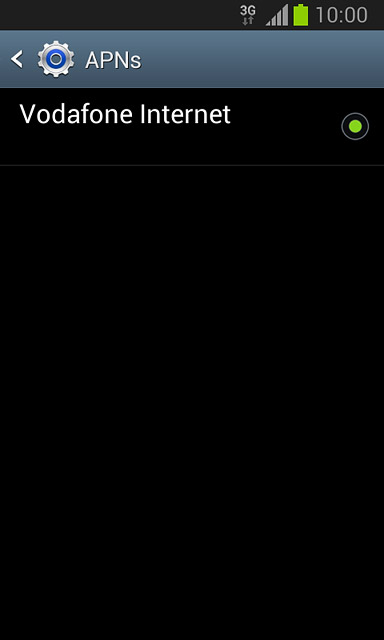

Press the field next to the data connection to fill in the field.

Step 24 of 24

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide your finger down the display starting from the top edge of your phone.
Press the settings icon.
Press More settings.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press the Menu key.
Press New APN.

3. Enter data connection name

Press Name.
Key in Vodafone Internet and press OK.

4. Enter APN

Press APN.
Key in www.vodafone.net.nz and press OK.

5. Enter country code

Press MCC.
Key in 530 and press OK.

6. Enter network code

Press MNC.
Key in 01 and press OK.

7. Select authentication type

Press Authentication type.
Press PAP.

8. Select APN type

Press APN type.
Key in default and press OK.

9. Select data bearer

Press Bearer.
Press Unspecified.

10. Save and activate data connection

Press the Menu key.
Press Save.
Press the field next to the data connection to fill in the field.

11. Return to the home screen

Press the Home key to return to the home screen.
