![Samsung Galaxy Tab S9+ 5G](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-f4a2c851-d0a9-4631-ba88-bc3ee898f0ac.png?width=150&height=320)
Samsung Galaxy Tab S9+ 5G
Android 13
Set up your tablet for picture messaging
A picture message is a message which can contain pictures and other media files and can be sent to other tablets and mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your tablet for picture messaging manually.
1. 1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-c82aca1b-a48c-4d14-bb72-8b856b65628c.png?width=280&height=446)

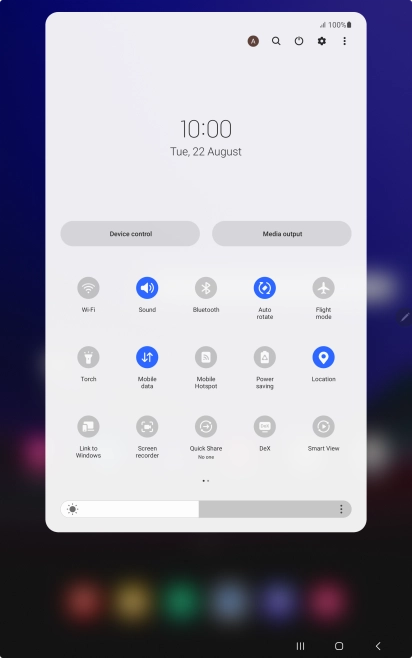

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-87245ce7-5324-4b2e-98d6-5502a9ab360b.png?width=280&height=446)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-e4f12fa3-0885-4e05-9cd2-2a85b5fbd41e.png?width=280&height=446)

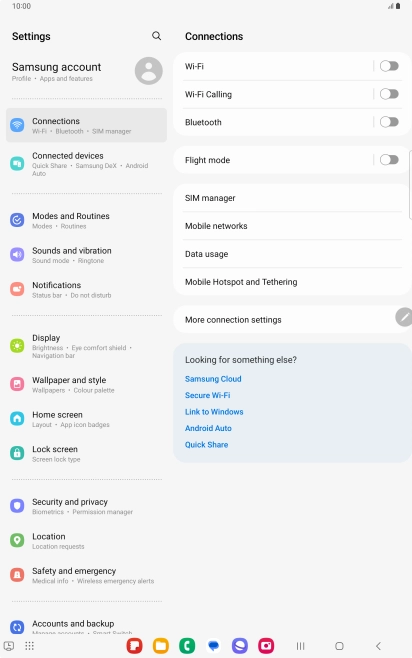

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-7ec1efd9-171b-4957-b6ba-e219a31326db.png?width=280&height=446)

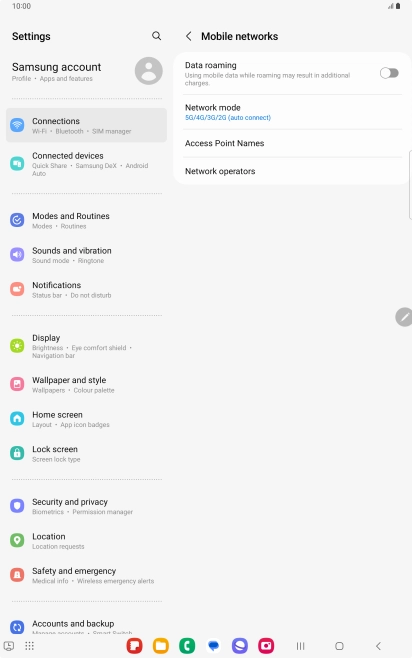

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-c5af9610-723d-4130-887b-1c614dd94f05.png?width=280&height=446)
2. 2. Create new data connection

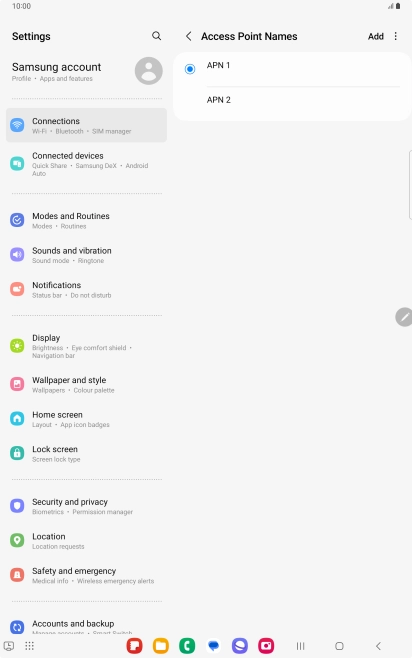

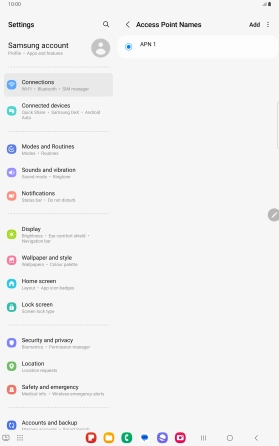

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-312fb623-7b87-45bb-aa8e-d7cc2aea762a.png?width=280&height=446)

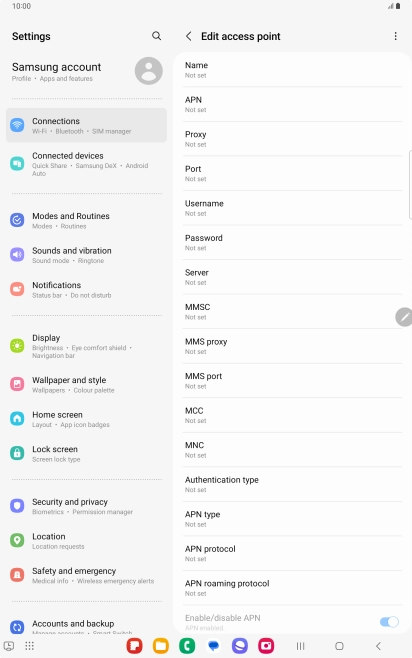

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b44f9570-78ec-4a69-b160-c0ddb043b1bd.png?width=280&height=446)
Key in One NZ MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-00c4fa22-380d-4fa1-aefc-15b2fb32d9b1.png?width=280&height=446)
One NZ MMS
3. 3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b44f9570-78ec-4a69-b160-c0ddb043b1bd.png?width=280&height=446)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-ac791534-e3ba-42ed-ab86-62586da5b647.png?width=280&height=446)
live.vodafone.com
4. 4. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b44f9570-78ec-4a69-b160-c0ddb043b1bd.png?width=280&height=446)
Key in http://pxt.vodafone.net.nz/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-356e6d38-51d4-4a02-8915-14d44fa6f7e5.png?width=280&height=446)
http://pxt.vodafone.net.nz/pxtsend
5. 5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b44f9570-78ec-4a69-b160-c0ddb043b1bd.png?width=280&height=446)

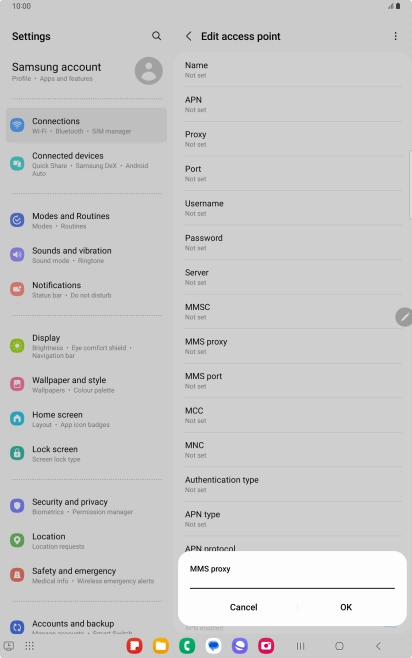

Key in 172.030.038.003 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-49c1da1f-ee24-471d-89e9-b842f1ac2de5.png?width=280&height=446)
172.030.038.003
6. 6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b44f9570-78ec-4a69-b160-c0ddb043b1bd.png?width=280&height=446)
Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-218f11e8-a993-4ceb-bb4f-acb3ae33cdf4.png?width=280&height=446)
8080
7. 7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b44f9570-78ec-4a69-b160-c0ddb043b1bd.png?width=280&height=446)
Key in 530 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-d7a8a1fd-6574-46ec-9350-aab5c7b59308.png?width=280&height=446)
530
8. 8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b44f9570-78ec-4a69-b160-c0ddb043b1bd.png?width=280&height=446)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-9e3ae8d0-d89e-4322-a089-44dcd3c282f2.png?width=280&height=446)
01
9. 9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b44f9570-78ec-4a69-b160-c0ddb043b1bd.png?width=280&height=446)

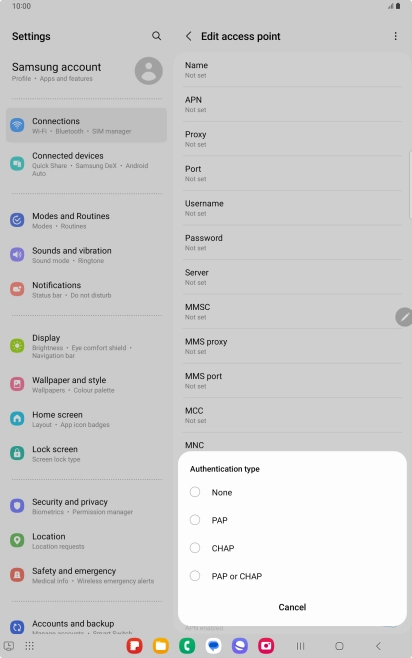

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-72373837-3b52-483b-a51c-04f11ccf0115.png?width=280&height=446)
10. 10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b44f9570-78ec-4a69-b160-c0ddb043b1bd.png?width=280&height=446)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-f1609461-7bdc-4c98-ba46-9764cd4e9ba8.png?width=280&height=446)
mms
11. 11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b44f9570-78ec-4a69-b160-c0ddb043b1bd.png?width=280&height=446)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-005182ed-8439-4bba-b7d8-5cf90b08d803.png?width=280&height=446)
12. 12. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-419b7a17-d1d1-4951-baee-1dce722f1917.png?width=280&height=446)
