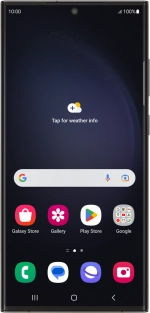

Samsung Galaxy S23 Ultra
Find "Access Point Names"

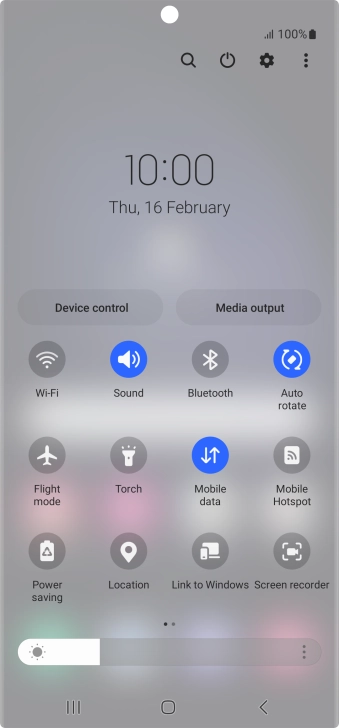

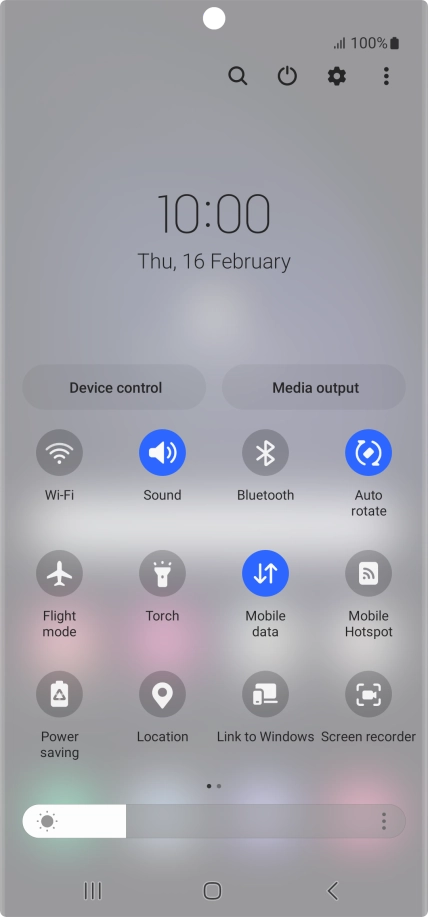

Slide two fingers downwards starting from the top of the screen.
Find "Access Point Names"
Press the settings icon.
Find "Access Point Names"

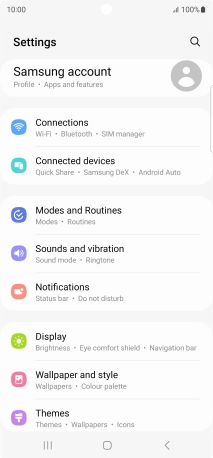

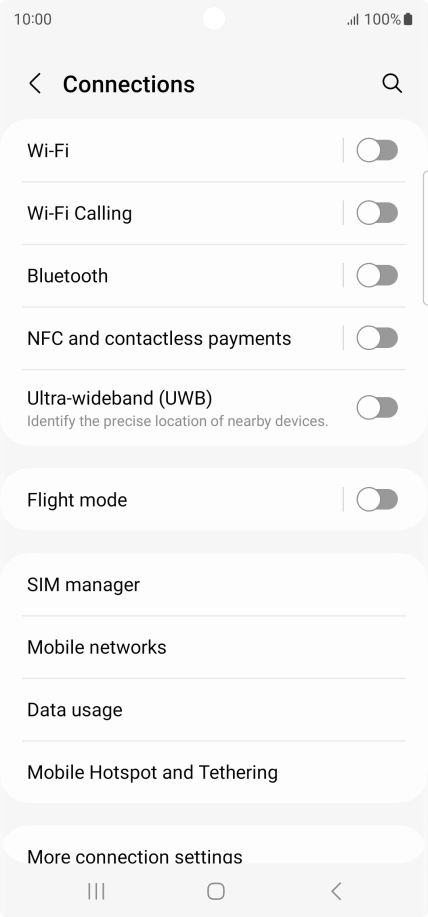

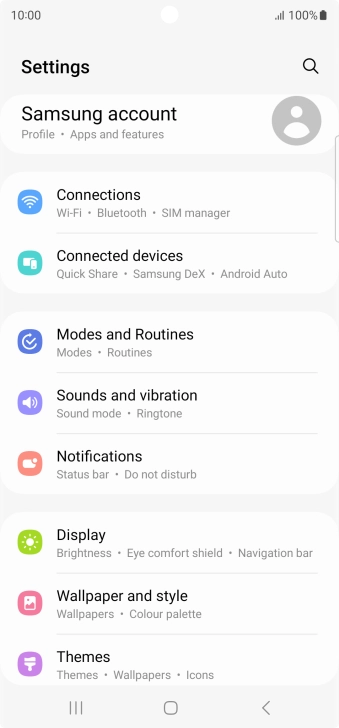

Press Connections.
Find "Access Point Names"

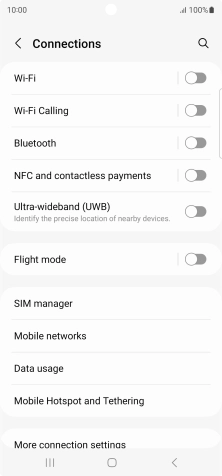

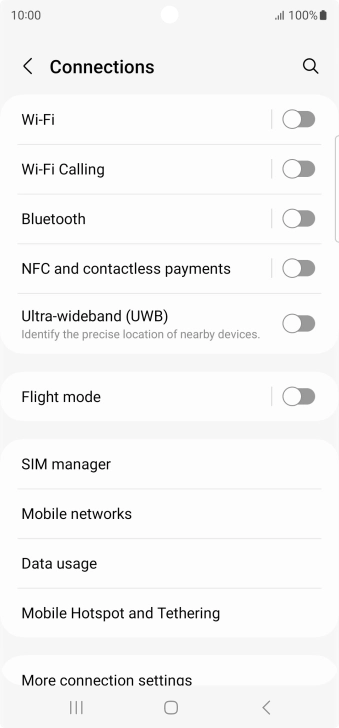

Press Mobile networks.
Find "Access Point Names"

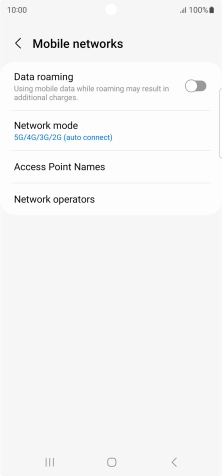

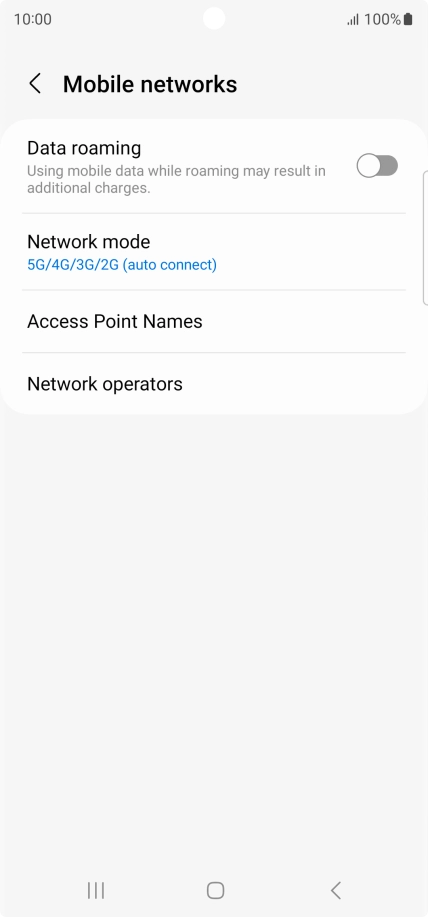

Press Access Point Names.
Create new data connection

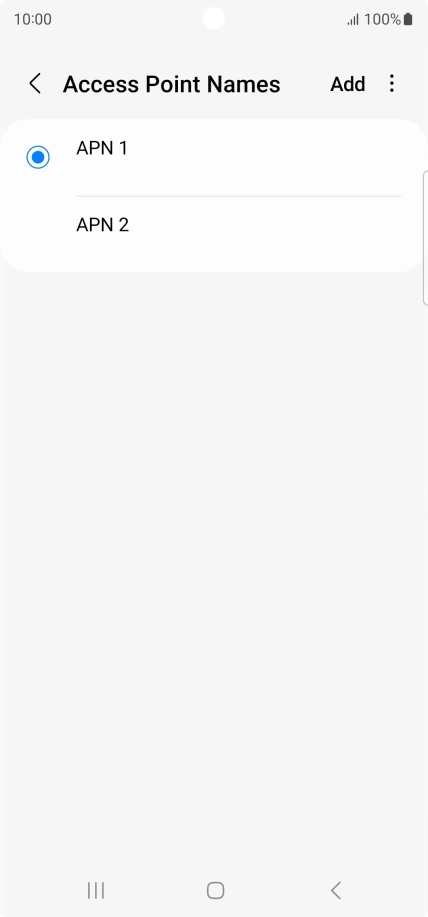

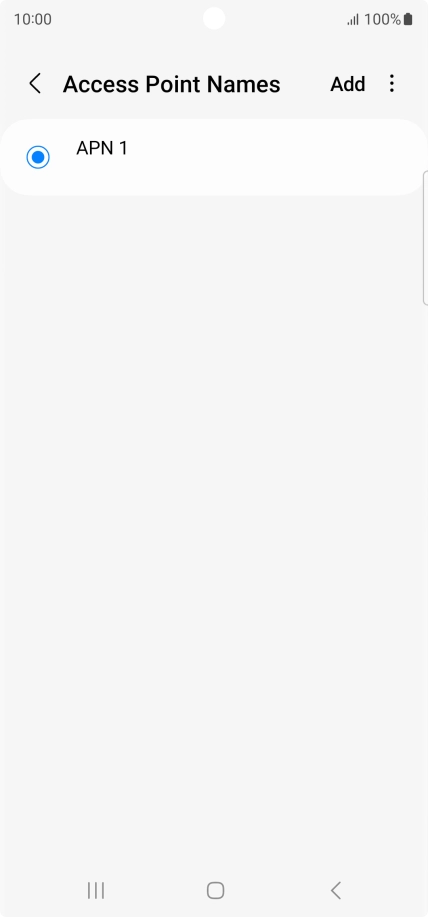

Press Add.
Create new data connection

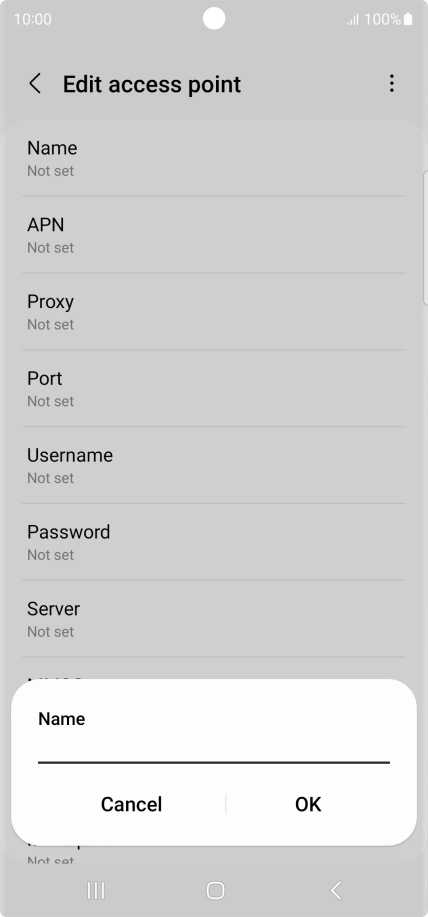

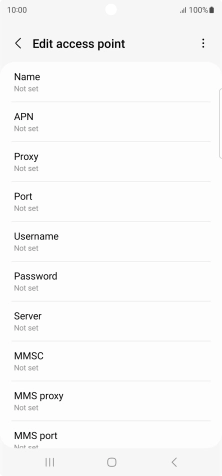

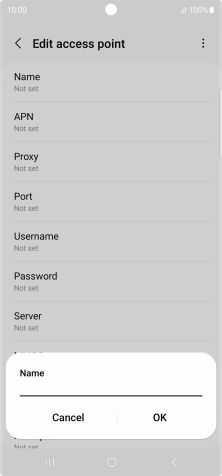

Press Name.
Create new data connection
Key in One NZ MMS and press OK.
Enter APN

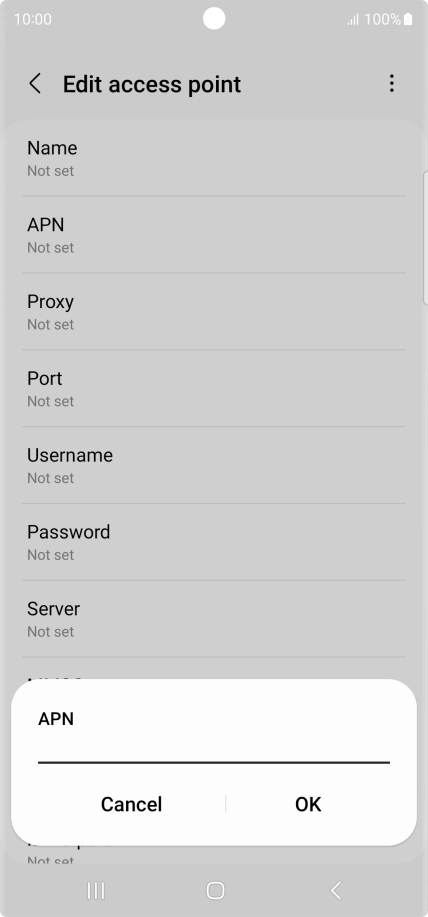

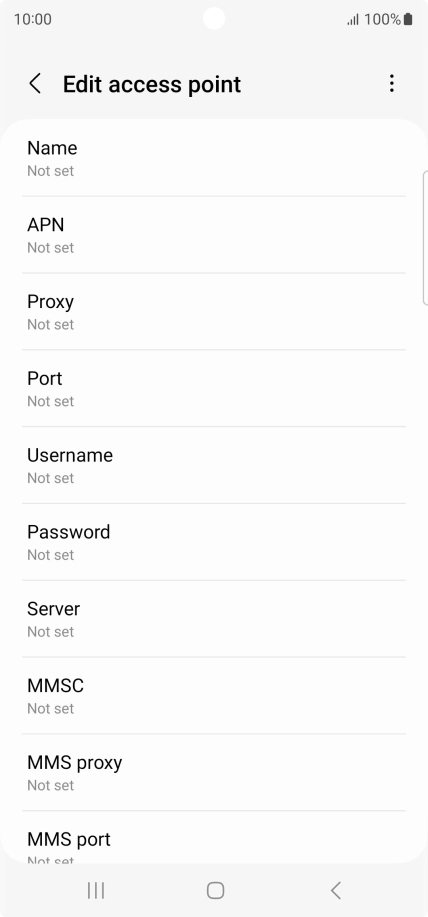

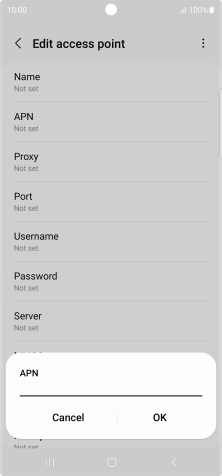

Press APN.
Enter APN
Key in live.vodafone.com and press OK.
Enter picture messaging server

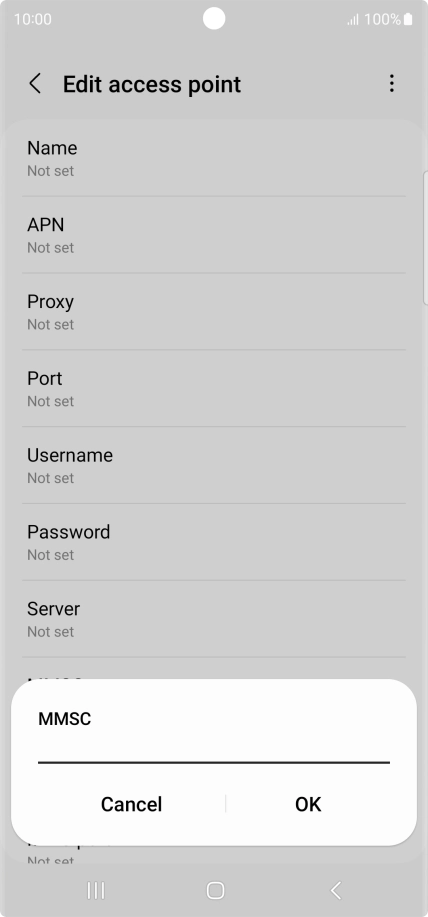

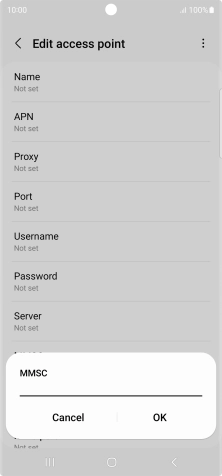

Press MMSC.
Enter picture messaging server
Key in http://pxt.vodafone.net.nz/pxtsend and press OK.
Enter IP address

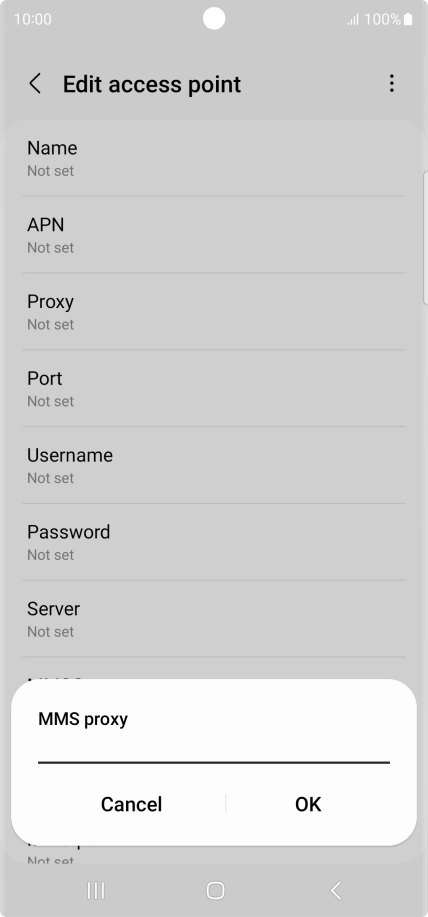

Press MMS proxy.
Enter IP address
Key in 172.030.038.003 and press OK.
Enter port number

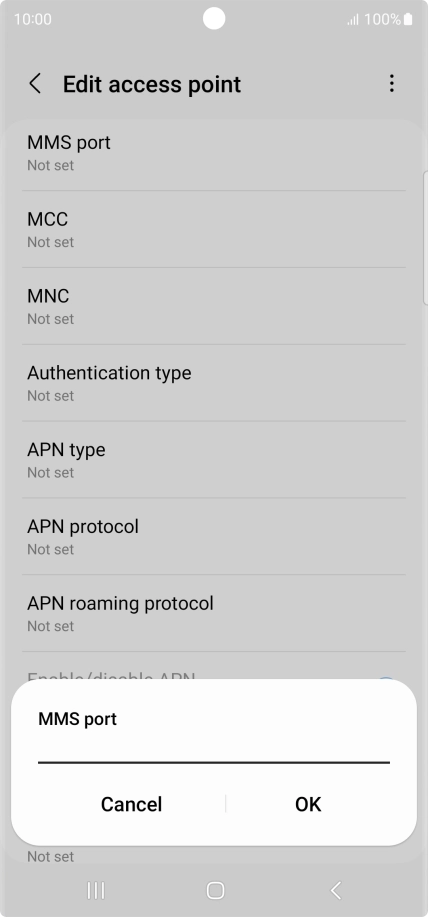

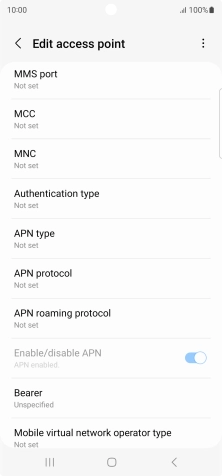

Press MMS port.
Enter port number
Key in 8080 and press OK.
Enter country code

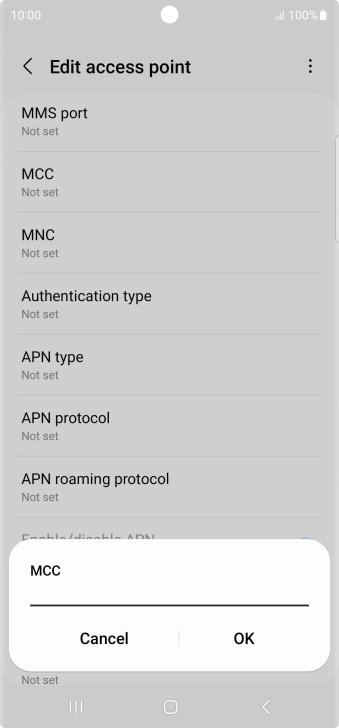

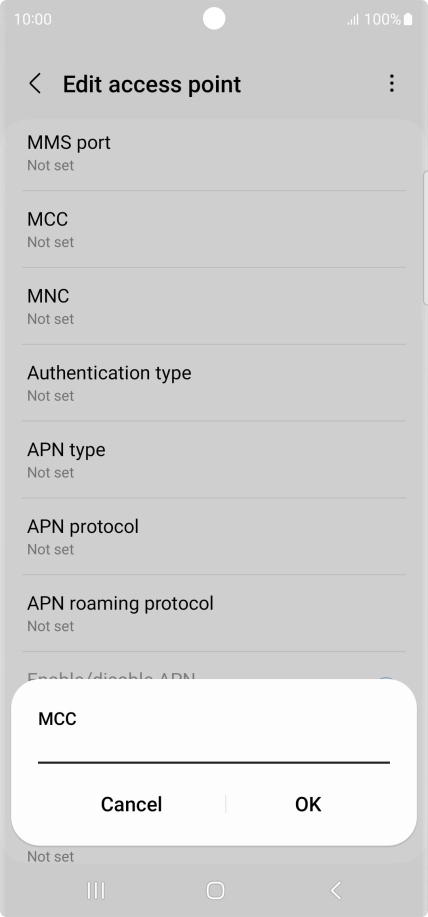

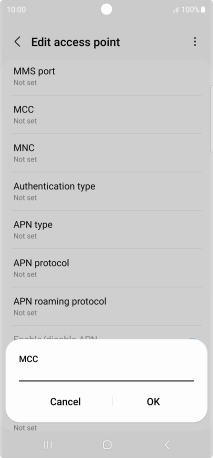

Press MCC.
Enter country code
Key in 530 and press OK.
Enter network code

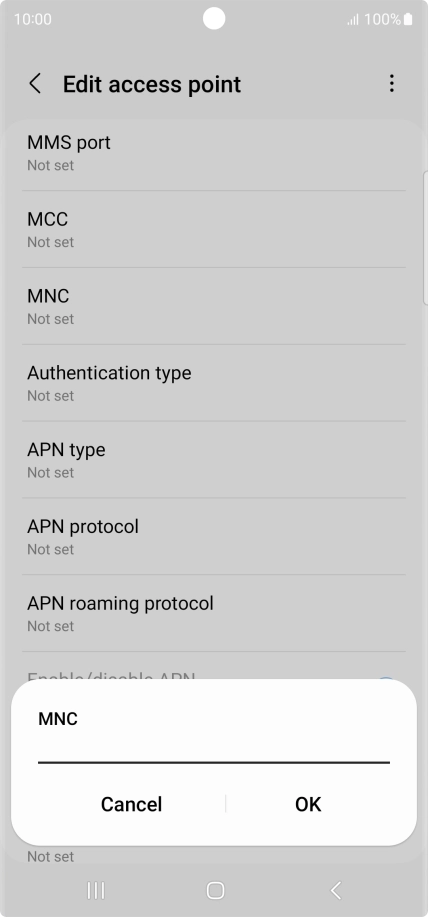

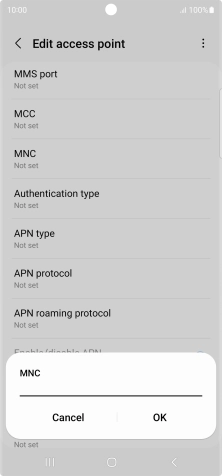

Press MNC.
Enter network code
Key in 01 and press OK.

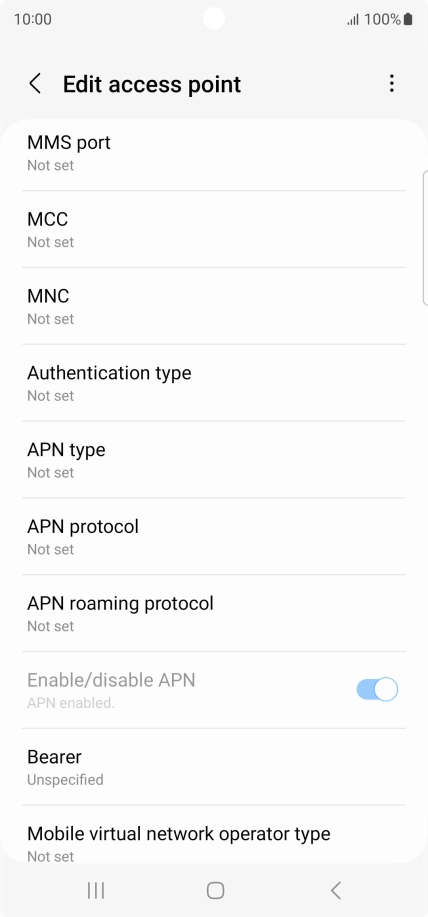

Select authentication type

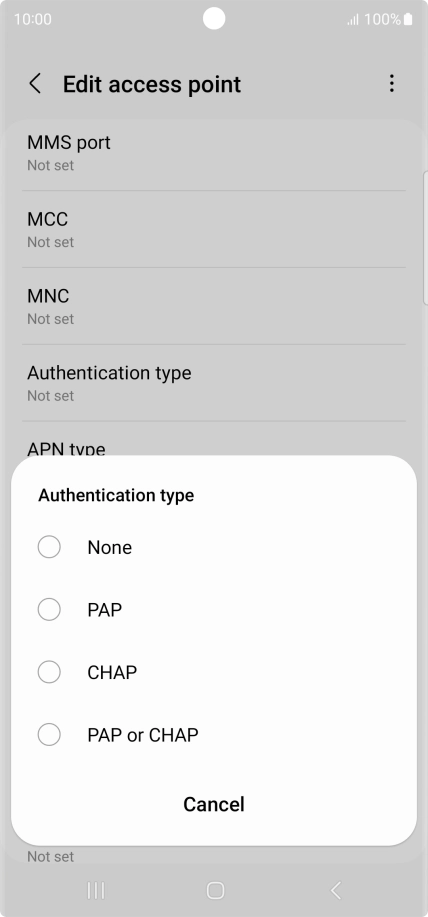

Press Authentication type.
Select authentication type
Press PAP.
Enter APN type

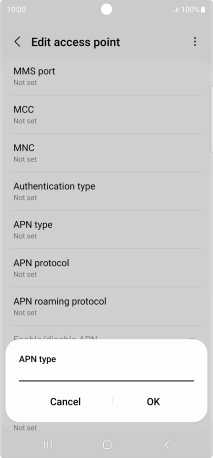

Press APN type.
Enter APN type
Key in mms and press OK.
Save data connection

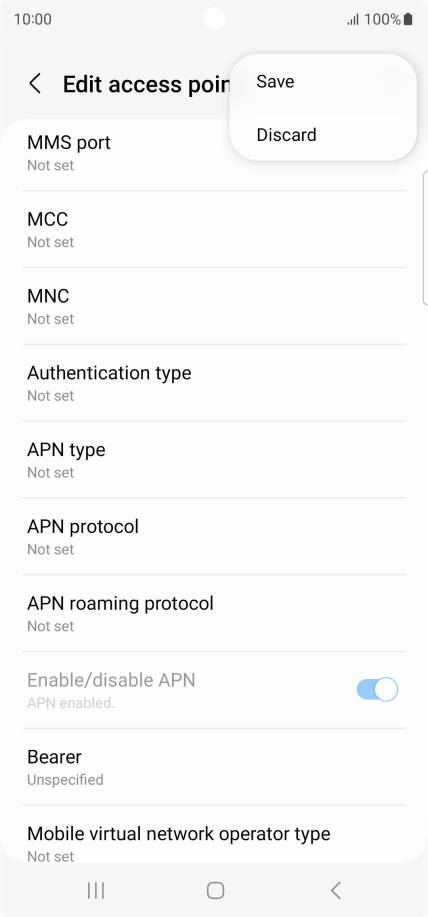

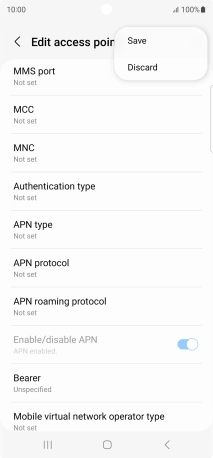

Press the menu icon.
Save data connection
Press Save.
Return to the home screen

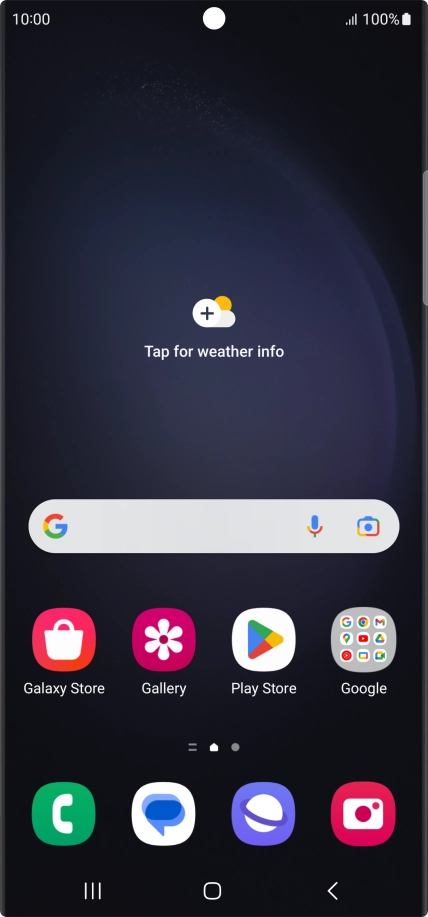

Press the Home key to return to the home screen.
1 Find "Access Point Names"
2 Create new data connection
3 Enter APN
4 Enter picture messaging server
5 Enter IP address
6 Enter port number
7 Enter country code
8 Enter network code
9 Select authentication type
10 Enter APN type
11 Save data connection
12 Return to the home screen
