Samsung Galaxy S23
Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
Find "Access Point Names"
Press the settings icon.
Find "Access Point Names"
Press Connections.
Find "Access Point Names"

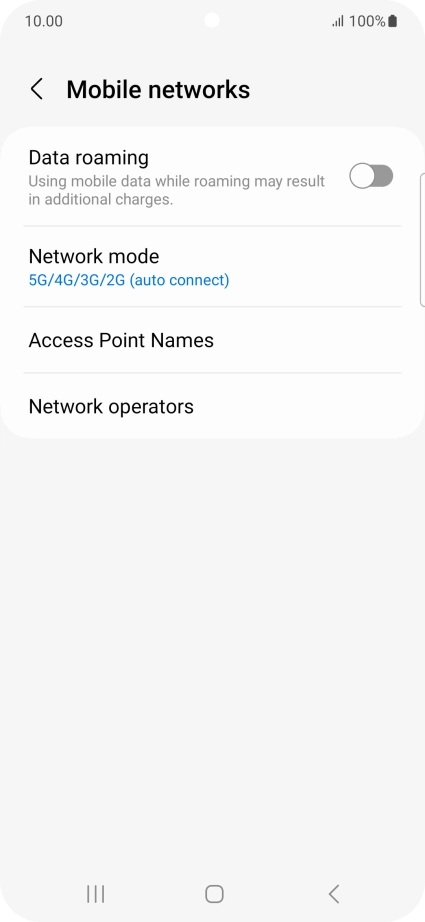

Press Mobile networks.
Find "Access Point Names"

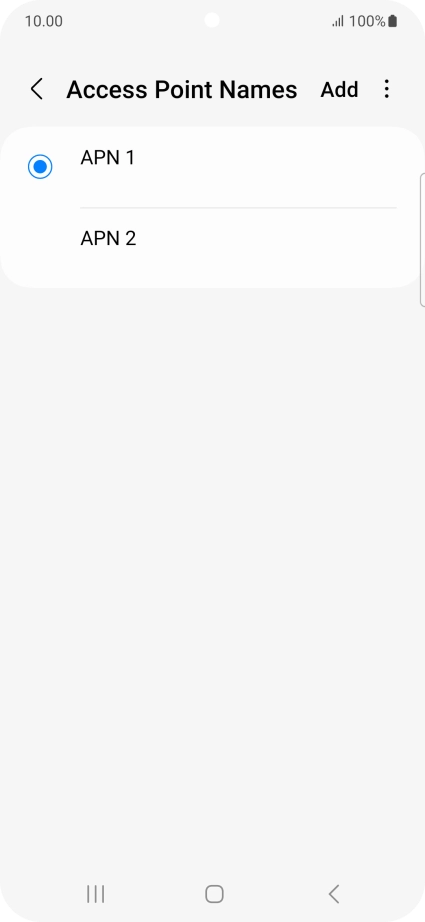

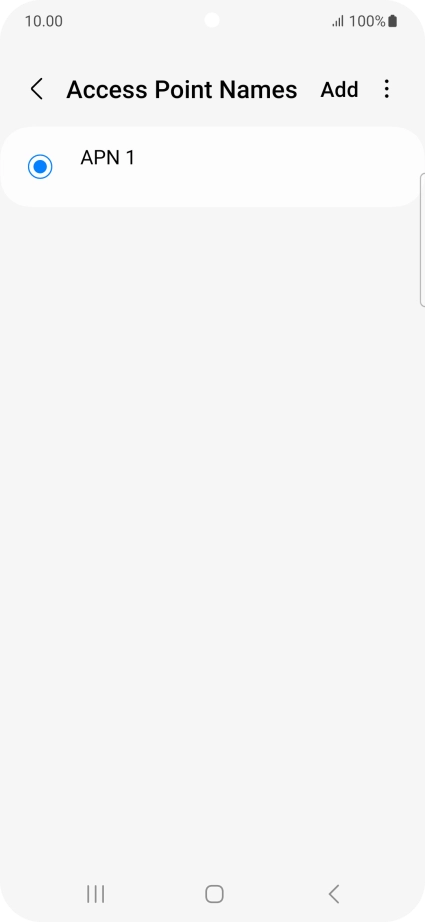

Press Access Point Names.
Create new data connection
Press Add.
Create new data connection

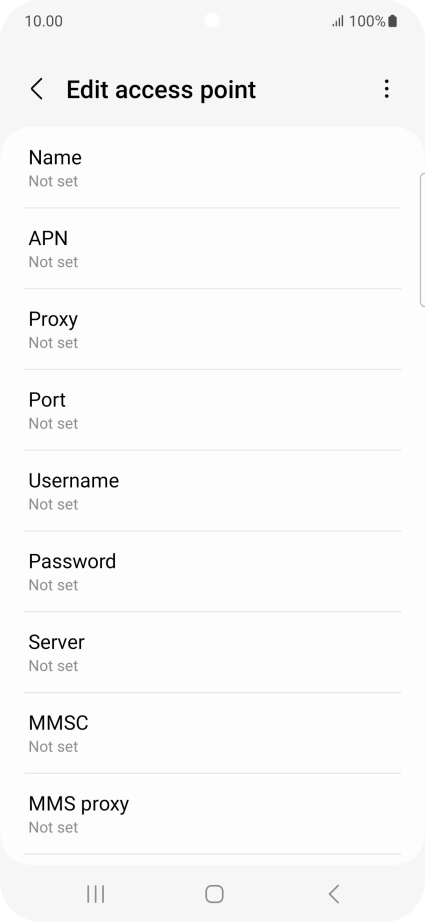

Press Name.
Create new data connection
Key in One NZ MMS and press OK.
Enter APN

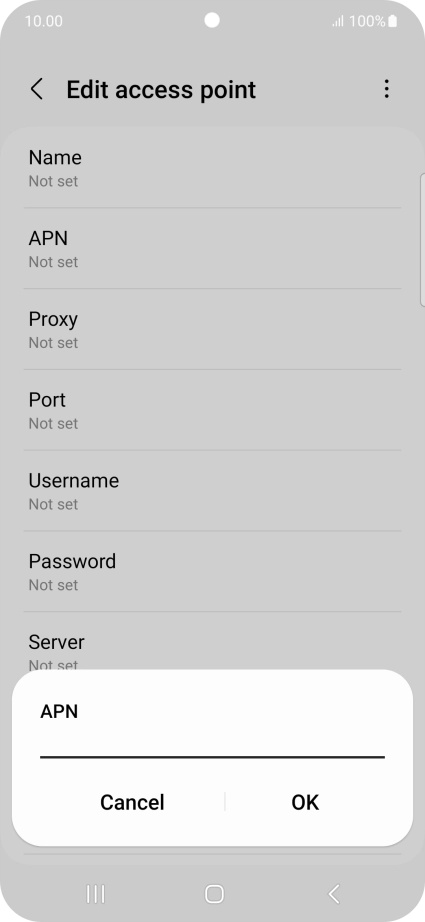

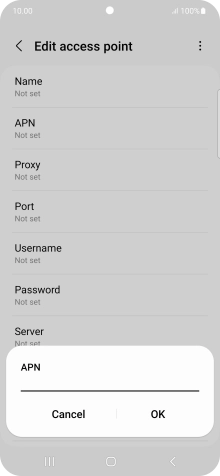

Press APN.
Enter APN
Key in live.vodafone.com and press OK.
Enter picture messaging server

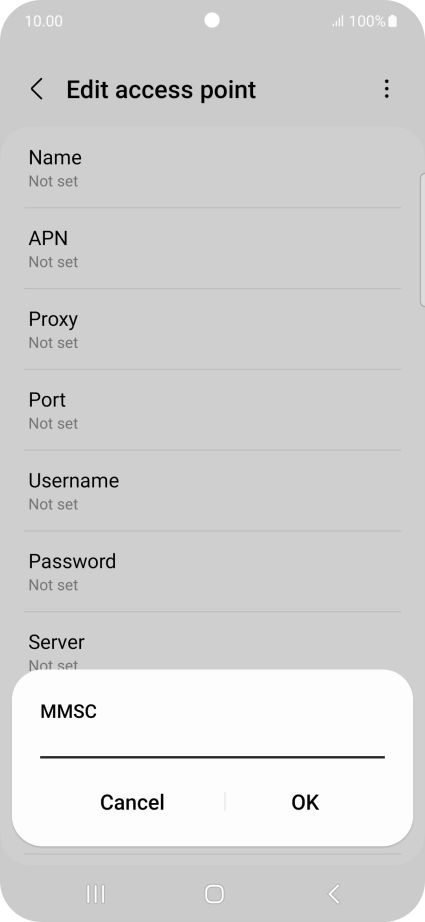

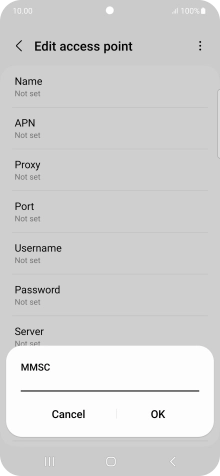

Press MMSC.
Enter picture messaging server
Key in http://pxt.vodafone.net.nz/pxtsend and press OK.
Enter IP address

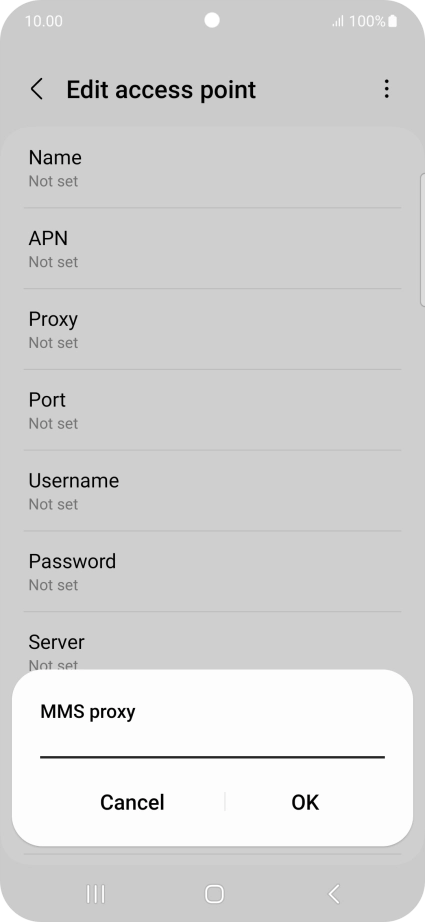

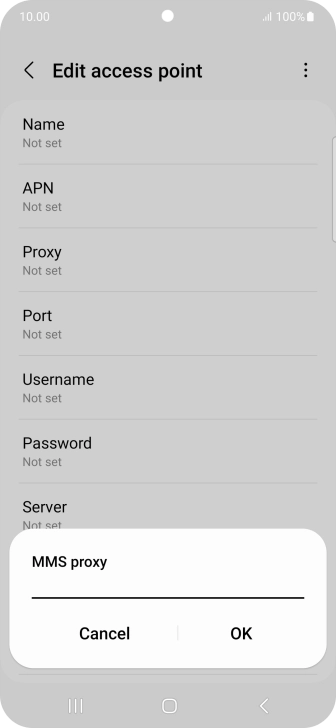

Press MMS proxy.
Enter IP address
Key in 172.030.038.003 and press OK.
Enter port number

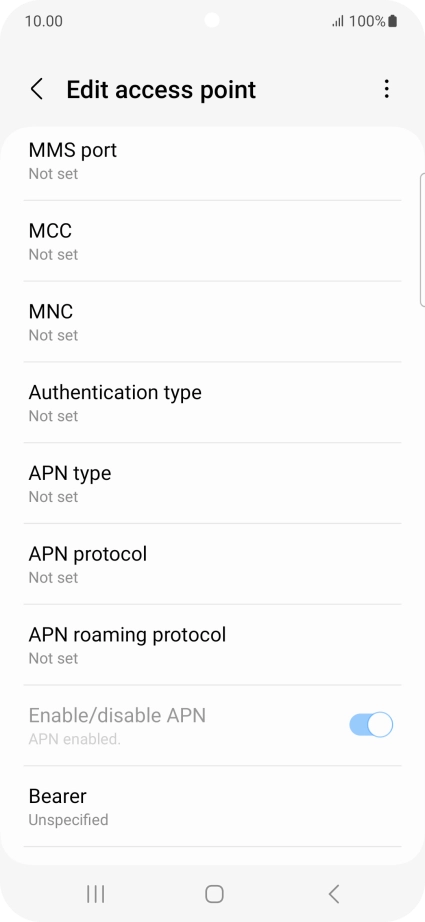

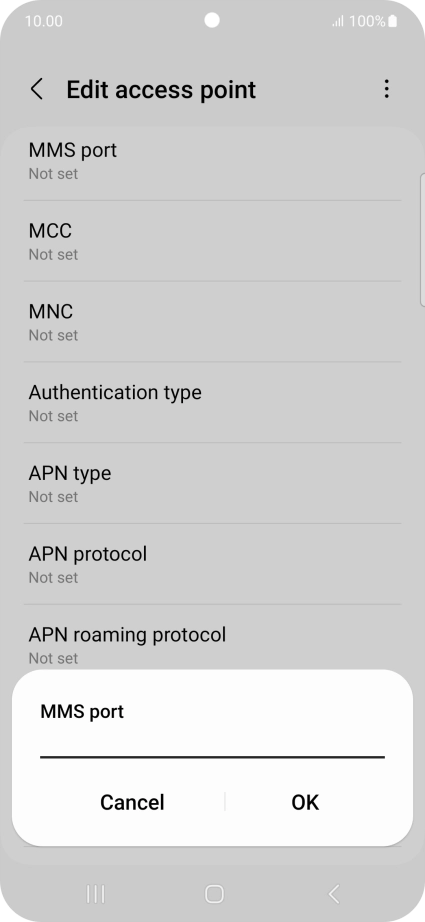

Press MMS port.
Enter port number
Key in 8080 and press OK.
Enter country code
Press MCC.
Enter country code
Key in 530 and press OK.
Enter network code

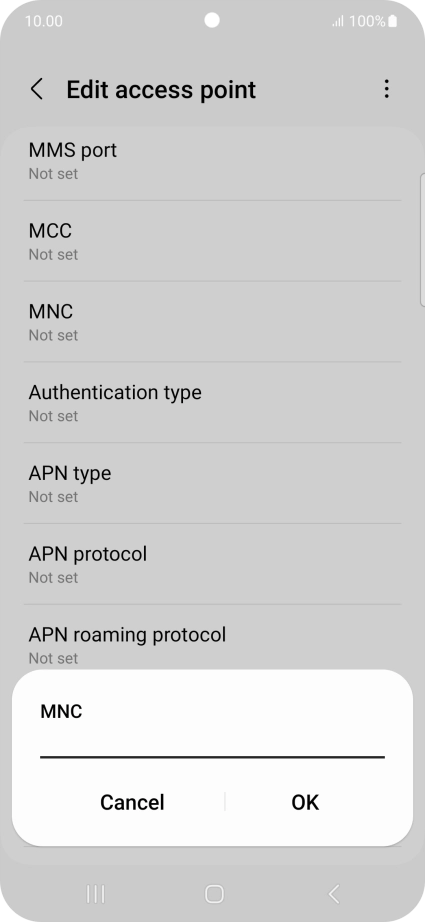

Press MNC.
Enter network code
Key in 01 and press OK.
Select authentication type

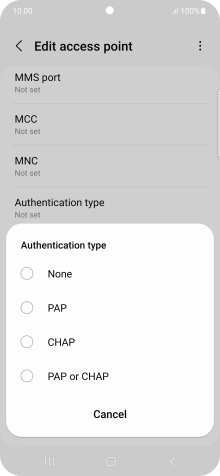

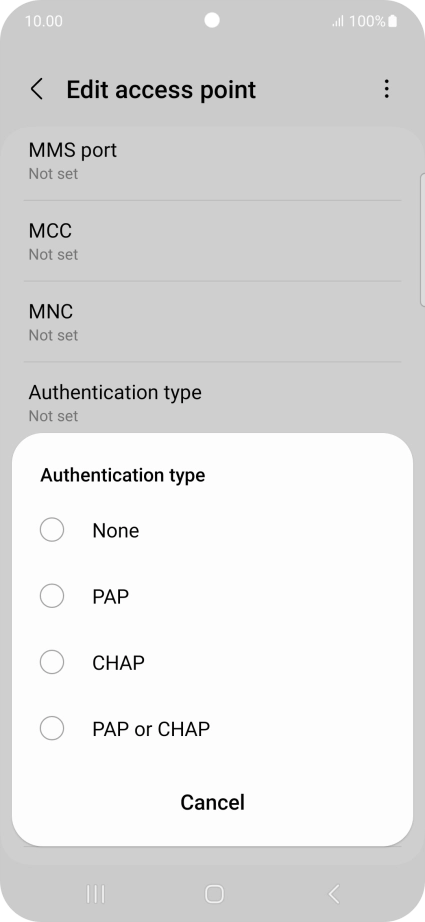

Press Authentication type.
Select authentication type
Press PAP.
Enter APN type

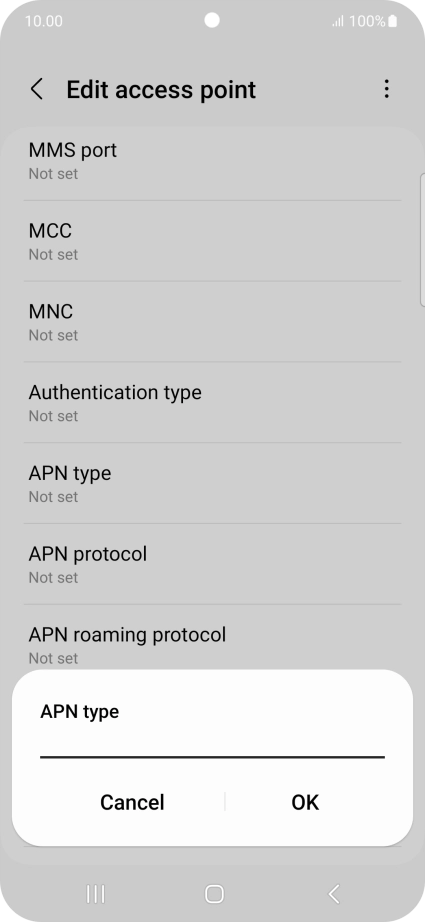

Press APN type.
Enter APN type
Key in mms and press OK.
Save data connection
Press the menu icon.
Save data connection

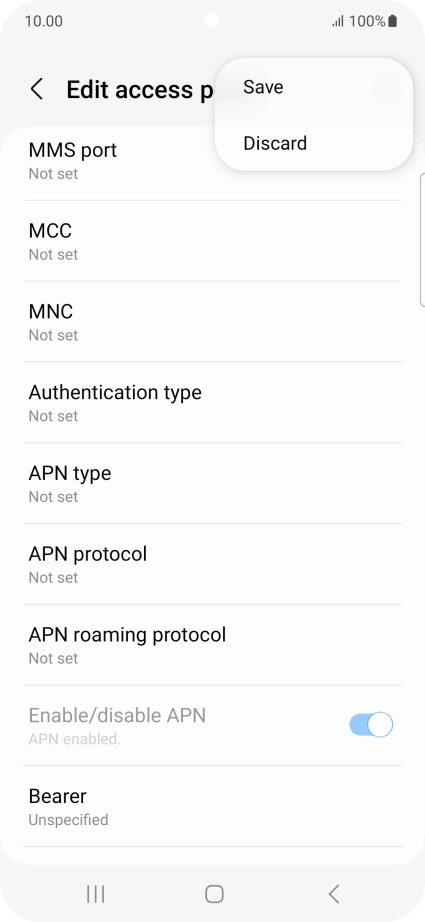

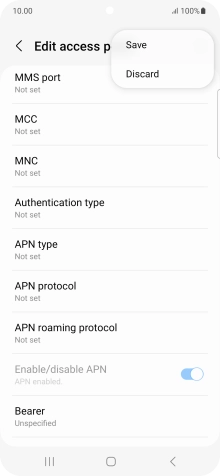

Press Save.
Return to the home screen
Press the Home key to return to the home screen.
1 Find "Access Point Names"
2 Create new data connection
3 Enter APN
4 Enter picture messaging server
5 Enter IP address
6 Enter port number
7 Enter country code
8 Enter network code
9 Select authentication type
10 Enter APN type
11 Save data connection
12 Return to the home screen
