Samsung Galaxy S21+ 5G
Find "Access Point Names"

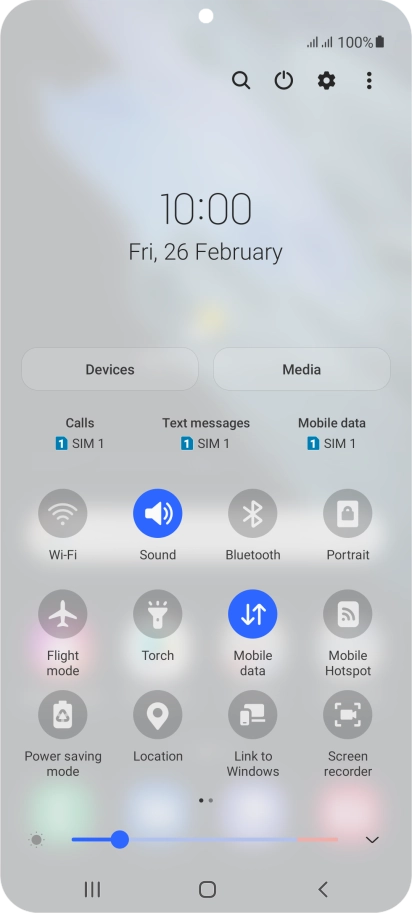

Slide two fingers downwards starting from the top of the screen.
Find "Access Point Names"
Press the settings icon.
Find "Access Point Names"

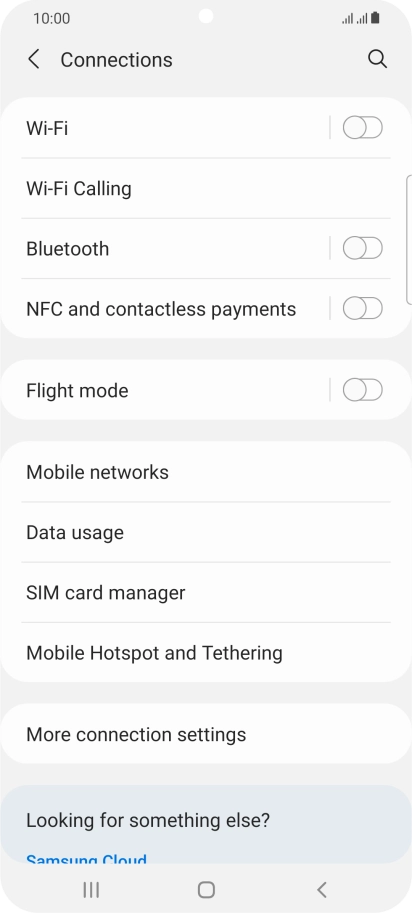

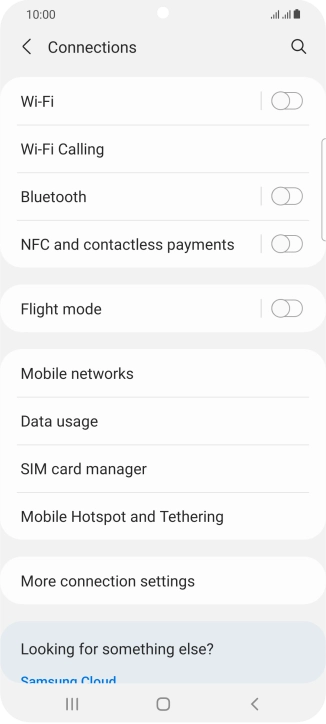

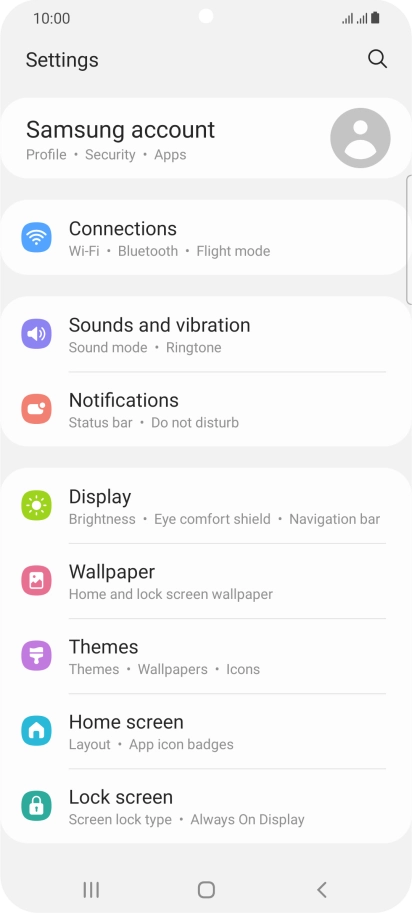

Press Connections.
Find "Access Point Names"

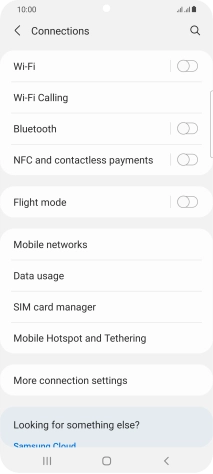

Press Mobile networks.
Find "Access Point Names"

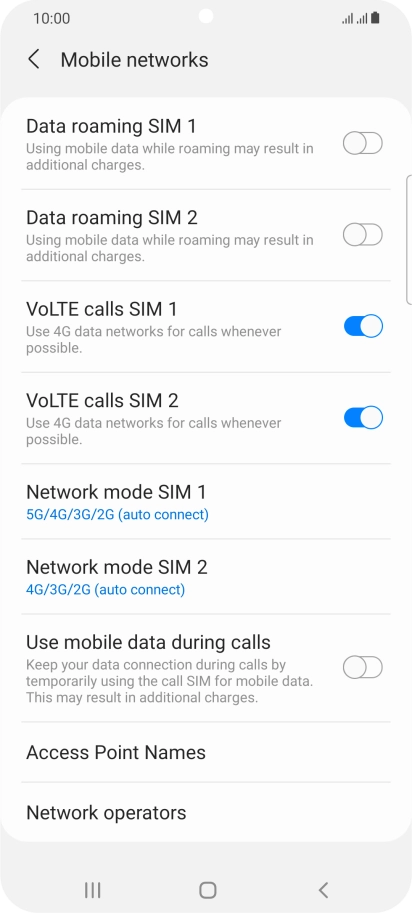

Press Access Point Names.

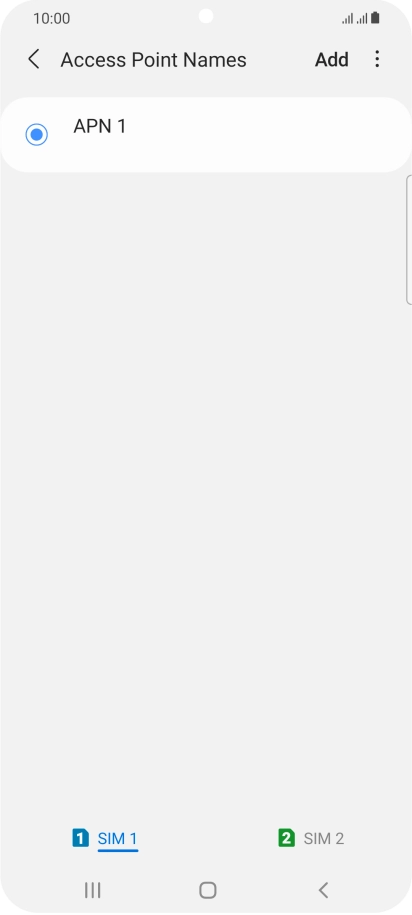

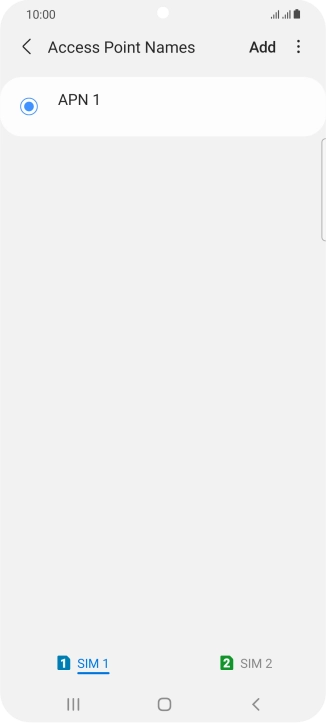

Create new data connection

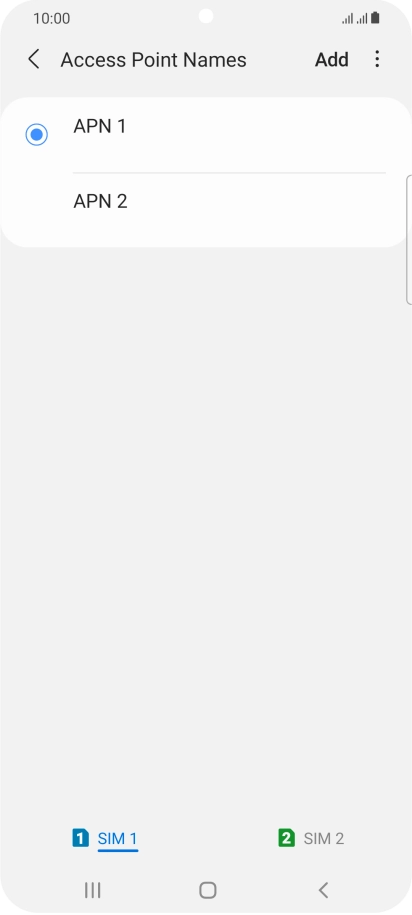

Press the required SIM.
Create new data connection
Press Add.

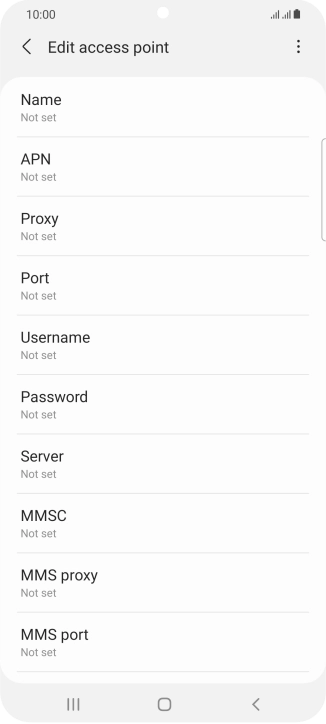

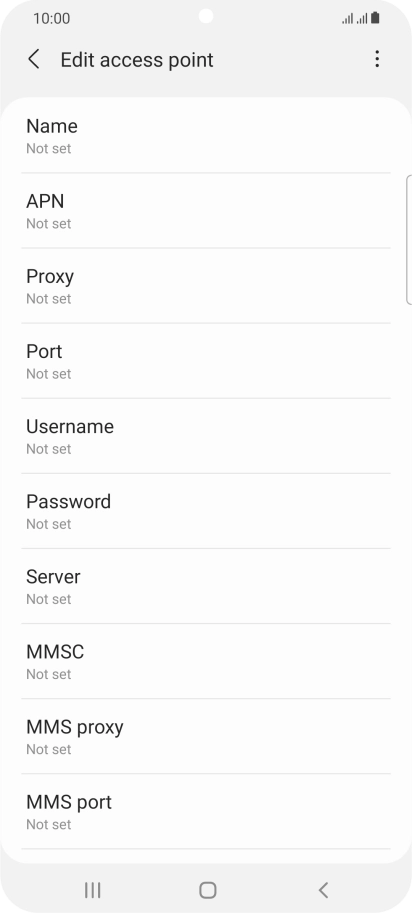

Enter a name for the connection

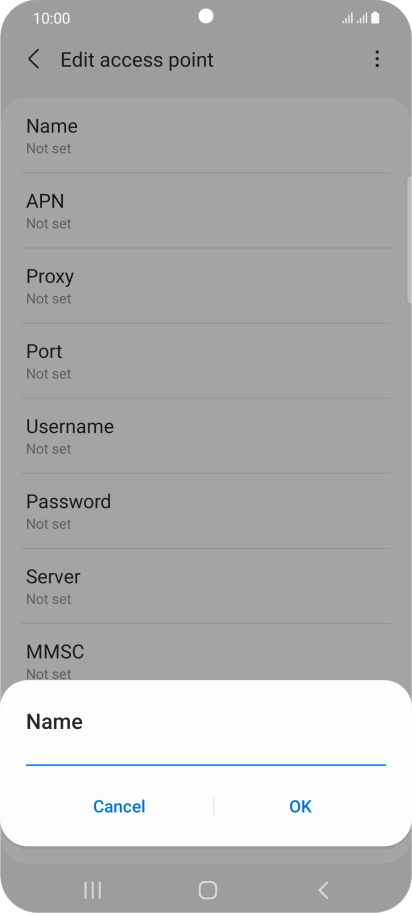

Press Name.
Enter a name for the connection
Key in Vodafone MMS and press OK.

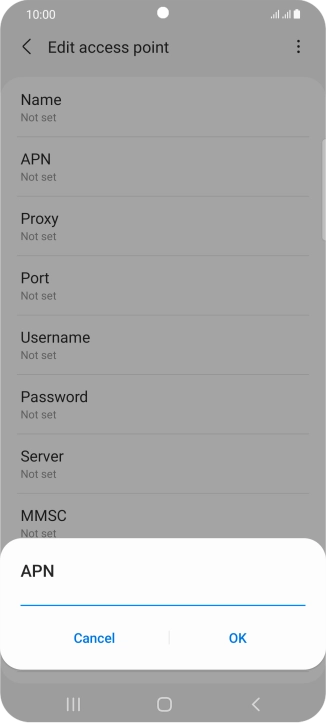

Enter APN

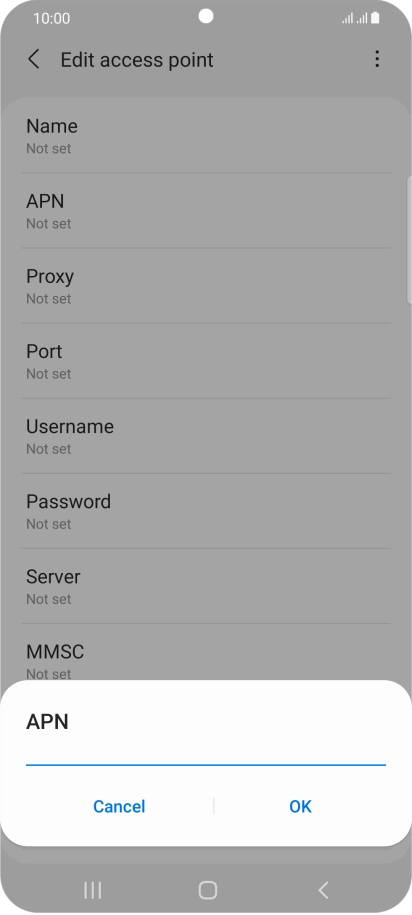

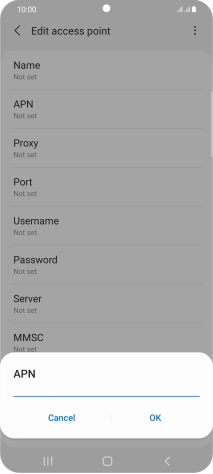

Press APN.
Enter APN
Key in live.vodafone.com and press OK.
Enter MMSC

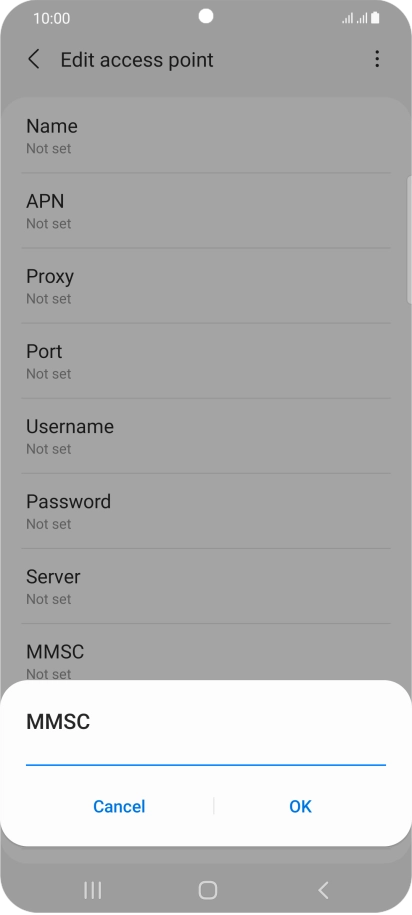

Press MMSC.
Enter MMSC
Key in http://pxt.vodafone.net.nz/pxtsend and press OK.

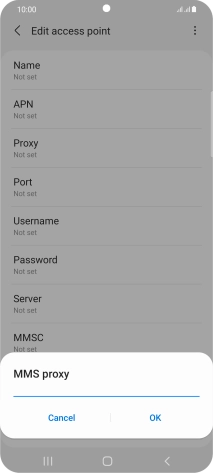

Enter IP address

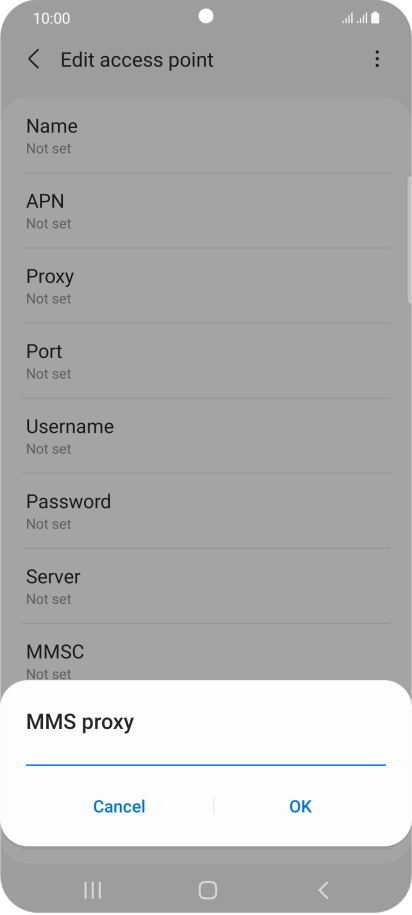

Press MMS proxy.
Enter IP address
Key in 172.030.038.003 and press OK.

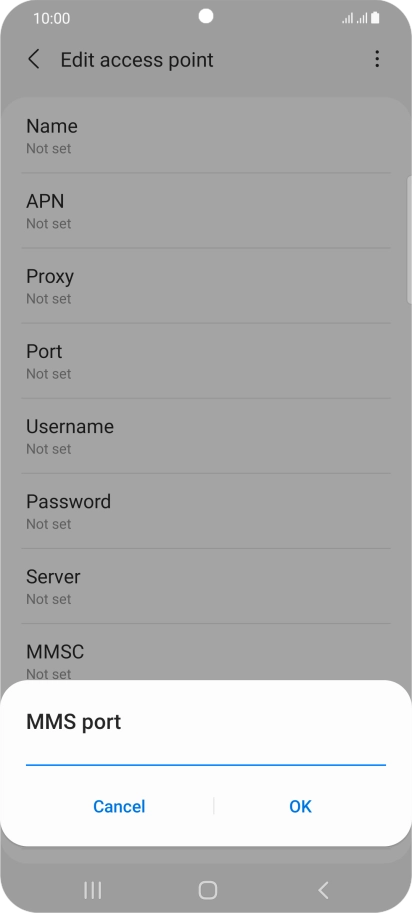

Enter port number
Press MMS port.
Enter port number
Key in 8080 and press OK.

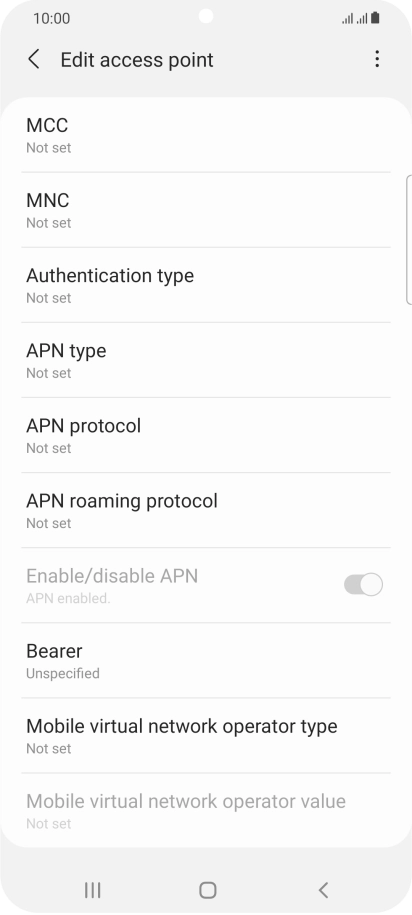

Enter country code
Press MCC.
Enter country code
Key in 530 and press OK.

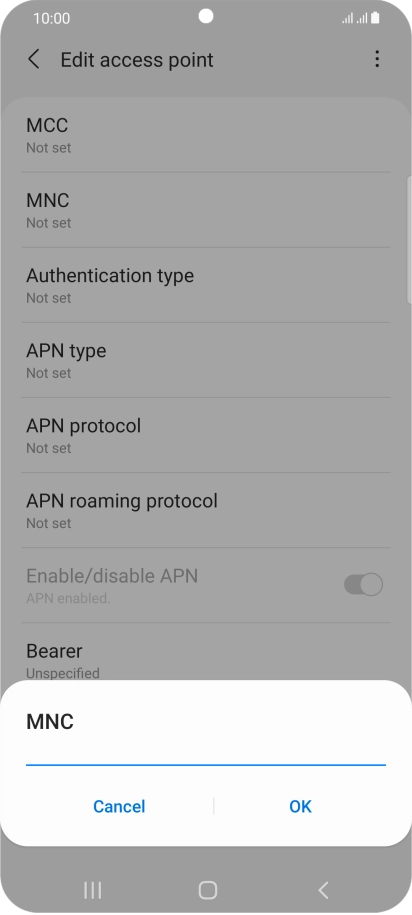

Enter network code
Press MNC.
Enter network code
Key in 01 and press OK.

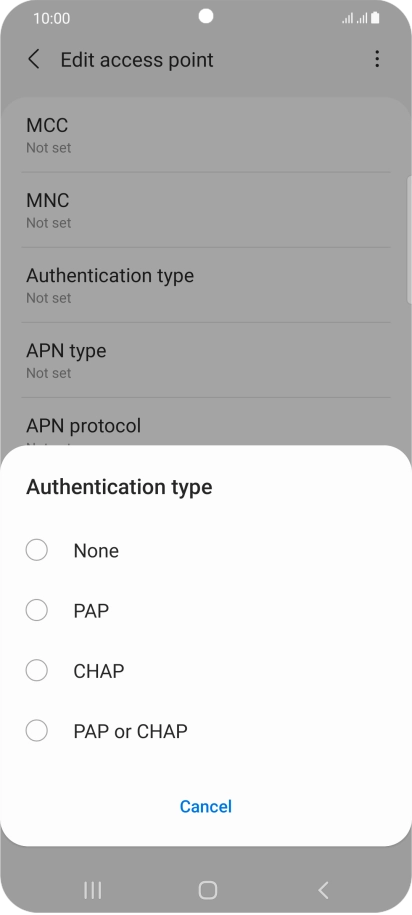

Select authentication type

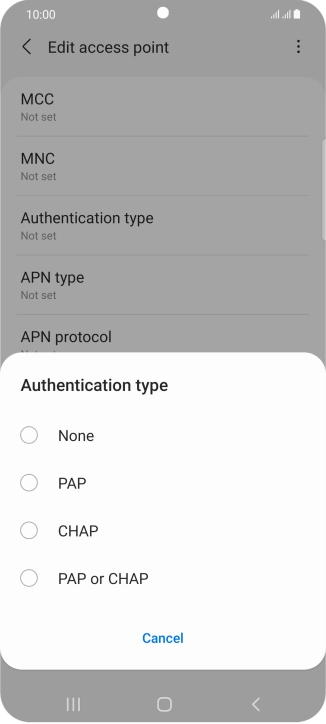

Press Authentication type.
Select authentication type
Press PAP.

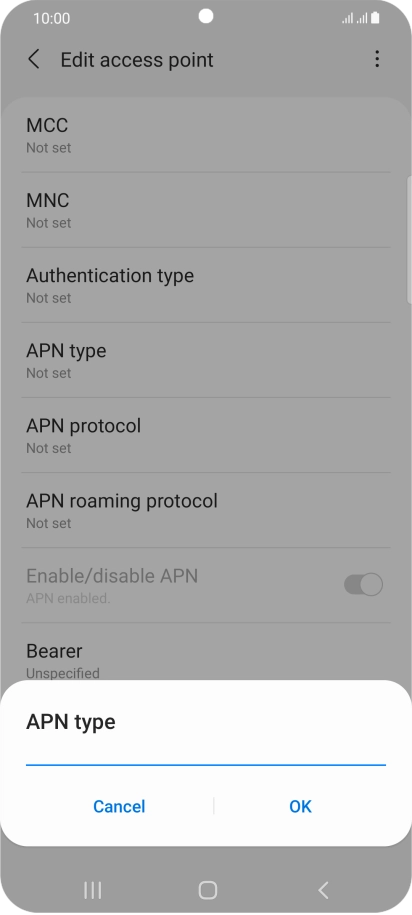

Enter APN type
Press APN type.
Enter APN type
Key in mms and press OK.

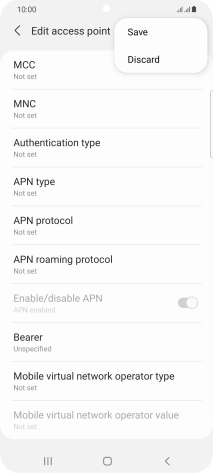

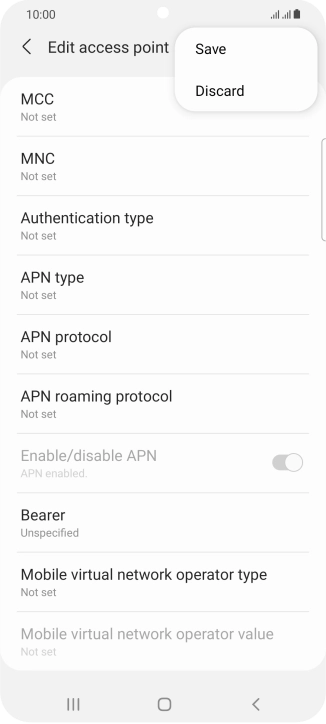

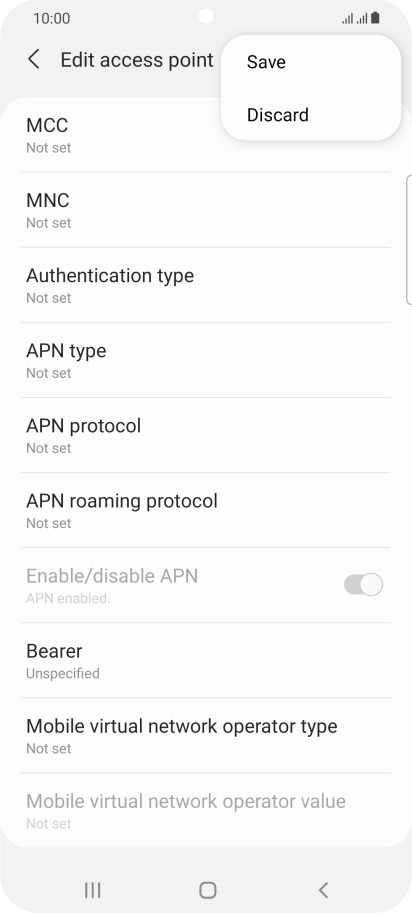

Save data connection
Press the menu icon.
Save data connection
Press Save.
Return to the home screen

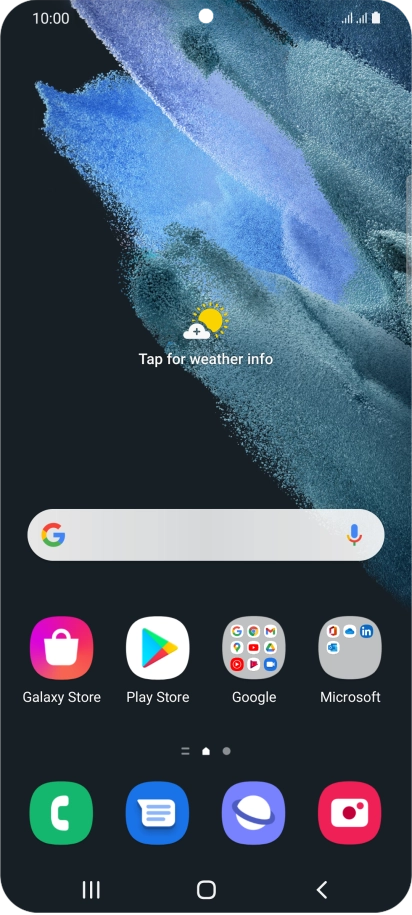

Press the Home key to return to the home screen.
