Samsung Galaxy S10e

Samsung Galaxy S10e

Android 9.0

How to guides

Set up your phone for internet

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 22

Slide your finger downwards starting from the top of the screen.

Step 2 of 22

Press the settings icon.

Step 3 of 22

Press Connections.

Step 4 of 22

Press Mobile networks.

Step 5 of 22

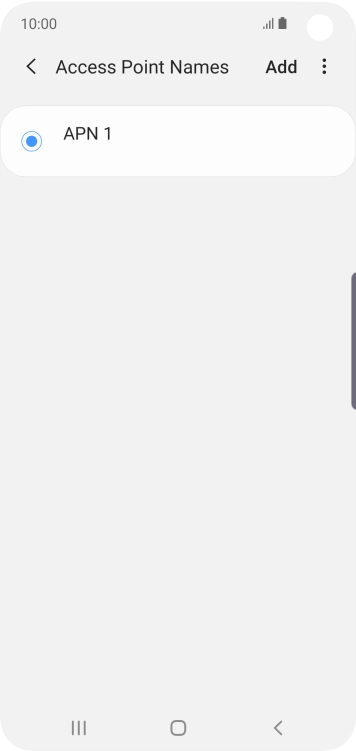

Press Access Point Names.

Step 6 of 22

Press Add.

Step 7 of 22

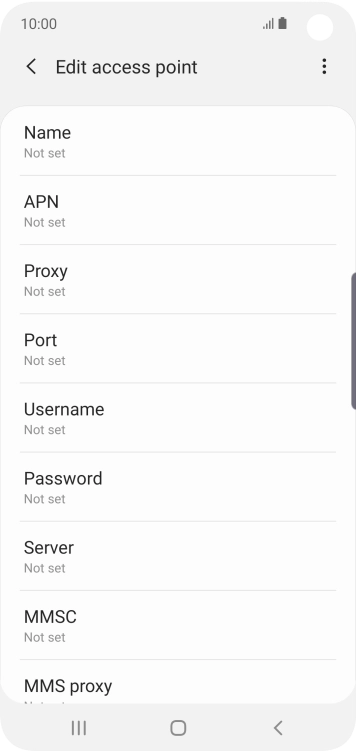

Press Name.

Vodafone Internet
Step 8 of 22

Key in Vodafone Internet and press OK.

Step 9 of 22

Press APN.

vodafone

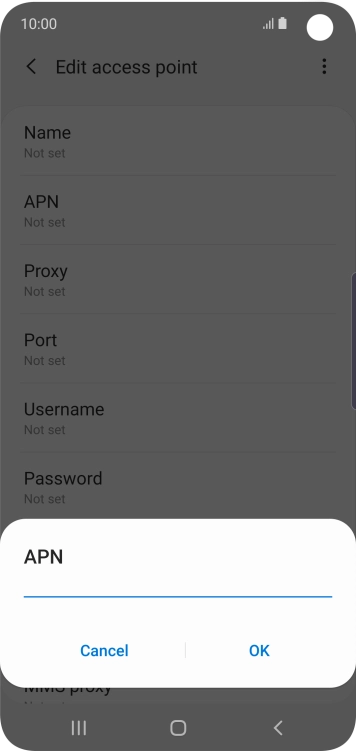

Step 10 of 22

Key in vodafone and press OK.

Step 11 of 22

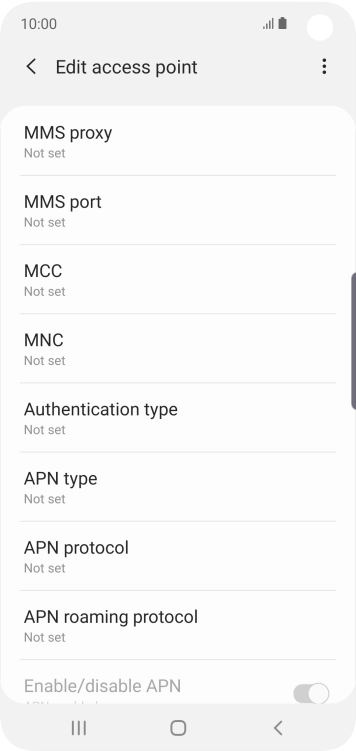

Press MCC.

530
Step 12 of 22

Key in 530 and press OK.

Step 13 of 22

Press MNC.

01

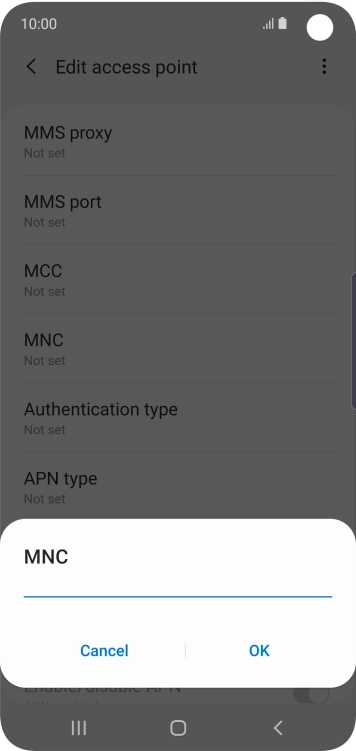

Step 14 of 22

Key in 01 and press OK.

Step 15 of 22

Press Authentication type.

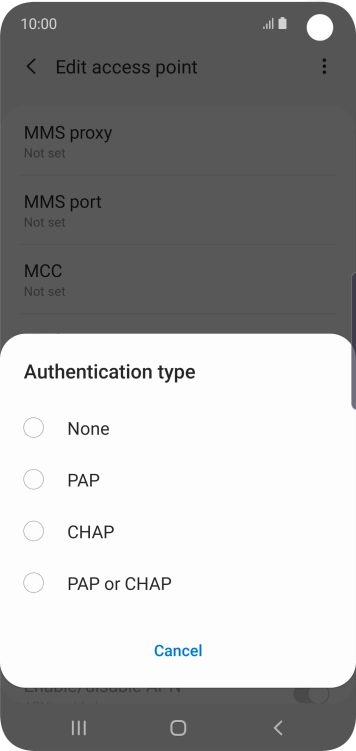

Step 16 of 22

Press PAP.

Step 17 of 22

Press APN type.

default

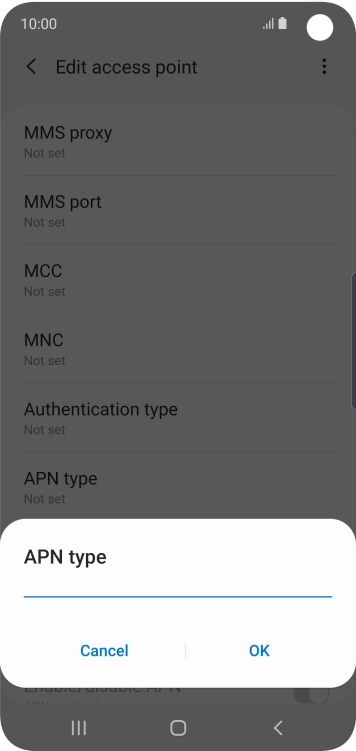

Step 18 of 22

Key in default and press OK.

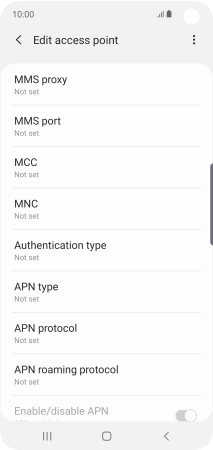

Step 19 of 22

Press the menu icon.

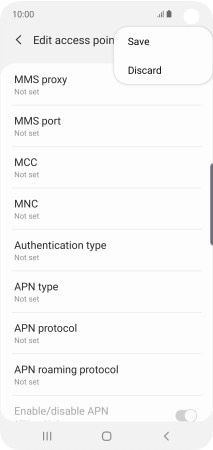

Step 20 of 22

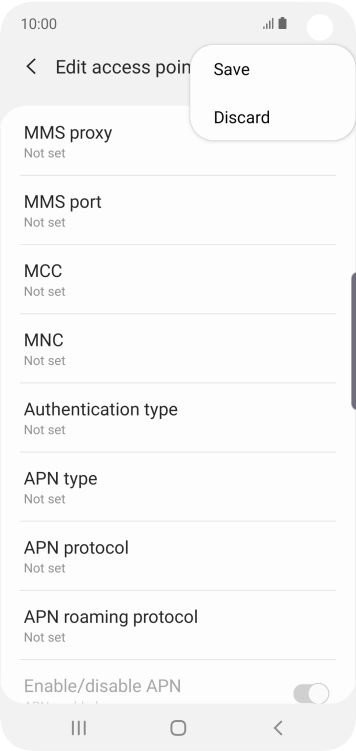

Press Save.

Step 21 of 22

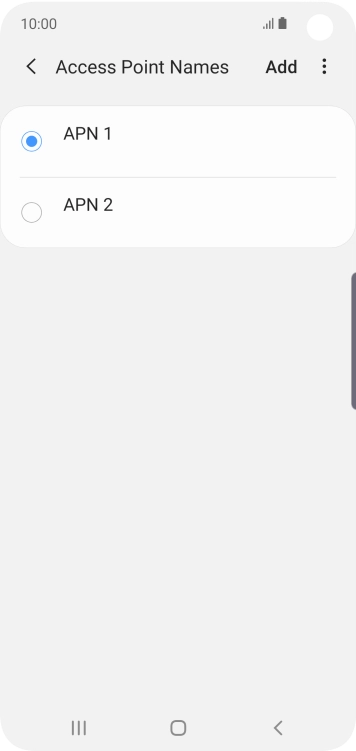

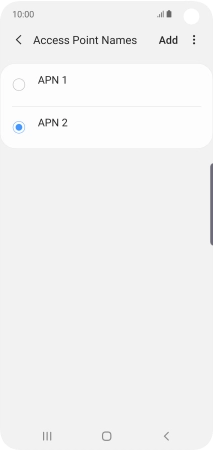

Press the field next to the data connection to activate it.

Step 22 of 22

Press the Home key to return to the home screen.

1. 1. Find "Access Point Names"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Connections.
Press Mobile networks.
Press Access Point Names.

2. 2. Create new data connection

Press Add.
Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

3. 3. Enter APN

Press APN.
Key in vodafone and press OK.
vodafone

4. 4. Enter country code

Press MCC.
Key in 530 and press OK.
530

5. 5. Enter network code

Press MNC.
Key in 01 and press OK.
01

6. 6. Select authentication type

Press Authentication type.
Press PAP.

7. 7. Enter APN type

Press APN type.
Key in default and press OK.
default

8. 8. Save data connection

Press the menu icon.
Press Save.
Press the field next to the data connection to activate it.

9. 9. Return to the home screen

Press the Home key to return to the home screen.
