Samsung Galaxy Note10
Find "Access Point Names"

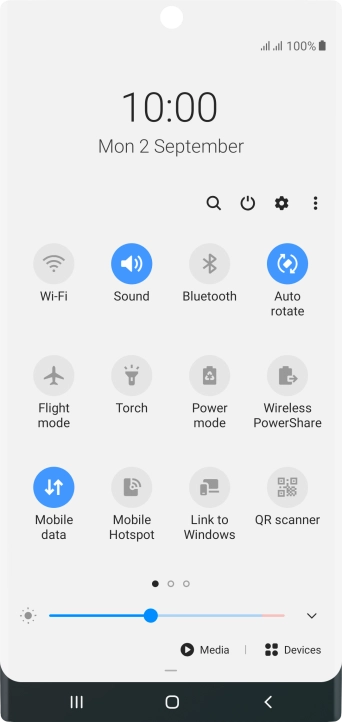

Slide two fingers downwards starting from the top of the screen.
Find "Access Point Names"

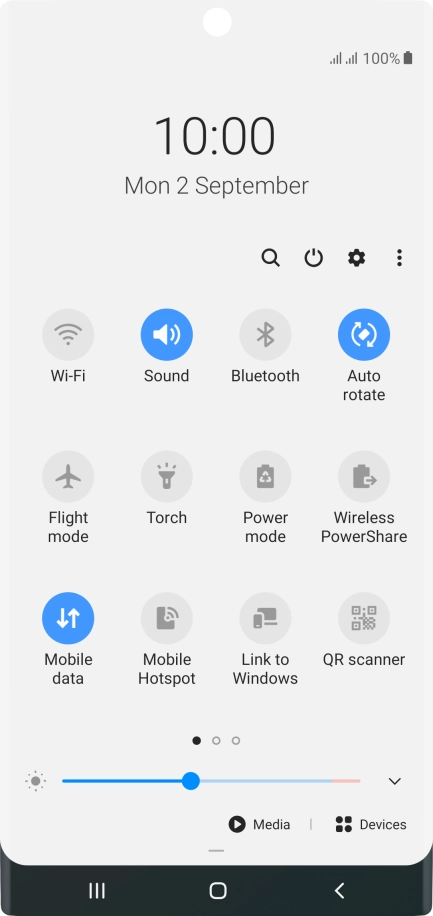

Press the settings icon.
Find "Access Point Names"

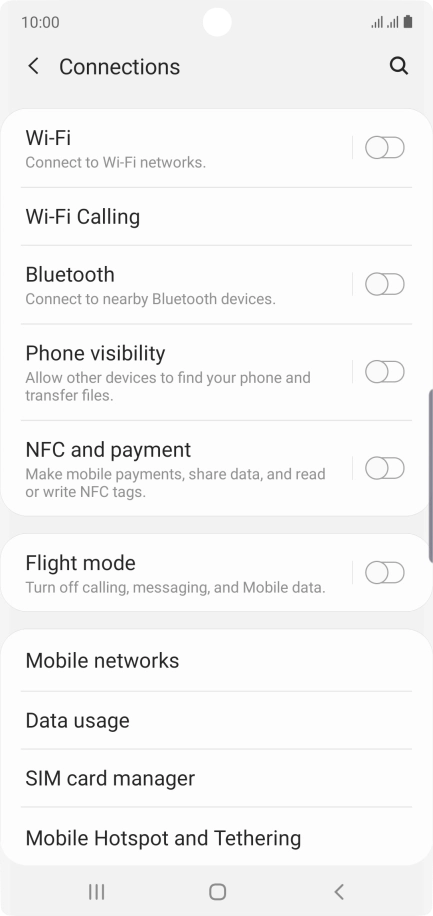

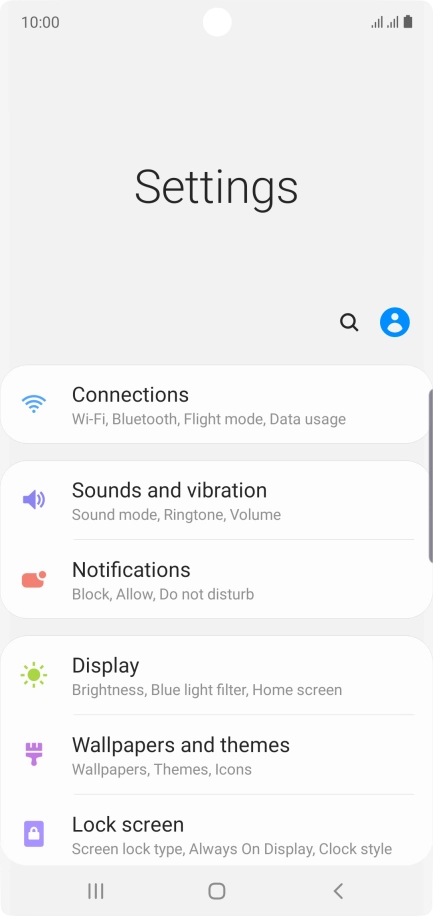

Press Connections.
Find "Access Point Names"
Press Mobile networks.
Find "Access Point Names"

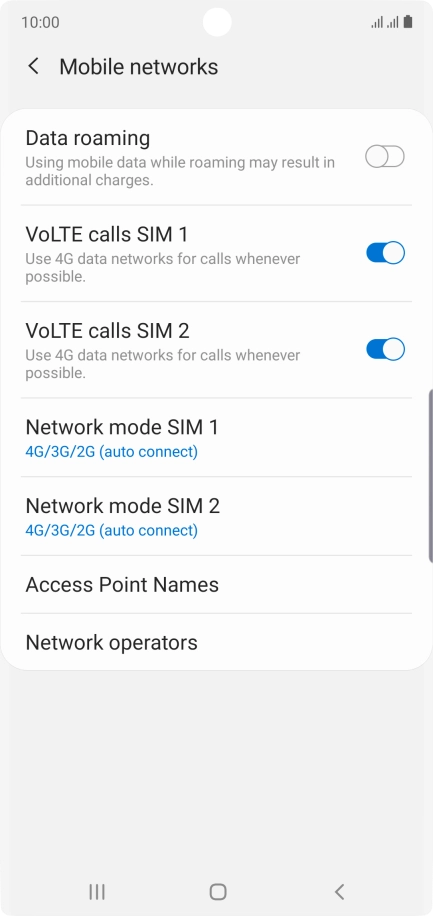

Press Access Point Names.
Create new data connection

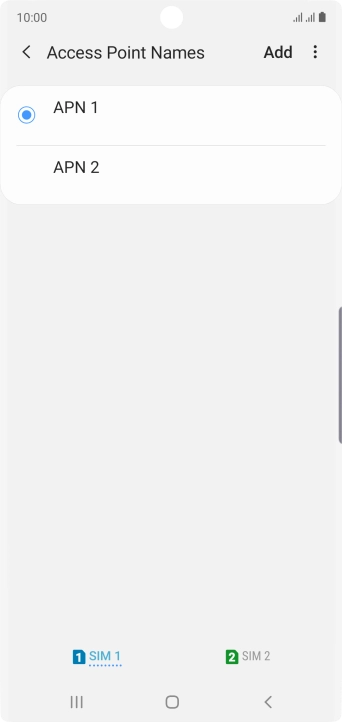

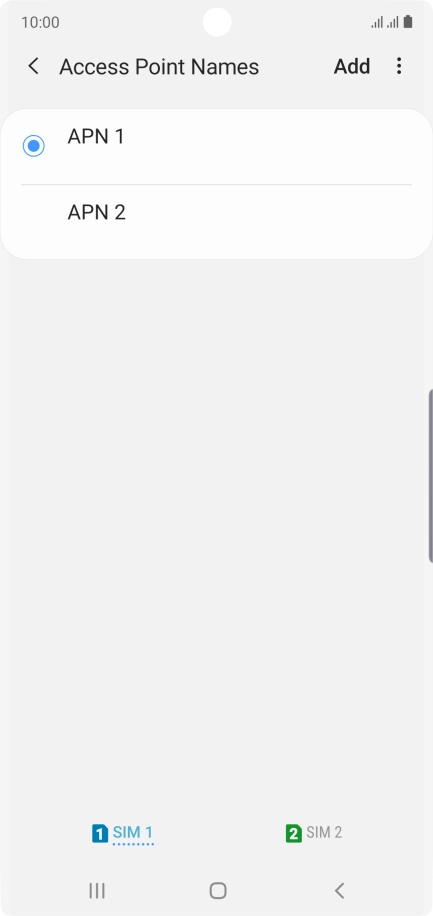

Press the required SIM.
Create new data connection

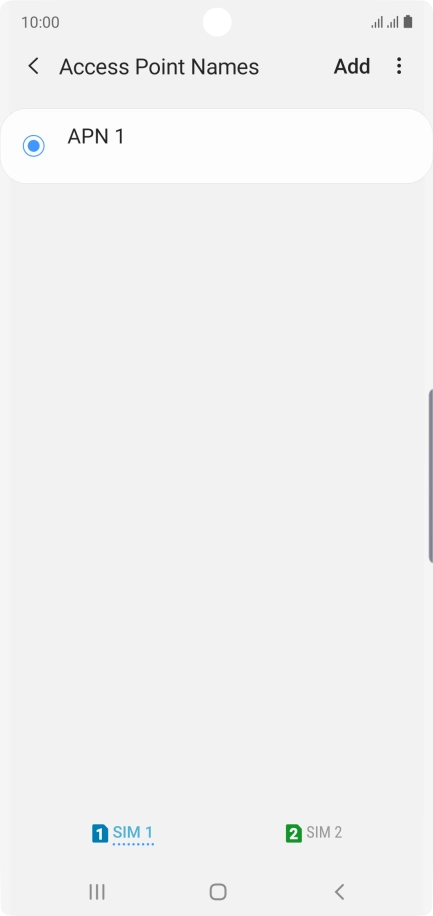

Press Add.
Create new data connection

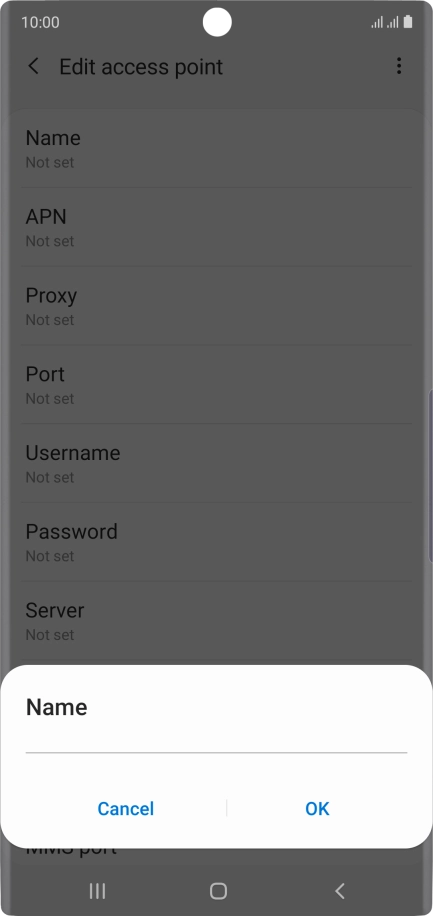

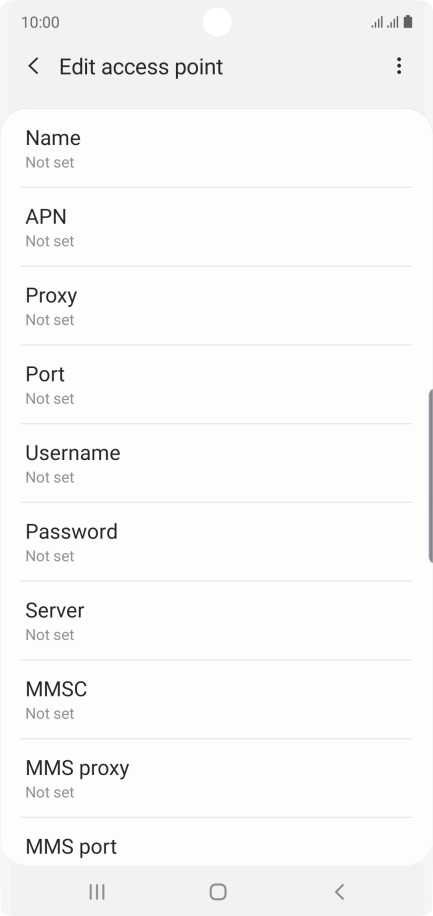

Press Name.
Create new data connection
Key in Vodafone MMS and press OK.
Enter APN

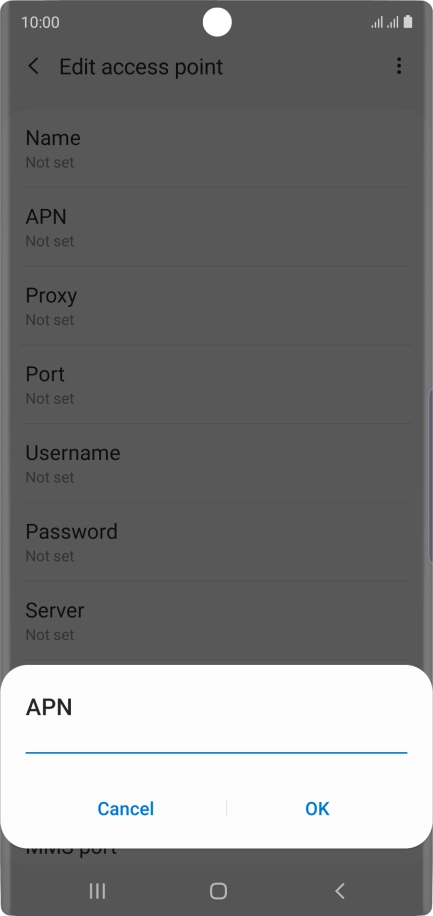

Press APN.
Enter APN
Key in live.vodafone.com and press OK.
Enter MMSC

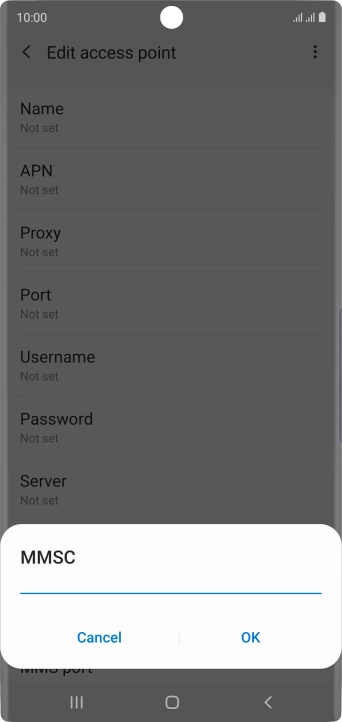

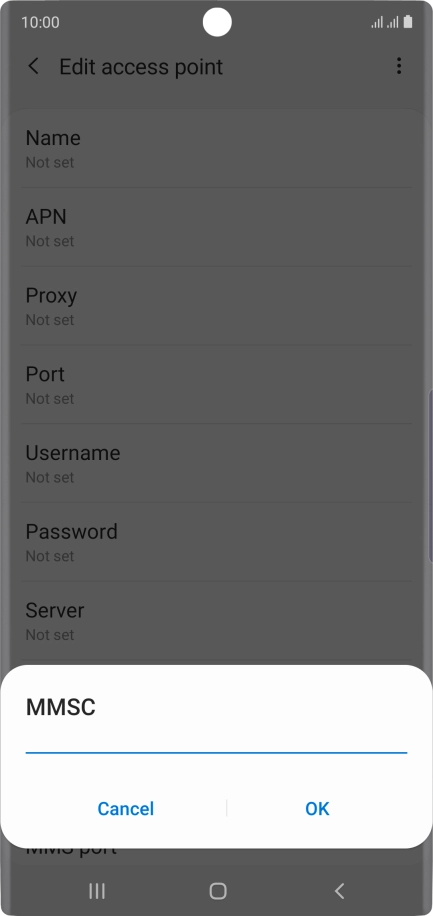

Press MMSC.
Enter MMSC
Key in http://pxt.vodafone.net.nz/pxtsend and press OK.
Enter IP address

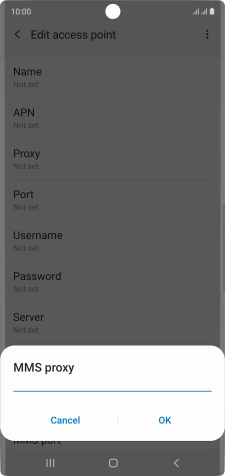

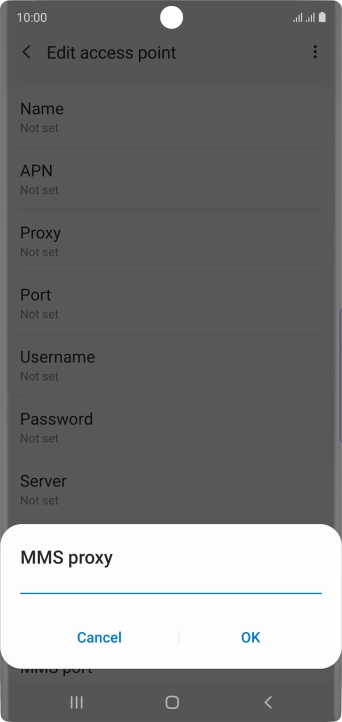

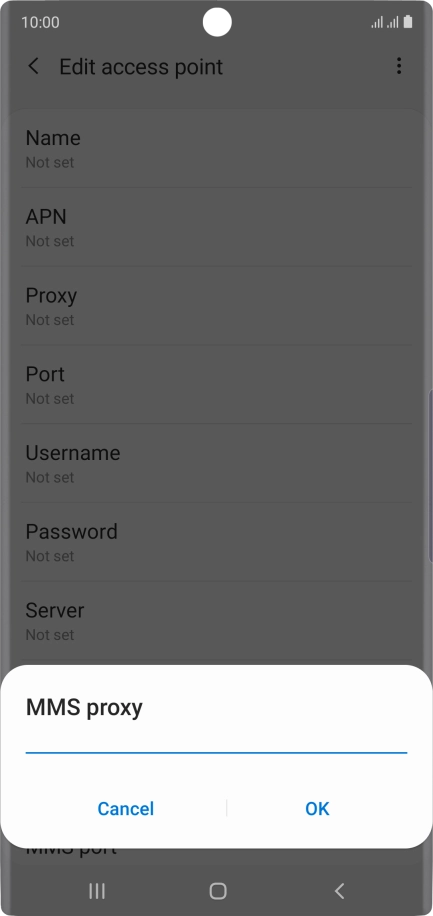

Press MMS proxy.
Enter IP address
Key in 172.030.038.003 and press OK.
Enter port number

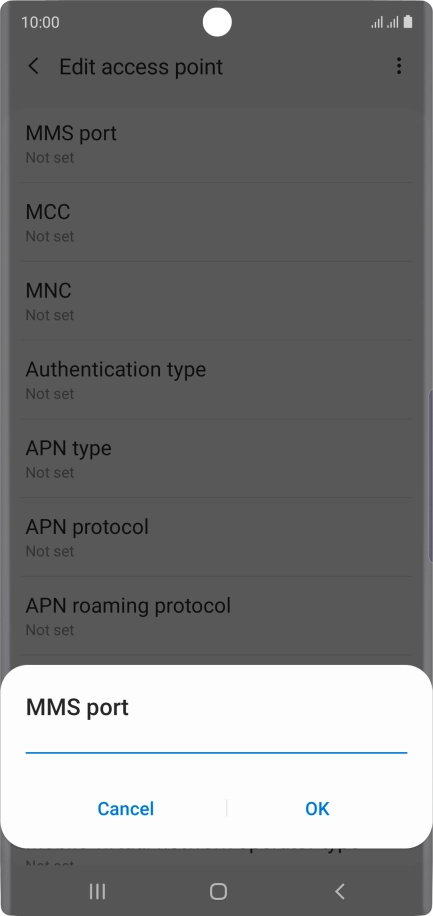

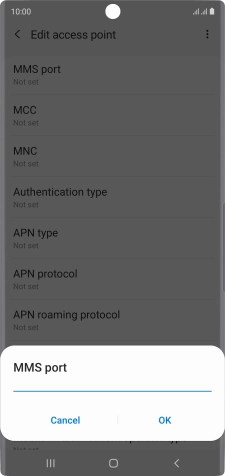

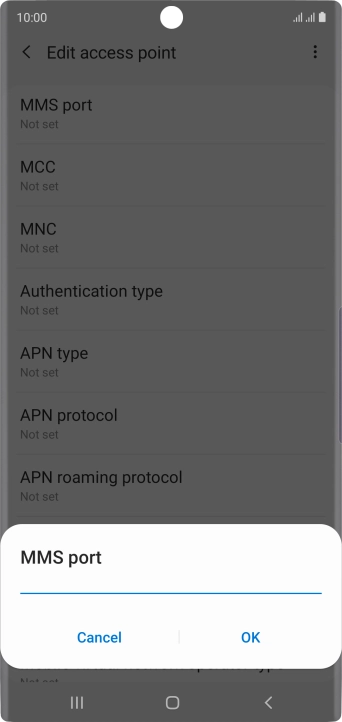

Press MMS port.
Enter port number
Key in 8080 and press OK.
Enter country code

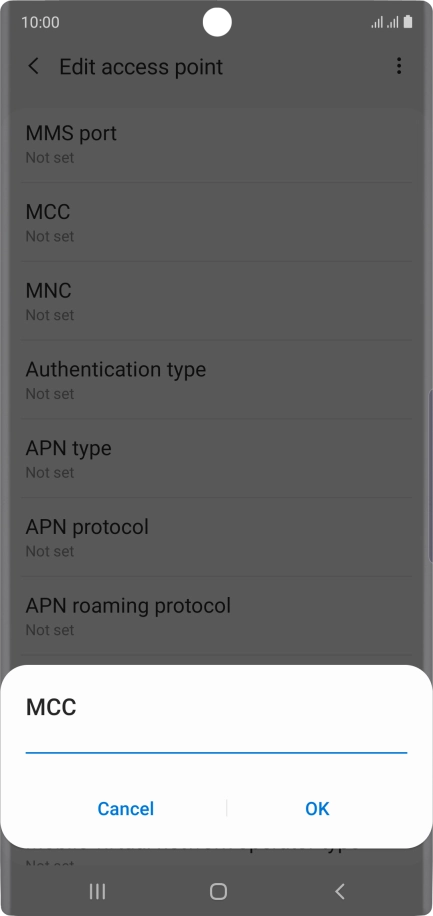

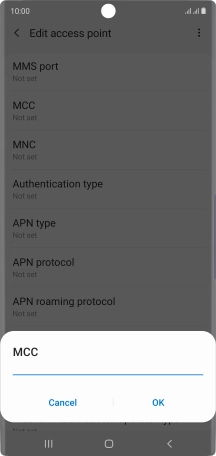

Press MCC.
Enter country code
Key in 530 and press OK.
Enter network code

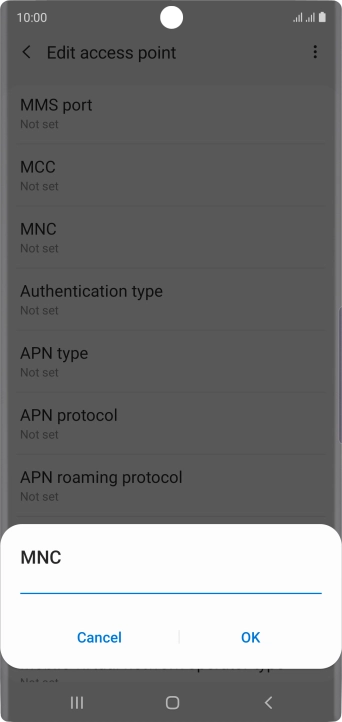

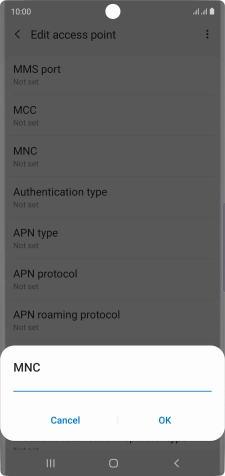

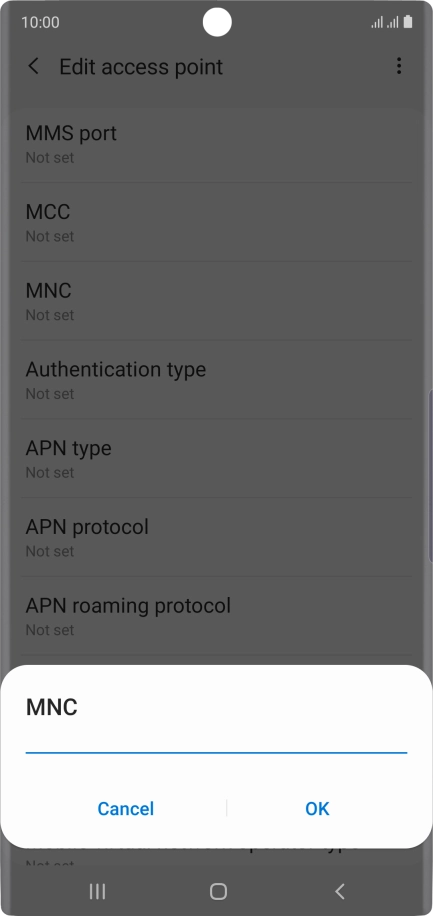

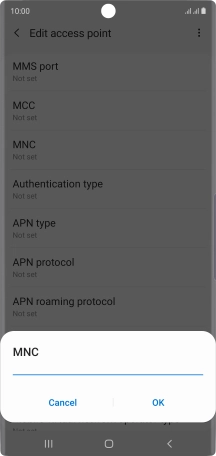

Press MNC.
Enter network code
Key in 01 and press OK.
Select authentication type

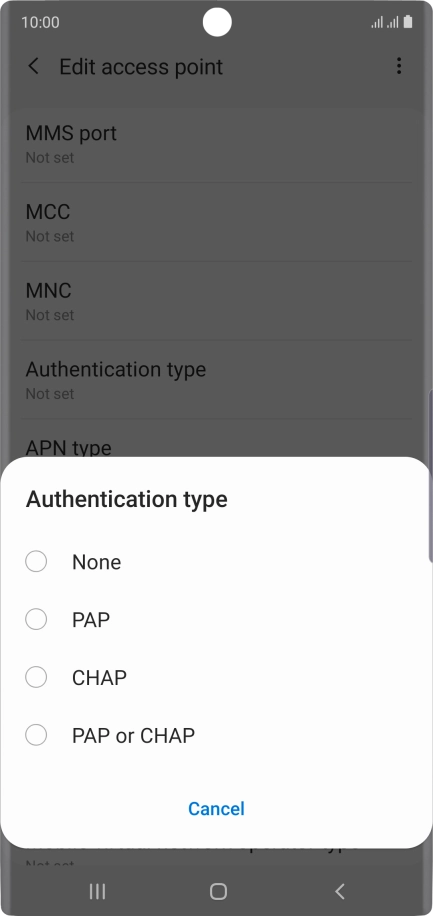

Press Authentication type.
Select authentication type
Press PAP.
Enter APN type

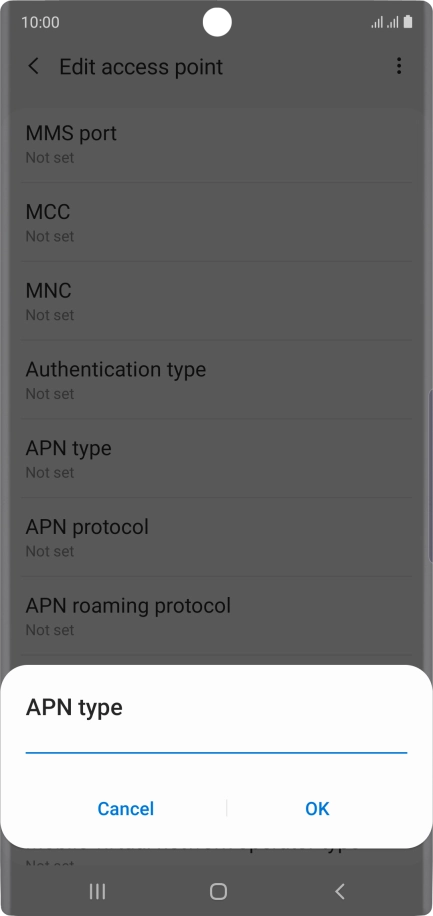

Press APN type.
Enter APN type
Key in mms and press OK.
Save data connection

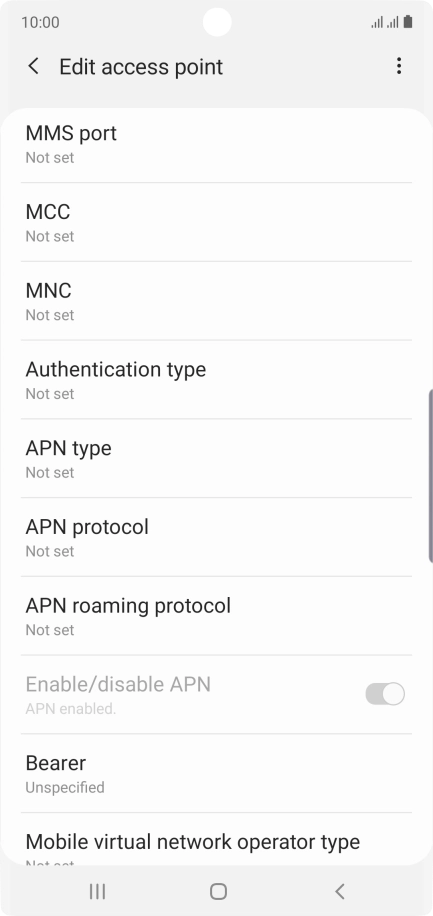

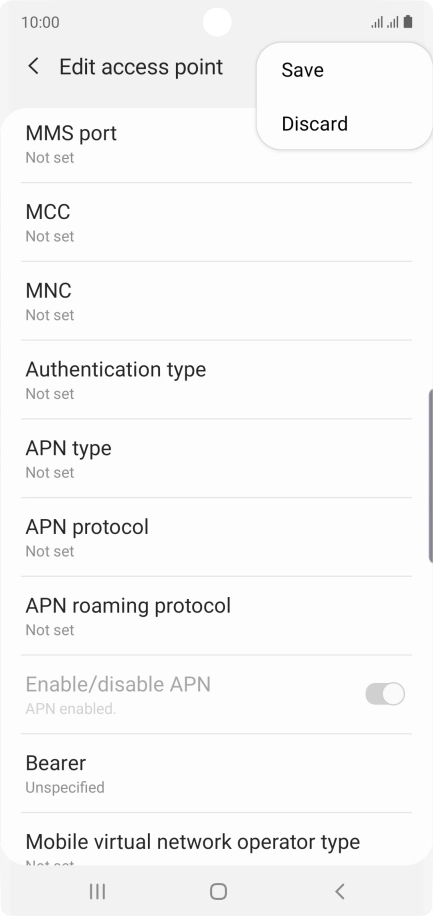

Press the menu icon.
Save data connection
Press Save.
Return to the home screen
Press the Home key to return to the home screen.
