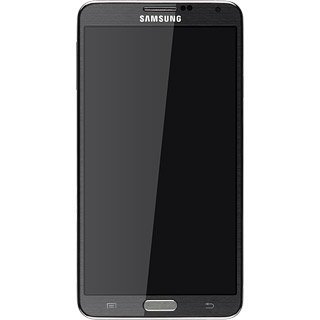

Samsung Galaxy Note 3
Set up your phone for picture messaging
A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.
1. Find "Access Point Names"

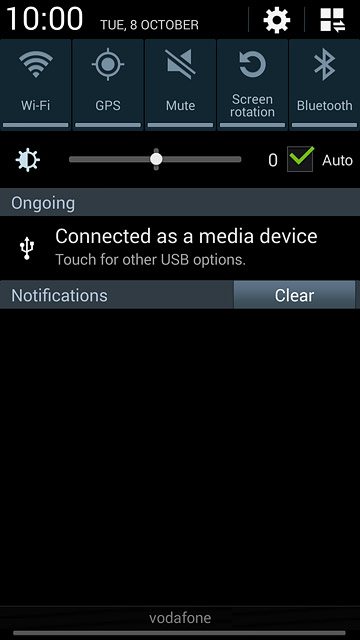

Slide your finger down the display starting from the top edge of your phone.
Press the settings icon.
Press the settings icon.

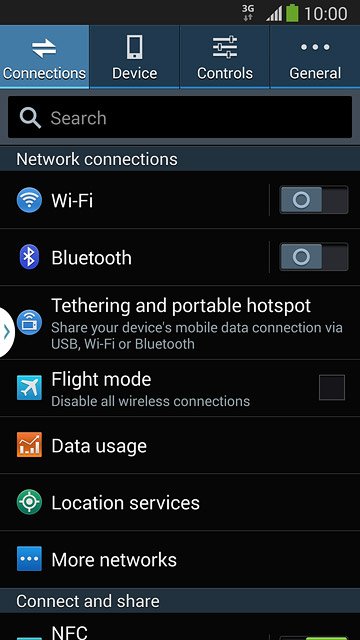

Press the Connections tab.
Press More networks.

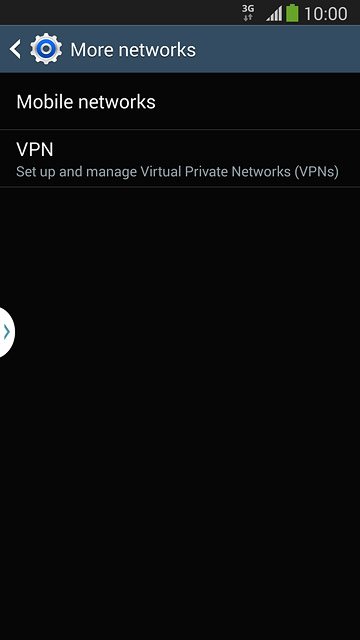

Press Mobile networks.

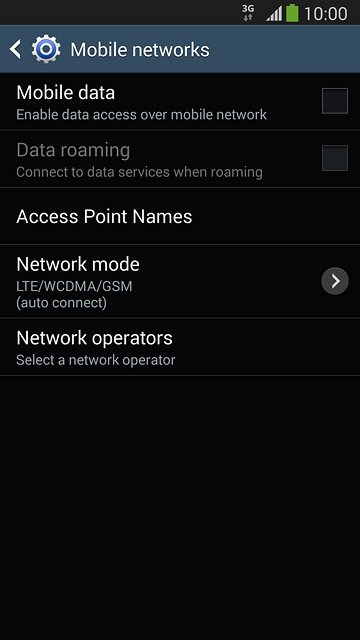

Press Access Point Names.
2. Create new data connection

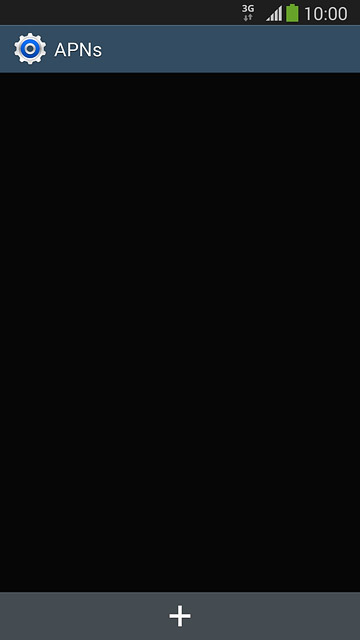

Press the new data connection icon.
3. Enter data connection name

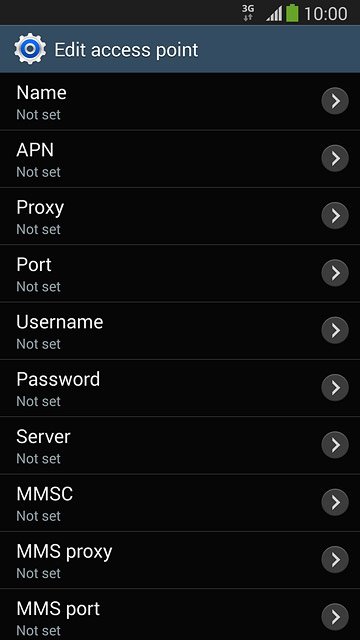

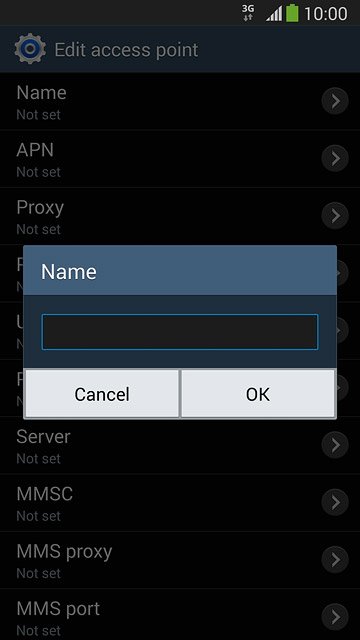

Press Name.
Key in Vodafone MMS and press OK.
4. Enter APN

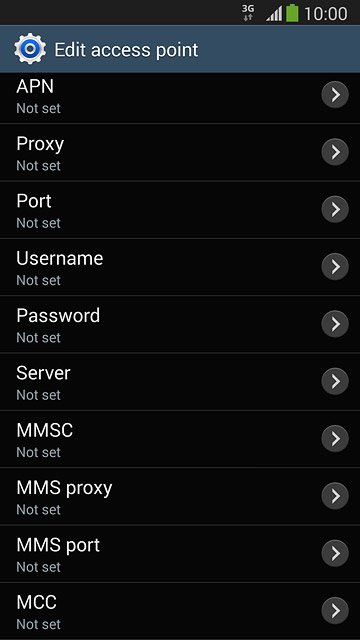

Press APN.
Key in live.vodafone.com and press OK.
5. Enter picture messaging server

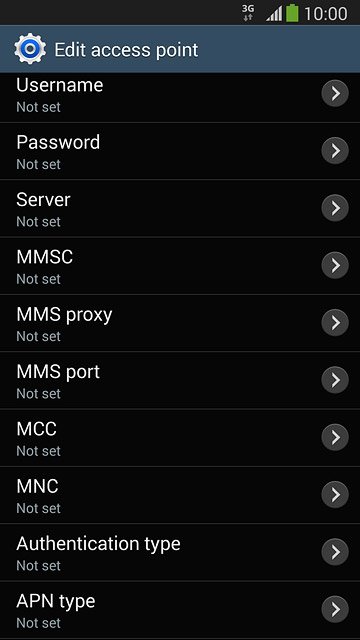

Press MMSC.

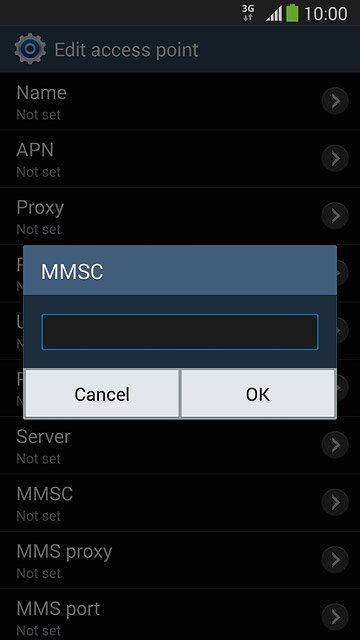

Key in http://pxt.vodafone.net.nz/pxtsend and press OK.
6. Enter IP address

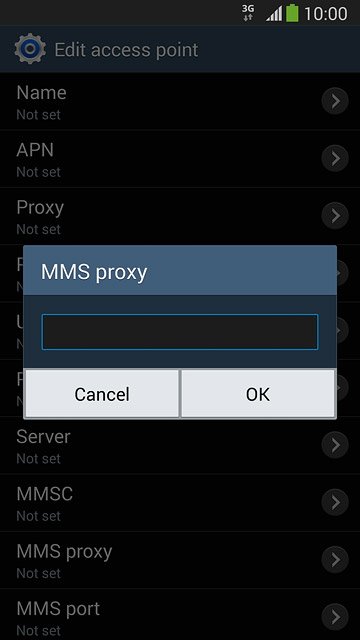

Press MMS proxy.
Key in 172.030.038.003 and press OK.
7. Enter port number

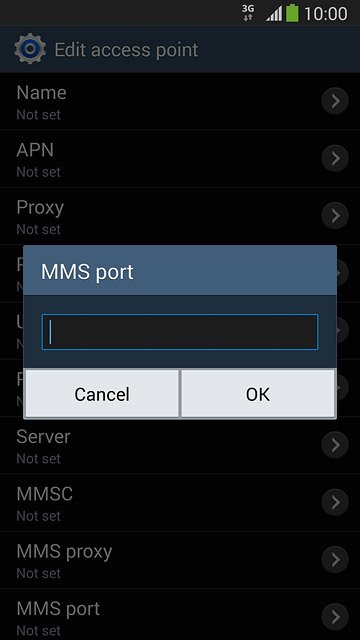

Press MMS port.
Key in 8080 and press OK.
8. Enter country code
Press MCC.
Key in 530 and press OK.
9. Enter network code

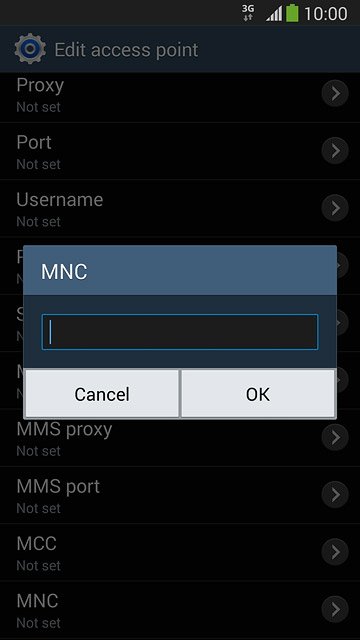

Press MNC.
Key in 01 and press OK.
10. Select authentication type

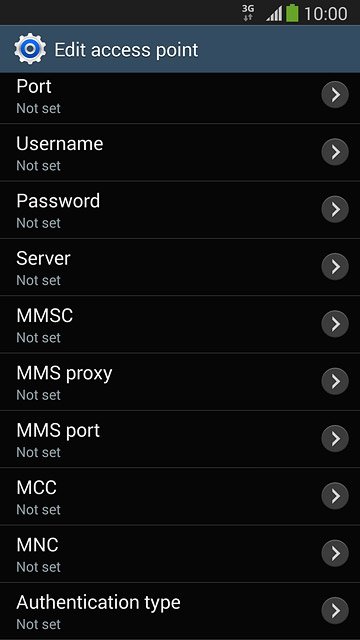

Press Authentication type.
Press PAP.
11. Select APN type

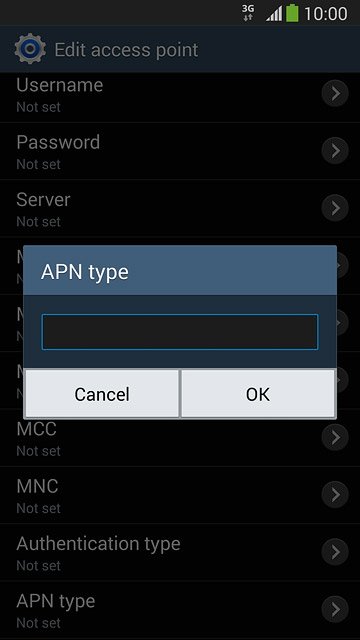

Press APN type.
Key in mms and press OK.
12. Select data bearer

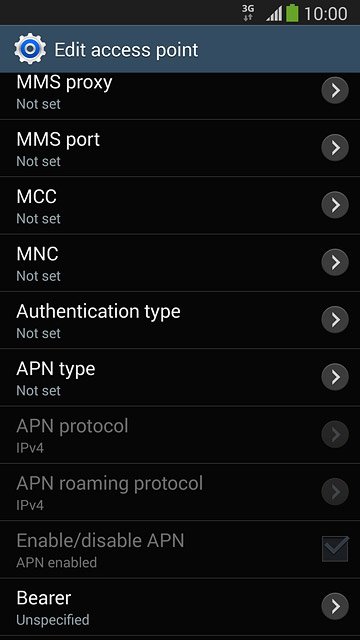

Press Bearer.

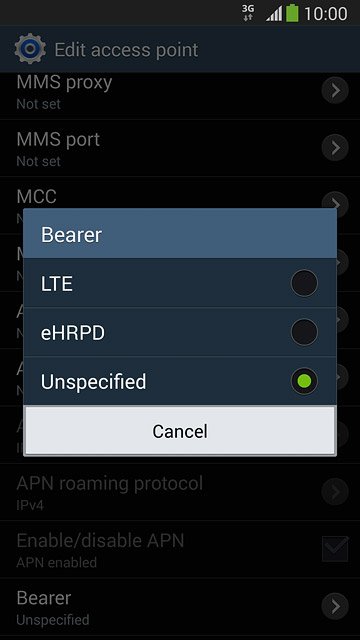

Press Unspecified.
13. Save data connection

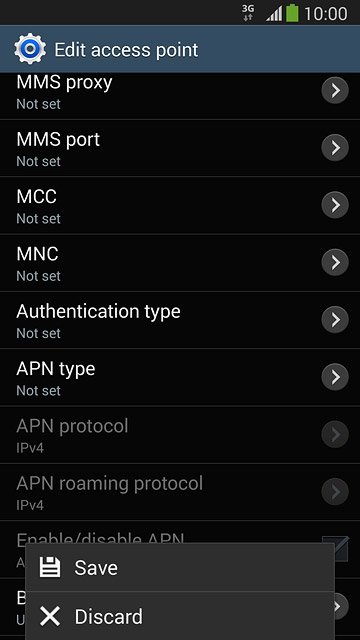

Press the Menu key.
Press Save.
14. Return to the home screen
Press the Home key to return to the home screen.
