Samsung Galaxy Note 10.1

Samsung Galaxy Note 10.1

How to guides

Set up your device for internet

Follow these instructions to set up your device for internet.

Step 1 of 23

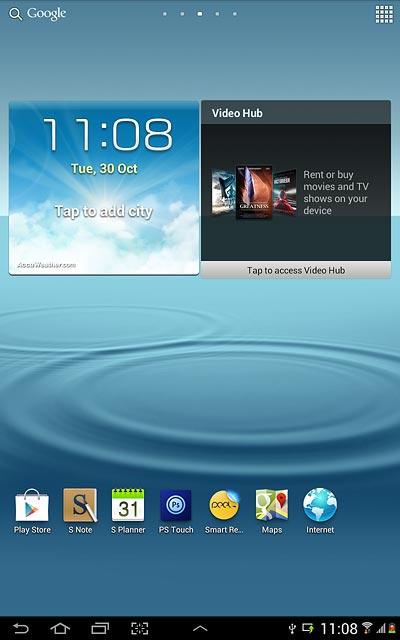

Press the menu icon.

Step 2 of 23

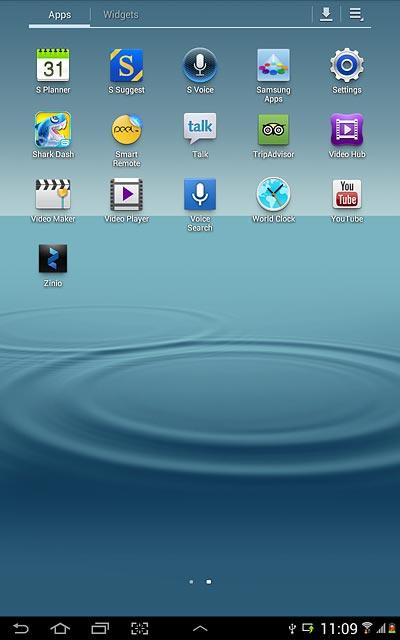

Press Settings.

Step 3 of 23

Press More settings.

Step 4 of 23

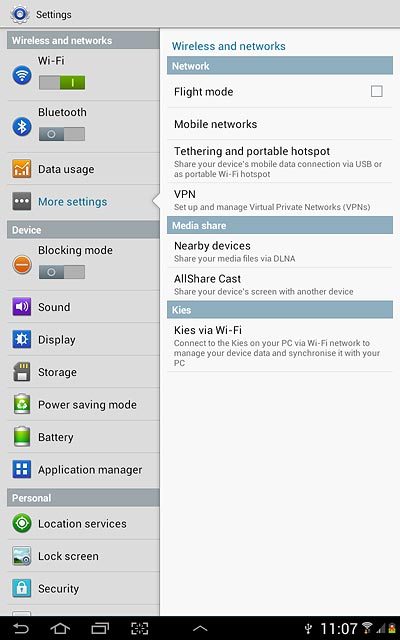

Press Mobile networks.

Step 5 of 23

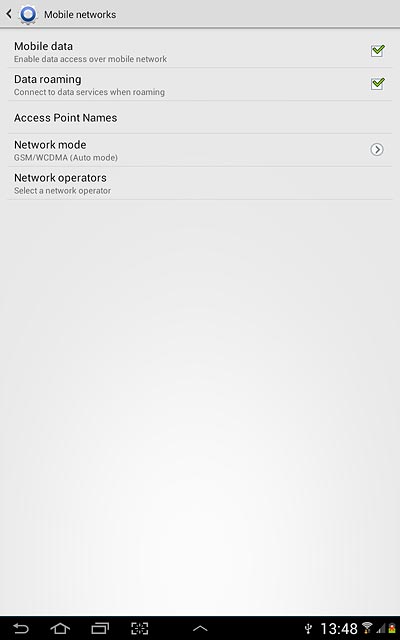

Press Access Point Names.

Step 6 of 23

Press the menu icon.

Step 7 of 23

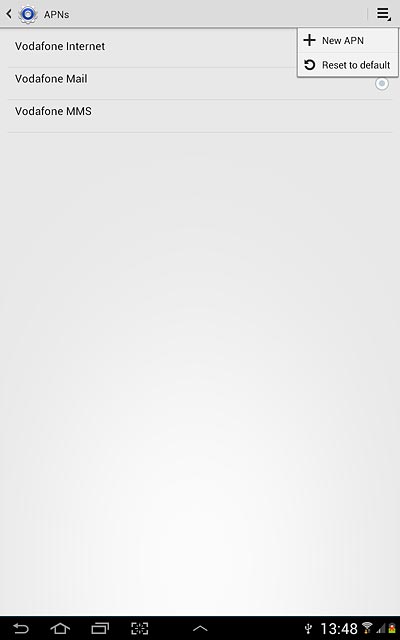

Press New APN.

Step 8 of 23

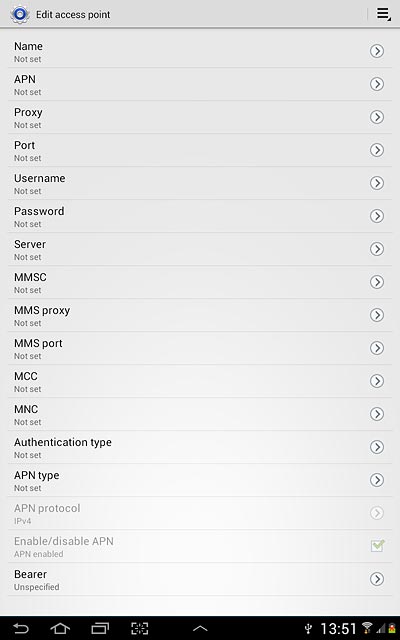

Press Name.

Step 9 of 23

Key in Vodafone Internet and press OK.

Step 10 of 23

Press APN.

An APN is used to establish a data connection.
Step 11 of 23

Key in www.vodafone.net.nz and press OK.

An APN is used to establish a data connection.
Step 12 of 23

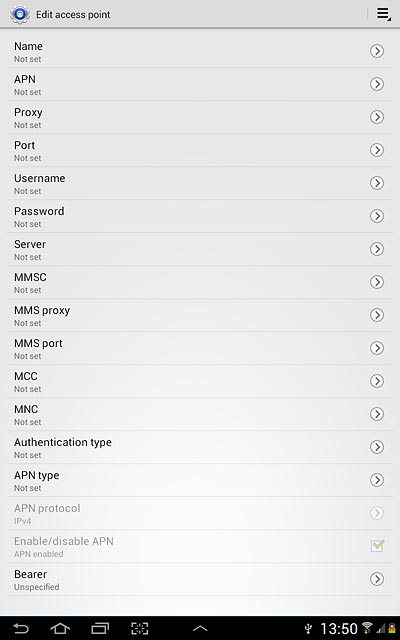

Press MCC.

Step 13 of 23

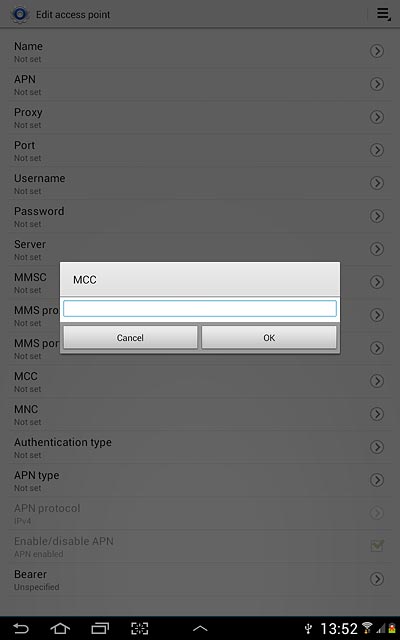

Key in 530 and press OK.

Step 14 of 23

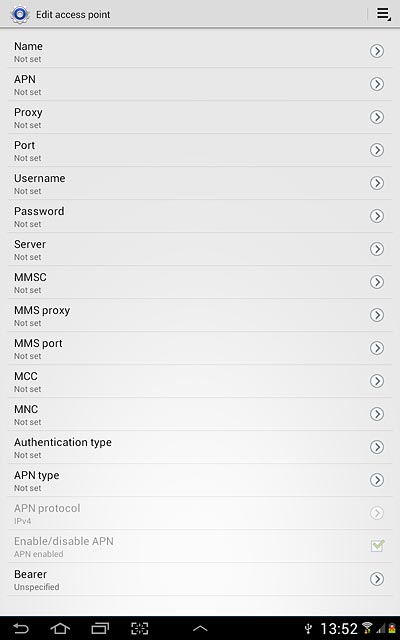

Press MNC.

Step 15 of 23

Key in 01 and press OK.

Step 16 of 23

Press Authentication type.

Step 17 of 23

Press PAP.

Step 18 of 23

Press APN type.

Step 19 of 23

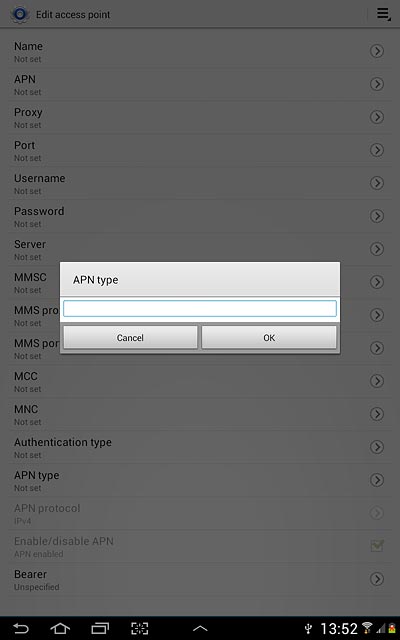

Key in default and press OK.

Step 20 of 23

Press the menu icon.

Step 21 of 23

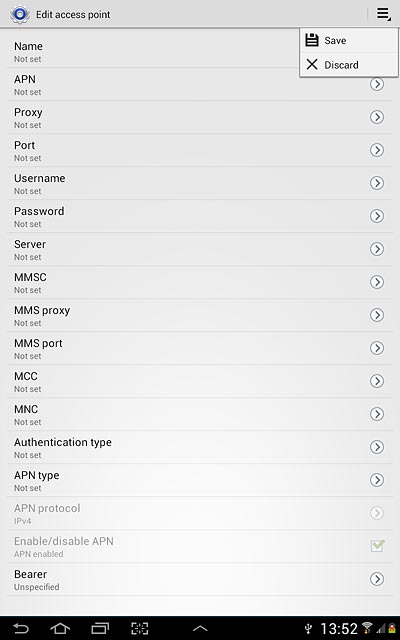

Press Save.

Step 22 of 23

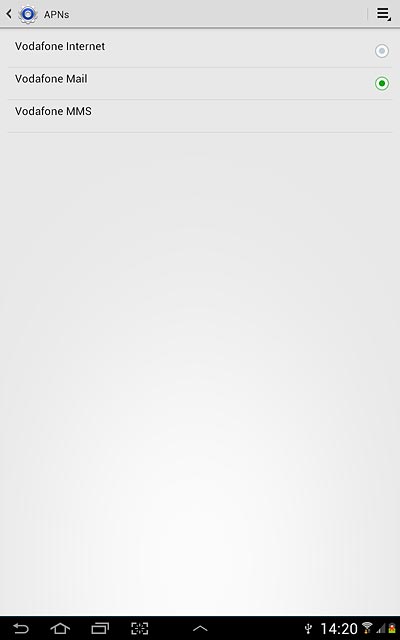

Press the field next to Vodafone Internet to fill in the field.

Step 23 of 23

Press the home icon to return to standby mode.

1. Find "Access Point Names"

Press the menu icon.
Press Settings.
Press More settings.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press the menu icon.
Press New APN.

3. Enter data connection name

Press Name.
Key in Vodafone Internet and press OK.

4. Enter APN

Press APN.
An APN is used to establish a data connection.
Key in www.vodafone.net.nz and press OK.
An APN is used to establish a data connection.

5. Enter country code

Press MCC.
Key in 530 and press OK.

6. Enter network code

Press MNC.
Key in 01 and press OK.

7. Select authentication type

Press Authentication type.
Press PAP.

8. Select APN type

Press APN type.
Key in default and press OK.

9. Save and activate data connection

Press the menu icon.
Press Save.
Press the field next to Vodafone Internet to fill in the field.

10. Exit

Press the home icon to return to standby mode.
