Samsung Galaxy J3 (2016)

Samsung Galaxy J3 (2016)

Android 5.1.1

How to guides

Set up your phone for internet

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 25

Slide your finger downwards starting from the top of the screen.

Step 2 of 25

Press the settings icon.

Step 3 of 25

Press Mobile networks.

Step 4 of 25

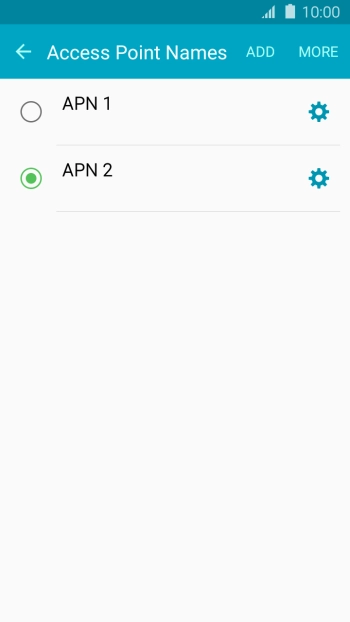

Press Access Point Names.

Step 5 of 25

Press ADD.

Step 6 of 25

Press Name.

Vodafone Internet
Step 7 of 25

Key in Vodafone Internet and press OK.

Step 8 of 25

Press APN.

vodafone
Step 9 of 25

Key in vodafone and press OK.

Step 10 of 25

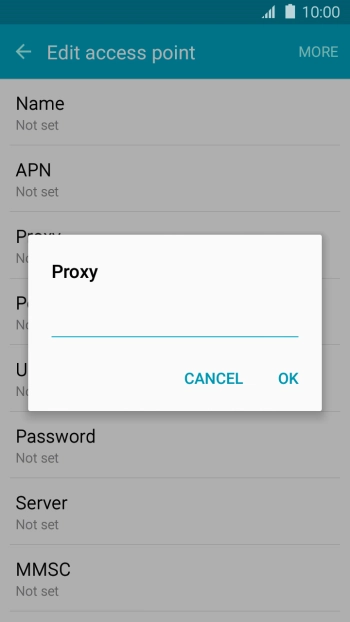

Press Proxy.

172.030.038.003
Step 11 of 25

Key in 172.030.038.003 and press OK.

Step 12 of 25

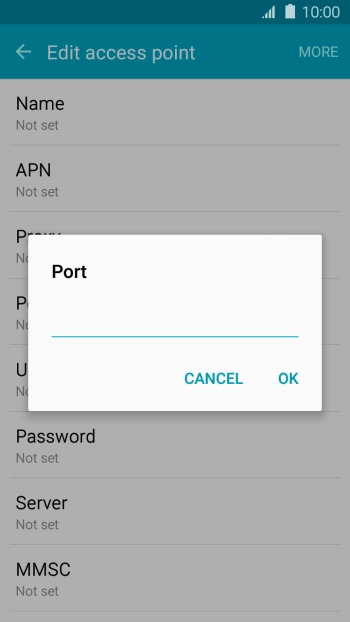

Press Port.

8080
Step 13 of 25

Key in 8080 and press OK.

Step 14 of 25

Press MCC.

530
Step 15 of 25

Key in 530 and press OK.

Step 16 of 25

Press MNC.

01
Step 17 of 25

Key in 01 and press OK.

Step 18 of 25

Press Authentication type.

Step 19 of 25

Press PAP.

Step 20 of 25

Press APN type.

default
Step 21 of 25

Key in default and press OK.

Step 22 of 25

Press MORE.

Step 23 of 25

Press Save.

Step 24 of 25

Press the field next to the data connection to activate it.

Step 25 of 25

Press the Home key to return to the home screen.

1. 1. Find "Access Point Names"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Mobile networks.
Press Access Point Names.

2. 2. Create new data connection

Press ADD.
Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

3. 3. Enter APN

Press APN.
Key in vodafone and press OK.
vodafone

4. 4. Enter IP address

Press Proxy.
Key in 172.030.038.003 and press OK.
172.030.038.003

5. 5. Enter port number

Press Port.
Key in 8080 and press OK.
8080

6. 6. Enter country code

Press MCC.
Key in 530 and press OK.
530

7. 7. Enter network code

Press MNC.
Key in 01 and press OK.
01

8. 8. Select authentication type

Press Authentication type.
Press PAP.

9. 9. Select APN type

Press APN type.
Key in default and press OK.
default

10. 10. Save data connection

Press MORE.
Press Save.
Press the field next to the data connection to activate it.

11. 11. Return to the home screen

Press the Home key to return to the home screen.
