![Samsung Galaxy A54 5G](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-72ee9c64-5525-4e17-9794-e6fd0db0ba57.png?width=150&height=320)
Samsung Galaxy A54 5G
Android 13
1 Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c3912c55-6d36-42be-a931-18d91958ddb5.png?width=206&height=450)

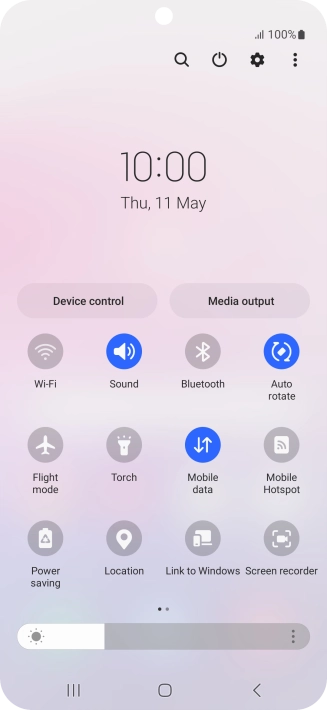

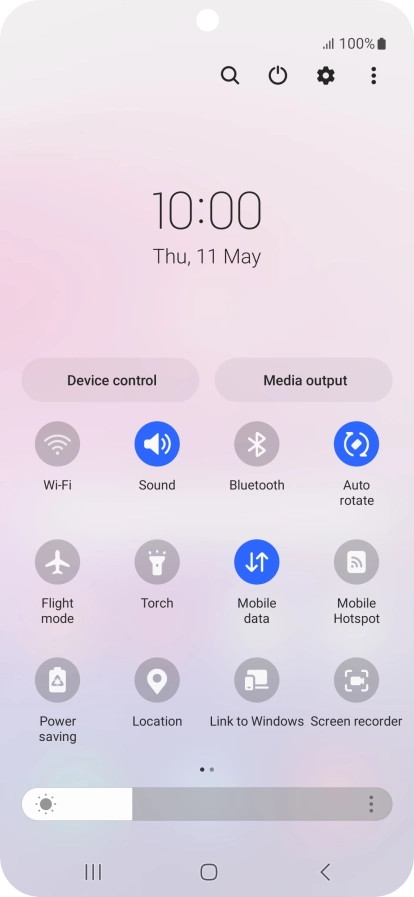

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba05a7bb-5916-4ef7-97a1-4ccb64d317f3.png?width=206&height=450)

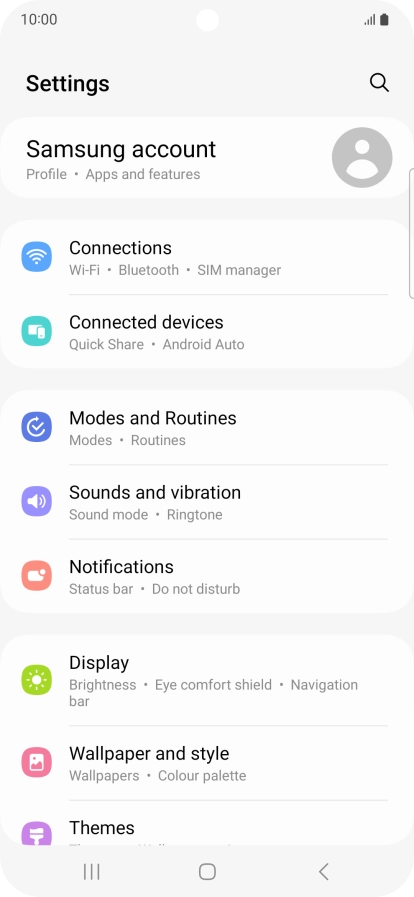

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7445e7ef-df4c-45e6-8352-528b01094015.png?width=206&height=450)

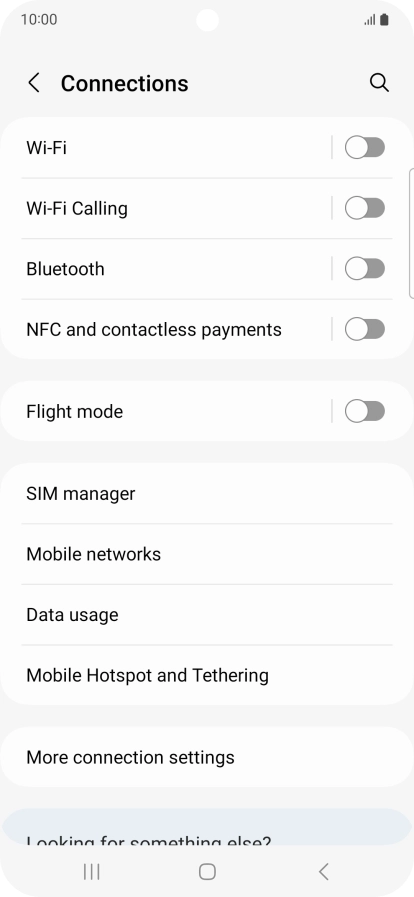

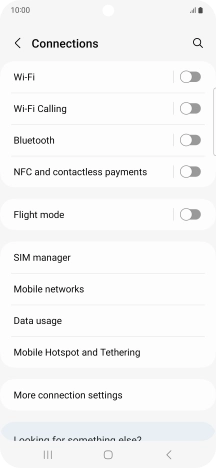

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-829fac3c-0d26-44d6-9486-8a910970e94f.png?width=206&height=450)

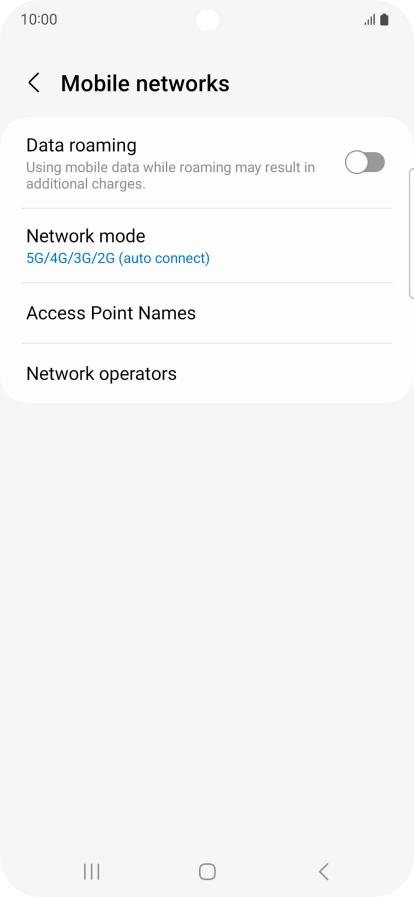

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fa788ac3-0a0a-4367-ac86-7c6ae45e34eb.png?width=206&height=450)
2 Create new data connection

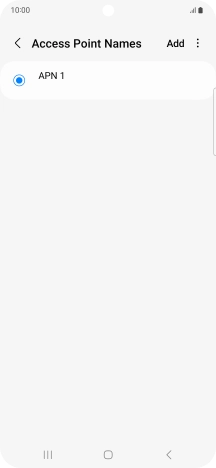

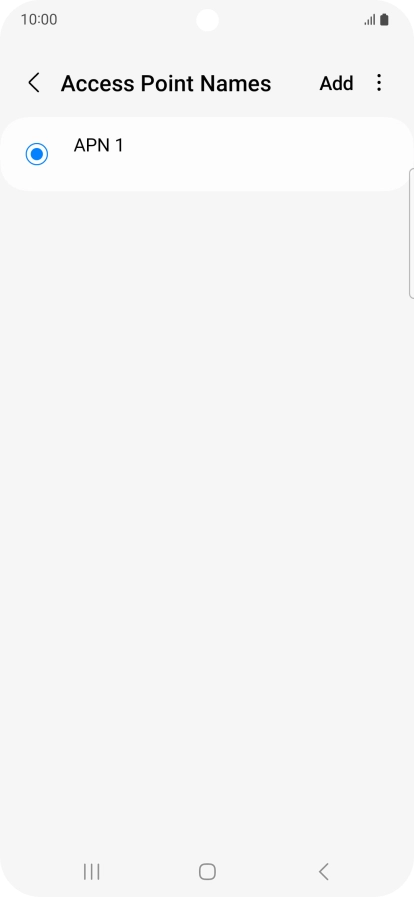

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-de990a51-cde1-4522-a75d-813fe1d1fb2c.png?width=206&height=450)

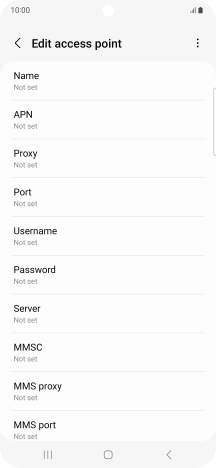

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e4284b7-cdc4-477e-8e2d-1347ed697662.png?width=206&height=450)

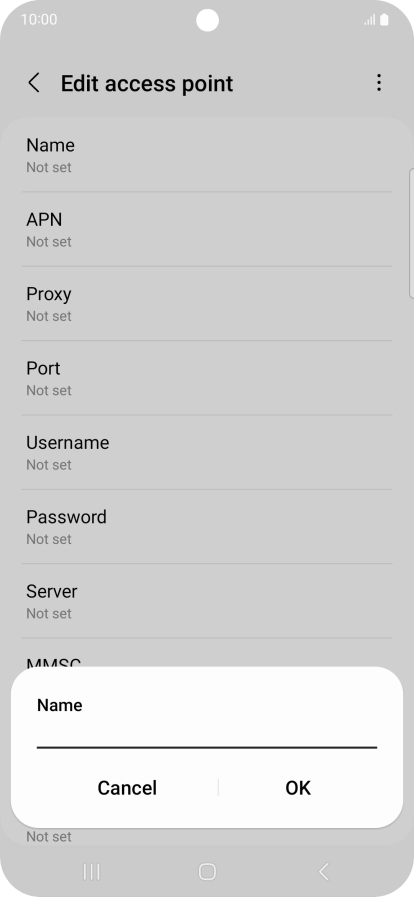

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8d53ffa8-4463-4e33-acfd-50cb1562c57a.png?width=206&height=450)
Vodafone MMS
3 Enter APN

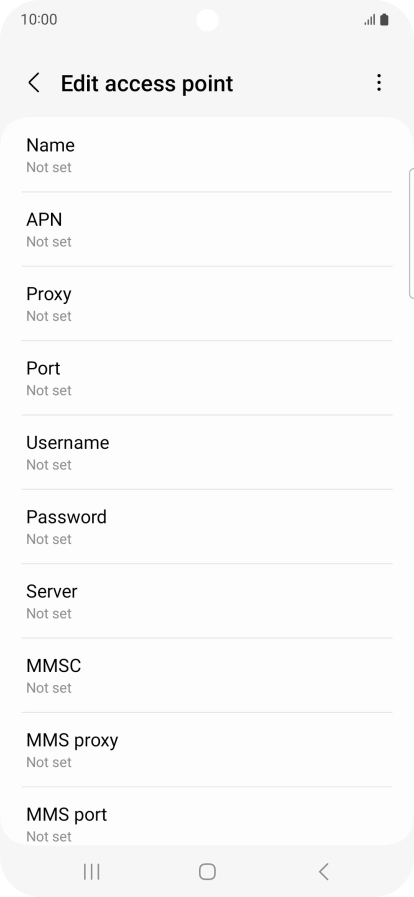

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e4284b7-cdc4-477e-8e2d-1347ed697662.png?width=206&height=450)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b4c39c70-55df-44d6-bb37-1d0fe2ca7687.png?width=206&height=450)
live.vodafone.com
4 Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e4284b7-cdc4-477e-8e2d-1347ed697662.png?width=206&height=450)

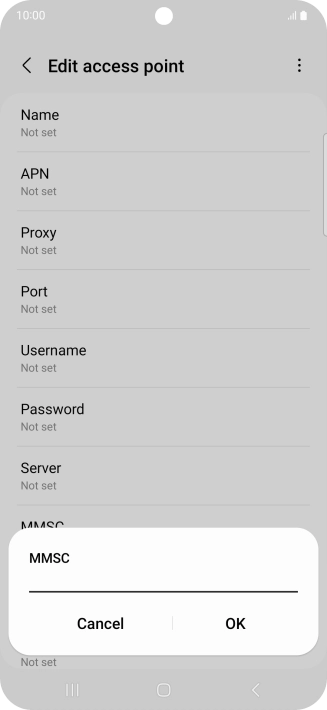

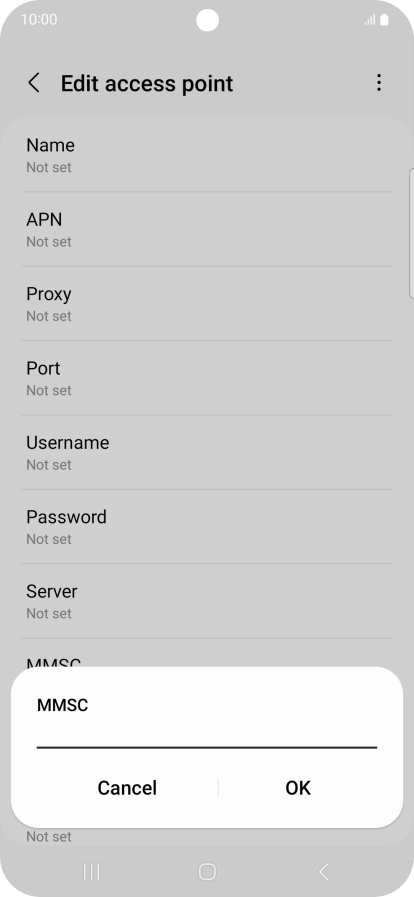

Key in http://pxt.vodafone.net.nz/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a068f53e-abe8-4136-81a0-70c8eda4c4f4.png?width=206&height=450)
http://pxt.vodafone.net.nz/pxtsend
5 Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e4284b7-cdc4-477e-8e2d-1347ed697662.png?width=206&height=450)

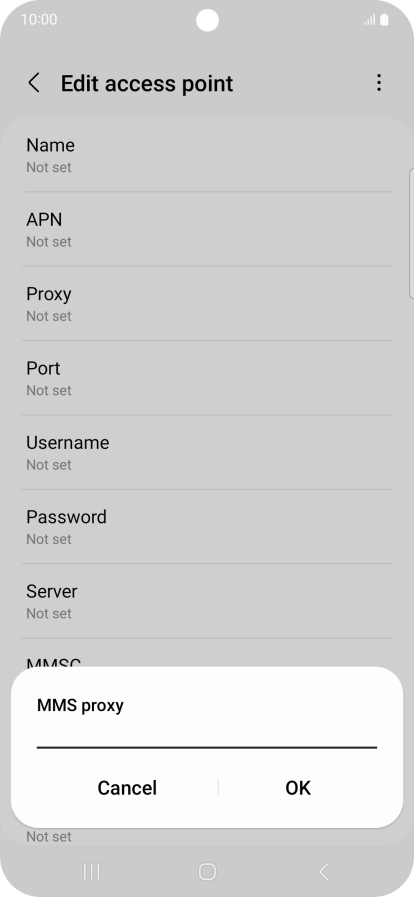

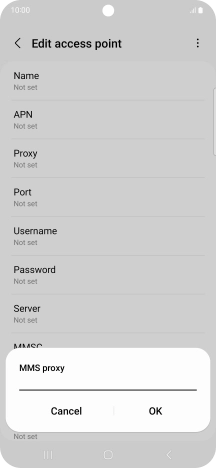

Key in 172.030.038.003 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-802bd63c-9b91-473d-85b1-df333b10c76b.png?width=206&height=450)
172.030.038.003
6 Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e4284b7-cdc4-477e-8e2d-1347ed697662.png?width=206&height=450)

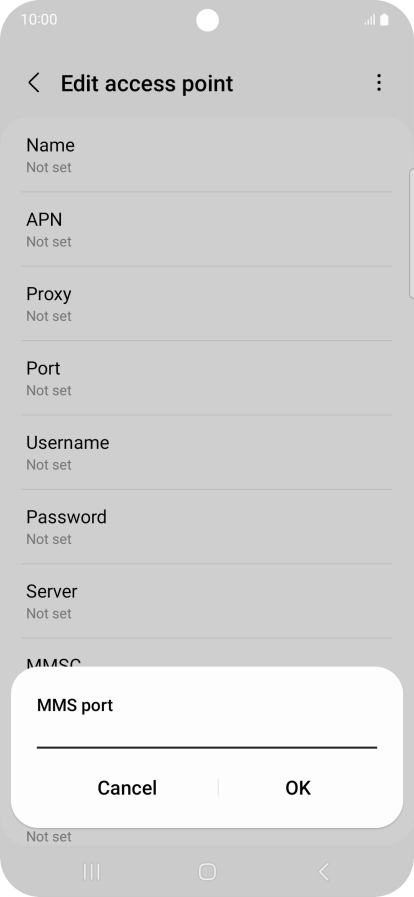

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab96bcf7-e50e-4a66-8348-8c814087d7f4.png?width=206&height=450)
8080
7 Enter country code

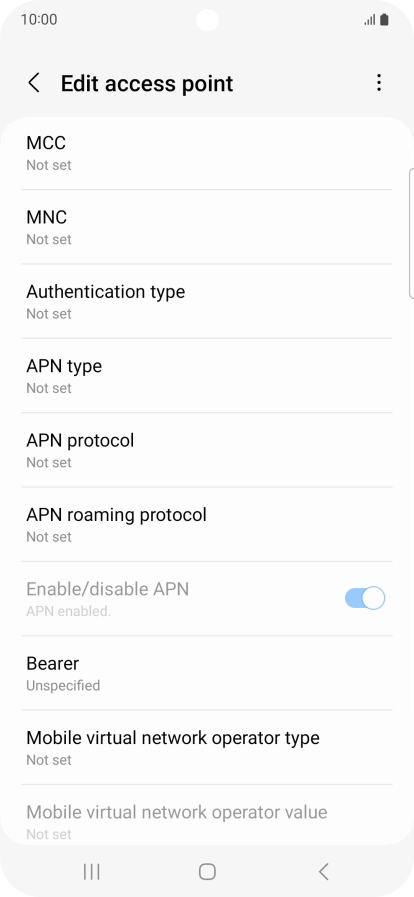

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4ea6bc7-c783-46a2-9021-b1a3a65017e8.png?width=206&height=450)

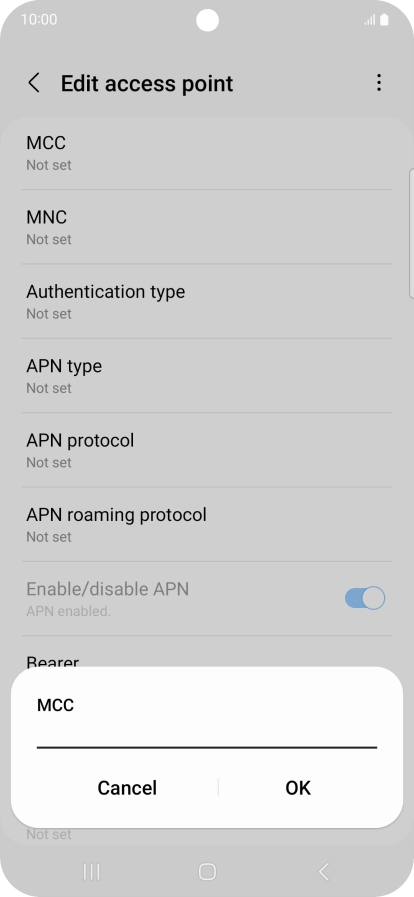

Key in 530 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2415ec87-5c7b-4a2c-a5e0-1e0f287eccf1.png?width=206&height=450)
530
8 Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4ea6bc7-c783-46a2-9021-b1a3a65017e8.png?width=206&height=450)

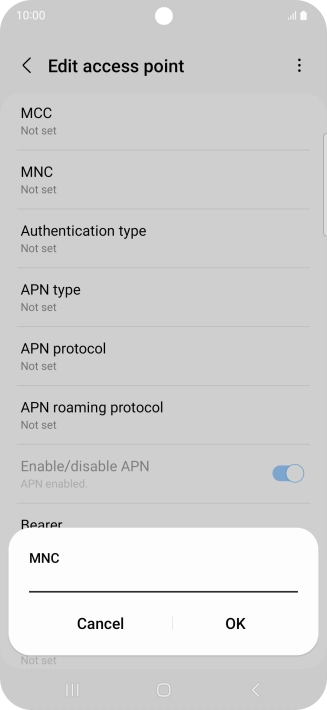

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-037dc750-5466-4821-bdf3-36a9521f0a45.png?width=206&height=450)
01
9 Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4ea6bc7-c783-46a2-9021-b1a3a65017e8.png?width=206&height=450)

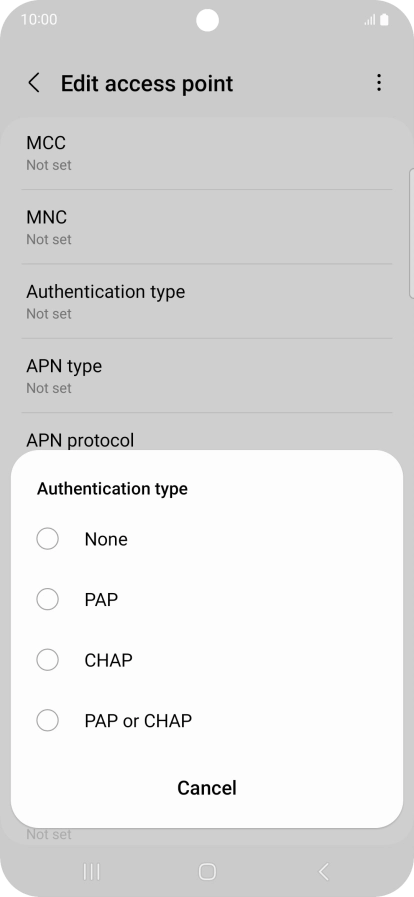

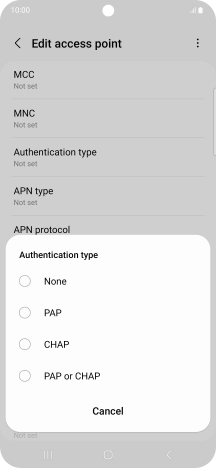

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ded372cb-0709-4307-a3fe-e040442ebc95.png?width=206&height=450)
10 Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4ea6bc7-c783-46a2-9021-b1a3a65017e8.png?width=206&height=450)

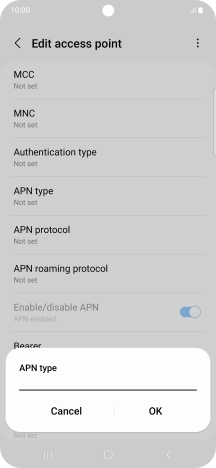

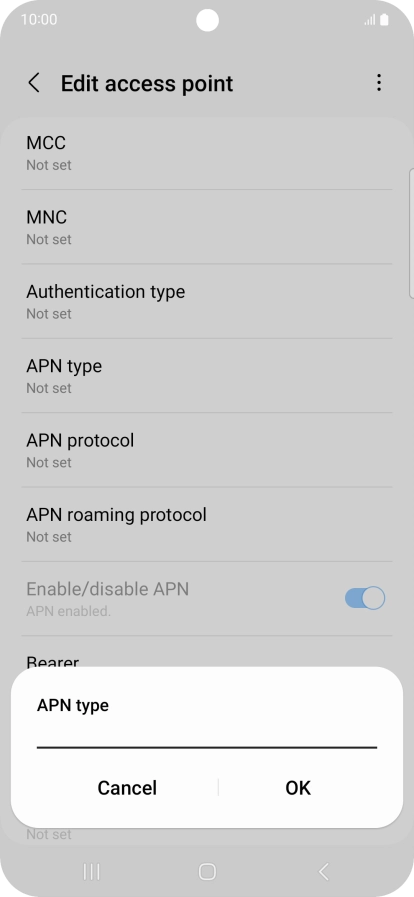

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8fb73c2a-d682-4f52-bc25-2e07b199a5dc.png?width=206&height=450)
mms
11 Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4ea6bc7-c783-46a2-9021-b1a3a65017e8.png?width=206&height=450)

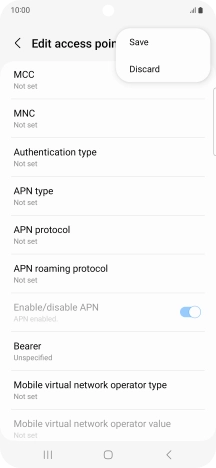

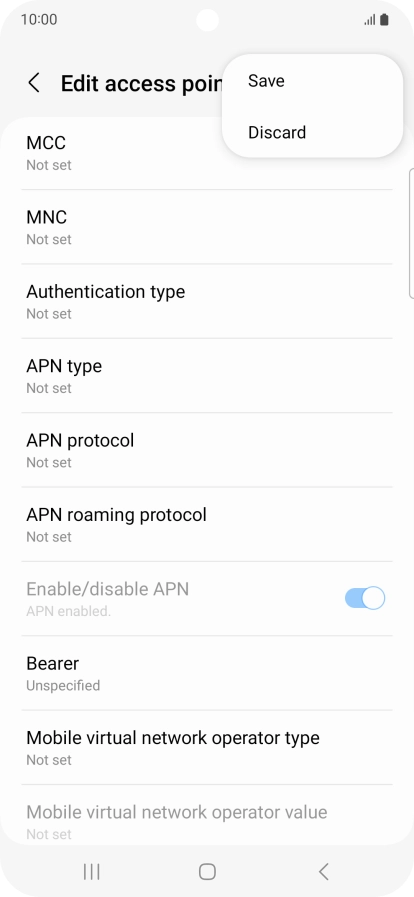

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b878ab9b-0899-4642-bd9d-d847045c98cf.png?width=206&height=450)
12 Return to the home screen

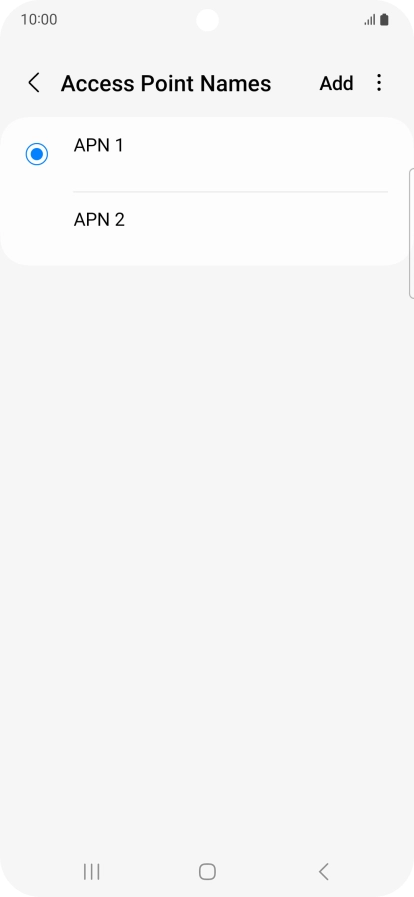

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-40c0f880-9b27-4d58-9f17-cae65d64f6bc.png?width=206&height=450)
