![Samsung Galaxy A3 (2016)](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a99debf1-dd1b-48b0-9501-d633de0de2d6.png?width=150&height=320)
Samsung Galaxy A3 (2016)
Android 5.1.1
1 Find "Access Point Names"

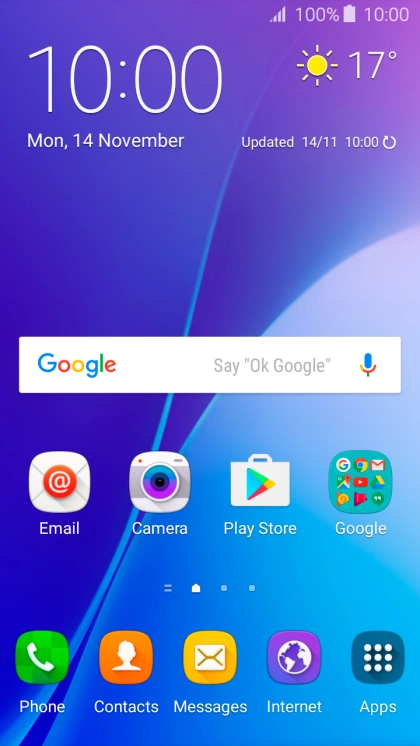

Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-067f6283-d645-4db4-89cb-8f5c86ff6ebf.png?width=210&height=372)

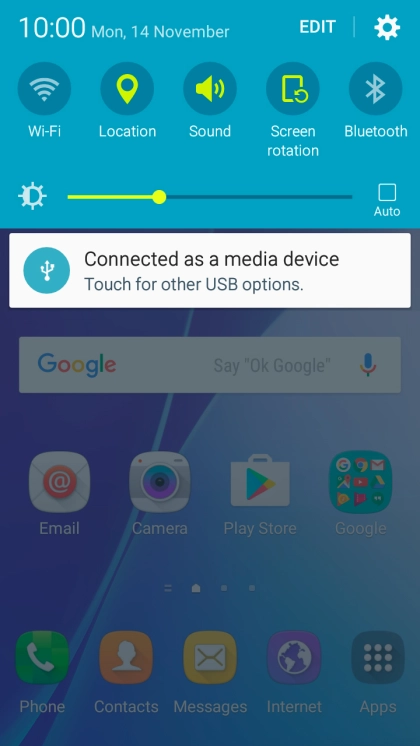

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0dc53ecb-6a0f-4049-a545-b15928ecfed1.png?width=210&height=372)

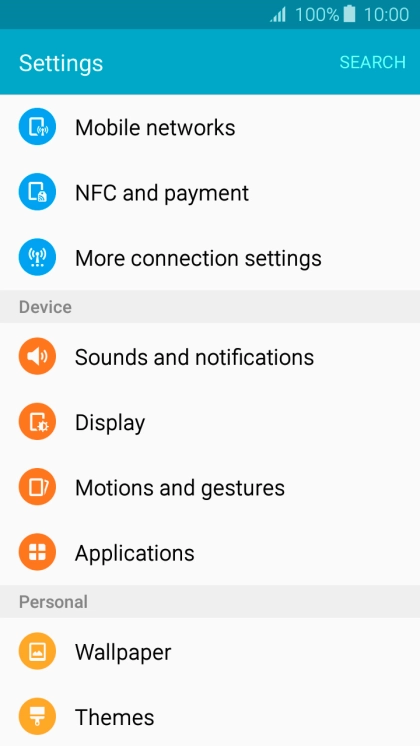

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0a3c60b8-c48f-4397-9b8f-8e08a8e1aa3d.png?width=210&height=372)

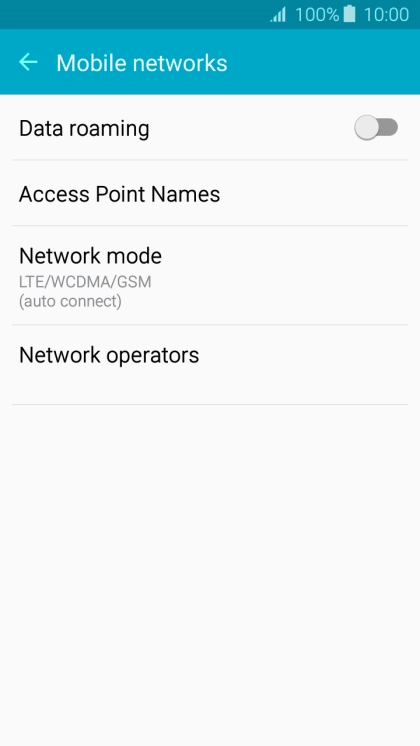

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4c313465-1e62-4a8d-b2d9-404cc3631b92.png?width=210&height=372)
2 Create new data connection

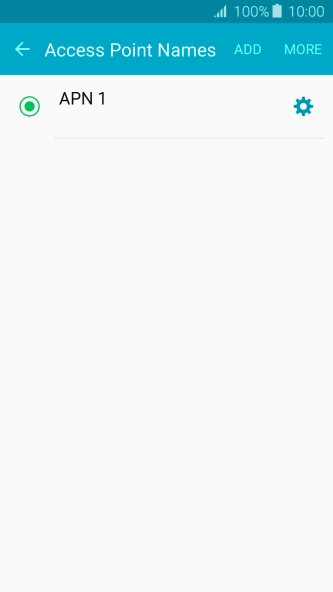

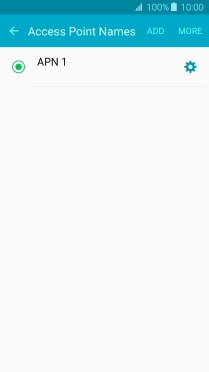

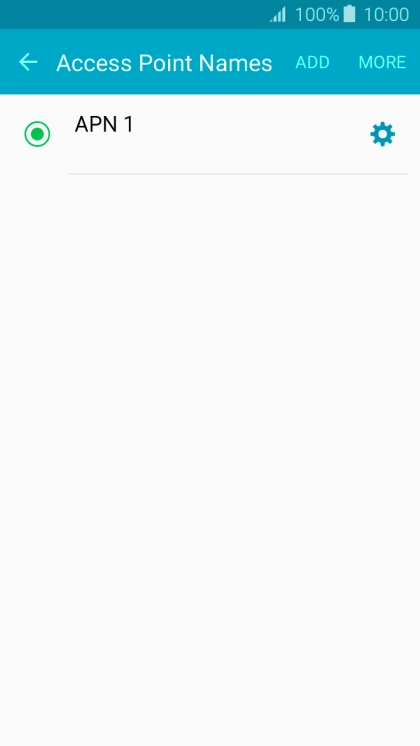

Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-86c59255-66e6-4569-b2f5-25898754593e.png?width=210&height=372)

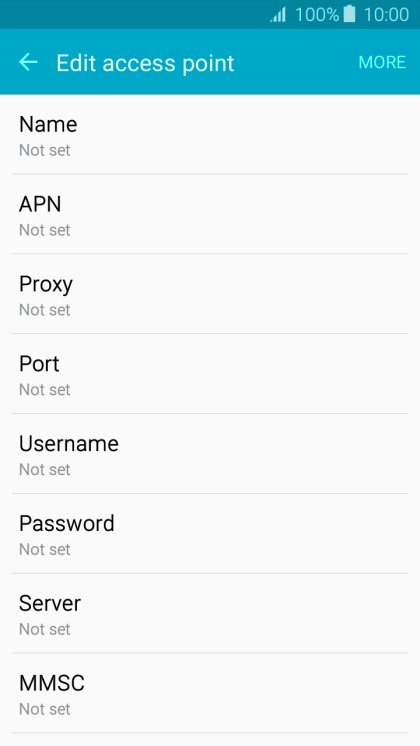

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d11ff3fc-893a-4231-8e62-3750252ba7a1.png?width=210&height=372)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1cb3693a-f8e9-431e-96d4-d56a52e27ed8.png?width=210&height=372)
Vodafone MMS
3 Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d11ff3fc-893a-4231-8e62-3750252ba7a1.png?width=210&height=372)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fb8a594a-1dbf-4f86-9acb-2c2b8e730e98.png?width=210&height=372)
live.vodafone.com
4 Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d11ff3fc-893a-4231-8e62-3750252ba7a1.png?width=210&height=372)

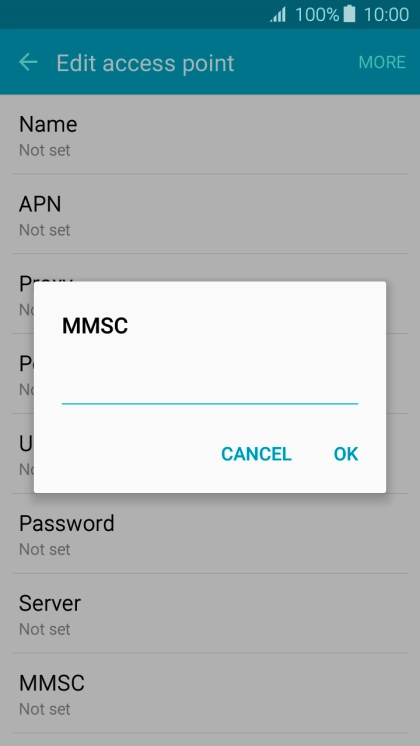

Key in http://pxt.vodafone.net.nz/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cdf7fd2c-2c27-44df-beb7-395a333141f9.png?width=210&height=372)
http://pxt.vodafone.net.nz/pxtsend
5 Enter IP address

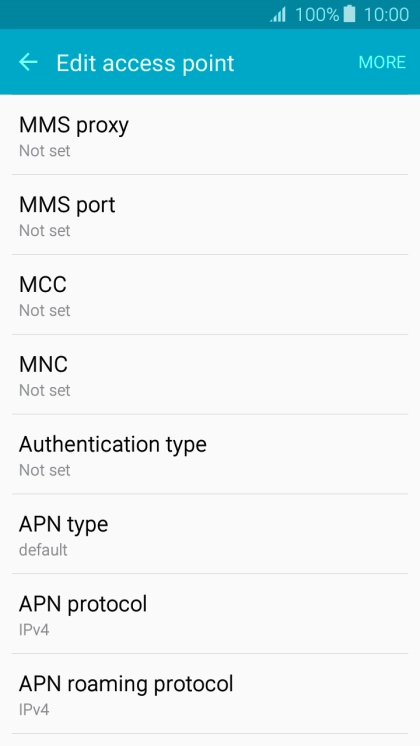

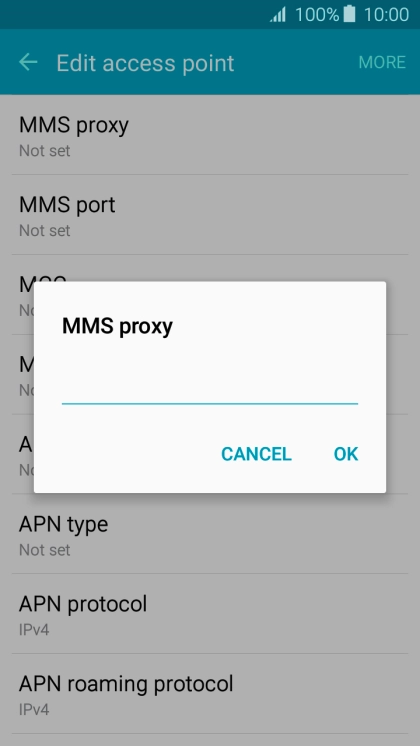

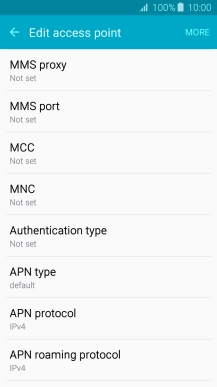

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fc65410c-7e8a-4fc5-bd1a-9551c6a08ab6.png?width=210&height=372)
Key in 172.030.038.003 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-41481b11-29c4-419b-8865-717eab64ce73.png?width=210&height=372)
172.030.038.003
6 Enter port number

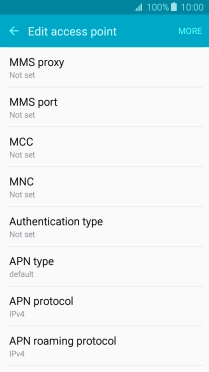

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fc65410c-7e8a-4fc5-bd1a-9551c6a08ab6.png?width=210&height=372)
Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a51110b-3060-4e96-898c-79d0af65c673.png?width=210&height=372)
8080
7 Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fc65410c-7e8a-4fc5-bd1a-9551c6a08ab6.png?width=210&height=372)
Key in 530 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c862511a-a4da-4bda-94a2-35f50efe685f.png?width=210&height=372)
530
8 Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fc65410c-7e8a-4fc5-bd1a-9551c6a08ab6.png?width=210&height=372)

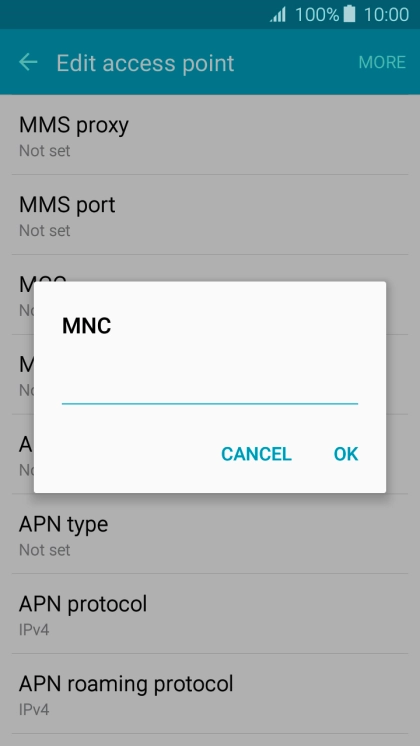

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-02858041-b2ea-4426-a48f-4f87c56c72ad.png?width=210&height=372)
01
9 Select authentication type

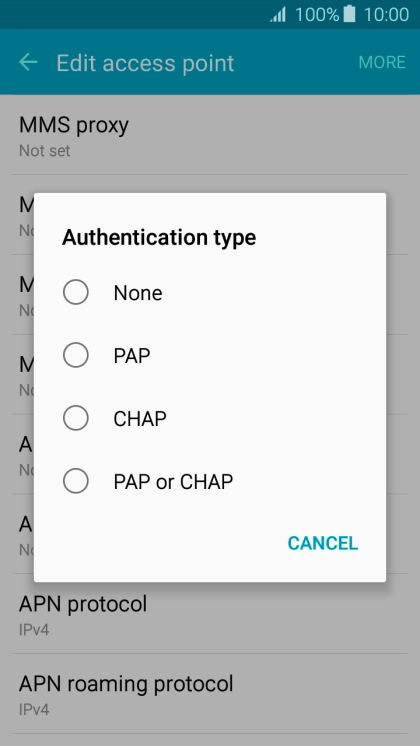

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fc65410c-7e8a-4fc5-bd1a-9551c6a08ab6.png?width=210&height=372)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b7b4d06-f6ef-44c7-b0cd-3ba62f16f216.png?width=210&height=372)
10 Select APN type

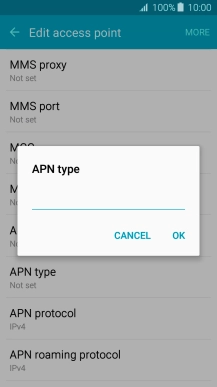

Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fc65410c-7e8a-4fc5-bd1a-9551c6a08ab6.png?width=210&height=372)

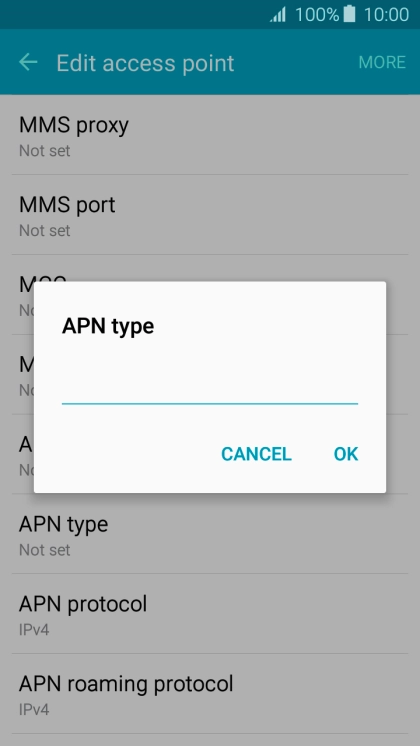

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d0f62dc4-3b97-4cc4-b021-487136657130.png?width=210&height=372)
mms
11 Save data connection

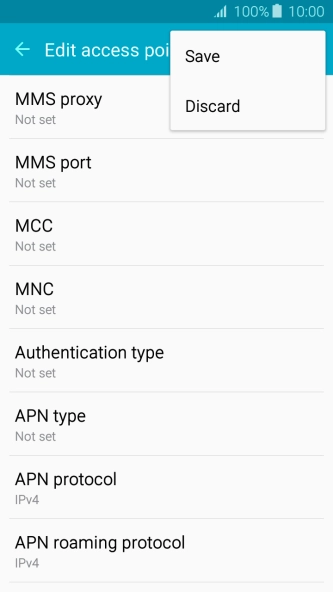

Press MORE.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fc65410c-7e8a-4fc5-bd1a-9551c6a08ab6.png?width=210&height=372)

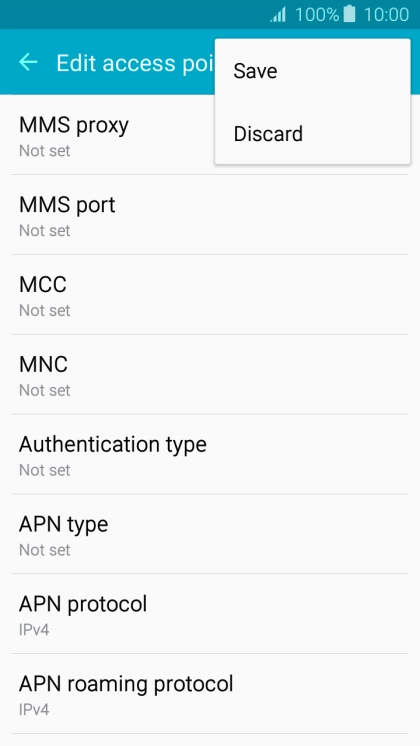

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2e4c2e4a-65d6-42db-99a0-d6abb22e1040.png?width=210&height=372)
12 Return to the home screen

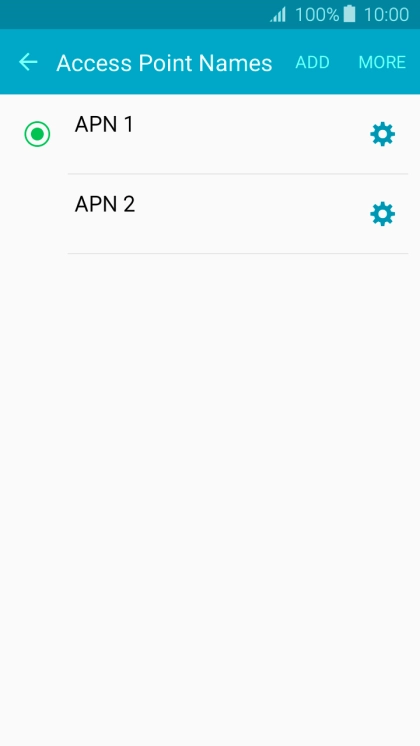

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-15649db2-7484-4fa1-9ba5-f9494c112257.png?width=210&height=372)
