OPPO Reno12 Pro 5G
Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
Find "Access point names"
Press the settings icon.
Find "Access point names"

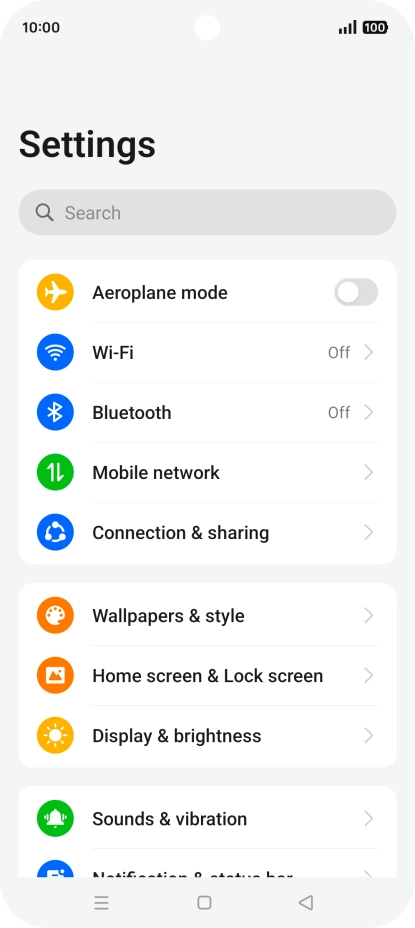

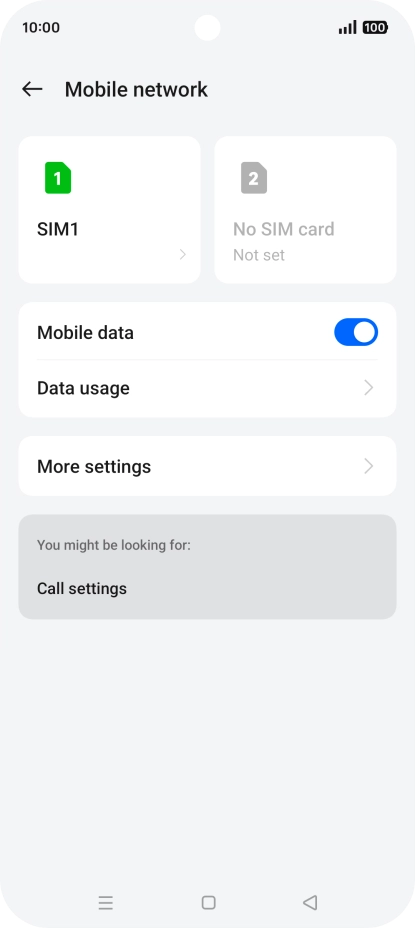

Press Mobile network.
Find "Access point names"
Press the name of the SIM.
Find "Access point names"

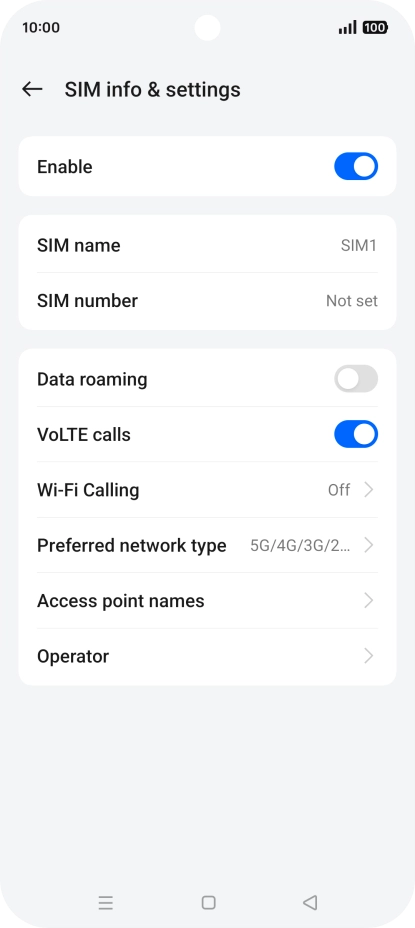

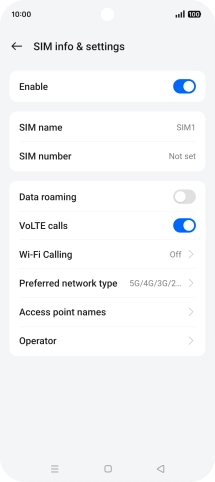

Press Access point names.
Create new data connection

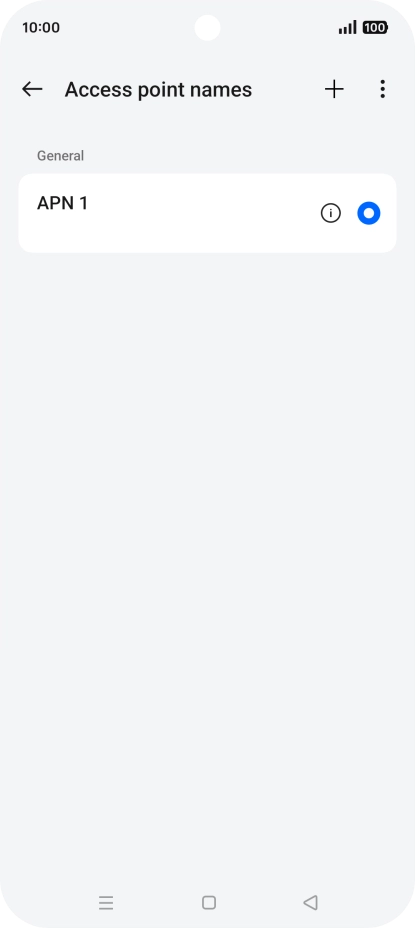

Press the new data connection icon.
Create new data connection

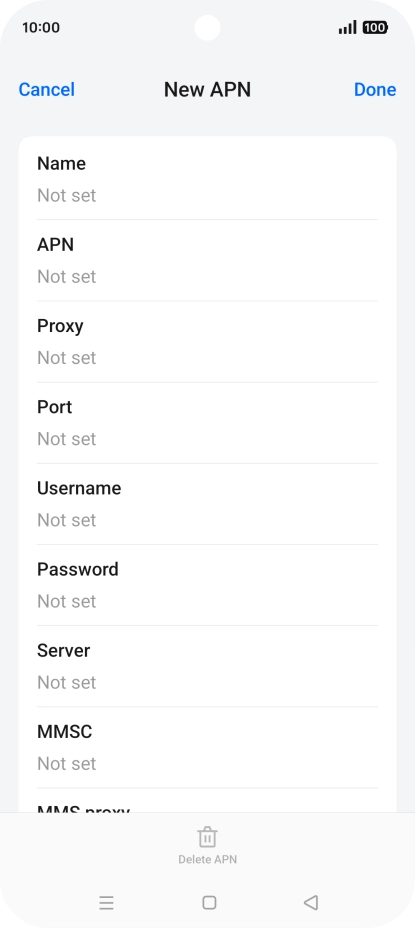

Press the field below "Name" and key in One NZ MMS.
Enter APN
Press the field below "APN" and key in live.vodafone.com.
Enter picture messaging server
Press the field below "MMSC" and key in http://pxt.vodafone.net.nz/pxtsend.
Enter IP address

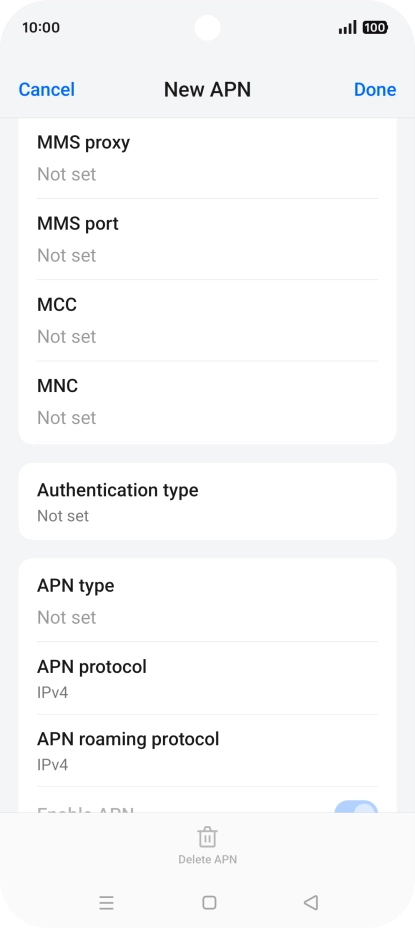

Press the field below "MMS proxy" and key in 172.030.038.003.
Enter port number
Press the field below "MMS port" and key in 8080.
Enter country code
Press the field below "MCC" and key in 530.
Enter network code
Press the field below "MNC" and key in 01.
Select authentication type

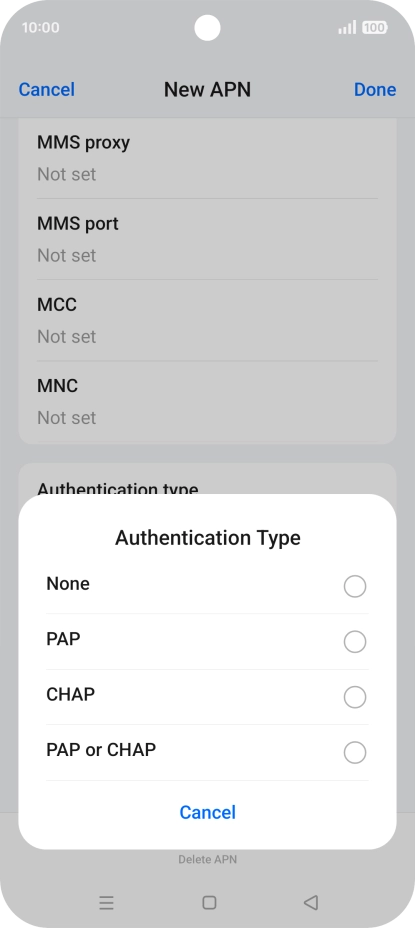

Press Authentication type.
Select authentication type

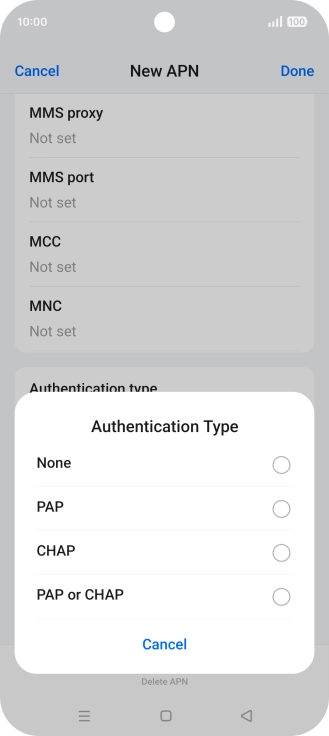

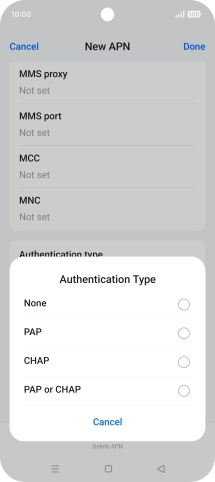

Press PAP.
Enter APN type
Press the field below "APN type" and key in mms.
Save data connection
Press Done.

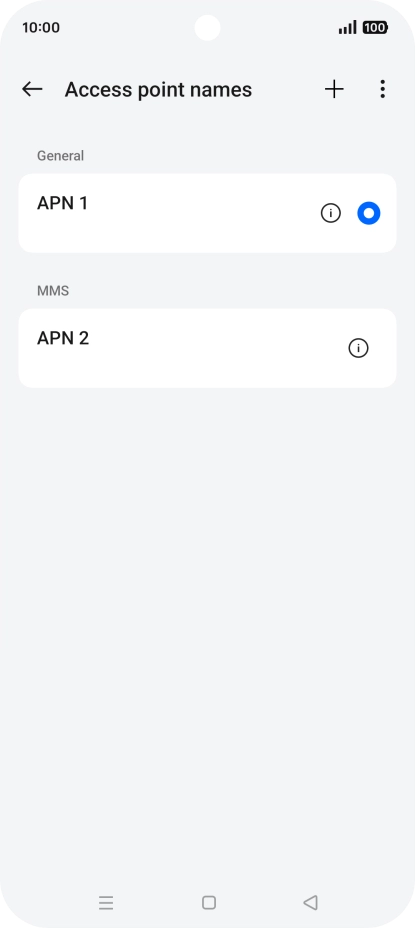

Return to the home screen
Press the Home key to return to the home screen.
1 Find "Access point names"
2 Create new data connection
3 Enter APN
4 Enter picture messaging server
5 Enter IP address
6 Enter port number
7 Enter country code
8 Enter network code
9 Select authentication type
10 Enter APN type
11 Save data connection
12 Return to the home screen
