I can't send and receive picture messages on my OPPO A57s Android 12.0

Cause 1 of 5: The phone has not been correctly set up for MMS

To send and receive MMS, the phone needs to be correctly set up for MMS.

Solution: Set up your phone for picture messaging.

Step 1 of 18

Find "Access point names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 18

Find "Access point names"

Press the settings icon.

Step 3 of 18

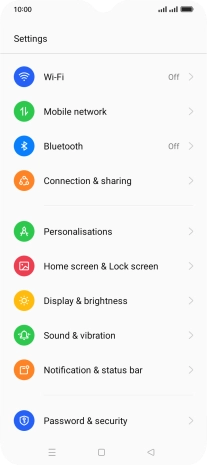

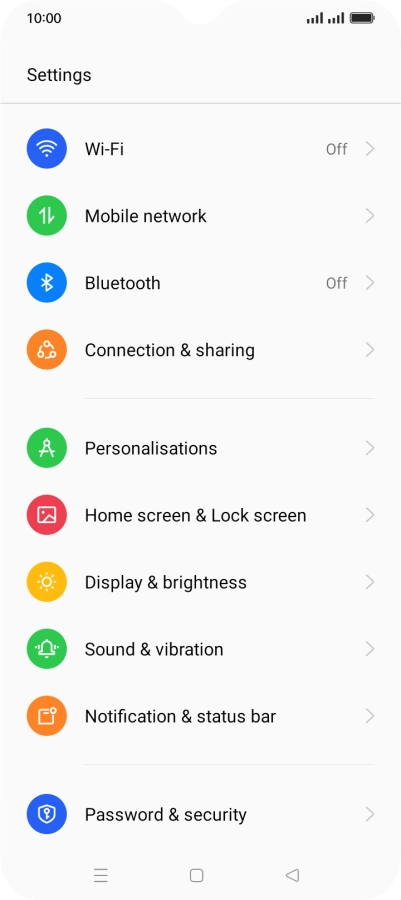

Find "Access point names"

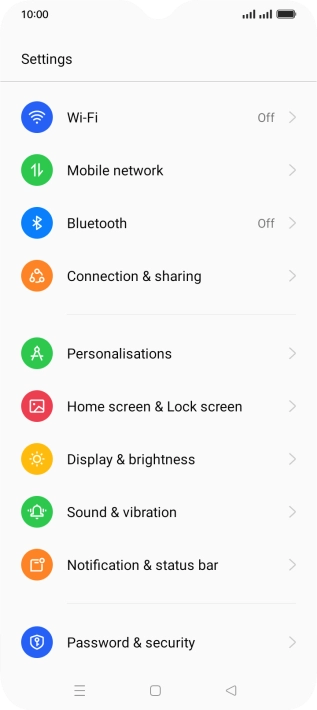

Press Mobile network.

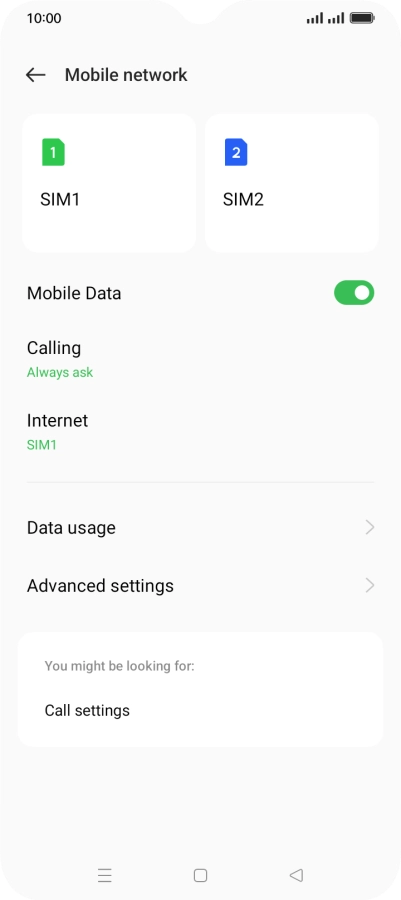

Step 4 of 18

Find "Access point names"

Press the required SIM.

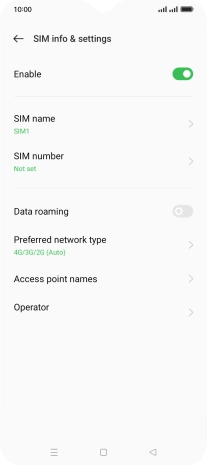

Step 5 of 18

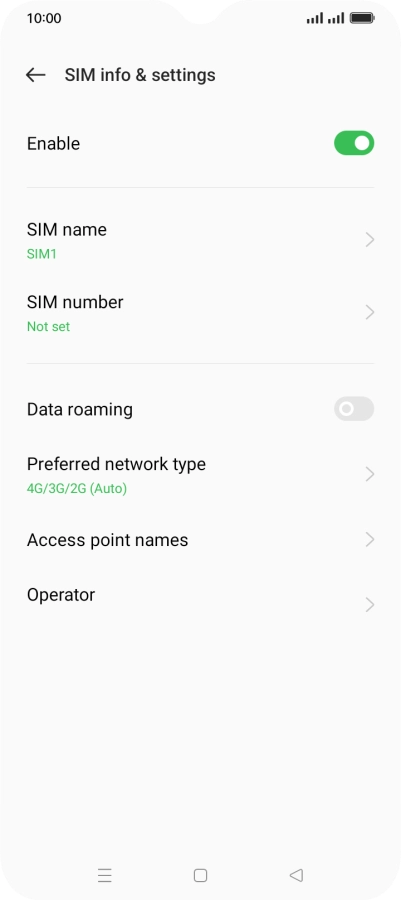

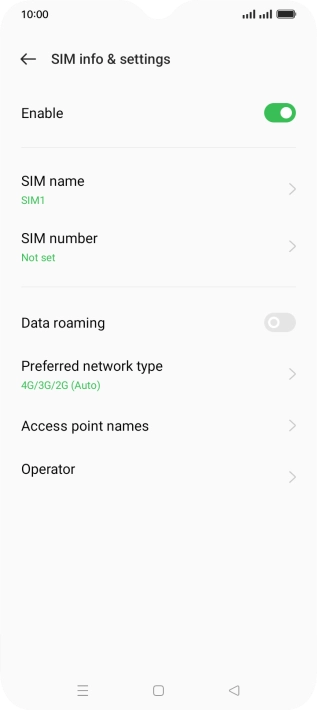

Find "Access point names"

Press Access point names.

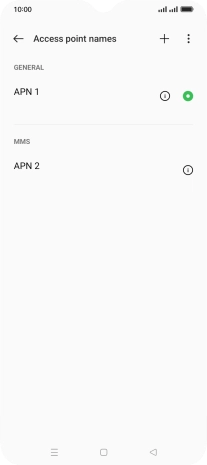

Step 6 of 18

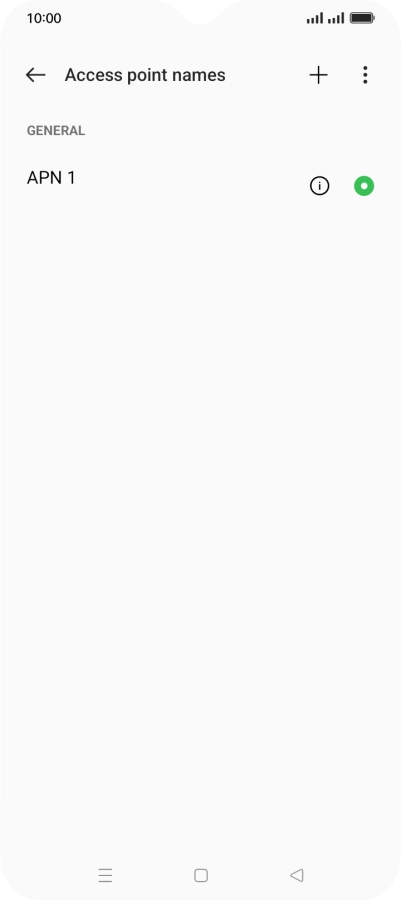

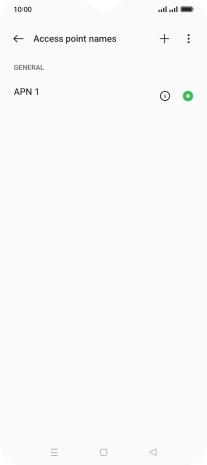

Create new data connection

Press the new data connection icon.

Vodafone MMS
Step 7 of 18

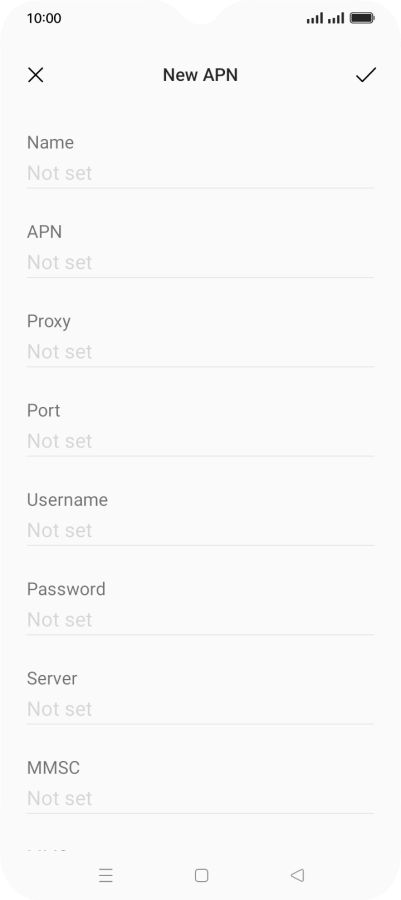

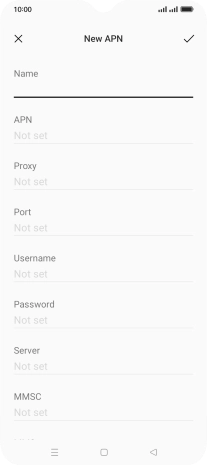

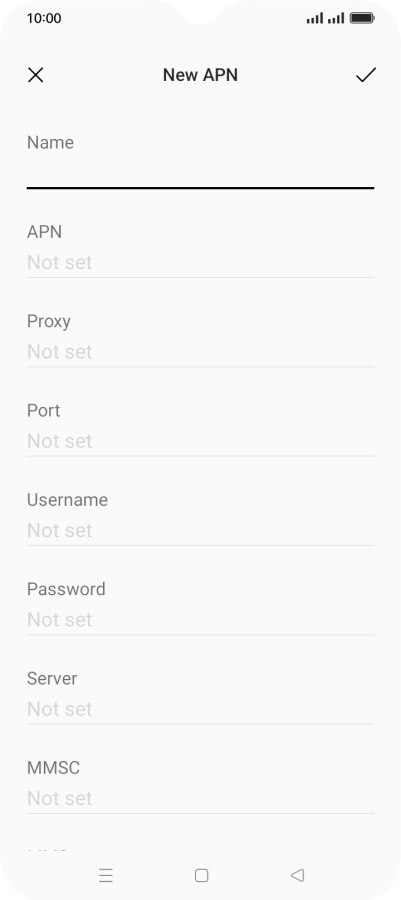

Create new data connection

Press the field below "Name" and key in Vodafone MMS.

live.vodafone.com
Step 8 of 18

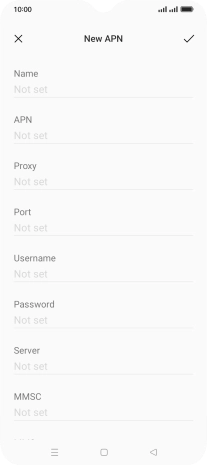

Enter APN

Press the field below "APN" and key in live.vodafone.com.

http://pxt.vodafone.net.nz/pxtsend
Step 9 of 18

Enter MMSC

Press the field below "MMSC" and key in http://pxt.vodafone.net.nz/pxtsend.

172.030.038.003
Step 10 of 18

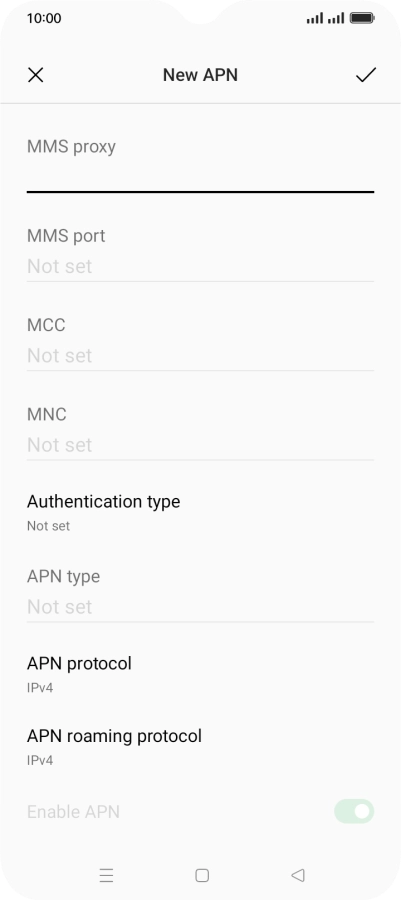

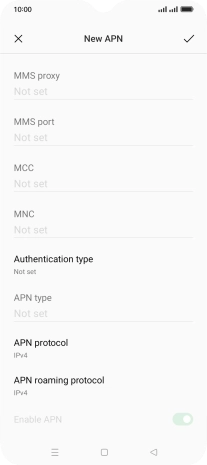

Enter IP address

Press the field below "MMS proxy" and key in 172.030.038.003.

8080
Step 11 of 18

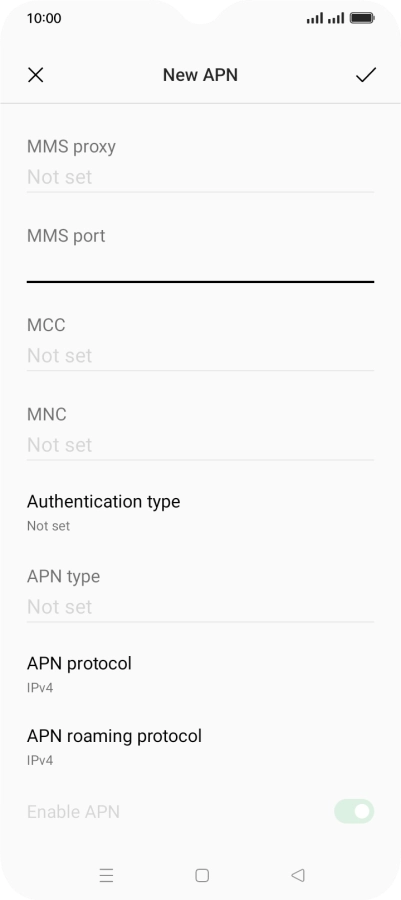

Enter port number

Press the field below "MMS port" and key in 8080.

530
Step 12 of 18

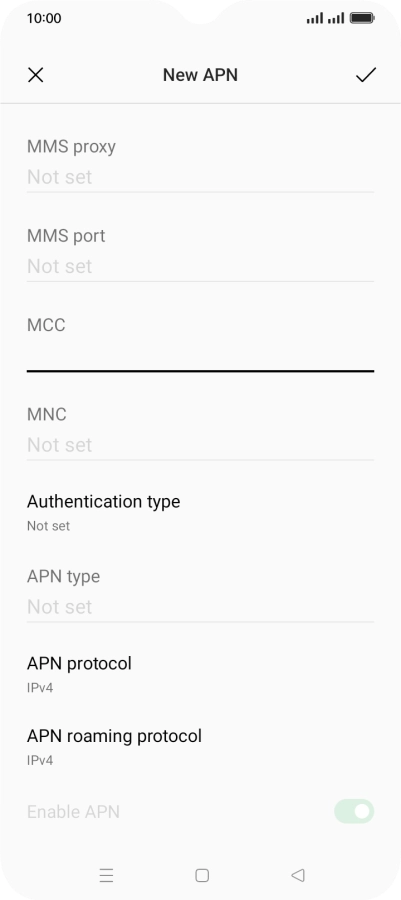

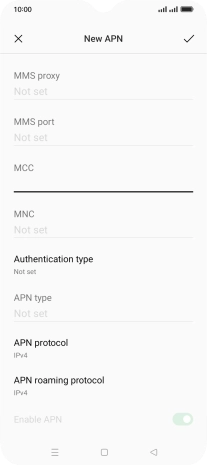

Enter country code

Press the field below "MCC" and key in 530.

01
Step 13 of 18

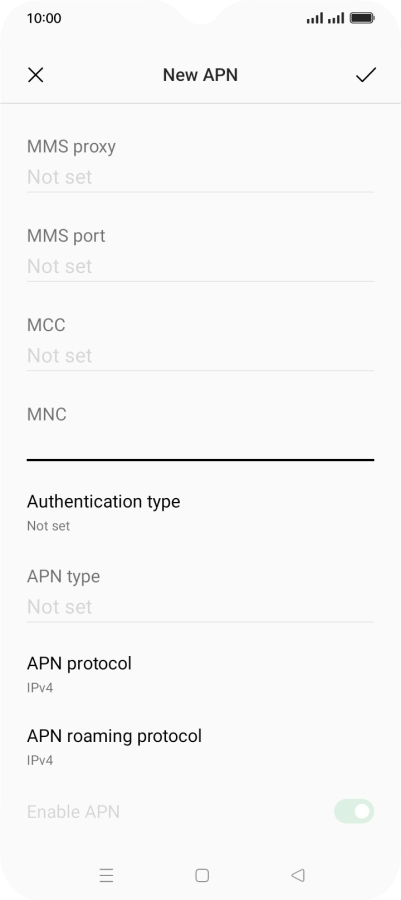

Enter network code

Press the field below "MNC" and key in 01.

Step 14 of 18

Select authentication type

Press Authentication type.

Step 15 of 18

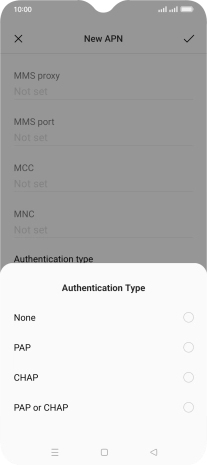

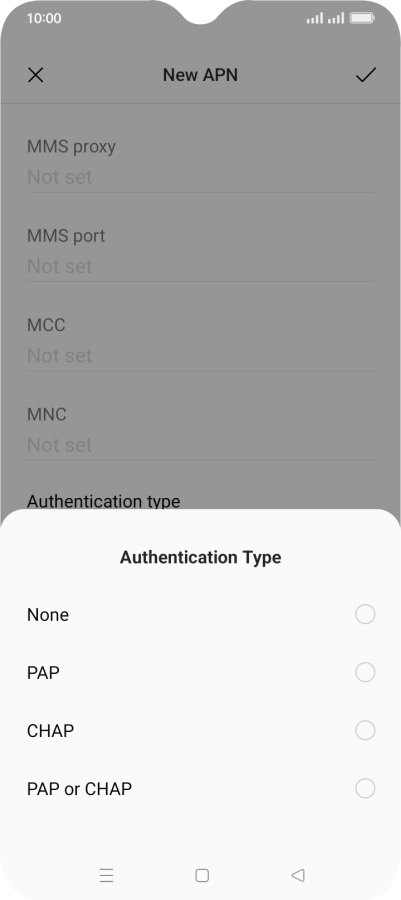

Select authentication type

Press PAP.

mms
Step 16 of 18

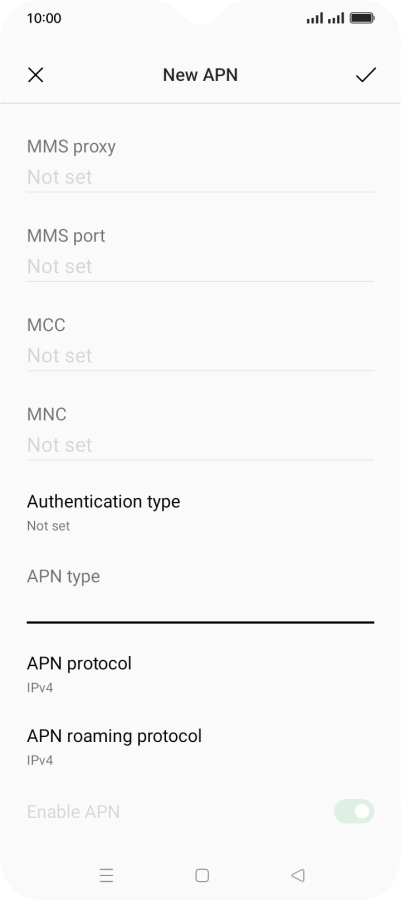

Enter APN type

Press the field below "APN type" and key in mms.

Step 17 of 18

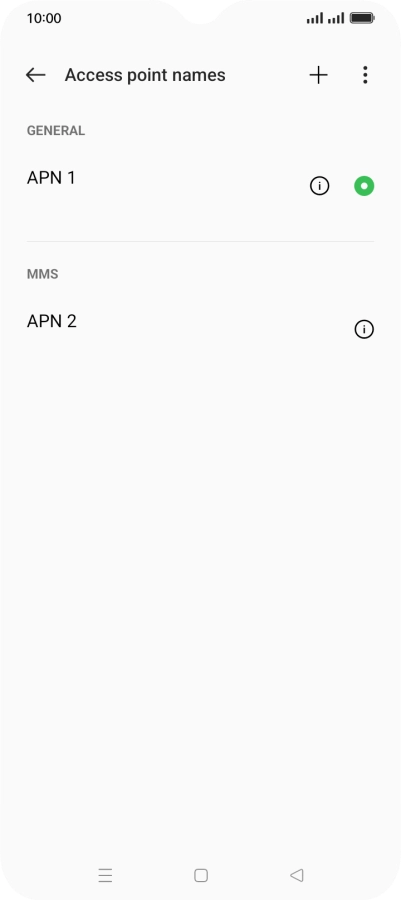

Save data connection

Press the confirm icon.

Step 18 of 18

Return to the home screen

Press the Home key to return to the home screen.

1 Find "Access point names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Mobile network.
Press the required SIM.
Press Access point names.

2 Create new data connection

Press the new data connection icon.
Press the field below "Name" and key in Vodafone MMS.
Vodafone MMS

3 Enter APN

Press the field below "APN" and key in live.vodafone.com.
live.vodafone.com

4 Enter MMSC

Press the field below "MMSC" and key in http://pxt.vodafone.net.nz/pxtsend.
http://pxt.vodafone.net.nz/pxtsend

5 Enter IP address

Press the field below "MMS proxy" and key in 172.030.038.003.
172.030.038.003

6 Enter port number

Press the field below "MMS port" and key in 8080.
8080

7 Enter country code

Press the field below "MCC" and key in 530.
530

8 Enter network code

Press the field below "MNC" and key in 01.
01

9 Select authentication type

Press Authentication type.
Press PAP.

10 Enter APN type

Press the field below "APN type" and key in mms.
mms

11 Save data connection

Press the confirm icon.

12 Return to the home screen

Press the Home key to return to the home screen.

Did this solve the problem?

Yes - All solved No - Go to next cause
