Motorola Moto G05
Set up your phone for picture messaging
A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.
Slide your finger downwards starting from the top right side of the screen.
Press the settings icon.
Press Network & Internet.
Press Mobile network.
Press the name of the SIM.
Press Advanced.

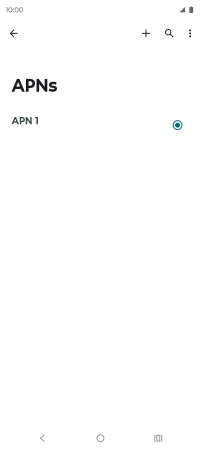

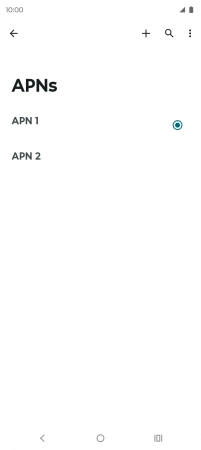

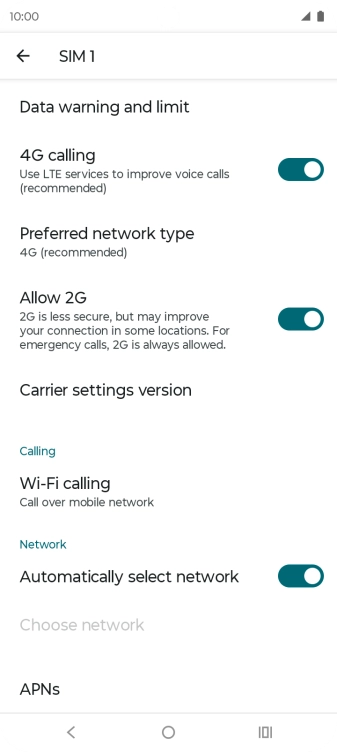

Press APNs.

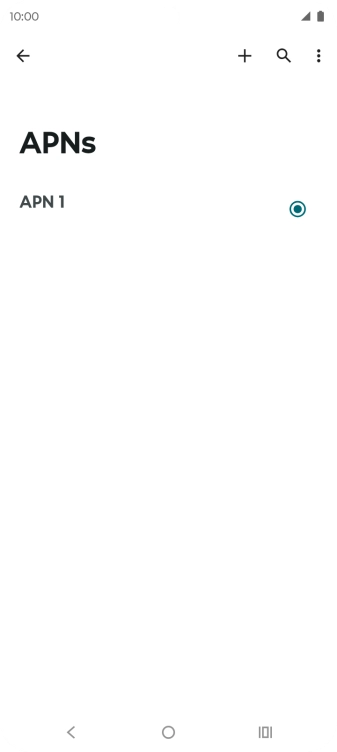

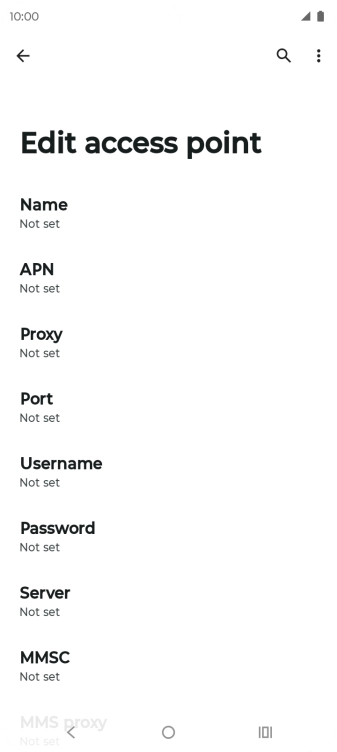

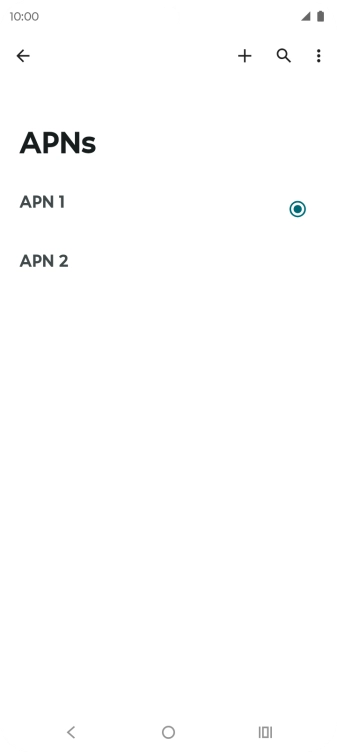

Press the new data connection icon.

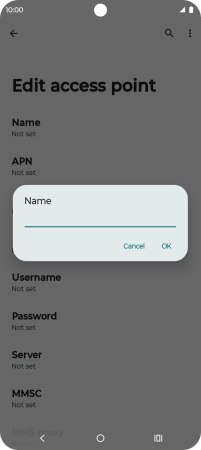

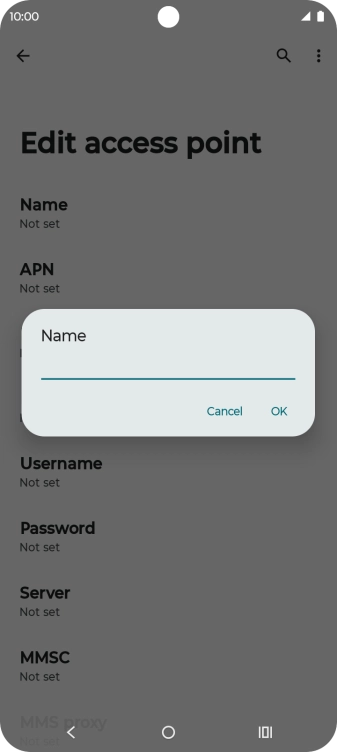

Press Name.
Key in One NZ MMS and press OK.
Press APN.
Key in live.vodafone.com and press OK.

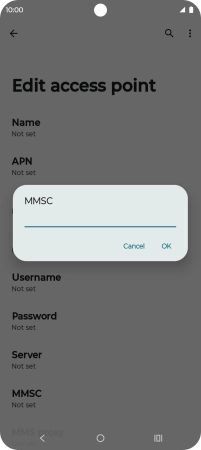

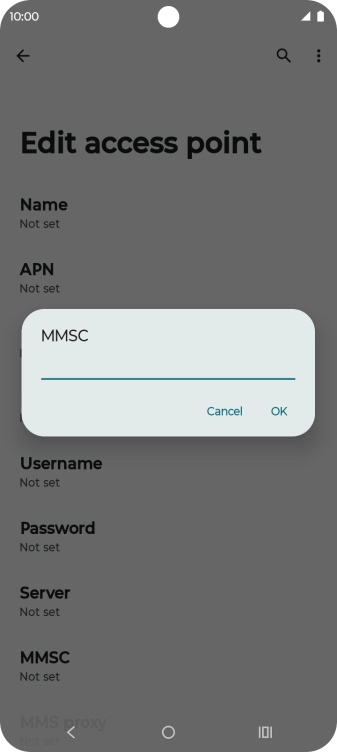

Press MMSC.
Key in http://pxt.vodafone.net.nz/pxtsend and press OK.

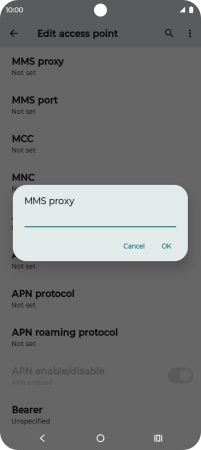

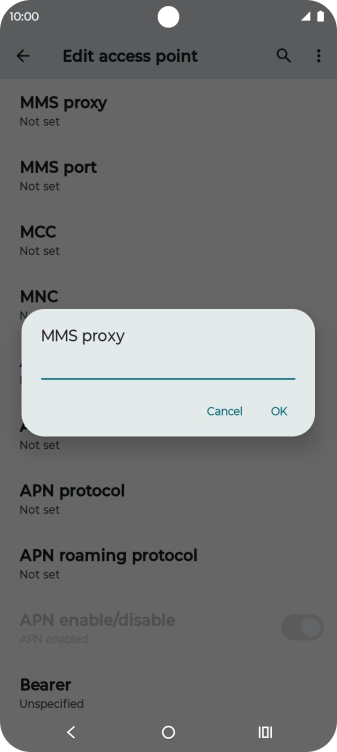

Press MMS proxy.
Key in 172.030.038.003 and press OK.

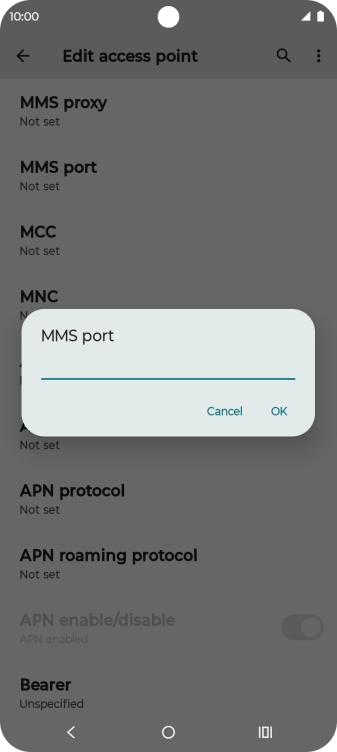

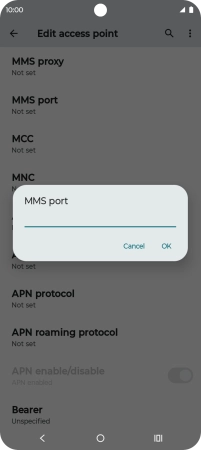

Press MMS port.
Key in 8080 and press OK.
Press MCC.
Key in 530 and press OK.

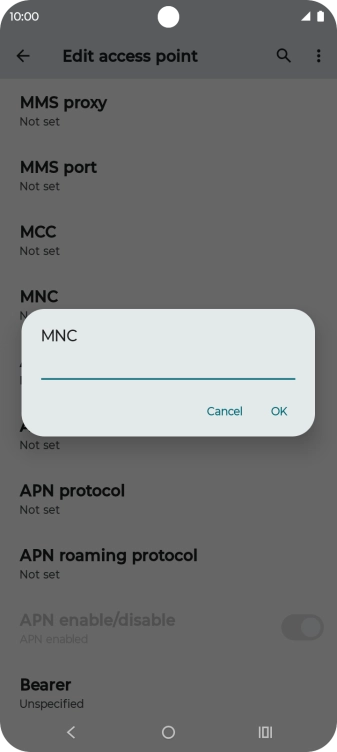

Press MNC.
Key in 01 and press OK.

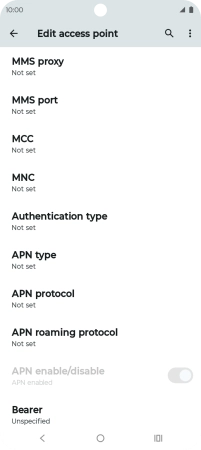

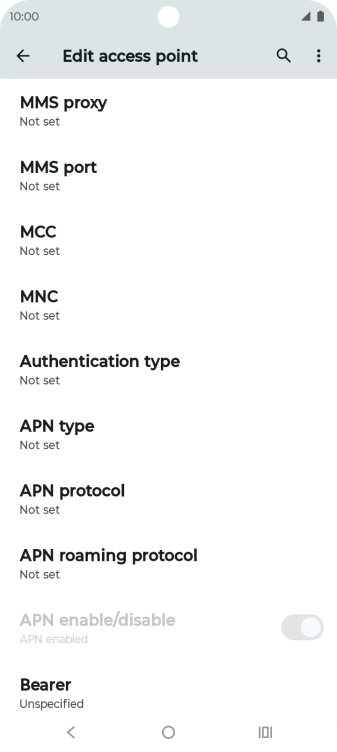

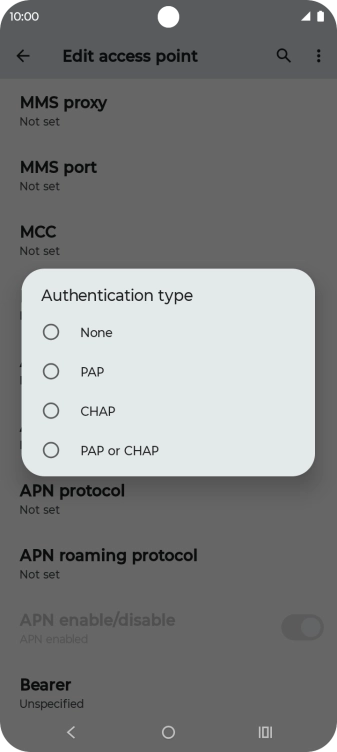

Press Authentication type.
Press PAP.

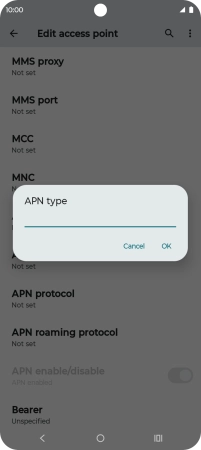

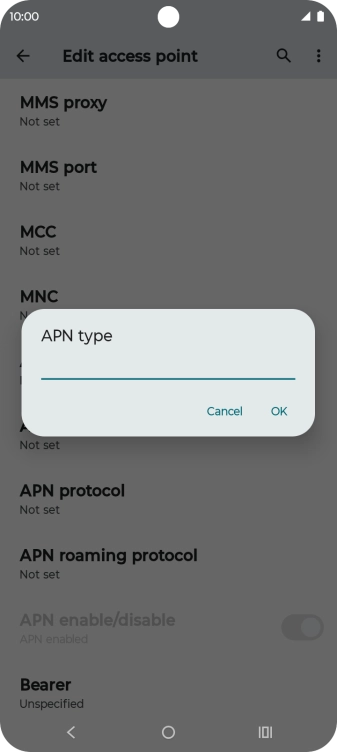

Press APN type.
Key in mms and press OK.

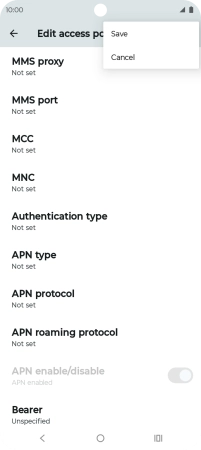

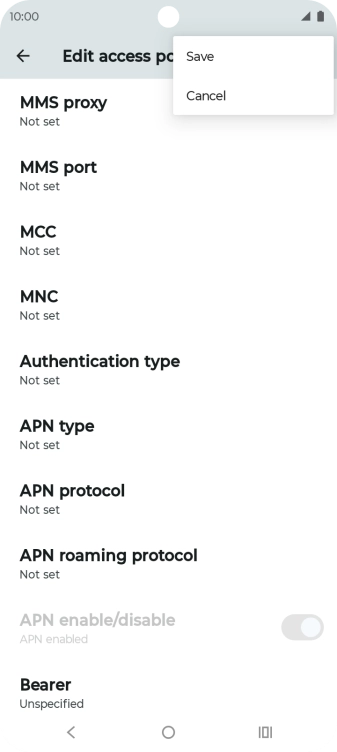

Press the menu icon.
Press Save.
Press the Home key to return to the home screen.
1. 1. Find "APNs"
2. 2. Create new data connection
3. 3. Enter a name for the connection
4. 4. Enter APN
5. 5. Enter picture messaging server
6. 6. Enter IP address
7. 7. Enter port number
8. 8. Enter country code
9. 9. Enter network code
10. 10. Select authentication type
11. 11. Enter APN type
12. 12. Save data connection
13. 13. Return to the home screen
