Find "Data accounts"

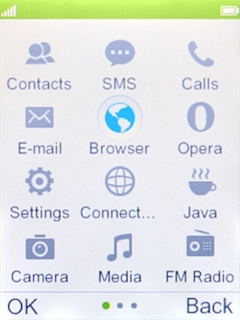

Press the Navigation key.

Find "Data accounts"

Select Connected.

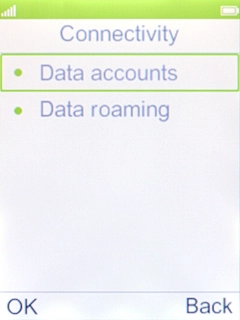

Find "Data accounts"

Select Data accounts.

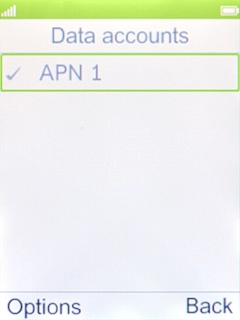

Create new data connection

Press the Left selection key.

Create new data connection

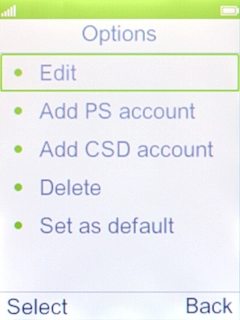

Select Add PS account.

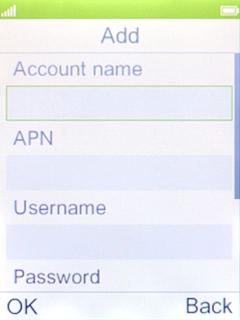

Create new data connection

Highlight the field below "Account name" and key in Vodafone MMS.

Enter APN

Highlight the field below "APN" and key in live.vodafone.com.

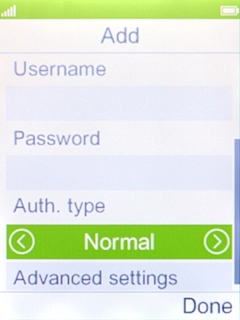

Select authentication type

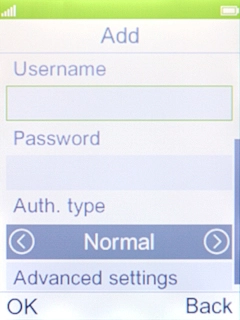

Highlight the field below "Auth. type".

Select authentication type

Select Normal.

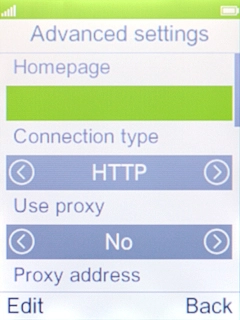

Select picture messaging server

Highlight the field below "Homepage" and key in http://pxt.vodafone.net.nz/pxtsend.

Select connection type

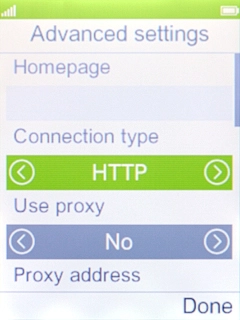

Highlight the field below "Connection type".

Select connection type

Select HTTP.

Turn on use of proxy

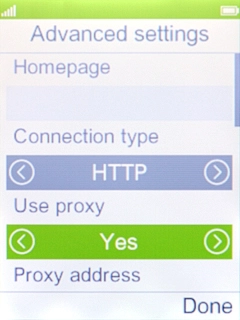

Highlight the field below "Use proxy".

Turn on use of proxy

Select Yes to turn on the function.

Enter IP address

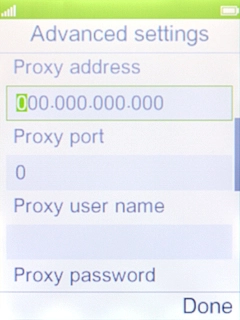

Highlight the field below "Proxy address" and key in 172.030.038.003.

Enter port number

Highlight the field below "Proxy port" and key in 8080.

Enter port number

Press the Right selection key.

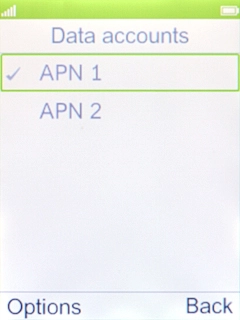

Save data connection

Press the Right selection key.

Return to the home screen

Press Disconnect to return to the home screen.

Find "Multimedia message"

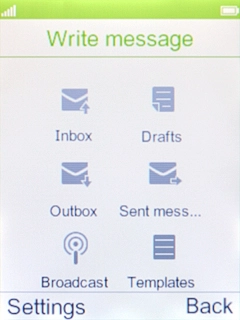

Press the Left selection key.

Find "Multimedia message"

Press the Left selection key.

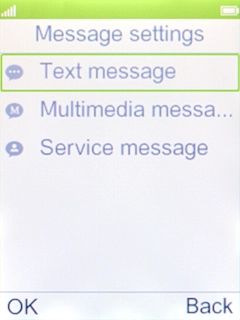

Find "Multimedia message"

Select Multimedia message.

Active data connection

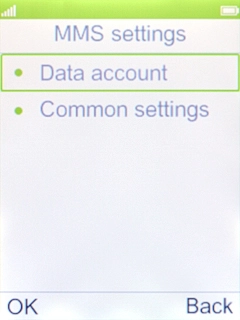

Select Data account.

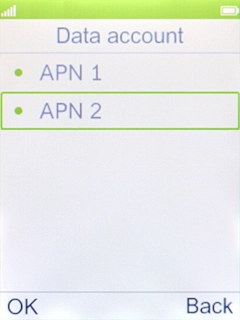

Active data connection

Select the required data connection.

Return to the home screen

Press Disconnect to return to the home screen.
