Huawei Y5 III
Find "Access Point Name"
Press Settings.
Find "Access Point Name"
Press More.
Find "Access Point Name"
Press Mobile network.
Find "Access Point Name"
Press Access Point Name.

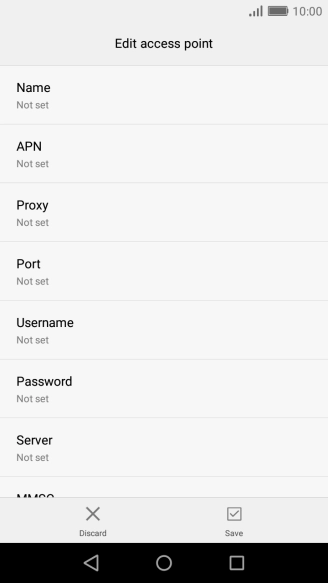

Create new data connection

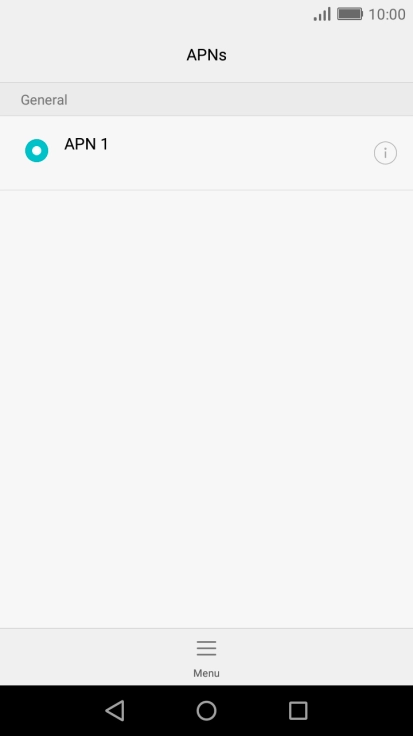

Press Menu.
Create new data connection

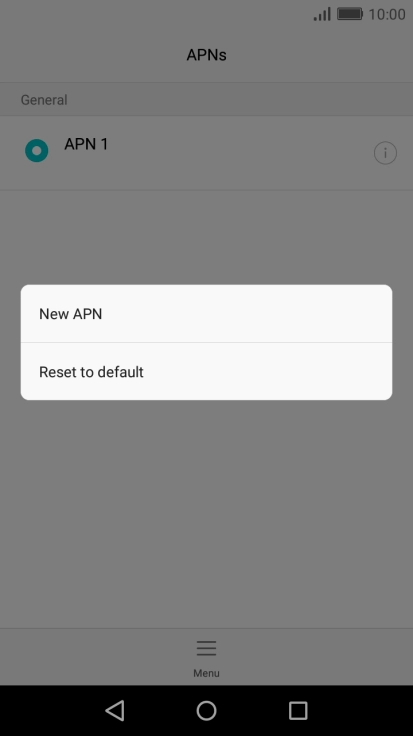

Press New APN.

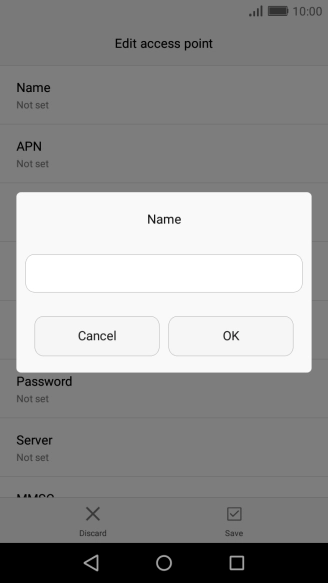

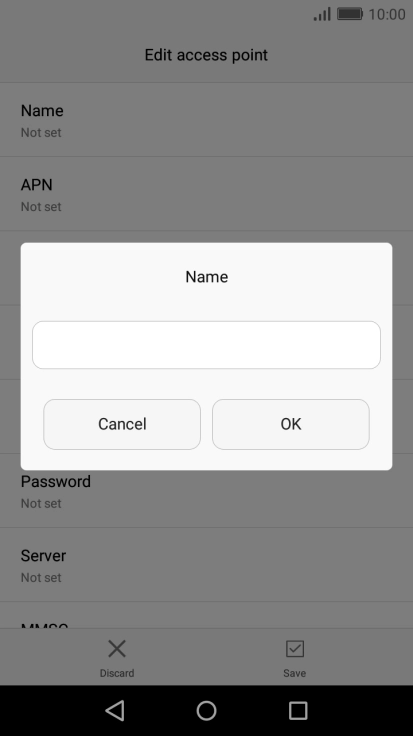

Enter a name for the connection
Press Name.
Enter a name for the connection
Key in Vodafone Internet and press OK.
Enter APN

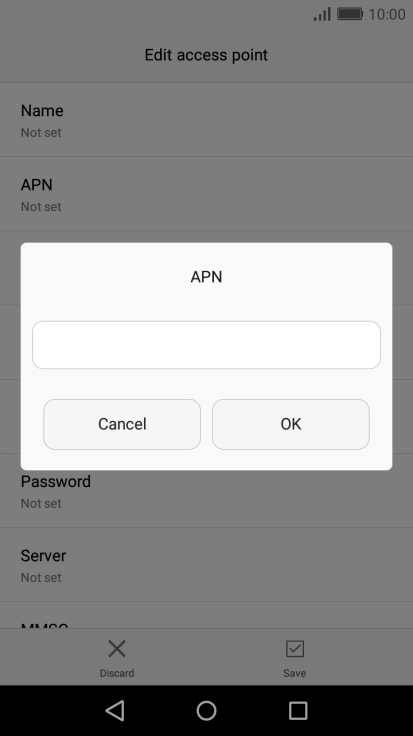

Press APN.
Enter APN
Key in vodafone and press OK.

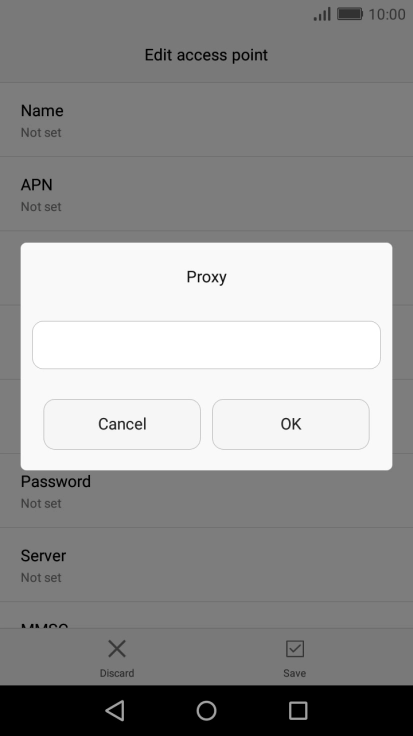

Enter IP address
Press Proxy.
Enter IP address
Key in 172.030.038.003 and press OK.
Enter port number
Press Port.
Enter port number
Key in 8080 and press OK.

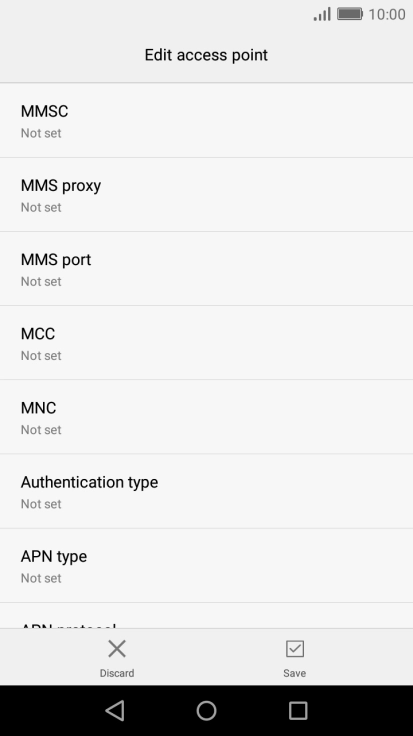

Enter country code
Press MCC.
Enter country code
Key in 530 and press OK.
Enter network code

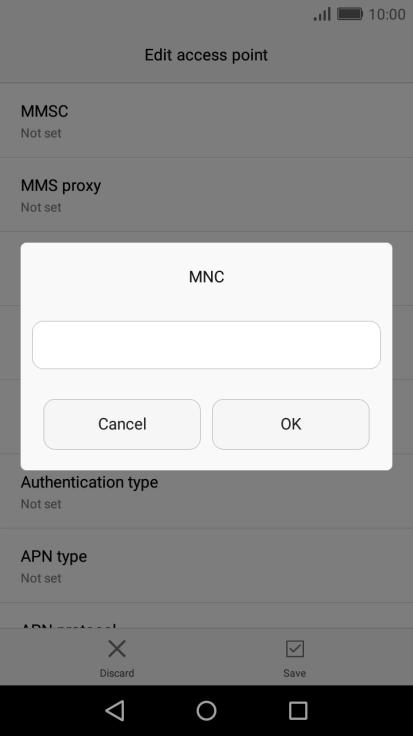

Press MNC.
Enter network code
Key in 01 and press OK.

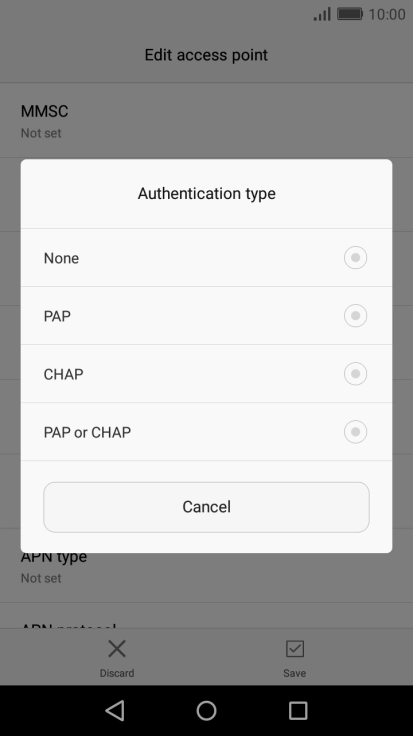

Select authentication type
Press Authentication type.
Select authentication type
Press PAP.

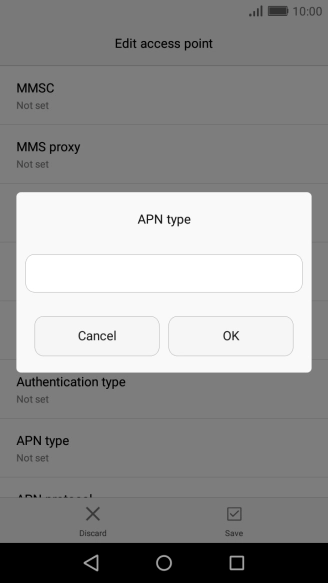

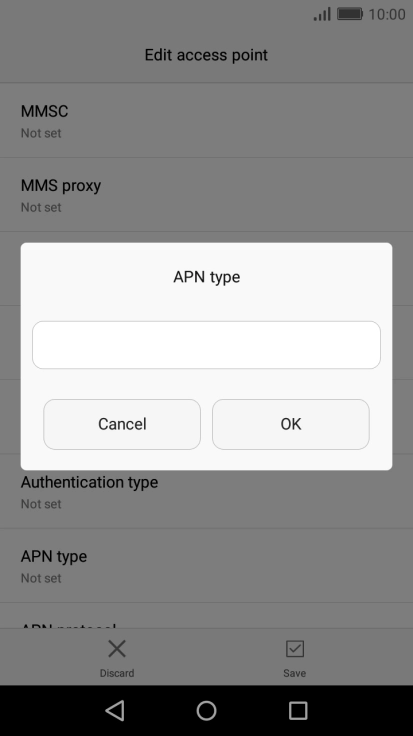

Select APN type
Press APN type.
Select APN type
Key in default and press OK.
Save data connection
Press Save.
Save data connection

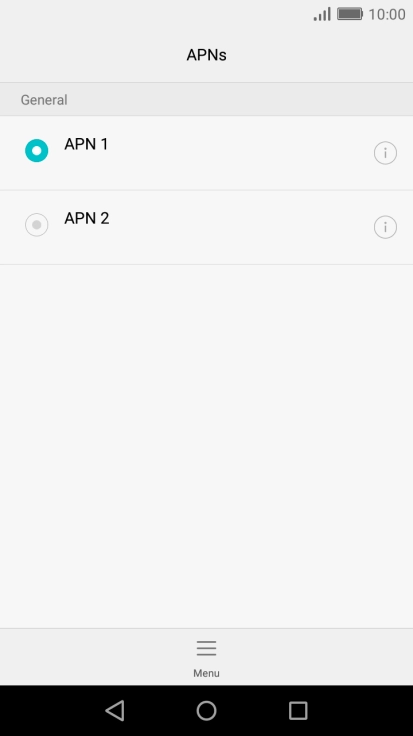

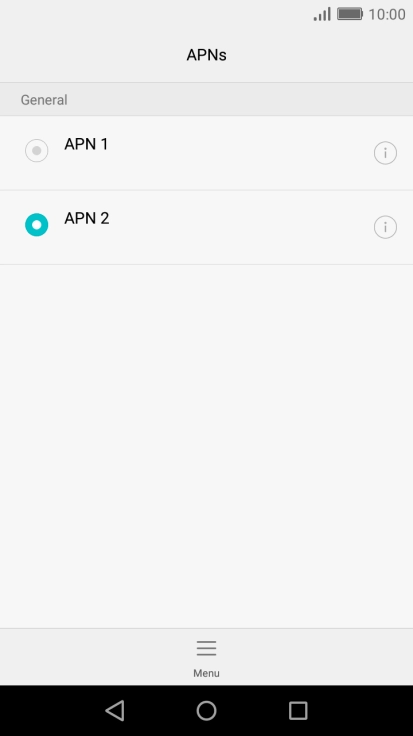

Press the field next to the required data connection to activate it.
Return to the home screen
Press the Home key to return to the home screen.
1 Find "Access Point Name"
2 Create new data connection
3 Enter a name for the connection
4 Enter APN
5 Enter IP address
6 Enter port number
7 Enter country code
8 Enter network code
9 Select authentication type
10 Select APN type
11 Save data connection
12 Return to the home screen
