Huawei Y5 III

Huawei Y5 III

Android 6.0

I can't use the internet connection on my Huawei Y5 III Android 6.0

Cause 1 of 4: Your phone hasn't been correctly set up for internet

Several functions on the phone require an internet connection, e.g. when you use the internet browser, send email and install apps.

Solution: Set up your phone for internet.

Step 1 of 25

Find "Access Point Name"

Press Settings.

Step 2 of 25

Find "Access Point Name"

Press More.

Step 3 of 25

Find "Access Point Name"

Press Mobile network.

Step 4 of 25

Find "Access Point Name"

Press Access Point Name.

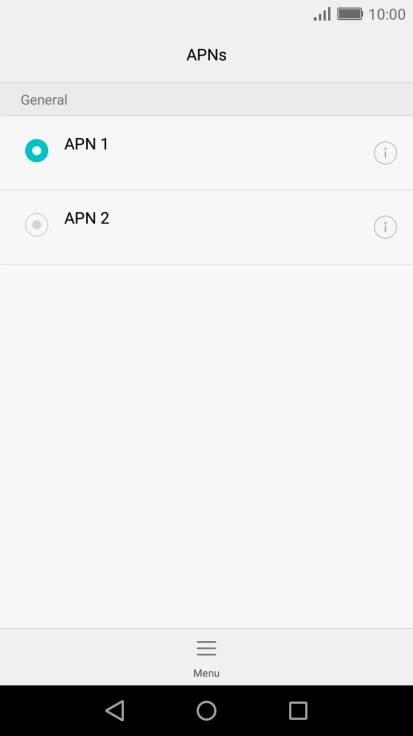

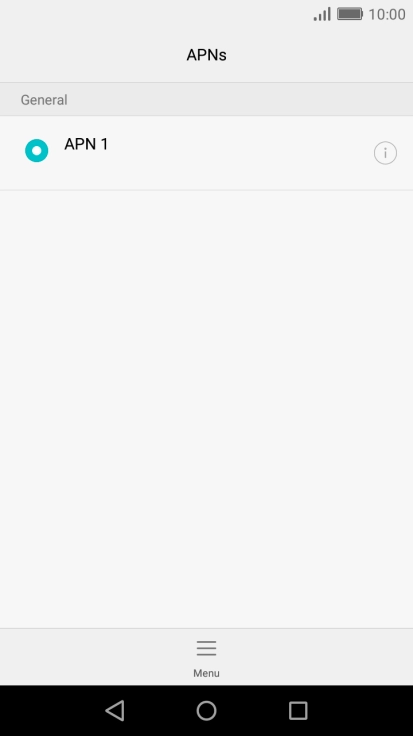

Step 5 of 25

Create new data connection

Press Menu.

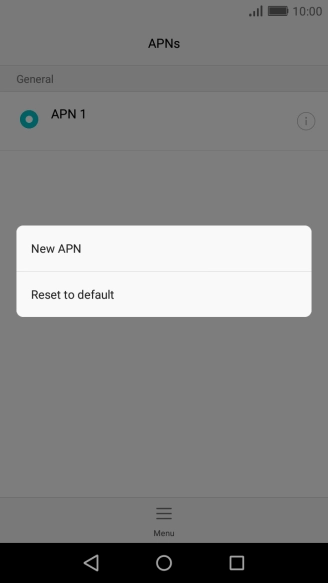

Step 6 of 25

Create new data connection

Press New APN.

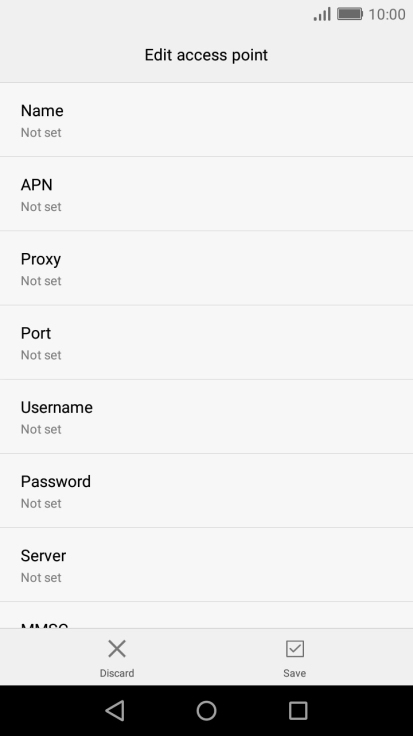

Step 7 of 25

Enter a name for the connection

Press Name.

Vodafone Internet

Vodafone Internet

Vodafone Internet

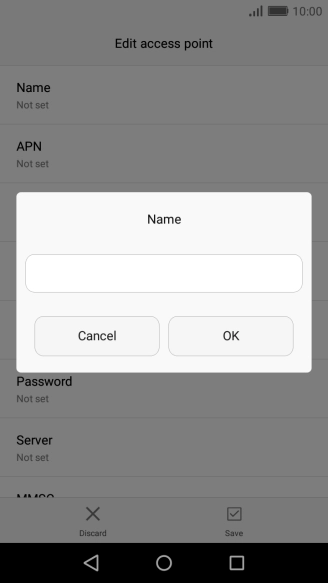

Step 8 of 25

Enter a name for the connection

Key in Vodafone Internet and press OK.

Step 9 of 25

Enter APN

Press APN.

vodafone

vodafone

vodafone

Step 10 of 25

Enter APN

Key in vodafone and press OK.

Step 11 of 25

Enter IP address

Press Proxy.

172.030.038.003

172.030.038.003

172.030.038.003

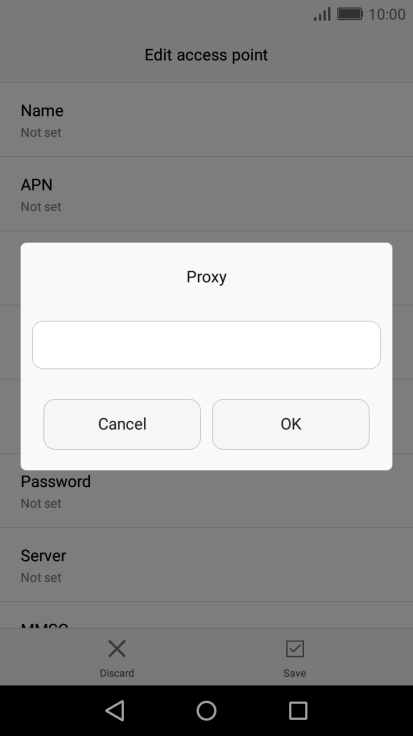

Step 12 of 25

Enter IP address

Key in 172.030.038.003 and press OK.

Step 13 of 25

Enter port number

Press Port.

8080

8080

8080

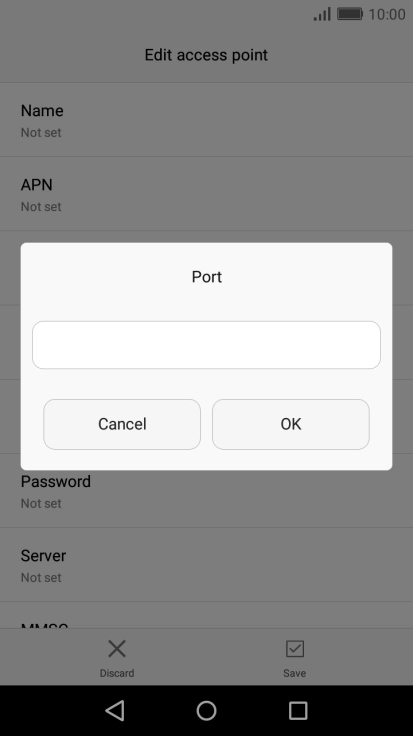

Step 14 of 25

Enter port number

Key in 8080 and press OK.

Step 15 of 25

Enter country code

Press MCC.

530

530

530

Step 16 of 25

Enter country code

Key in 530 and press OK.

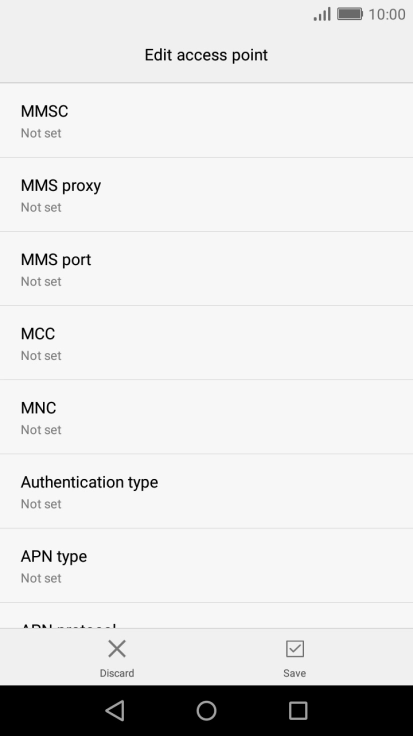

Step 17 of 25

Enter network code

Press MNC.

01

01

01

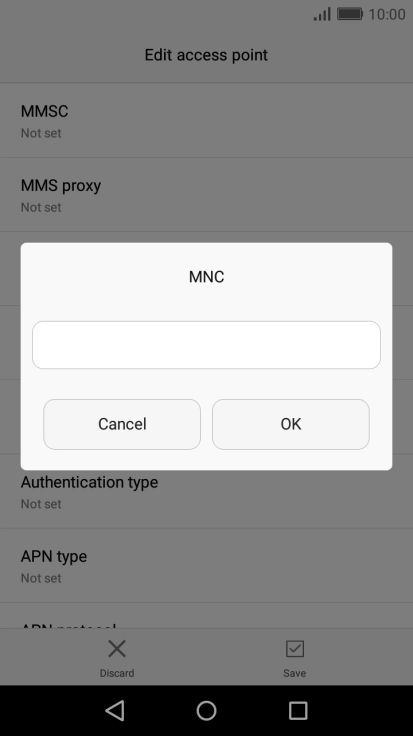

Step 18 of 25

Enter network code

Key in 01 and press OK.

Step 19 of 25

Select authentication type

Press Authentication type.

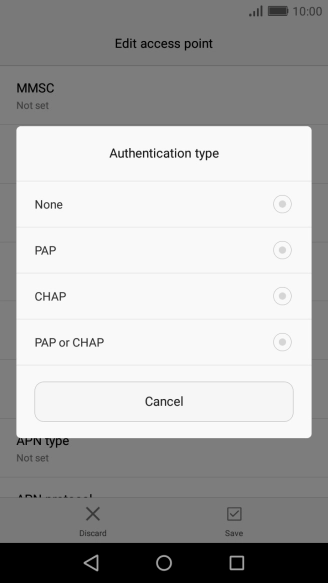

Step 20 of 25

Select authentication type

Press PAP.

Step 21 of 25

Select APN type

Press APN type.

default

default

default

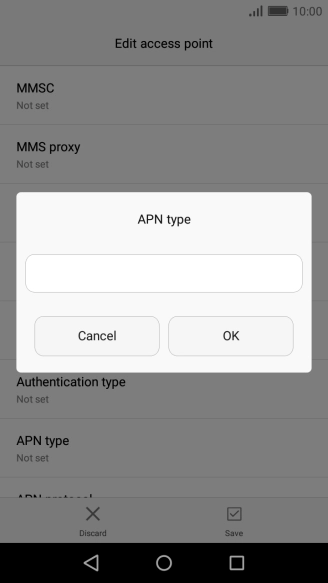

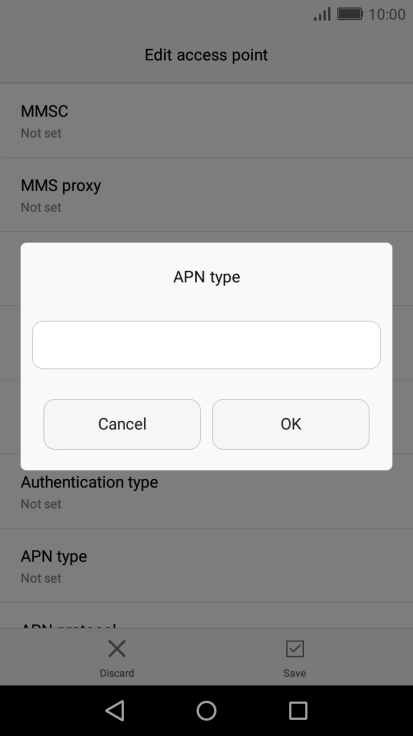

Step 22 of 25

Select APN type

Key in default and press OK.

Step 23 of 25

Save data connection

Press Save.

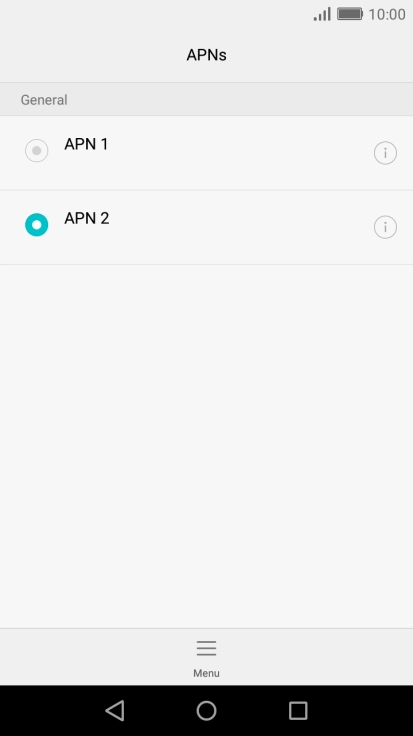

Step 24 of 25

Save data connection

Press the field next to the required data connection to activate it.

Step 25 of 25

Return to the home screen

Press the Home key to return to the home screen.

1 Find "Access Point Name"

Press Settings.

Press More.

Press Mobile network.

Press Access Point Name.

2 Create new data connection

Press Menu.

Press New APN.

3 Enter a name for the connection

Press Name.

Key in Vodafone Internet and press OK.

Vodafone Internet

4 Enter APN

Press APN.

Key in vodafone and press OK.

vodafone

5 Enter IP address

Press Proxy.

Key in 172.030.038.003 and press OK.

172.030.038.003

6 Enter port number

Press Port.

Key in 8080 and press OK.

8080

7 Enter country code

Press MCC.

Key in 530 and press OK.

530

8 Enter network code

Press MNC.

Key in 01 and press OK.

01

9 Select authentication type

Press Authentication type.

Press PAP.

10 Select APN type

Press APN type.

Key in default and press OK.

default

11 Save data connection

Press Save.

Press the field next to the required data connection to activate it.

12 Return to the home screen

Press the Home key to return to the home screen.
