Samsung Galaxy Tab 7.7

You can't send picture messages - Samsung Galaxy Tab 7.7

Cause 2 of 4: Your phone hasn't been correctly set up for picture messaging

If your phone hasn't been correctly set up for picture messaging, you can't send and receive picture messages.

Solution: Set up your phone for picture messaging.

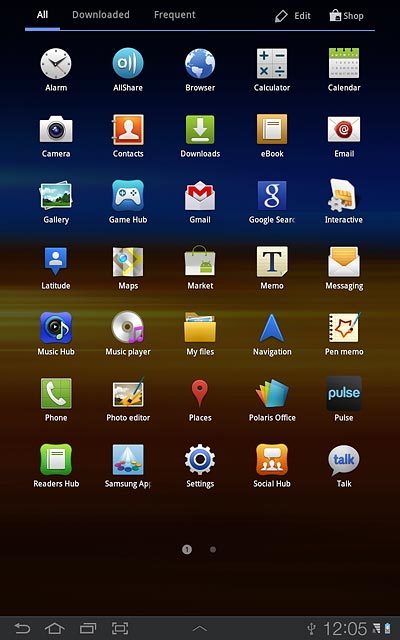

Step 1 of 39

Find "Access Point Names"

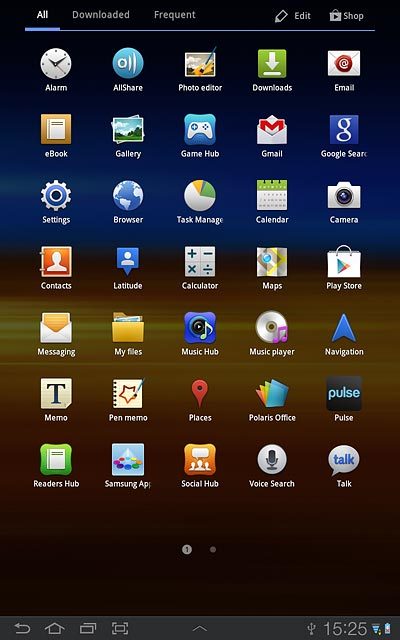

Press Apps.

Step 2 of 39

Find "Access Point Names"

Press Settings.

Step 3 of 39

Find "Access Point Names"

Press Wireless and networks.

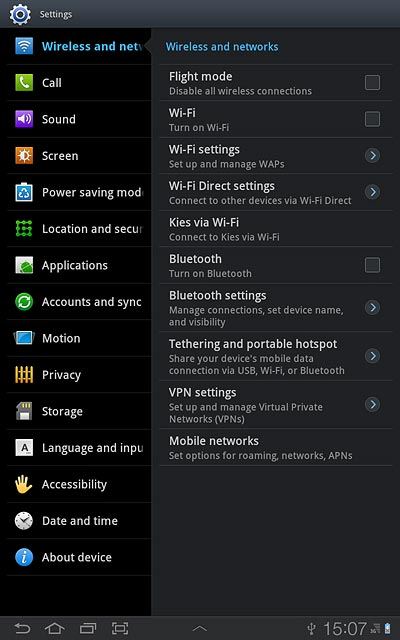

Step 4 of 39

Find "Access Point Names"

Press Mobile networks.

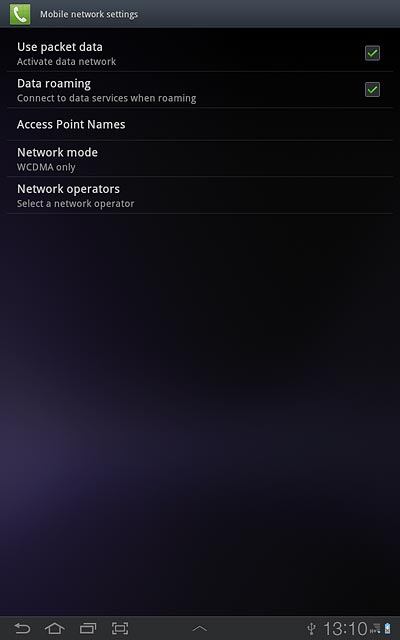

Step 5 of 39

Find "Access Point Names"

Press Access Point Names.

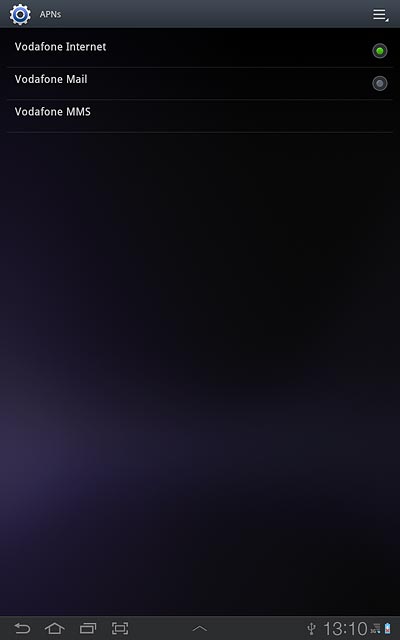

Step 6 of 39

Create new data connection

Press the menu icon.

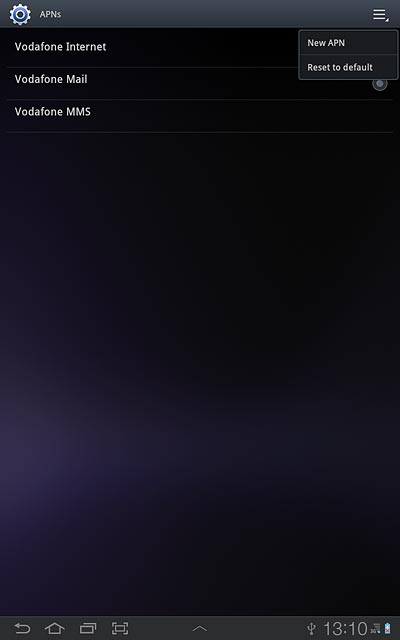

Step 7 of 39

Create new data connection

Press New APN.

Step 8 of 39

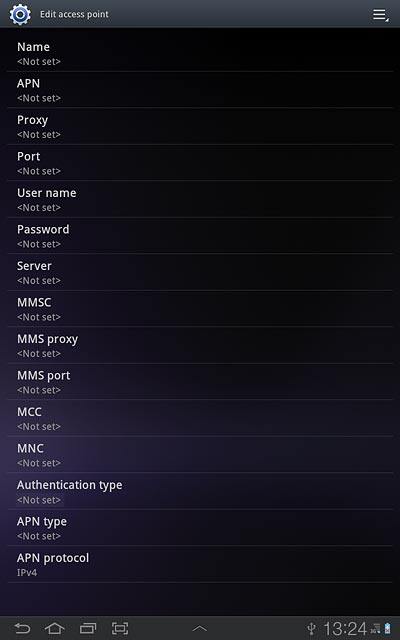

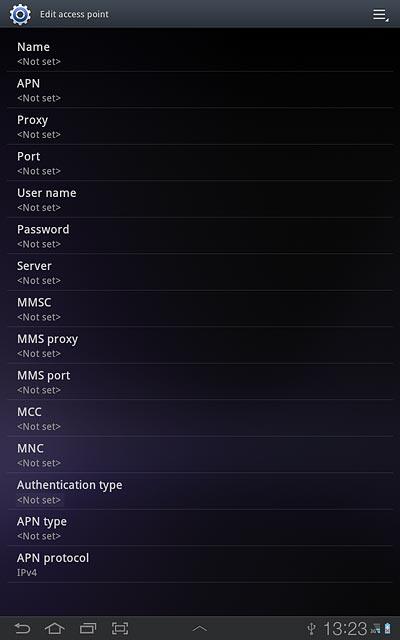

Enter data connection name

Press Name.

Step 9 of 39

Enter data connection name

Key in Vodafone MMS and press OK.

Step 10 of 39

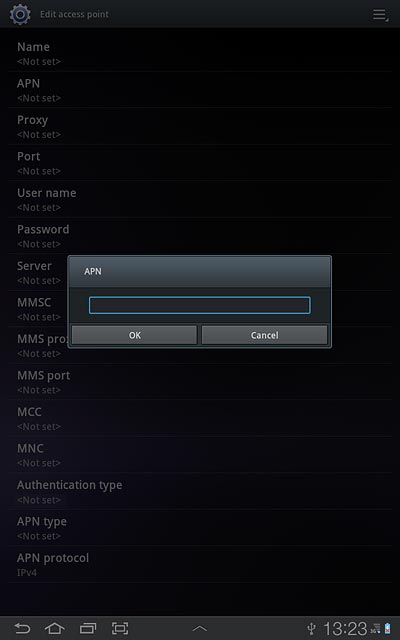

Enter APN

Press APN.

Step 11 of 39

Enter APN

Key in live.vodafone.com and press OK.

Step 12 of 39

Enter picture messaging server

Press MMSC.

Step 13 of 39

Enter picture messaging server

Key in http://pxt.vodafone.net.nz/pxtsend and press OK.

Step 14 of 39

Enter IP address

Press MMS proxy.

Step 15 of 39

Enter IP address

Key in 172.030.038.003 and press OK.

Step 16 of 39

Enter port number

Press MMS port.

Step 17 of 39

Enter port number

Key in 8080 and press OK.

Step 18 of 39

Enter country code

Press MCC.

Step 19 of 39

Enter country code

Key in 530 and press OK.

Step 20 of 39

Enter network code

Press MNC.

Step 21 of 39

Enter network code

Key in 01 and press OK.

Step 22 of 39

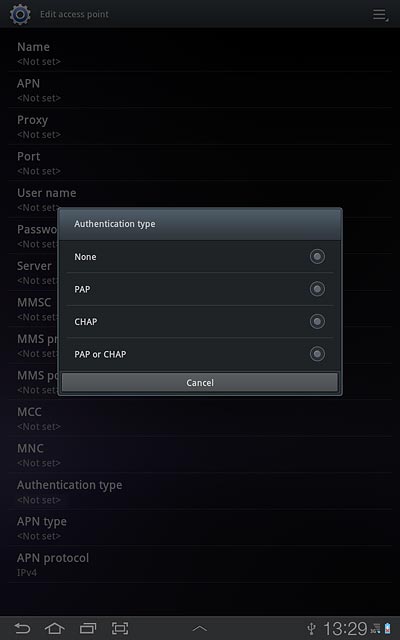

Select authentication type

Press Authentication type.

Step 23 of 39

Select authentication type

Press PAP.

Step 24 of 39

Select APN type

Press APN type.

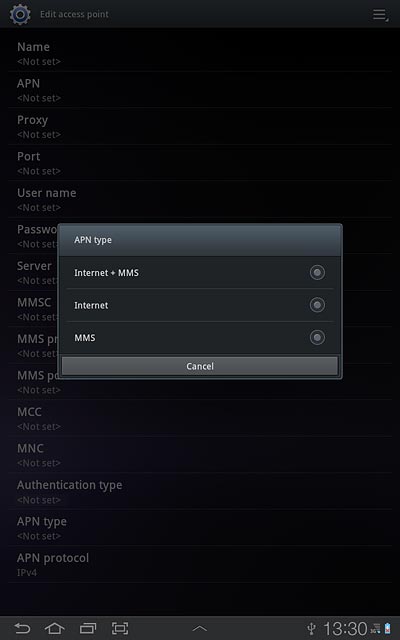

Step 25 of 39

Select APN type

Press MMS.

Step 26 of 39

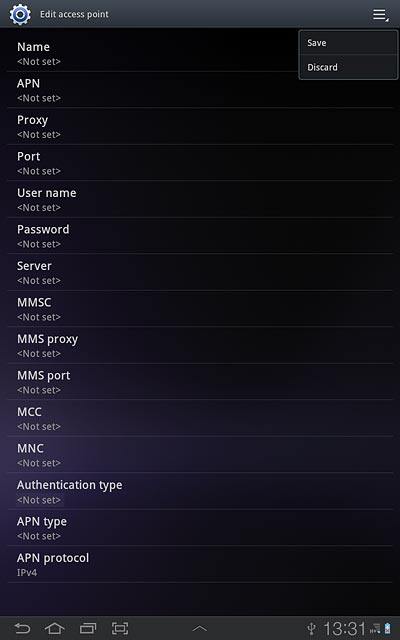

Save data connection

Press the menu icon.

Step 27 of 39

Save data connection

Press Save.

Step 28 of 39

Save data connection

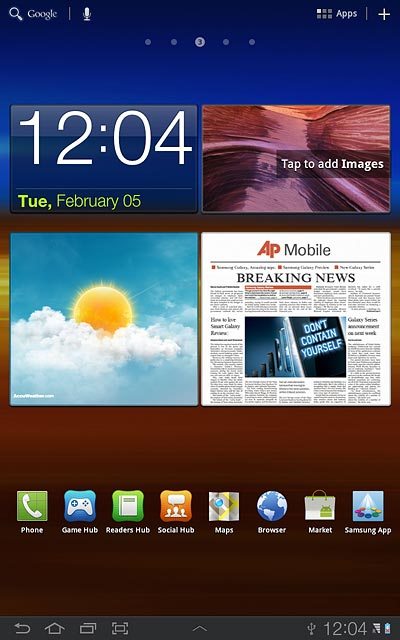

Press the home icon to return to standby mode.

Step 29 of 39

Find "Settings"

Press Apps.

Step 30 of 39

Find "Settings"

Press Messaging.

Step 31 of 39

Find "Settings"

Press the menu icon.

Step 32 of 39

Find "Settings"

Press Settings.

Step 33 of 39

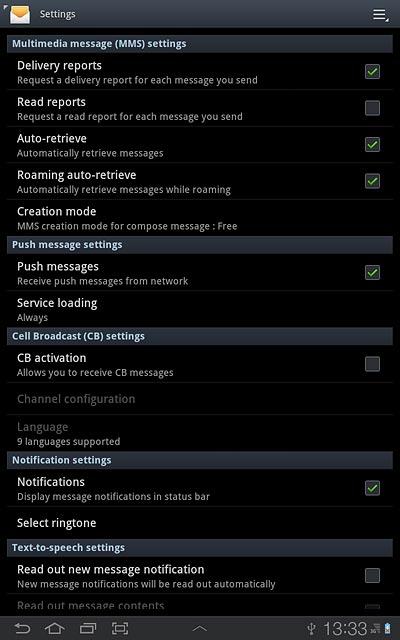

Turn request for delivery reports on or off

Press Delivery reports below Multimedia message (MMS) settings to turn the function on or off.

Step 34 of 39

Turn request for delivery reports on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 35 of 39

Select setting for picture message download in home network

Press Auto-retrieve to turn on the function.

Step 36 of 39

Select setting for picture message download in home network

When the box next to the menu item is ticked (V), the function is turned on.

Step 37 of 39

Select setting for picture message download when roaming

Press Roaming auto-retrieve to turn on the function.

Step 38 of 39

Select setting for picture message download when roaming

When the box next to the menu item is ticked (V), the function is turned on.

Step 39 of 39

Exit

Press the home icon to return to standby mode.

1 Find "Access Point Names"

Press Apps.

Press Settings.

Press Wireless and networks.

Press Mobile networks.

Press Access Point Names.

2 Create new data connection

Press the menu icon.

Press New APN.

3 Enter data connection name

Press Name.

Key in Vodafone MMS and press OK.

4 Enter APN

Press APN.

Key in live.vodafone.com and press OK.

5 Enter picture messaging server

Press MMSC.

Key in http://pxt.vodafone.net.nz/pxtsend and press OK.

6 Enter IP address

Press MMS proxy.

Key in 172.030.038.003 and press OK.

7 Enter port number

Press MMS port.

Key in 8080 and press OK.

8 Enter country code

Press MCC.

Key in 530 and press OK.

9 Enter network code

Press MNC.

Key in 01 and press OK.

10 Select authentication type

Press Authentication type.

Press PAP.

11 Select APN type

Press APN type.

Press MMS.

12 Save data connection

Press the menu icon.

Press Save.

Press the home icon to return to standby mode.

13 Find "Settings"

Press Apps.

Press Messaging.

Press the menu icon.

Press Settings.

14 Turn request for delivery reports on or off

Press Delivery reports below Multimedia message (MMS) settings to turn the function on or off.

When the box next to the menu item is ticked (V), the function is turned on.

15 Select setting for picture message download in home network

Press Auto-retrieve to turn on the function.

When the box next to the menu item is ticked (V), the function is turned on.

16 Select setting for picture message download when roaming

Press Roaming auto-retrieve to turn on the function.

When the box next to the menu item is ticked (V), the function is turned on.

17 Exit

Press the home icon to return to standby mode.
