Find "Access Point Names"

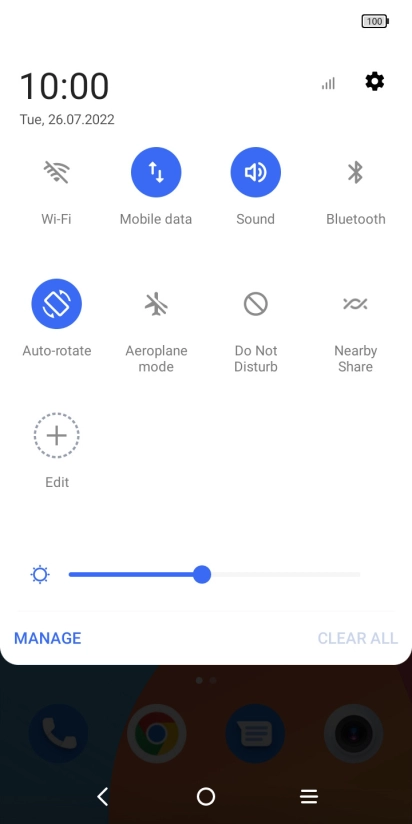

Slide two fingers downwards starting from the top of the screen.

Find "Access Point Names"

Press the settings icon.

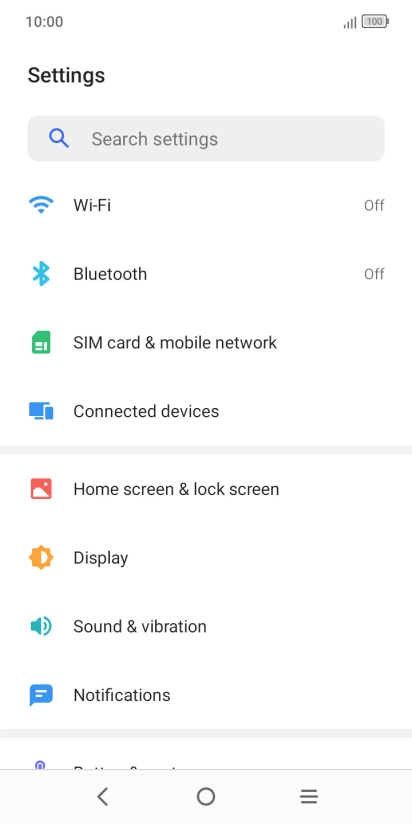

Find "Access Point Names"

Press SIM card & mobile network.

Find "Access Point Names"

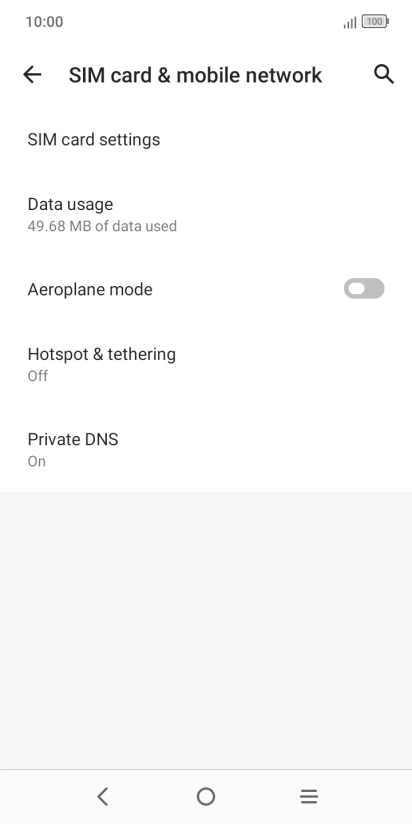

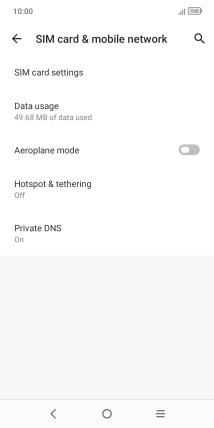

Press SIM card settings.

Find "Access Point Names"

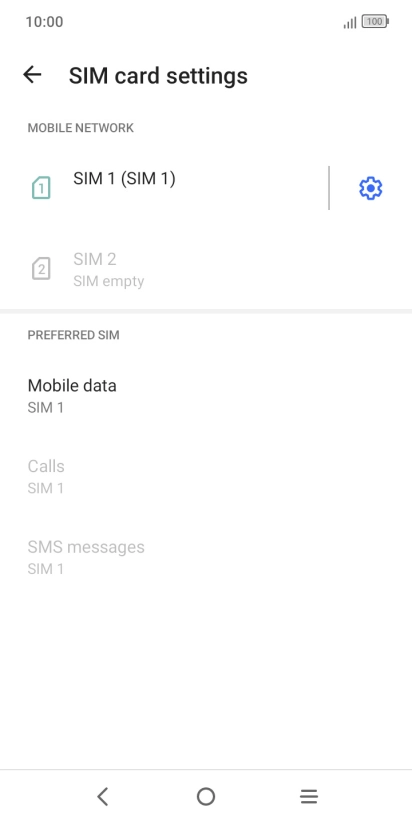

Press the name of the SIM.

Find "Access Point Names"

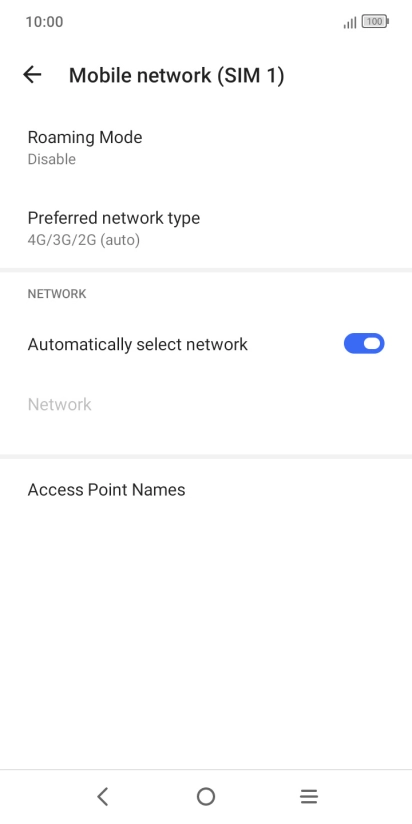

Press Access Point Names.

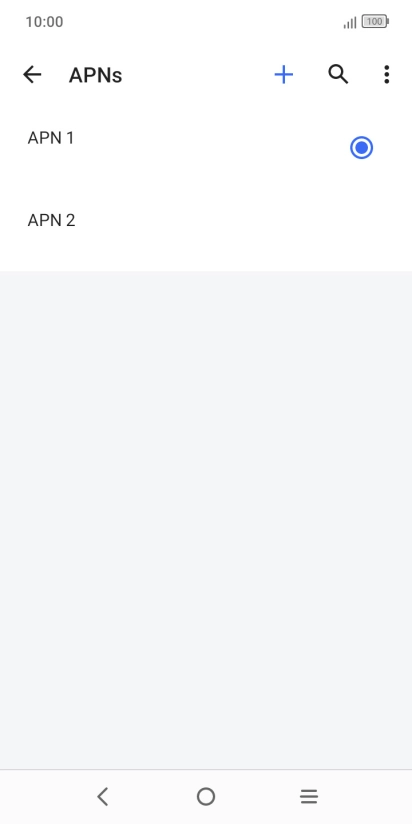

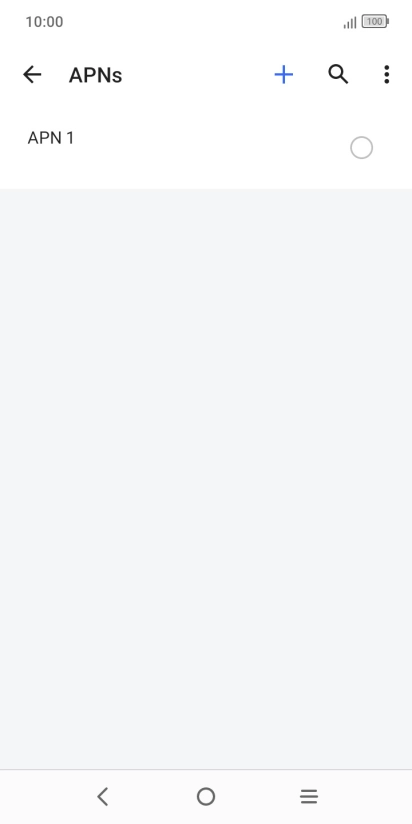

Create new data connection

Press the add icon.

Create new data connection

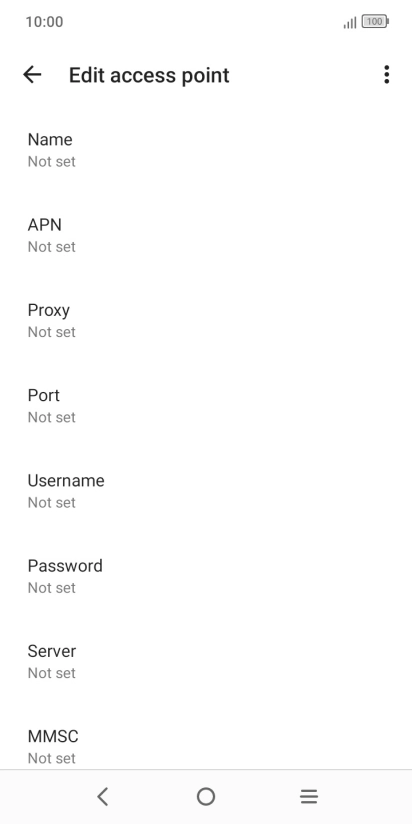

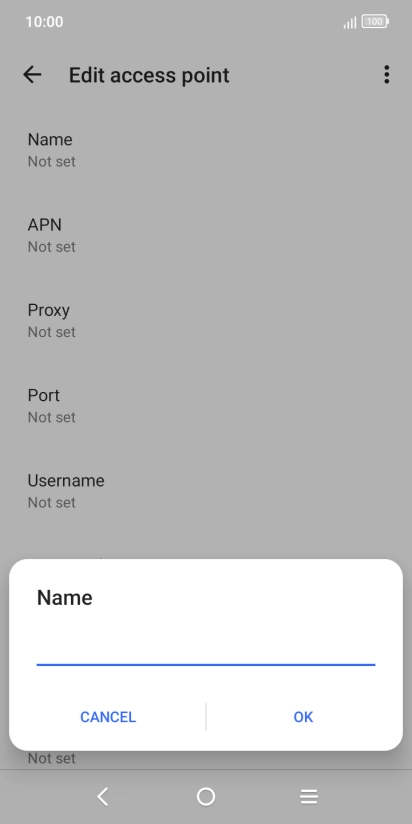

Press Name.

Create new data connection

Key in Vodafone MMS and press OK.

Enter APN

Press APN.

Enter APN

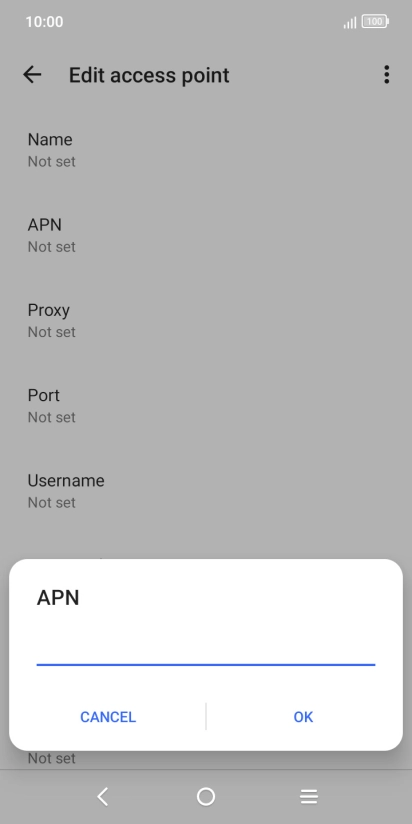

Key in live.vodafone.com and press OK.

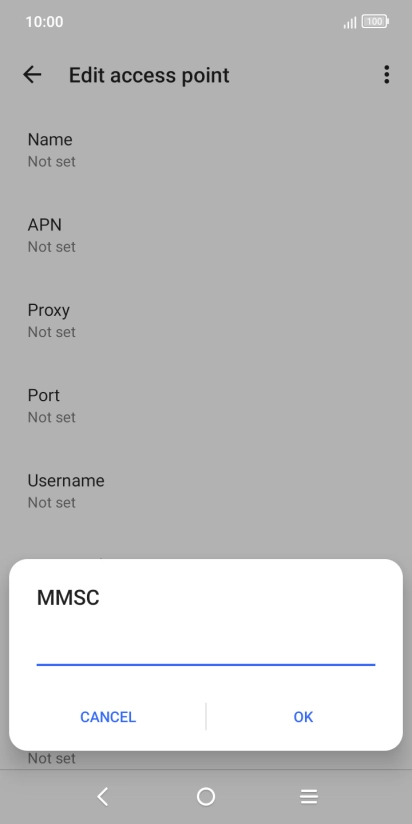

Enter MMSC

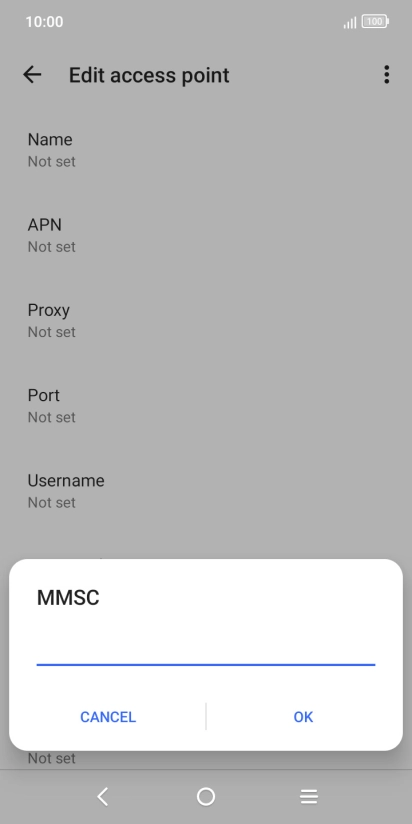

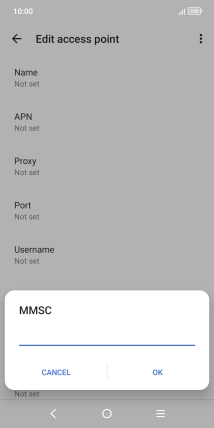

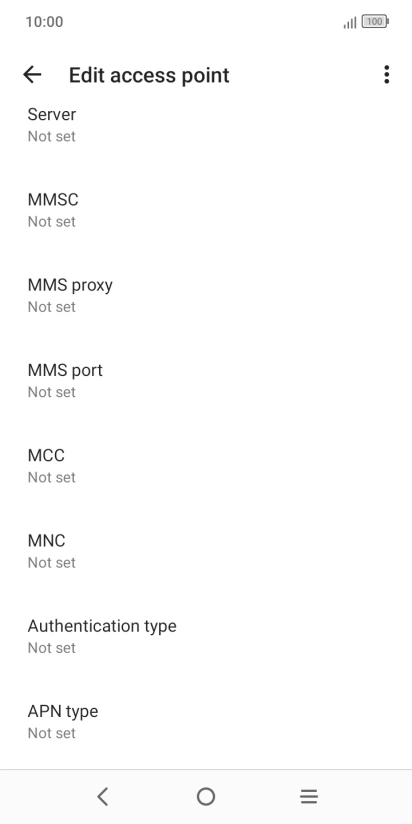

Press MMSC.

Enter MMSC

Key in http://pxt.vodafone.net.nz/pxtsend and press OK.

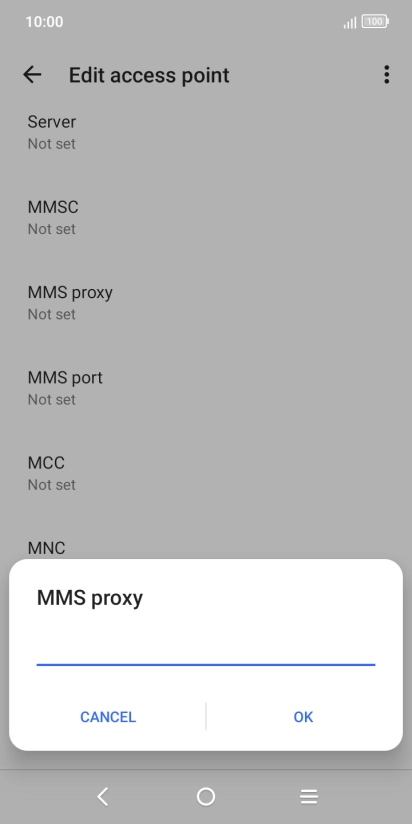

Enter IP address

Press MMS proxy.

Enter IP address

Key in 172.030.038.003 and press OK.

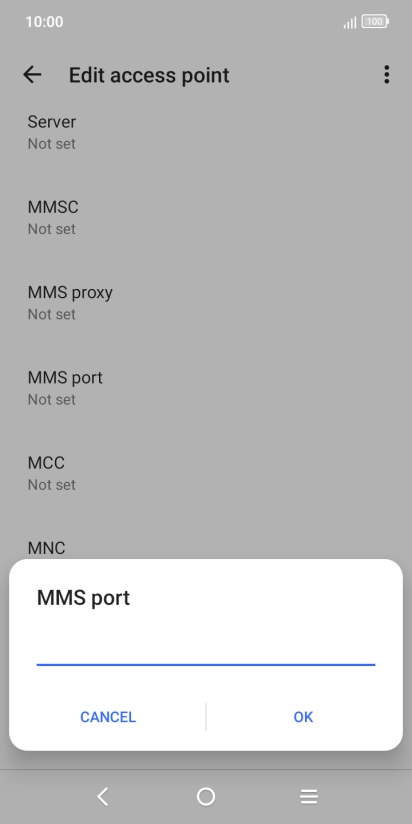

Enter port number

Press MMS port.

Enter port number

Key in 8080 and press OK.

Enter country code

Press MCC.

Enter country code

Key in 530 and press OK.

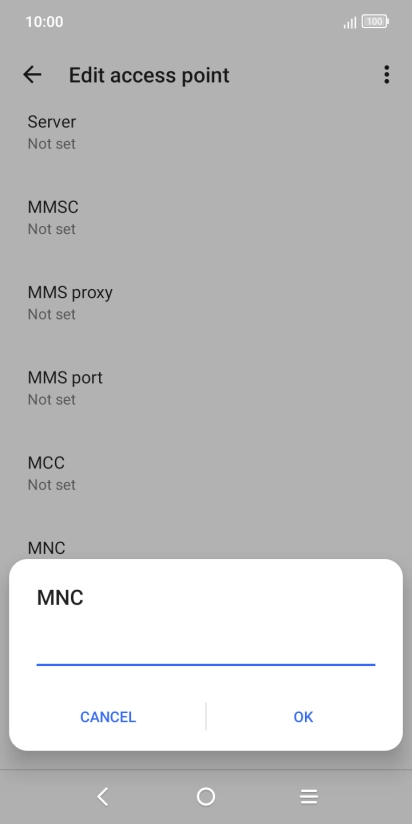

Enter network code

Press MNC.

Enter network code

Key in 01 and press OK.

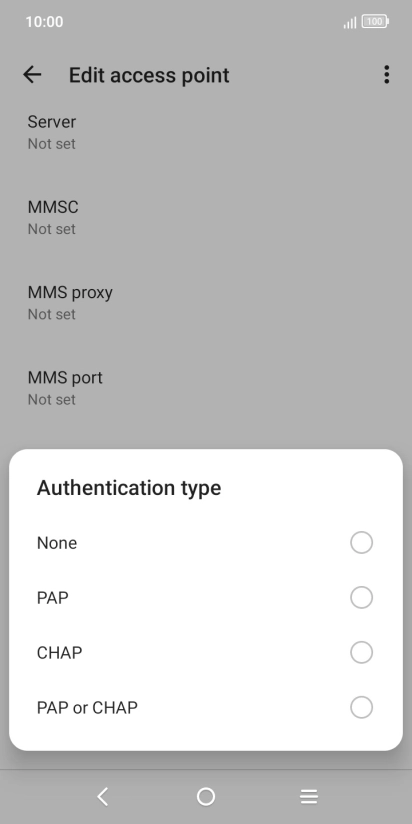

Select authentication type

Press Authentication type.

Select authentication type

Press PAP.

Enter APN type

Press APN type.

Enter APN type

Key in mms and press OK.

Save data connection

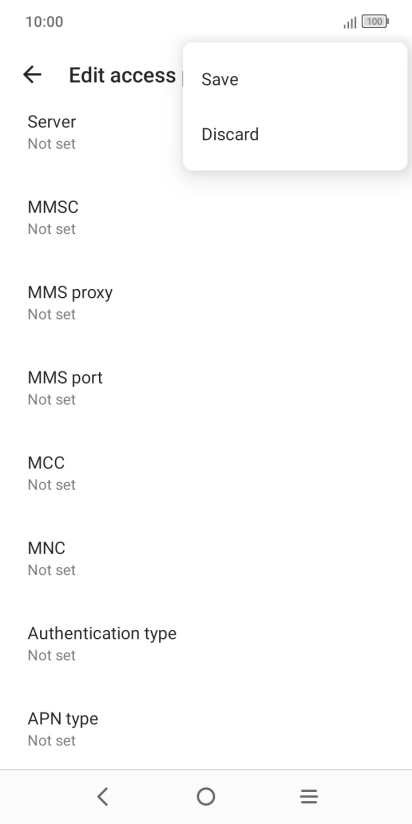

Press the menu icon.

Save data connection

Press Save.

Return to the home screen

Press the Home key to return to the home screen.
