One NZ Smart P12

One NZ Smart P12

Android 11.0 (Go edition)

How to guides

Set up your phone for internet

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 23

Slide two fingers downwards starting from the top of the screen.

Step 2 of 23

Press the settings icon.

Step 3 of 23

Press SIM card & mobile network.

Step 4 of 23

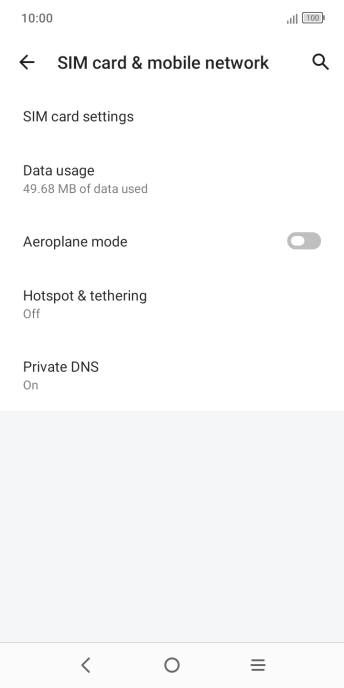

Press SIM card settings.

Step 5 of 23

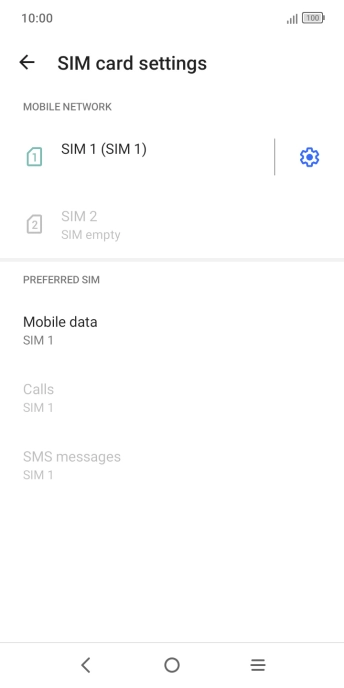

Press the name of the SIM.

Step 6 of 23

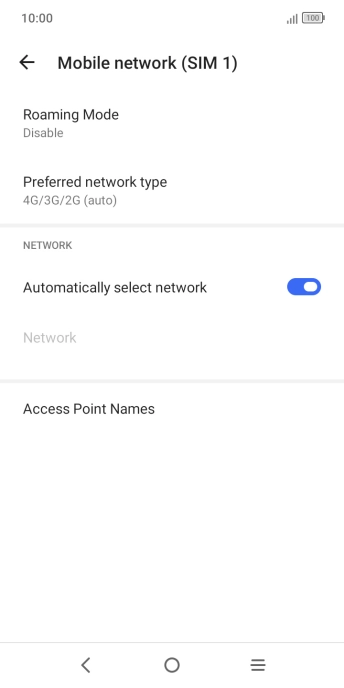

Press Access Point Names.

Step 7 of 23

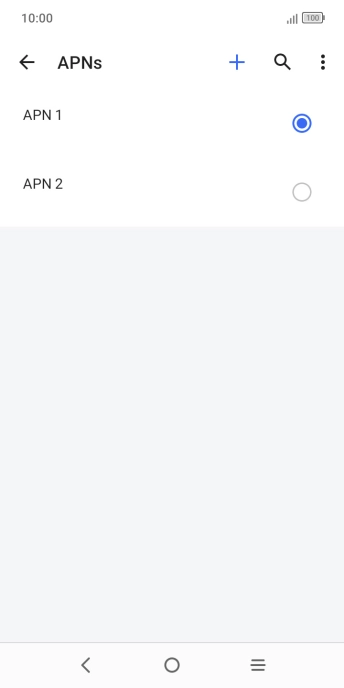

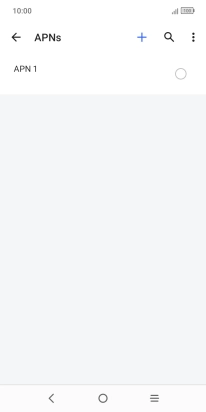

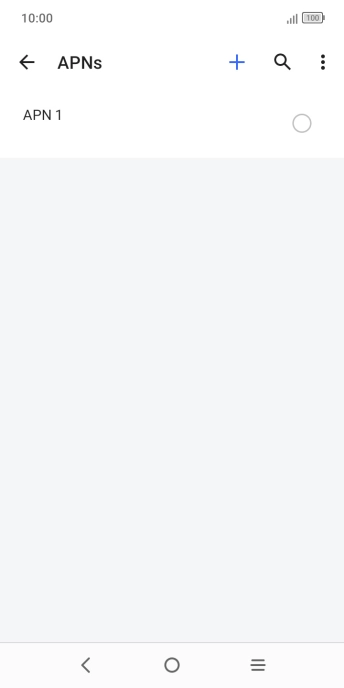

Press the add icon.

Step 8 of 23

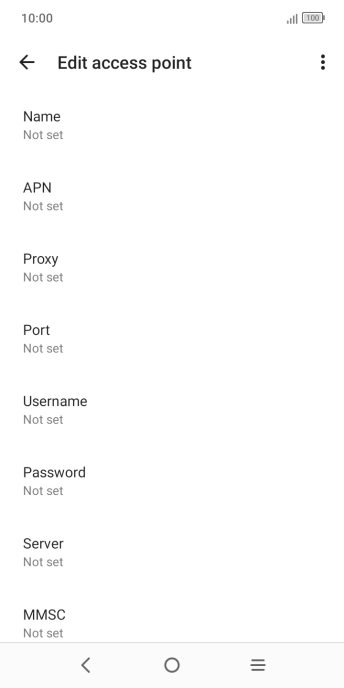

Press Name.

Vodafone Internet

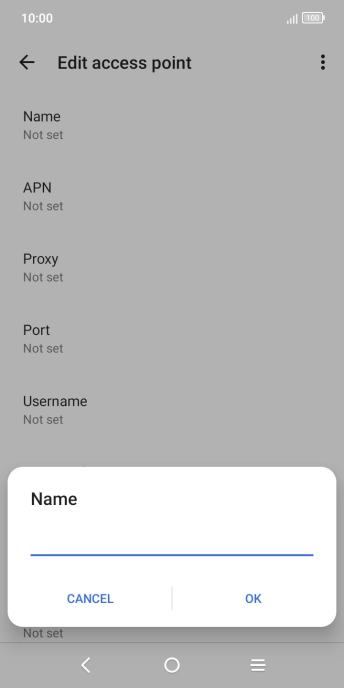

Step 9 of 23

Key in Vodafone Internet and press OK.

Step 10 of 23

Press APN.

vodafone
Step 11 of 23

Key in vodafone and press OK.

Step 12 of 23

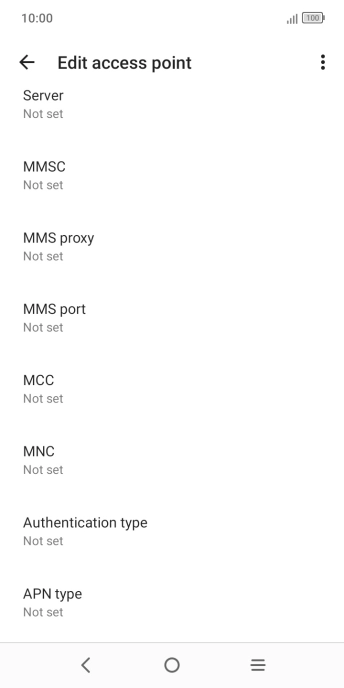

Press MCC.

530
Step 13 of 23

Key in 530 and press OK.

Step 14 of 23

Press MNC.

01

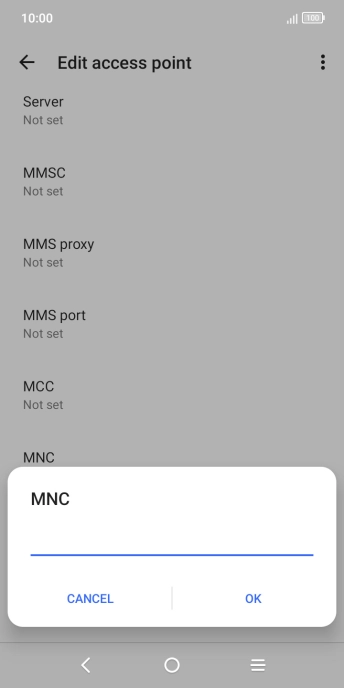

Step 15 of 23

Key in 01 and press OK.

Step 16 of 23

Press Authentication type.

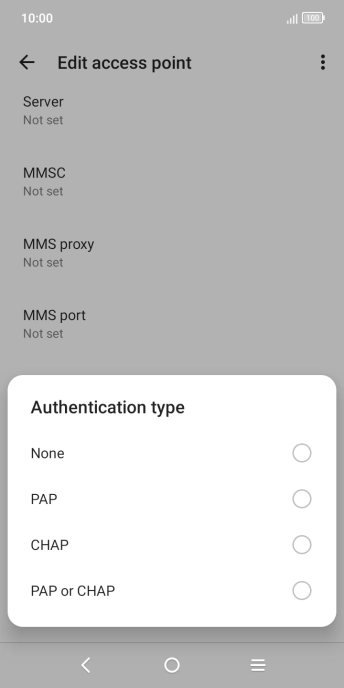

Step 17 of 23

Press PAP.

Step 18 of 23

Press APN type.

default

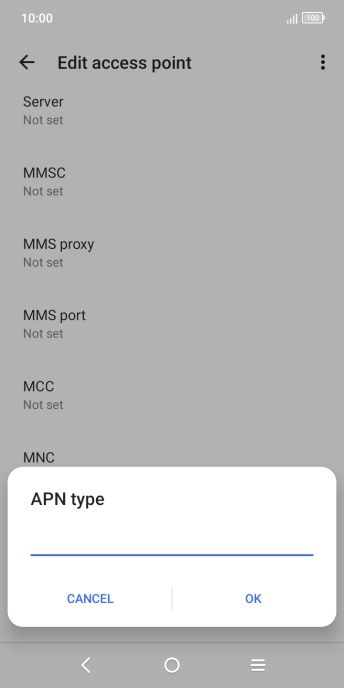

Step 19 of 23

Key in default and press OK.

Step 20 of 23

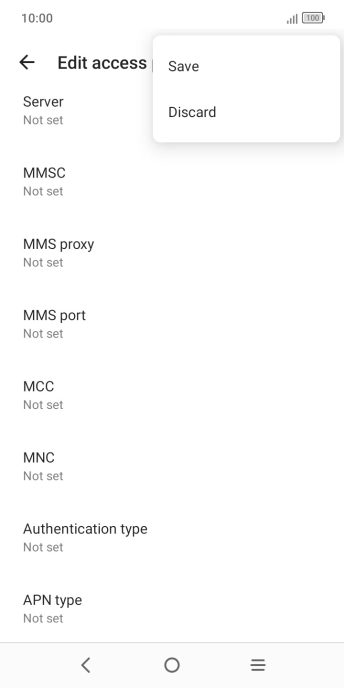

Press the menu icon.

Step 21 of 23

Press Save.

Step 22 of 23

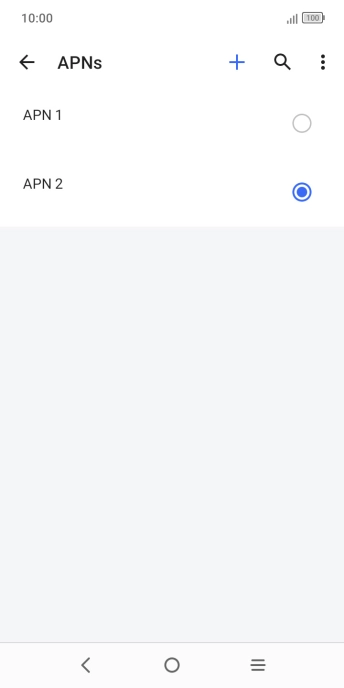

Press the field next to the data connection to activate it.

Step 23 of 23

Press the Home key to return to the home screen.

1. 1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press SIM card & mobile network.
Press SIM card settings.
Press the name of the SIM.
Press Access Point Names.

2. 2. Create new data connection

Press the add icon.
Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

3. 3. Enter APN

Press APN.
Key in vodafone and press OK.
vodafone

4. 4. Enter country code

Press MCC.
Key in 530 and press OK.
530

5. 5. Enter network code

Press MNC.
Key in 01 and press OK.
01

6. 6. Select authentication type

Press Authentication type.
Press PAP.

7. 7. Enter APN type

Press APN type.
Key in default and press OK.
default

8. 8. Save data connection

Press the menu icon.
Press Save.
Press the field next to the data connection to activate it.

9. 9. Return to the home screen

Press the Home key to return to the home screen.
