Motorola Moto G05
Find "APNs"

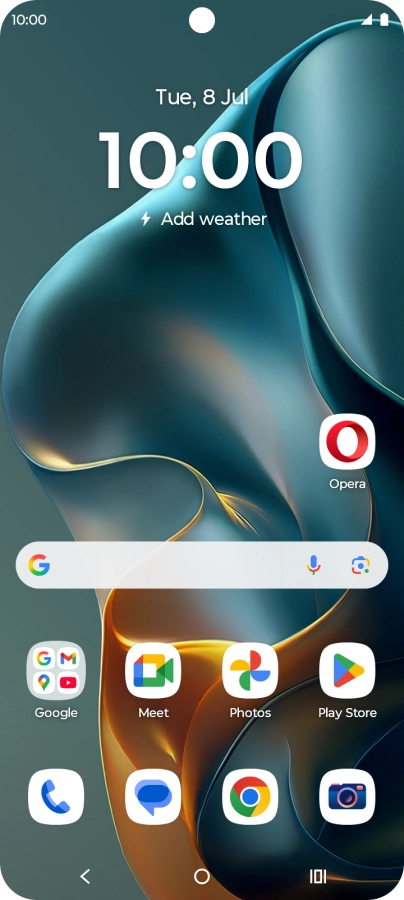

Slide your finger downwards starting from the top right side of the screen.
Find "APNs"

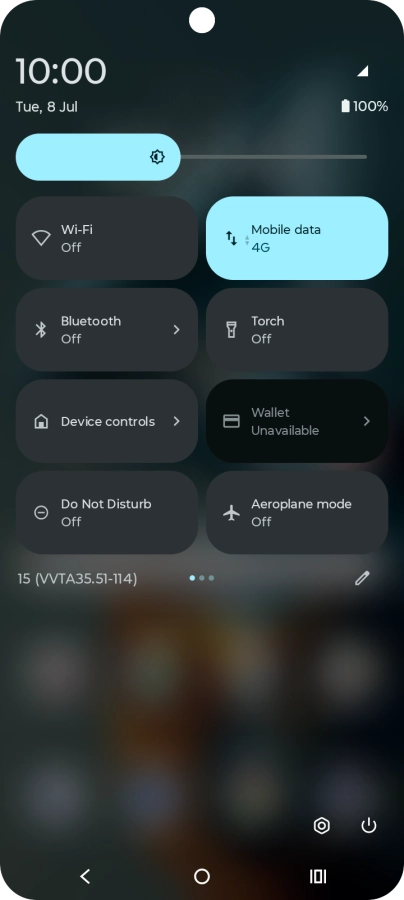

Press the settings icon.
Find "APNs"
Press Network & Internet.
Find "APNs"

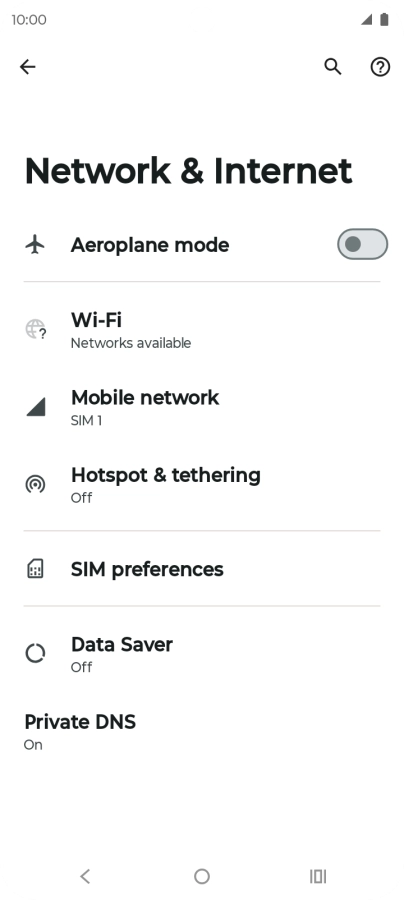

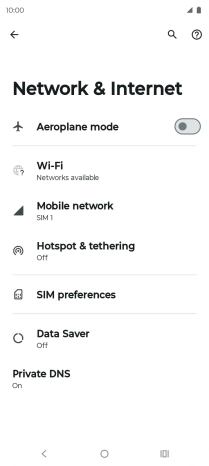

Press Mobile network.
Find "APNs"

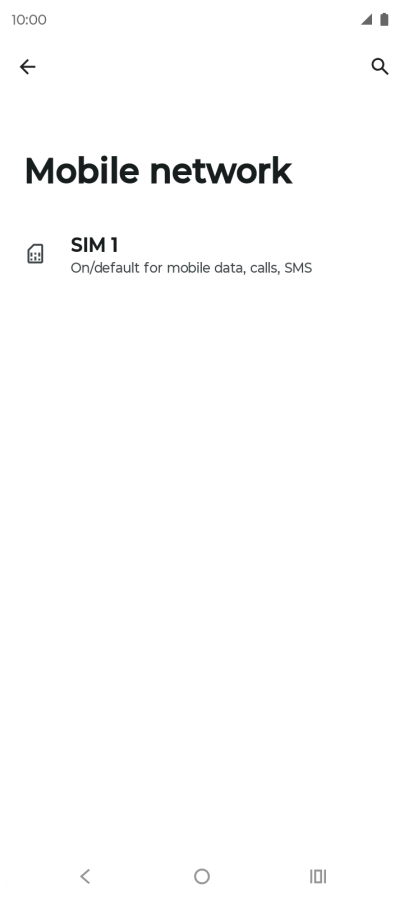

Press the name of the SIM.
Find "APNs"

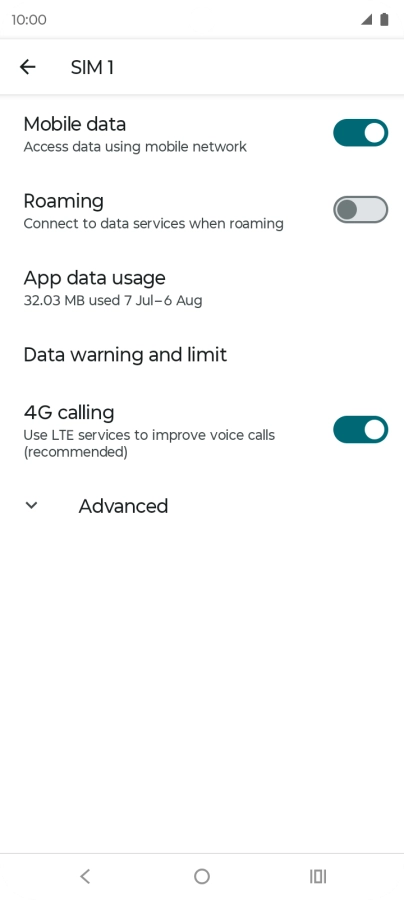

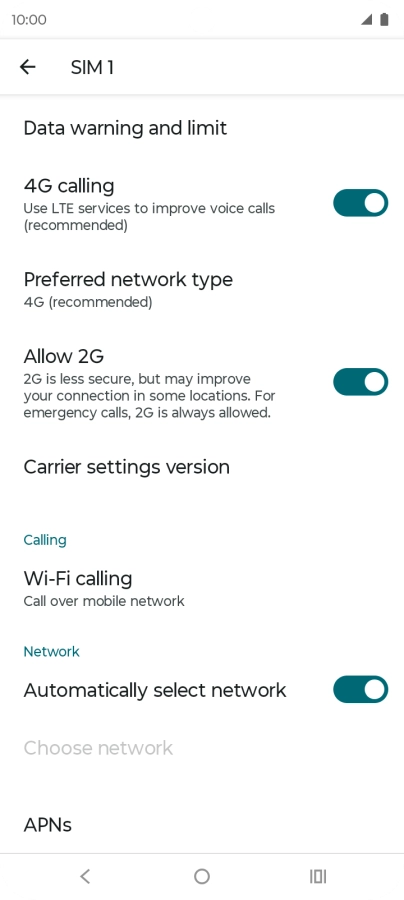

Press Advanced.
Find "APNs"
Press APNs.

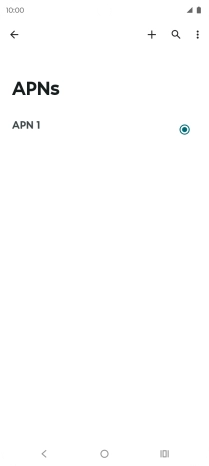

Create new data connection

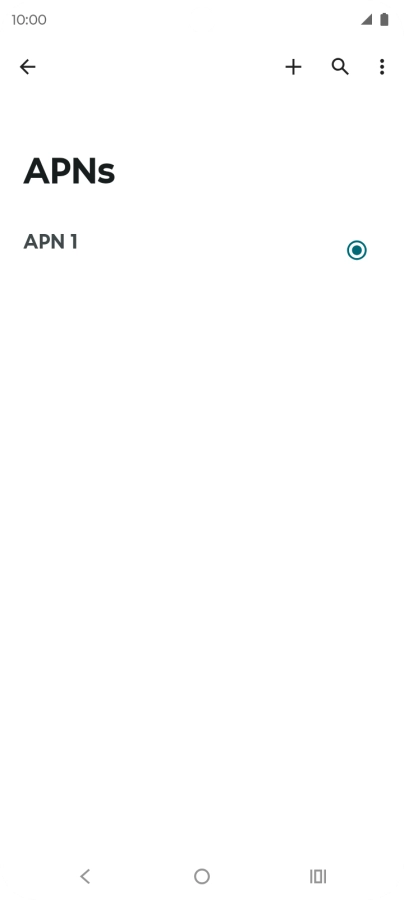

Press the new data connection icon.
Enter a name for the connection

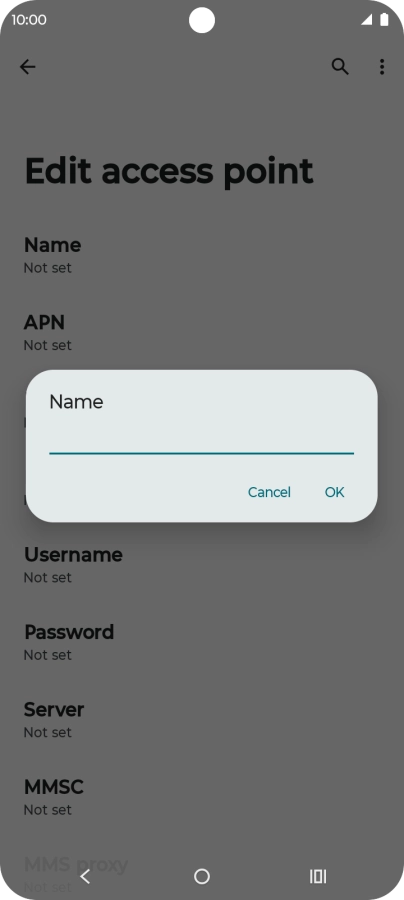

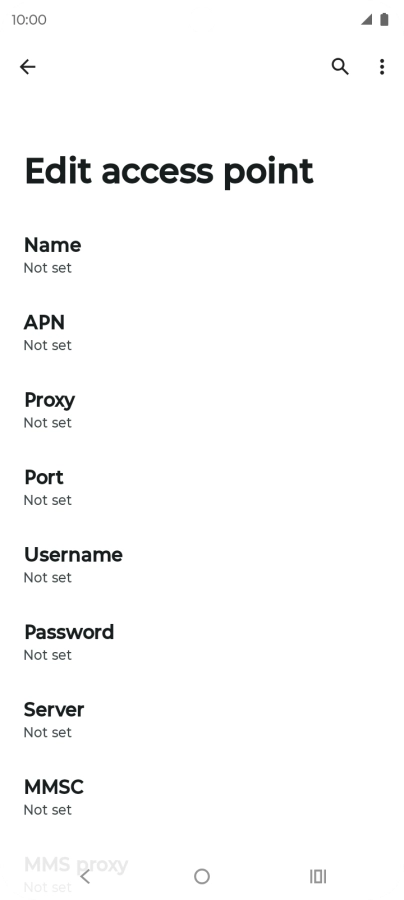

Press Name.
Enter a name for the connection
Key in One NZ MMS and press OK.
Enter APN
Press APN.
Enter APN
Key in live.vodafone.com and press OK.
Enter picture messaging server

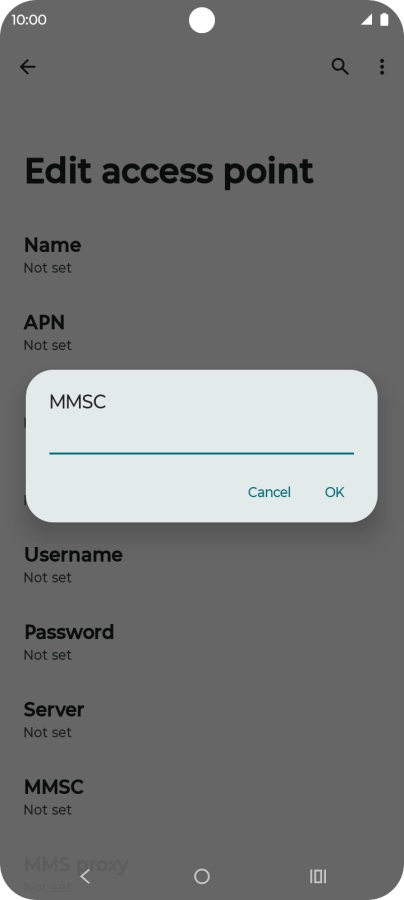

Press MMSC.
Enter picture messaging server
Key in http://pxt.vodafone.net.nz/pxtsend and press OK.
Enter IP address

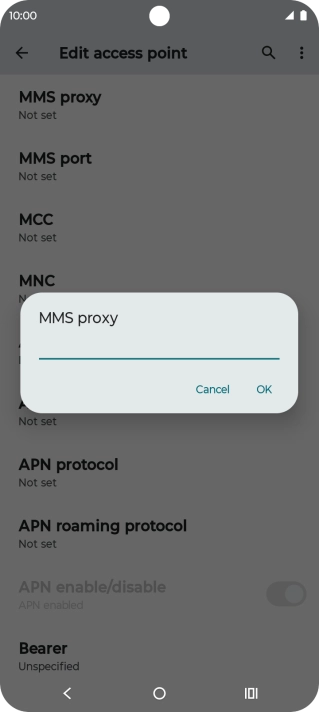

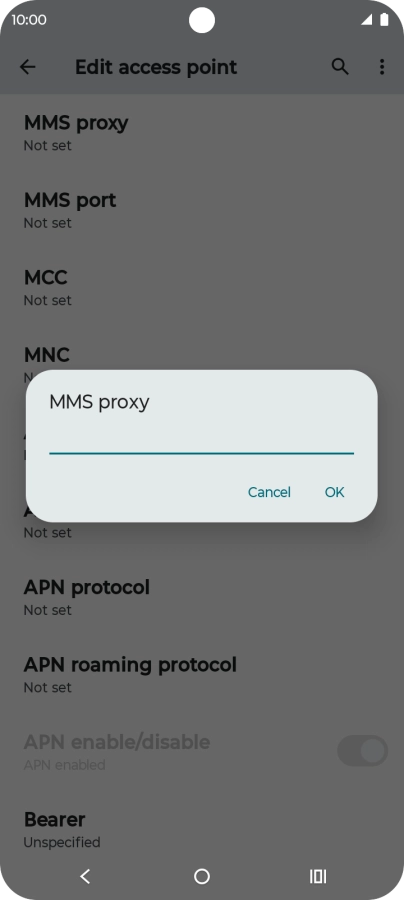

Press MMS proxy.
Enter IP address
Key in 172.030.038.003 and press OK.
Enter port number

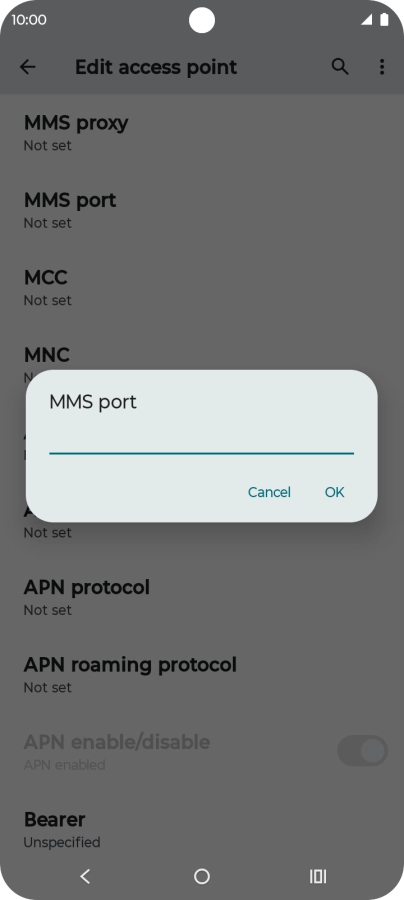

Press MMS port.
Enter port number
Key in 8080 and press OK.
Enter country code

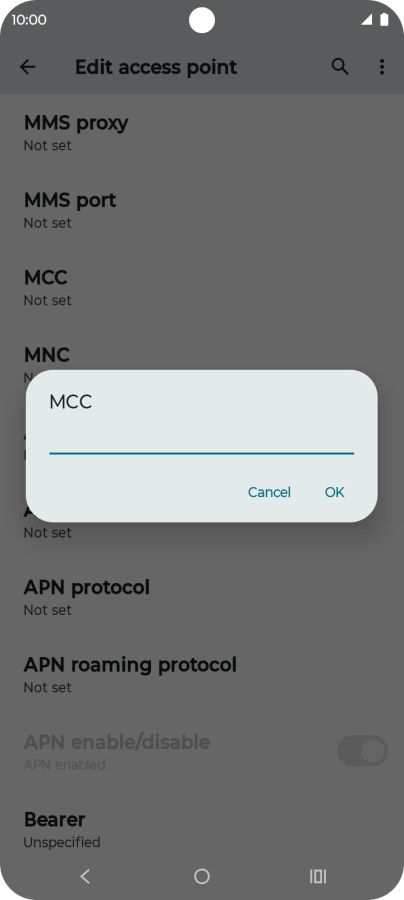

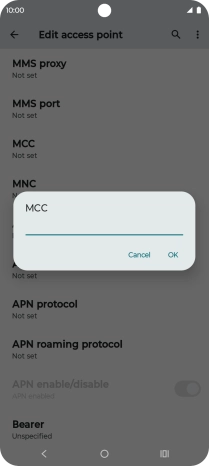

Press MCC.
Enter country code
Key in 530 and press OK.
Enter network code
Press MNC.
Enter network code
Key in 01 and press OK.

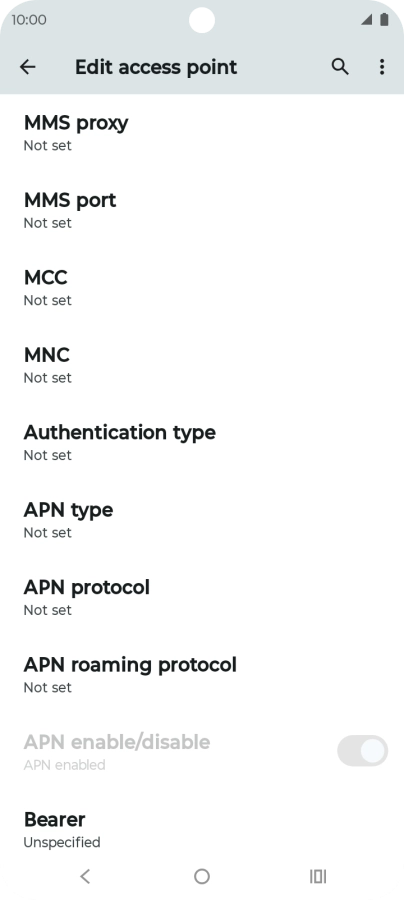

Select authentication type

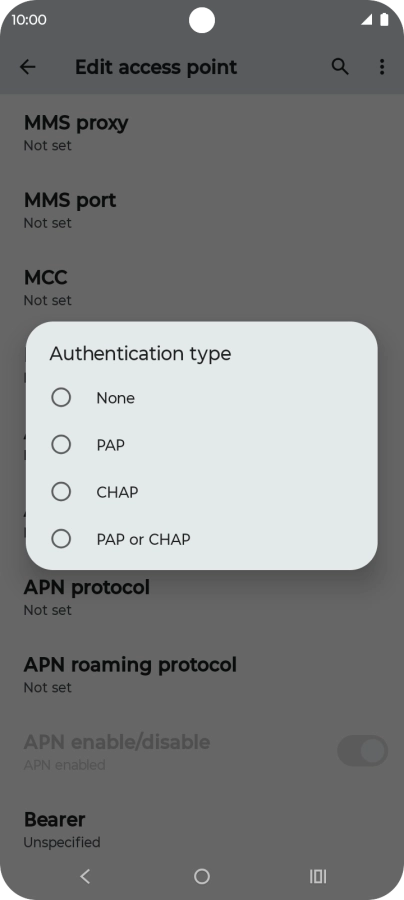

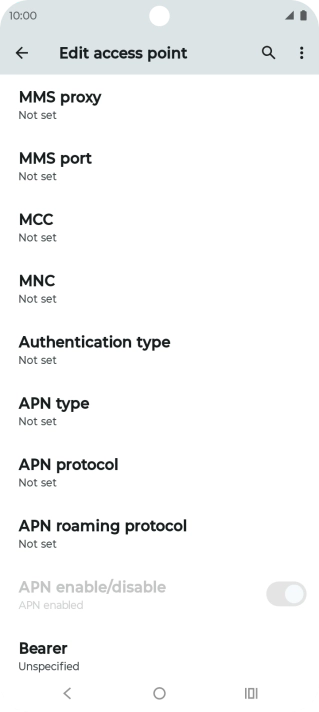

Press Authentication type.
Select authentication type
Press PAP.
Enter APN type

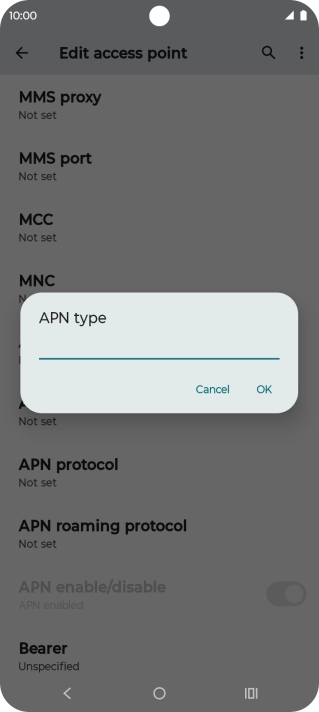

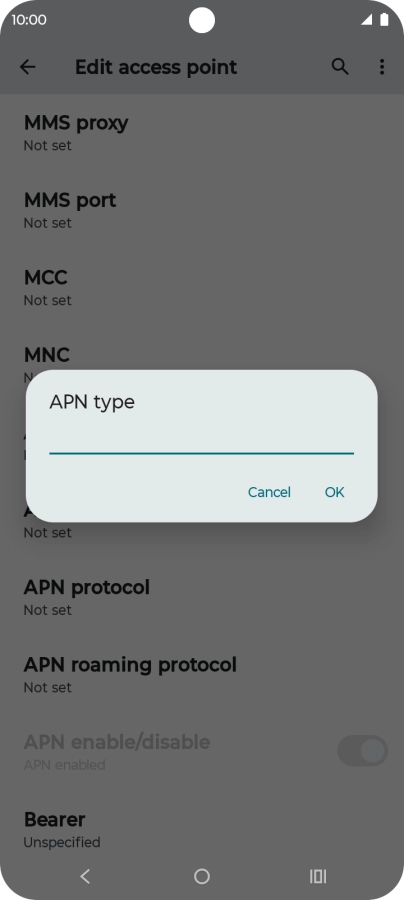

Press APN type.
Enter APN type
Key in mms and press OK.
Save data connection

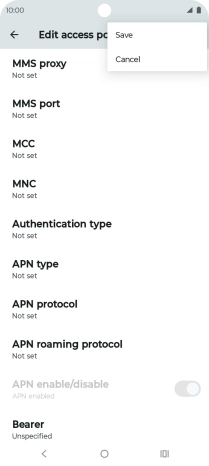

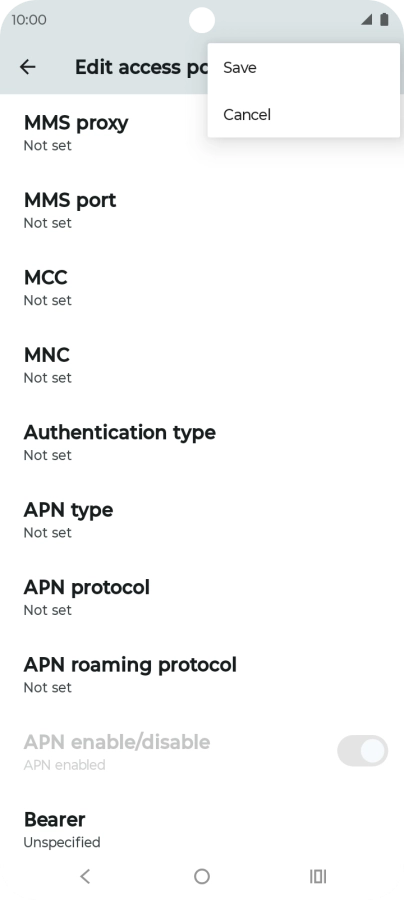

Press the menu icon.
Save data connection
Press Save.

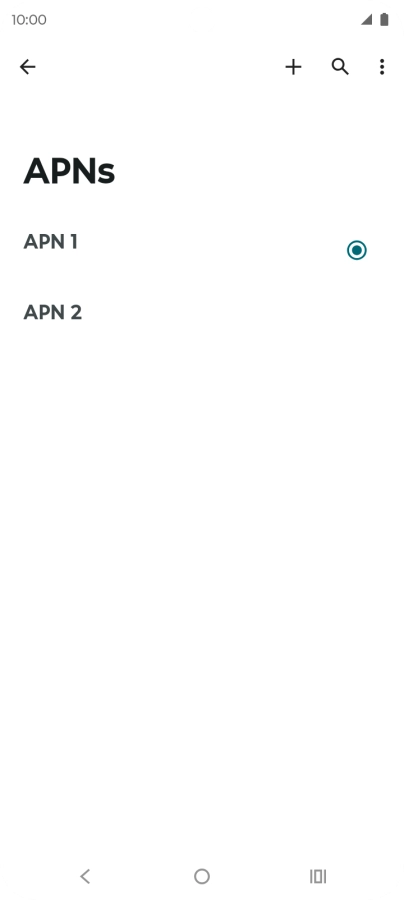

Return to the home screen

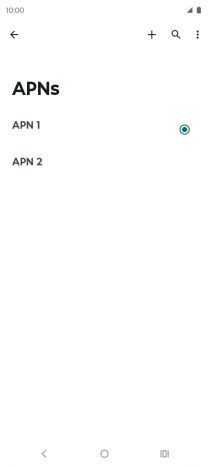

Press the Home key to return to the home screen.
