Huawei Y6s
Find "Access Point Names (APNs)"

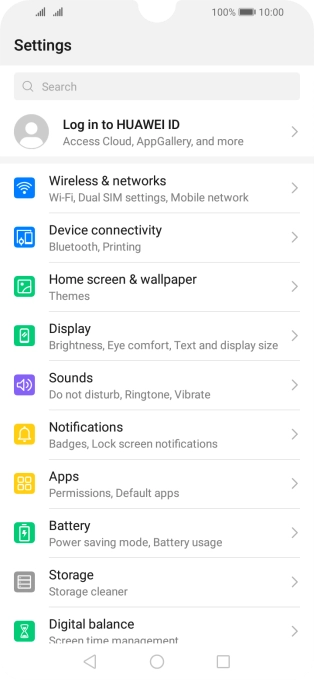

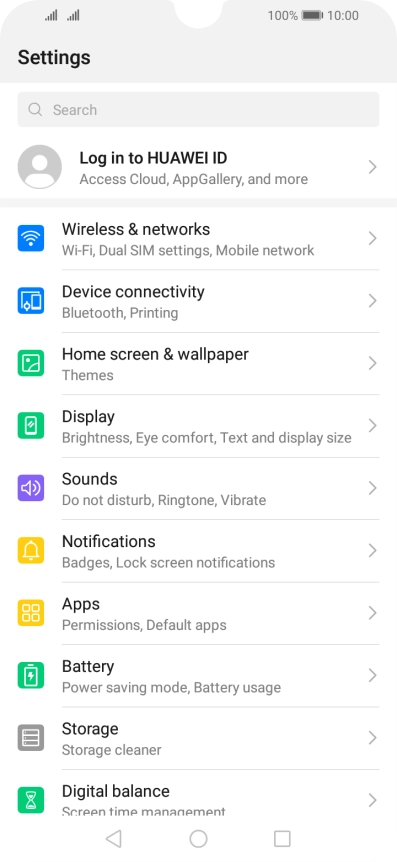

Press Settings.
Find "Access Point Names (APNs)"

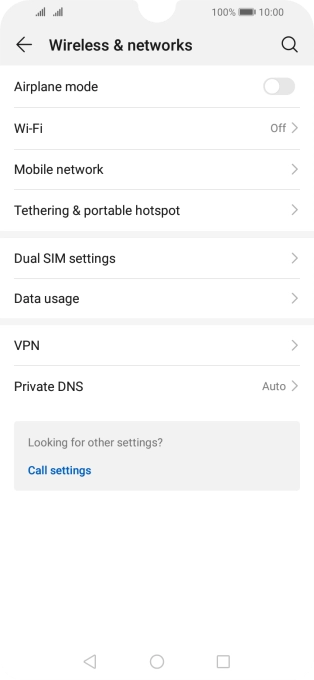

Press Wireless & networks.
Find "Access Point Names (APNs)"

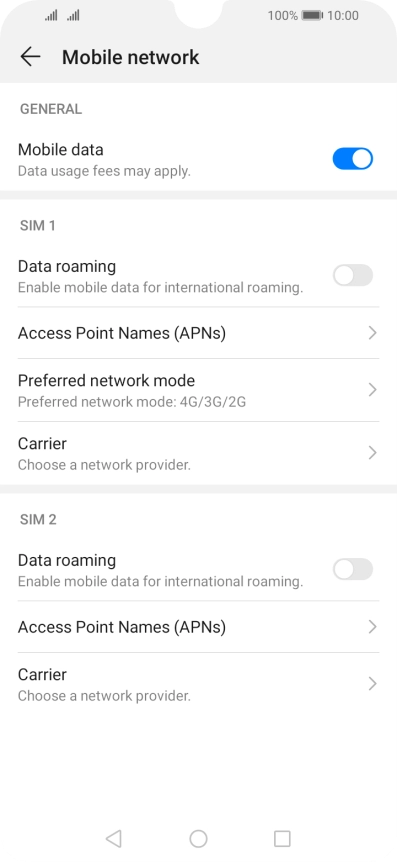

Press Mobile network.
Find "Access Point Names (APNs)"
Press Access Point Names (APNs) below the required SIM.
Create new data connection

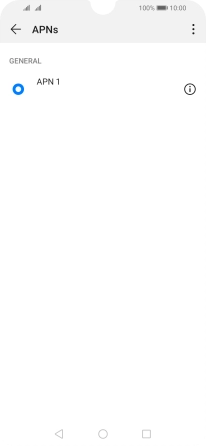

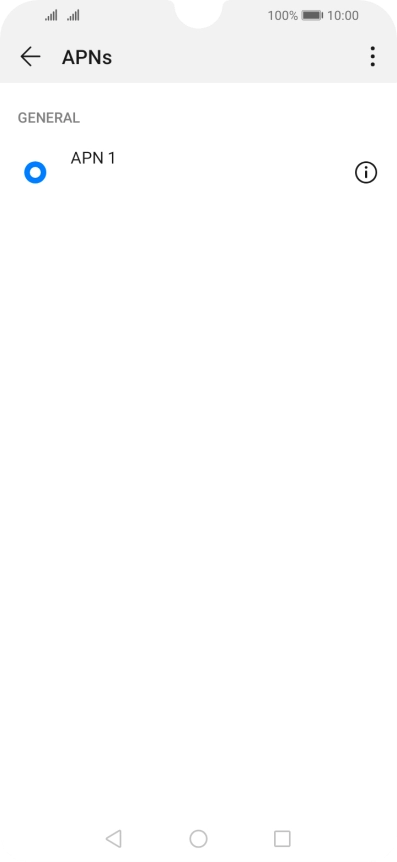

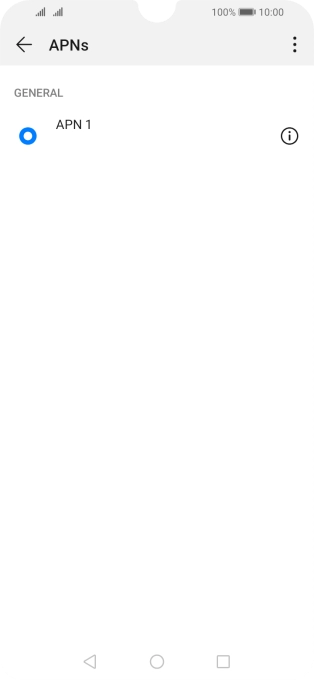

Press the menu icon.
Create new data connection

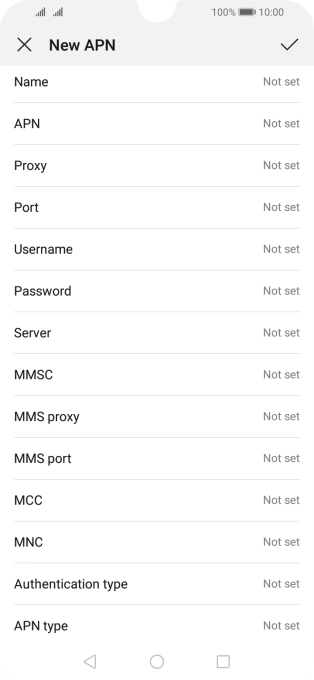

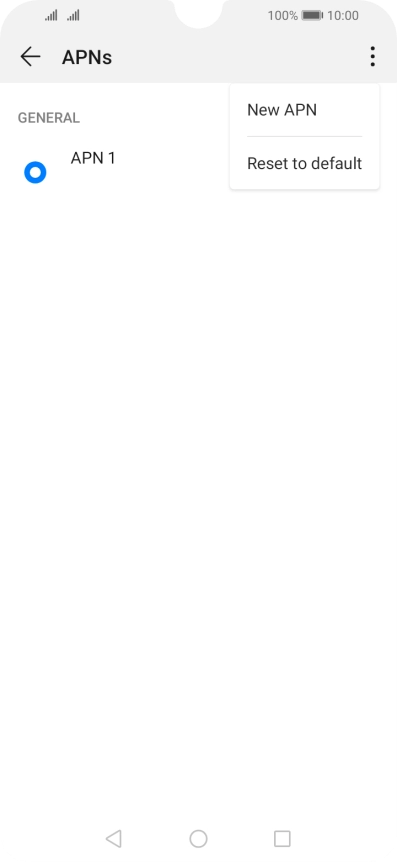

Press New APN.

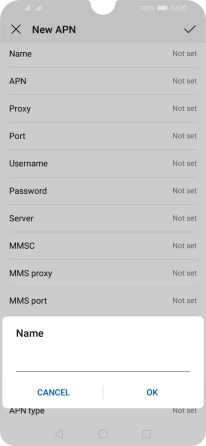

Enter a name for the connection

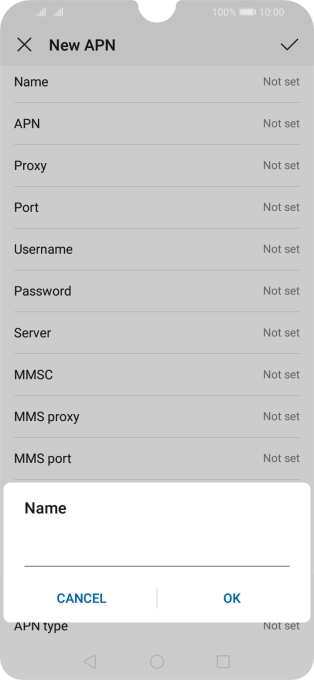

Press Name.
Enter a name for the connection
Key in Vodafone MMS and press OK.

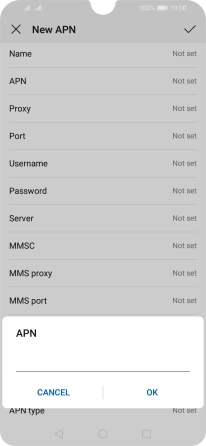

Enter APN

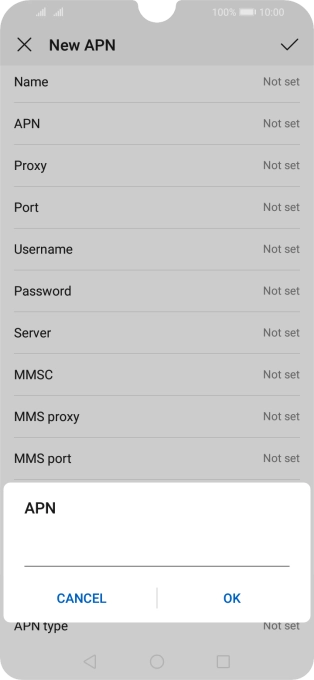

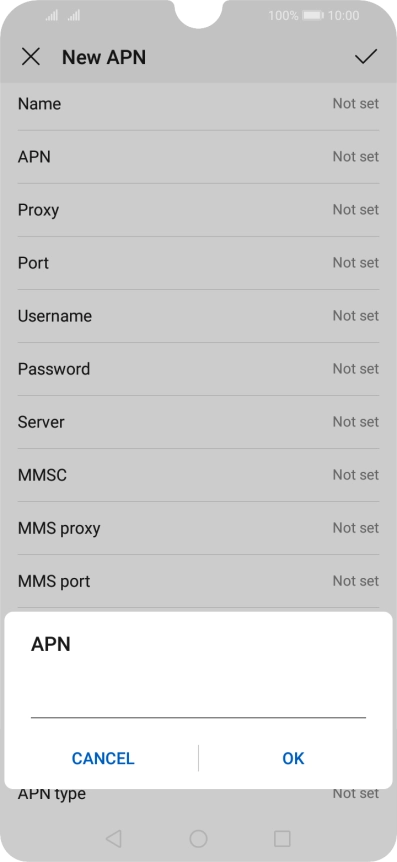

Press APN.
Enter APN
Key in live.vodafone.com and press OK.

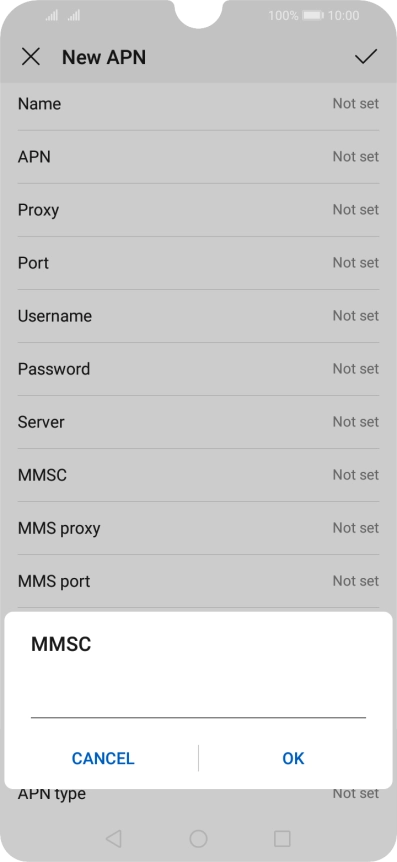

Enter picture messaging server
Press MMSC.
Enter picture messaging server
Key in http://pxt.vodafone.net.nz/pxtsend and press OK.

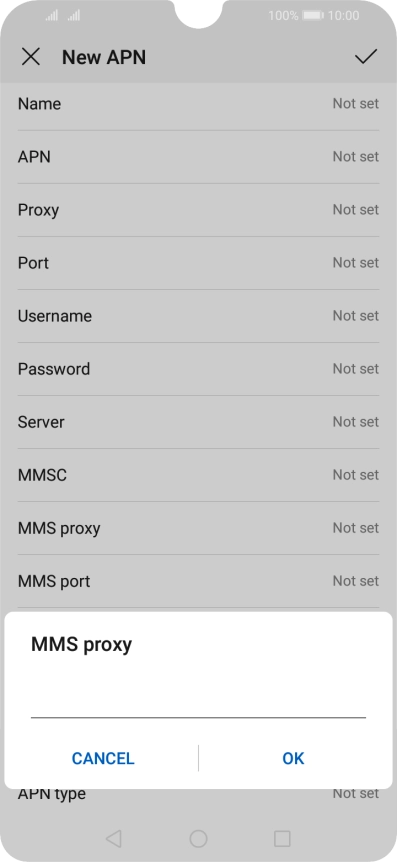

Enter IP address
Press MMS proxy.
Enter IP address
Key in 172.030.038.003 and press OK.
Enter port number
Press MMS port.
Enter port number
Key in 8080 and press OK.

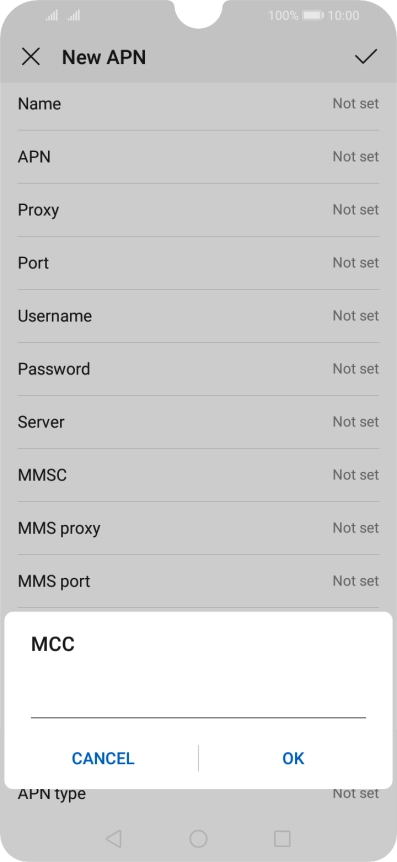

Enter country code

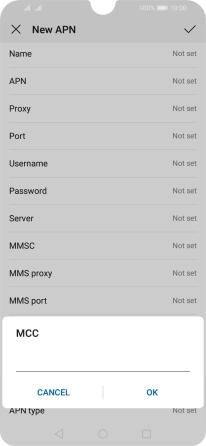

Press MCC.
Enter country code
Key in 530 and press OK.
Enter network code

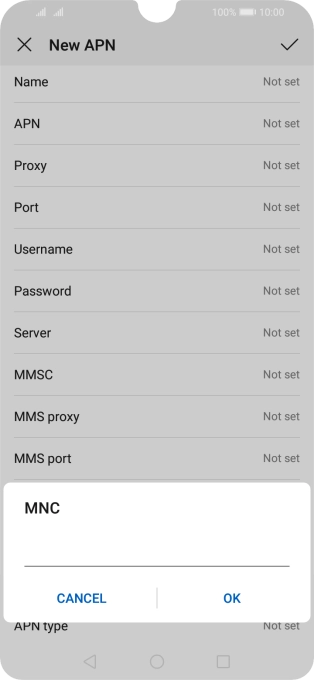

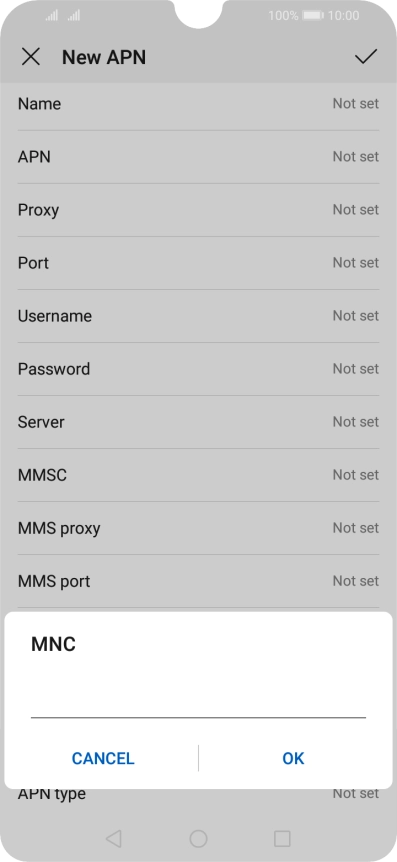

Press MNC.
Enter network code
Key in 01 and press OK.

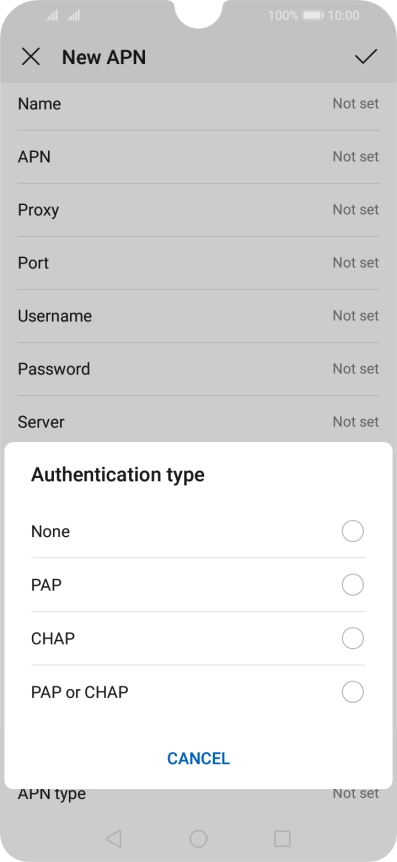

Select authentication type

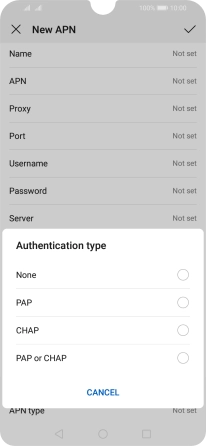

Press Authentication type.
Select authentication type
Press PAP.

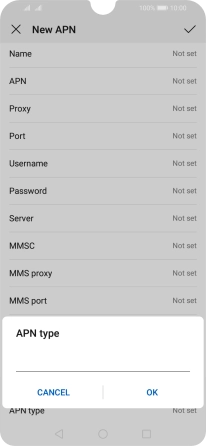

Enter APN type

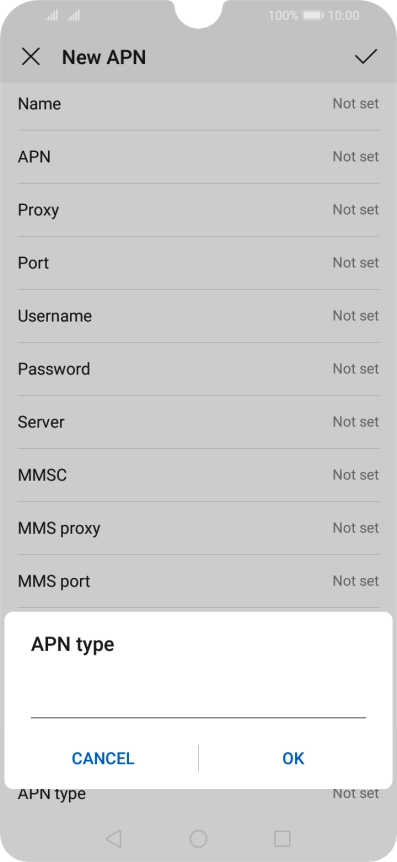

Press APN type.
Enter APN type
Key in mms and press OK.
Save data connection

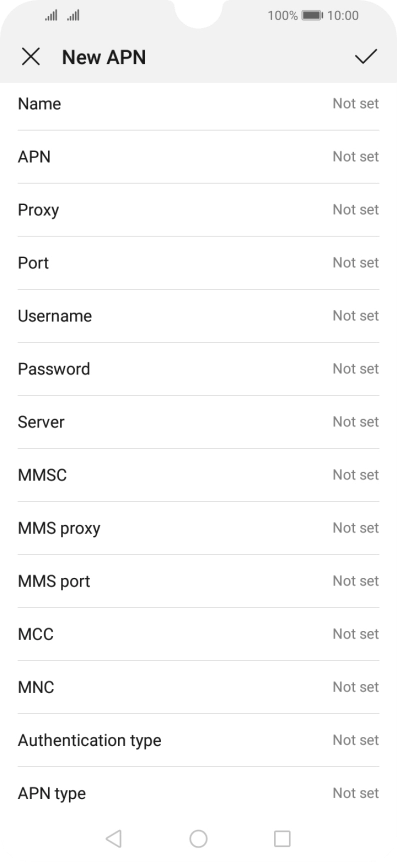

Press the save icon.

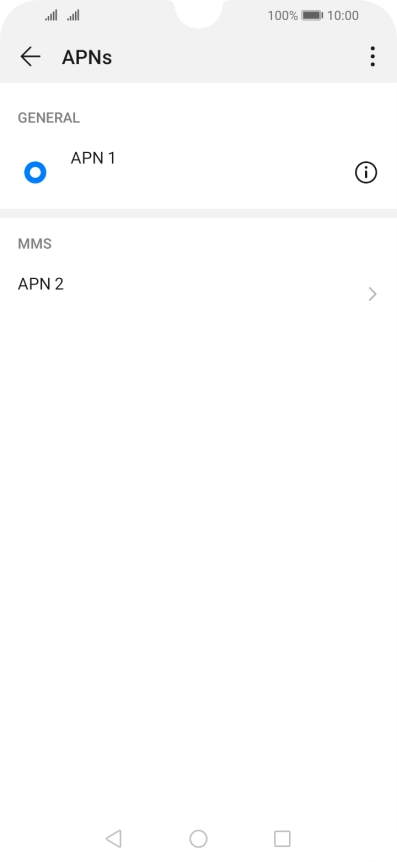

Return to the home screen
Press the Home key to return to the home screen.
