Huawei P30

Huawei P30

Android 9.0

I can't send and receive picture messages on my Huawei P30 Android 9.0

Cause 1 of 5: The phone has not been correctly set up for MMS

To send and receive MMS, the phone needs to be correctly set up for MMS.

Solution: Set up your phone for picture messaging.

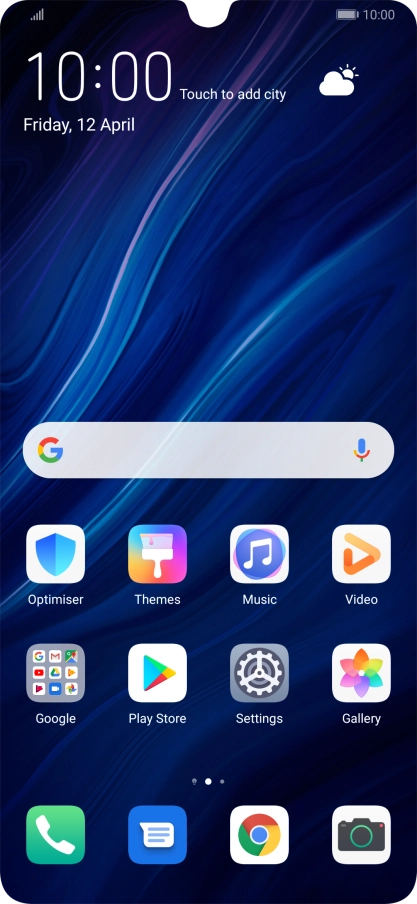

Step 1 of 26

Find "Access Point Names (APNs)"

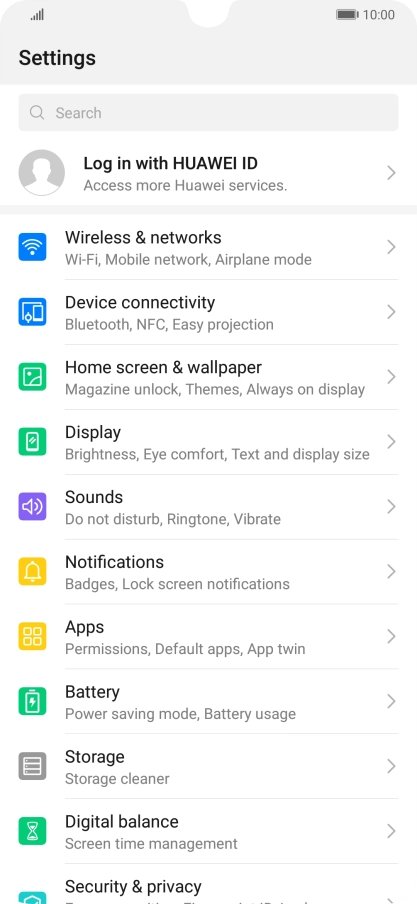

Press Settings.

Step 2 of 26

Find "Access Point Names (APNs)"

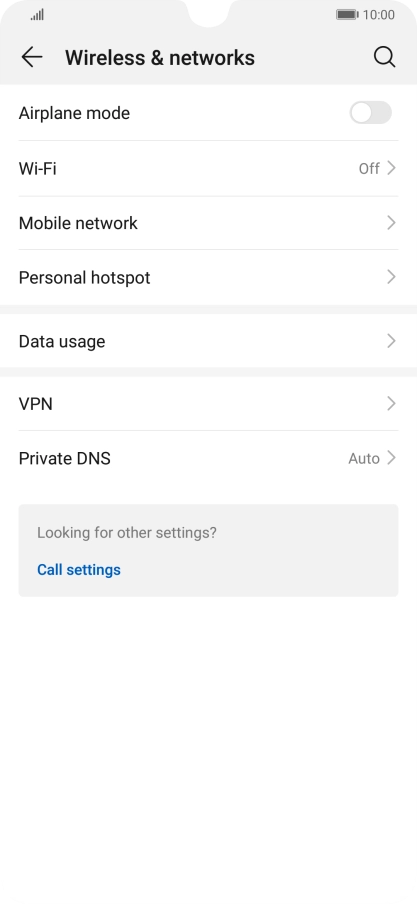

Press Wireless & networks.

Step 3 of 26

Find "Access Point Names (APNs)"

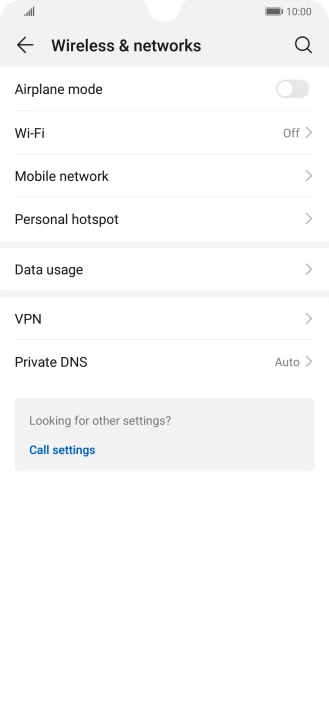

Press Mobile network.

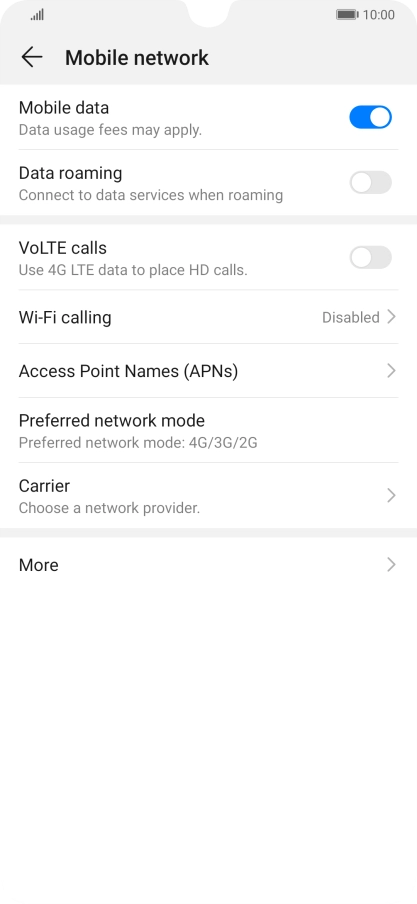

Step 4 of 26

Find "Access Point Names (APNs)"

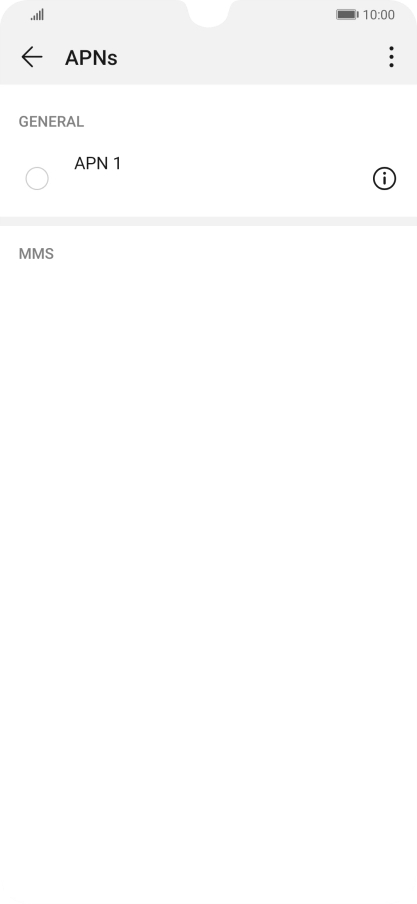

Press Access Point Names (APNs).

Step 5 of 26

Create new data connection

Press the menu icon.

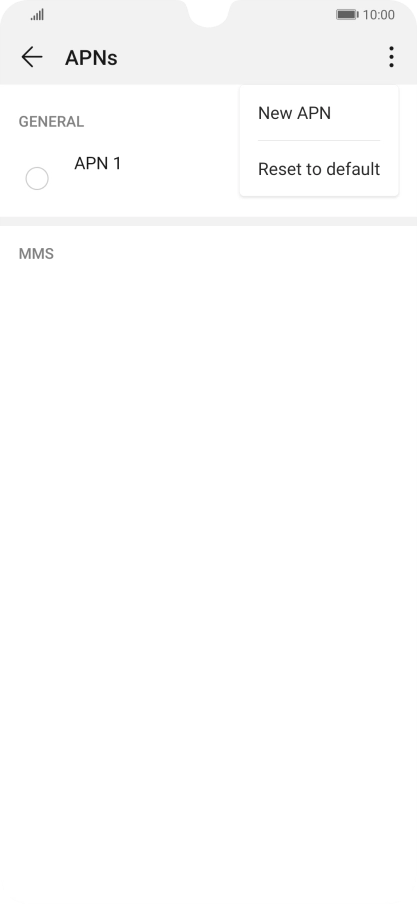

Step 6 of 26

Create new data connection

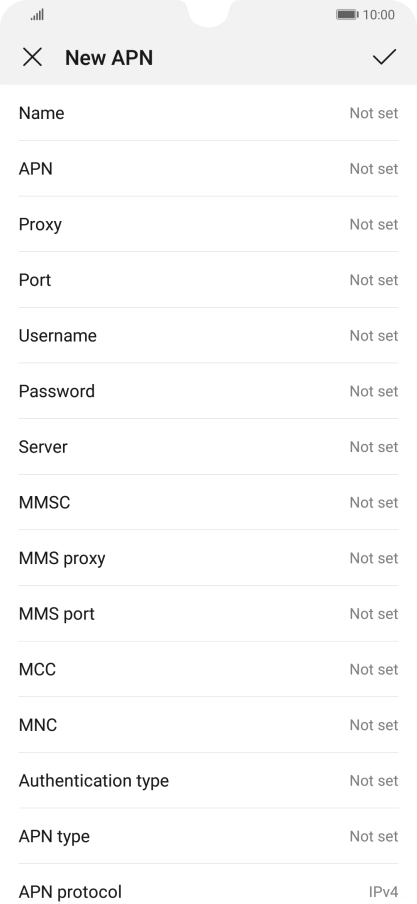

Press New APN.

Step 7 of 26

Enter a name for the connection

Press Name.

Vodafone MMS

Vodafone MMS

Vodafone MMS

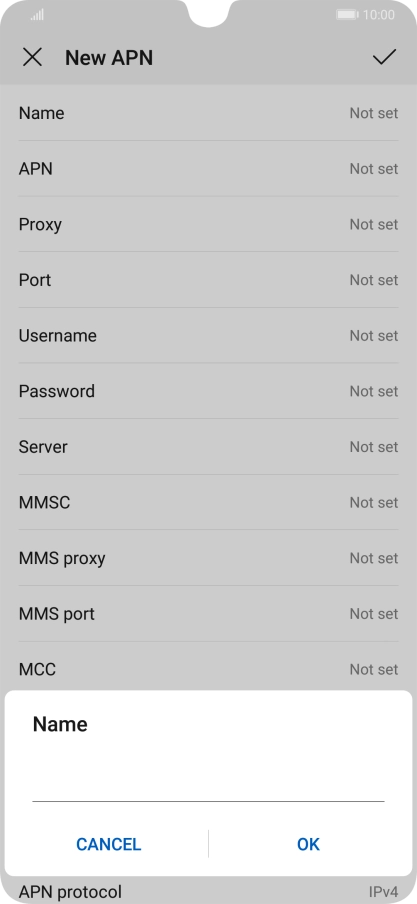

Step 8 of 26

Enter a name for the connection

Key in Vodafone MMS and press OK.

Step 9 of 26

Enter APN

Press APN.

live.vodafone.com

live.vodafone.com

live.vodafone.com

Step 10 of 26

Enter APN

Key in live.vodafone.com and press OK.

Step 11 of 26

Enter picture messaging server

Press MMSC.

http://pxt.vodafone.net.nz/pxtsend

http://pxt.vodafone.net.nz/pxtsend

http://pxt.vodafone.net.nz/pxtsend

Step 12 of 26

Enter picture messaging server

Key in http://pxt.vodafone.net.nz/pxtsend and press OK.

Step 13 of 26

Enter IP address

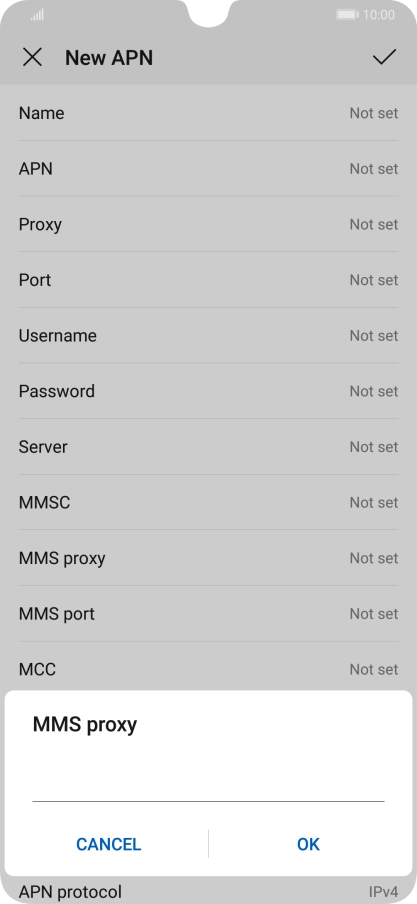

Press MMS proxy.

172.030.038.003

172.030.038.003

172.030.038.003

Step 14 of 26

Enter IP address

Key in 172.030.038.003 and press OK.

Step 15 of 26

Enter port number

Press MMS port.

8080

8080

8080

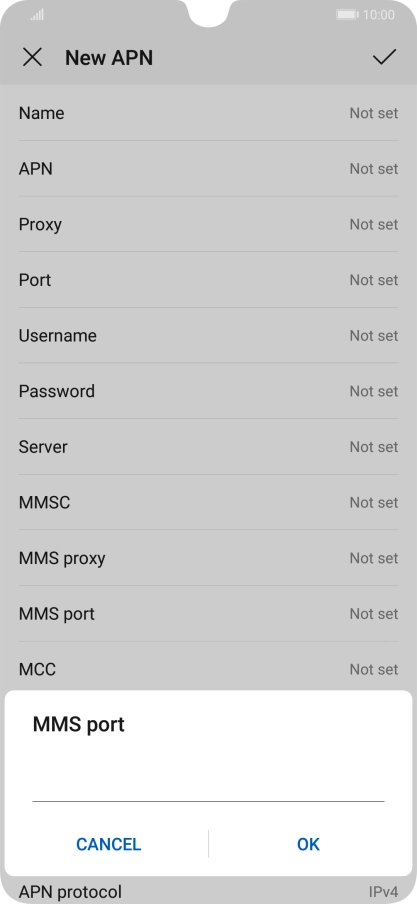

Step 16 of 26

Enter port number

Key in 8080 and press OK.

Step 17 of 26

Enter country code

Press MCC.

530

530

530

Step 18 of 26

Enter country code

Key in 530 and press OK.

Step 19 of 26

Enter network code

Press MNC.

01

01

01

Step 20 of 26

Enter network code

Key in 01 and press OK.

Step 21 of 26

Select authentication type

Press Authentication type.

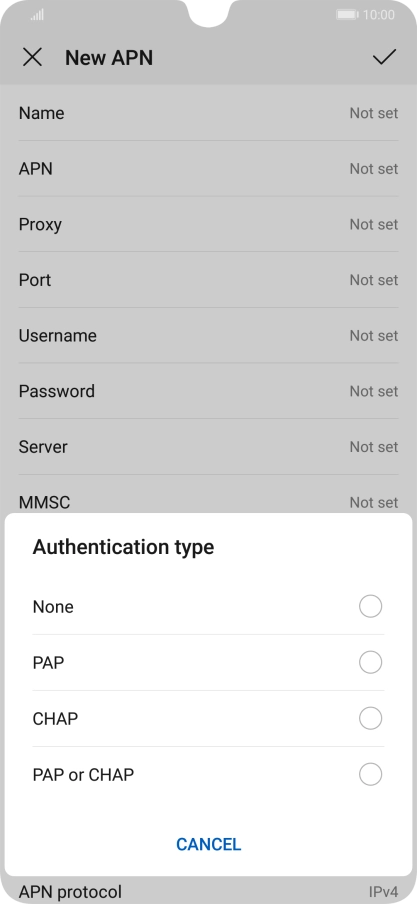

Step 22 of 26

Select authentication type

Press PAP.

Step 23 of 26

Enter APN type

Press APN type.

mms

mms

mms

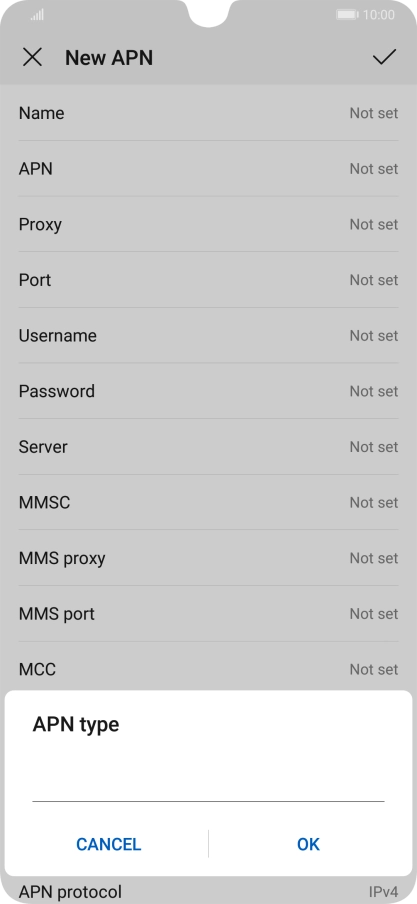

Step 24 of 26

Enter APN type

Key in mms and press OK.

Step 25 of 26

Save data connection

Press the confirm icon.

Step 26 of 26

Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

1 Find "Access Point Names (APNs)"

Press Settings.

Press Wireless & networks.

Press Mobile network.

Press Access Point Names (APNs).

2 Create new data connection

Press the menu icon.

Press New APN.

3 Enter a name for the connection

Press Name.

Key in Vodafone MMS and press OK.

Vodafone MMS

4 Enter APN

Press APN.

Key in live.vodafone.com and press OK.

live.vodafone.com

5 Enter picture messaging server

Press MMSC.

Key in http://pxt.vodafone.net.nz/pxtsend and press OK.

http://pxt.vodafone.net.nz/pxtsend

6 Enter IP address

Press MMS proxy.

Key in 172.030.038.003 and press OK.

172.030.038.003

7 Enter port number

Press MMS port.

Key in 8080 and press OK.

8080

8 Enter country code

Press MCC.

Key in 530 and press OK.

530

9 Enter network code

Press MNC.

Key in 01 and press OK.

01

10 Select authentication type

Press Authentication type.

Press PAP.

11 Enter APN type

Press APN type.

Key in mms and press OK.

mms

12 Save data connection

Press the confirm icon.

13 Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
